Guillotine with automatic clamp and programmable EP power backgauge.
Efficient and safe cutting and trimming is guaranteed by the IR light beam safety curtain on the front table.
Additional safety is provided by the transparent safety cover on the rear table.
Touchpad :
Extremely convenient and easy-to-use: Electronic control module for the power backgauge with multilingual touch pad. 99 programs with up to 99 steps can be stored.
Also useful: the pre-programmed DIN sizes and the automatic memory for repeat cuts.
Cutting length : 650mm.
Cutting height : 80mm.
Narrow cut : 25mm.
Table depth : 610mm.
Power supply : 230 Volt / 50Hz.
Motor performance (input capacity) : 1,42kW.
Dimensions : H=1290mm x W=992mm x D=1220mm.
Dimensions with side tables : H=1290mm x W=1565mm x D=1220mm.
Weight : 312kg.
Warranty 1 year.

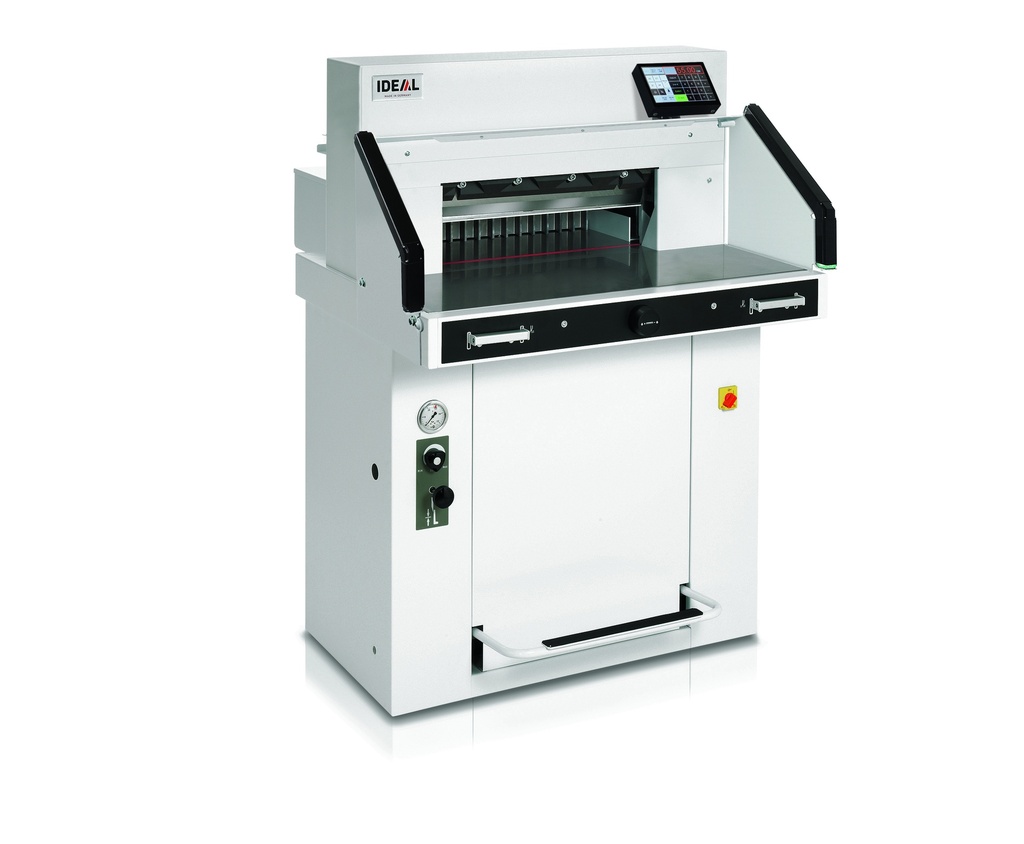

Professional guillotine with hydraulic blade and clamp drive, 55cm
EASY-CUT, programmable power backgauge with touch pad
and IR light beam safety curtain on the front table.
Hydraulic blade and clamp drive.
Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting.
Comprehensive SCS safety package :
IR light beam safety curtain on the front table;
safety cover on the rear table;
lockable main switch;
electronically controlled true two-hand operation;
24 volt controls (low voltage);
safety drive;
automatic blade and clamp return from every position;
blade changing device with covered cutting edge;
blade depth adjustment from the outside of the machine;easy blade and cutting stick change from the front of the machine without removing covers.
Foot pedal for pre-clamping or as mechanical cutting line indicator. Optical cutting line with bright and durable LEDs.
Electric backgauge drive with touch pad for easy setting, multilingual operator guidance and digital display.
Measurement readout in cm or inches (display accurate to 1/10mm or 1/100 inch). 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step).
Program runs automatically.
10-button key pad for presetting of measurement.
Pre-programmed measurements for A3 to A6 standard paper sizes.
Memory key for repeat cuts. Automatic SET function for reference
measurement via start button.
Programmable EJECT function - for pushing out the paper.
Self-diagnostic system with error indication on display.
Electronic hand wheel for manual backgauge positioning with
infinitely variable speed control (from very slow to very fast). Adjusting knob for infinitely variable clamp pressure (min. 200 / max. 1100 daN) and pressure gauge.
Cutting length: 550mm.
Cutting height: 95mm.
Narrow cut: 32mm.
Table depth: 570mm.

The HYDROCUT 550 hydraulic paper guillotine is essential processing machine for digital printing houses.
The highest security level (two-hand operation, optical light
curtain) and low noise level peculiar to it during operation.
The adjustment of cutting length takes place with stepping motor satisfied all requirements.
The pressing of the paper to bind always takes place with hydraulics but it is possible to move the paper press with foot before hydraulic pressing.
The degree of the pressing is adjustable while the cutting force is adjusted by the manufacturer.
The changing of the blade is simple; to
do it safely we supply an appliance compulsory to buy.
Accessory of the machine is the cutting line display.
The adjustment of the cutting length happens with microcontroller Mitsubishi aided digitally displayed back gauge.
The machine can be programmed with absolute and relative memory
storing.
Specifications :
Maximum Cutting lenght : 550mm.
Maximum Cutting depth : 550mm.
Minimum Cutting depth : 35mm.
Maximum Cutting Height : 80mm.
Mono phase power supply : 230 volts-50Hz - 16A.
Paper pressing : foot pedal and hydraulically.
Adjustable pressing volume (Bar) : 10-80.ch
Optical cutting line display : Yes.
Safeguards : optical light curtain, two-hand operation.
User interface : touch screen & job memory.
Air table & side table (2pieces) : option.
Dimensions of the machines : D=1650mm x W=1430mm x H=1470mm.
Net weight : 550kg.

The DigiCut 67Hhas unique features for a paper cutter in the small formatmarket segment.
The all hydraulic operation is controlled by an OMRON PLC,ensuring high accuracy and stable performance.
The rear paper table is slot-less as aresult of the double guided back-gauge design. High specification infrared safetylight-guard,
allowing safe, unobstructed access to cutting area.
The maximum cutting width of 67cm.
The DigiCut 67H is equipped with a 50 memory digital program system with up to 16 steps permemory.
The PLC ensures a cutting accuracy of +/- 0.3mm.
Easy to use, intuitivetouch-screen control with clear information display panel.
All hydraulic clamp and knife operation.
Blade change function and independent foot pedal control of clamp for
gauging/pre-clamping.
Specifications:
Max. cutting width: 670mm.
Max. cutting height: 80mm.
Hydraulic cutting, hydraulic pressing.
Omron PLC control unit.
Touch screen display.
Memory: 50 programms/each 16 steps.
Dimensions : 1400 x 1010 x 1390mm.
Accuracy: 0,3mm.
Eject function.
Easy to programm.
Cm or inches.
Weight: 410kg.
Power: 230V, 3.5Kw

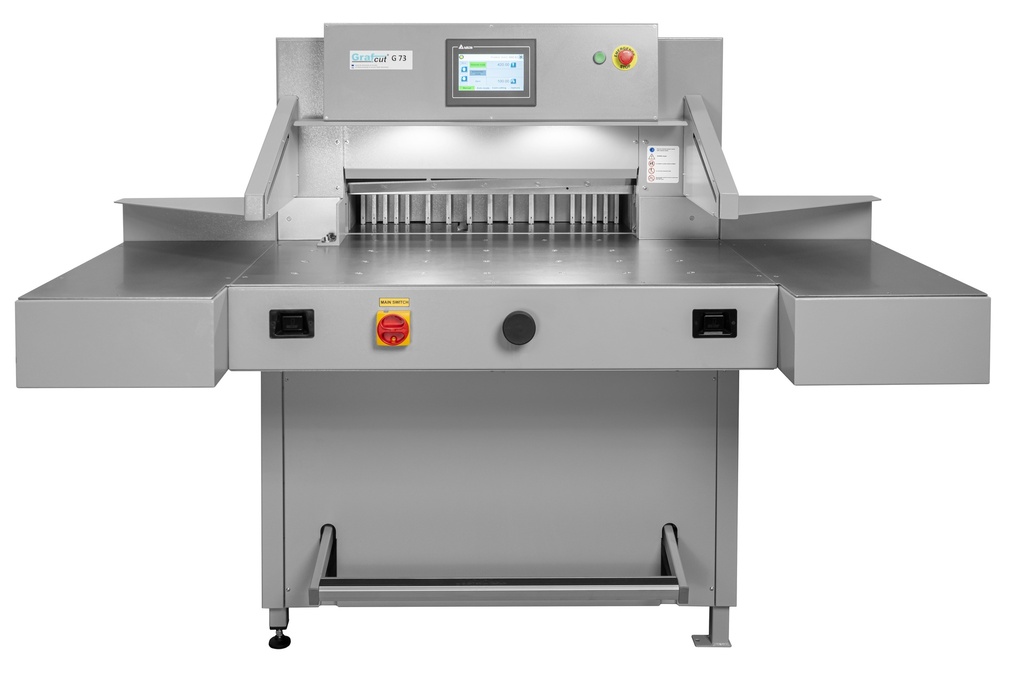

GRAFCUT 73 sturdy and cost-effective solution for pro users.
Cutting the maximum format 730mm width x 720mm depth.
High cutting accuracy 0,1mm of max paper stack up to 100mm.
Mechanical drive for knife and clamp.
Clamping pressure adjustment via touch screen.
30mm smallest cut (false clamp 60mm in standard)
Foot-pedal for material pre-clamping.
Technical info :
Cutting width : 730mm.
Cutting depth : 710mm (program mode)/730mm (manual mode).
Cutting height : 100mm.
Blade drive : Electro-mechanical.
Clamp drive : Electro-mechanical.
Backguage : Electro-mechanical.
Smallest cut : 25mm without false clamp/50mm with false clamp.
Side tables dimensions : 375mm x 658mm.
Front table height : 925mm.
Front table lenght : 640mm.
Dimensions with side tables : W=1855mm x D=1755mm x H=1460mm.
Dimensions without side tables : 1105 x 1755 x 1460mm.
Weight : 580kg.
Power supply : 400V/50 Hz, 3kW.
Warranty 2 years.
CEE Conformtity.

The HYDROCUT 650 hydraulic paper guillotine is essential processing machine for digital printing houses.
The highest security level (two-hand operation, optical light
curtain) and low noise level peculiar to it during operation.
The adjustment of cutting length takes place with stepping motor satisfied all requirements.
The pressing of the paper to bind always takes place with hydraulics but it is possible to move the paper press with foot before hydraulic pressing.
The degree of the pressing is adjustable while the cutting force is adjusted by the manufacturer.
The changing of the blade is simple; to do it safely we supply an appliance compulsory to buy.
Accessory of the machine is the cutting line display.
The adjustment of the cutting length happens with microcontroller Mitsubishi aided digitally displayed back gauge.
The machine can be programmed with absolute and relative memory
storing.
Specifications :
Maximum Cutting lenght : 650mm.
Maximum Cutting depth : 650mm.
Minimum Cutting depth : 35mm.
Maximum Cutting Height : 100mm.
Mono phase power supply : 230 volts-50Hz - 16A - 3kw.
Paper pressing : foot pedal and hydraulically.
Adjustable pressing volume (Bar) : 10-80.ch
Optical cutting line display : Yes.
Safeguards : optical light curtain, two-hand operation.
User interface : touch screen & job memory.
Air table & side table (2pieces) : option.
Dimensions of the machines : D=1750mm x W=1530mm x H=1470mm.
Net weight : 650kg.

GRAFCUT 73H fully hydraulic guillotine for heavy-duty cutting.
Cutting the maximum format 730mm width x 720mm depth.
High cutting accuracy 0,1mm of max paper stack up to 100mm.
25mm smallest cut (false clamp 50mm in standard).
Adjustable hydraulic pressure.
Powerful hydraulic drive for knife and clamp (fully adjustable).
Foot-pedal for material pre-clamping.
Technical info :

Cutting width : 730mm.
Cutting depth : 710mm (program mode)/730mm (manual mode).
Cutting height : 100mm.
Blade drive : Hydraulic.
Clamp drive : Hydraulic.
Backguage : Electro-mechanical.
Smallest cut : 30mm without false clamp (60mm with false clamp).
Front table lenght : 640mm.
Front table height : 925mm.
Side tables dimension : 376mm x 658mm.
Cutting accuracy : 0,1mm.
Power supply : 400V/50 Hz, 3kW.
Dimensions w/o side tables : 1105 x 1755 x 1460mm.
Dimensions with side tables 1855 x 1755 x 1460mm.
Weight : 600kg.
Warranty 2 years.
CE Conformity.

Warranty 2 year.

Programmable power guillotine with hydraulic clamp and professional features.
Technical Data :
Cutting length: 720mm.
Cutting height: 80mm.
Narrow cut: 20mm.
Table depth: 720mm.
Narrow cut with false clamp installed: 90mm.
Power supply (other voltages available):400 Volt / 50 Hz / 3~
Motor performance (input capacity):1.5 kW
Dimensions:H 1335 x W 1305 x D 1540mm.
Dimensions with side tables:H 1335 x W 2100 x D 1600mm.
Weight:620kg.

The HYDROCUT 750 hydraulic paper guillotine is essential processing machine for digital printing houses.
The highest security level (two-hand operation, optical light
curtain) and low noise level peculiar to it during operation.
The adjustment of cutting length takes place with stepping motor satisfied all requirements.
The pressing of the paper to bind always takes place with hydraulics but it is possible to move the paper press with foot before hydraulic pressing.
The degree of the pressing is adjustable while the cutting force is adjusted by the manufacturer.
The changing of the blade is simple; to do it safely we supply an appliance compulsory to buy.
Accessory of the machine is the cutting line display.
The adjustment of the cutting length happens with microcontroller Mitsubishi aided digitally displayed back gauge.
The machine can be programmed with absolute and relative memory
storing.
Specifications :
Maximum Cutting lenght : 750mm.
Maximum Cutting depth : 750mm.
Minimum Cutting depth : 35mm.
Maximum Cutting Height : 100mm.
Mono phase power supply : 230 volts-50Hz - 16A - 3kw.
Paper pressing : foot pedal and hydraulically.
Adjustable pressing volume (Bar) : 10-80.ch
Optical cutting line display : Yes.
Safeguards : optical light curtain, two-hand operation.
User interface : touch screen & job memory.
Air table & side table (2pieces) : option.
Dimensions of the machines : D=1850mm x W=1630mm x H=1500mm.
Net weight : 700kg.

The HYDROCUT 850 hydraulic paper guillotine is essential processing machine for digital printing houses.
The highest security level (two-hand operation, optical light
curtain) and low noise level peculiar to it during operation.
The adjustment of cutting length takes place with stepping motor satisfied all requirements.
The pressing of the paper to bind always takes place with hydraulics but it is possible to move the paper press with foot before hydraulic pressing.
The degree of the pressing is adjustable while the cutting force is adjusted by the manufacturer.
The changing of the blade is simple; to
do it safely we supply an appliance compulsory to buy.
Accessory of the machine is the cutting line display.
The adjustment of the cutting length happens with microcontroller aided digitally displayed back gauge.
The machine can be programmed with absolute and relative memory
storing.
Specifications :
Maximum Cutting lenght : 850mm.
Maximum Cutting depth : 850mm.
Minimum Cutting depth : 35mm.
Maximum Cutting Height : 100mm.
Mono phase power supply : 380volts-16A-P=3kw.
Paper pressing : foot pedal and hydraulically.
Adjustable pressing volume (Bar) : 10-80.ch
Optical cutting line display : Yes.
Safeguards : optical light curtain, two-hand operation.
User interface : touch screen & job memory.
Air table : option.
Dimensions of the machines : D=1950mm x W=1730mm x H=1500mm.
Dimensions of the machines with tables : D=1950mm x W=2330mm x H=1500mm.
Net weight : 750kg.
