Manual binding equipment designed for binding documents with a plastic combs. Recommended for large offices and copy shops. Thanks to a solid metal construction, the device is very durable! Smooth mechanism for stretching combs makes the Jumbo B very comfortable to use. It is equipped with margin adjustment, format limiter, releseable knives and a large container for felling. In addition, it has a clear dimension of the thickness of the ridges. This is the successor of the highly-acclaimed JUMBO binding machine.

Specification :
Brand : OPUS
Binder type : plastic
Purpose : plastic/wire binding
Operation type : manual
Maximum format : A4
Maximum punching sheet* capacity : 25 * tests made on paper 80 g/m²
Spine type : plastic
Binding capacity (sheets)* for plastic comb : 510 (51 mm spine)
Punching specification: spine type : plastic comb
Punching specification: number of releseable knives : 21
Margin adjustment : Yes
Metal housing : yes
Adjustable backgauge : yes
Spine thickness measurement : no
Net weight : 14,20 kg
Gross weight : 15,80 kg
Height : 256 mm
Width : 400 mm
Depth : 425 mm
Feature / purpose : Manual binding machines, Office binding machines
Type of binding : Binding with plastic spines

Standalone plastic comb manual closing machine for closing of plastic comb elements from ø 6 to 52 mm (1/4" - 2")

EAN 4029126230302
Article no. 38340013400
Pitch US or EUROP
Binding thickness 1 - 50 mm
Binding element Ø 6 - 52 mm
Min. binding width 10 mm
Max. binding width 340 mm
Binding operation Manual
No. of books output per hr 250
Machine dimensions L x W x H 500 x 190 x 170 mm
Machine weight 4.3 kg
Machine packing dimensions L x W x H 620 x 480 x 345 mm
Machine weight with packing 6.5 kg

Combined manually operated punch and binding machine, up to max. size 34cm.
For more advanced requirements.
For all documents up to 24 cm (13.5") binding width.
A combined two-lever system for manual punching and binding. Adjustable margin control and disengageable punch pings for easy format adjustment.
US-pitch - 21 rings in A4.
Pages can be exchanged or added as often as required.
Opens flat and stays flat.
Ergonomic design: workflow from top to bottom.
Quality "Made in Germany".
Working width: max. 340mm.
Punching thickness: 25sheets 70gr./m² paper.
Book thickness: max. : 500sheets 80 gr./m² paper.
Binding capacity: max. 250 books/h (depending on product, logistics and operator).
Disengageable punching pins: yes.
Number of punching pins in US pitch: 34 (punches up to ~ 1,5 mm to the edge).
Adjustable margin: yes.
Warranty 1 year.
CE-Conformity.

30 sheet punch capacity, 500 sheet binding capacity with a maximum comb size of 51mm.
All metal engine and body designed for traditional punch and bind operation.
21 Individual and selectable punching pins.
Fully adjustable edge guide (side margin).
5 position back margin & document measure.
Binding Capacity : 500.
Binding Element Selector : Yes
Item H x W x D (cm) : 21.40 x 40.20 x 40.40.
Item Weight (kgs) : 13.24.
Material Type : Steel.
Punching Capacity : 30 Sheets.

Binding doesn't get any simpler !
Ideal for everyday, high volume use, the robust CombBind C800Pro fully integrates the convenience of electric punching with easy manual binding.
Operated by a switch or foot pedal, it can punch up to 20 x 80gsm sheets and bind up to 450 sheets using a 51mm spine.
Selector pins allow you to adjust paper size up to A4, margin depth can also be altered.

Professional JUMBO EL electric hole puncher perfectly suited for large volumes for the office or Copy-services.
Punch pedal for hands-free operation.
Adjustable paper stop.
Adjustable margin depth (4 positions).
Large capacity confetti drawer.
Robust cast aluminum body.
Stainless steel punching and binding mechanism.
Technical characteristics :
Punching capacity: 25 sheets 70gr./m².
Binding capacity: 450mm.
All punches are disengageable.
Dimensions: L=400mm x D=425mm x H=256mm.
Weight: 17.2kg.
1 year warranty.
Complies with CE safety standards.
Tiroir à confettis grande capacité.
Carrosserie robuste en fonte d’aluminium.
Mécanisme de perforation et de reliure en acier inoxydable.
Caractéristiques techniques :
Capacité de perforation : 25 feuilles 70gr./m².
Capacité de reliure : 450mm.
Tous les poinçons sont débrayables.
Dimensions : L=400mm x P=425mm x H=256mm.
Poids : 17,2kg.
Garantie 1 an.
Conforme aux normes de sécurité CE.

Professional multisystem modular binding equipment.
Electric, foot drive, good efficiency – up to 25 sheets of paper (80 gr./m²).
Available 9 interchangeable punching modules.
It takes up little space and can replace existing traditional punching equipment for wire and plastic binding.
Operation type : electric.
Metal housing : Yes.
Adjustable backgauge : Yes.
Dimensions : W=436mm x d=219mm x H=401mm.
Weight : 30kg.
Warranty 1 year.

Pas de traduction en anglais.

Professional ProfiMax PUNCHMATIC 700 electric puncher with very high punching capacity.
A mixed solution intended for reprographers and administrations needing a high-performance device for intensive use.
Fantastic value for money.
Electric vertical perforation up to 35 sheets 80gr./m².
Choice of the type of perforation interchangeable tools:
Plastic Rings, Metal Rings at 3:1 Pitch & 2:1 Pitch, Spiral Coil at 4:1 Pitch.
Delivered without punching tools (choice of 10 optional punching cassettes).
Many tools available in round holes or square and rectangular holes, including perforation cassette for special calendar hook perforation.
Changing the punch cassette in seconds.
Robust construction with metal fairing.
Adjustable punch depth.
Machine weight: 32kg.
Machine dimensions P=460mm x L=360mm x H=185mm.
Optional in combination with the OPUS CLOSER or OPUS AUTOWIRE CLOSER multifunctional binding systems.
Complies with CE safety standards.

Electric punch high yields interchangeable tools.
Use tools Wire-o 3.1 (34 holes) and 2.1 (23 holes), and the perforation holes 21 for plastic spiral.
Change tools in less than 1 minute.
Punching capacity: 35 sheets 80g.
Drilling speed: up to 20,000 sheets / hour.
All punches are releasable for punching out standard formats.
Warranty 1 year.

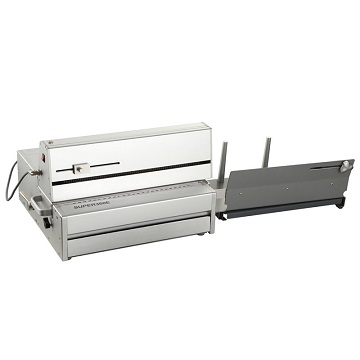

The SP-360E Electric Perforator is a mixed solution intended for copy-services and administrations needing a high-performance device.
Automatic paper ejection after electric vertical punching 35-40 sheets.
Supplied without punching tools to choose from as options.
Choice of the type of perforation interchangeable tools: Plastic & Metal Rings Pitch 3:1 & Pitch 2:1, Coil Pitch 4:1.
Adjustable perforation depth : Yes.
Maximum document length : 360mm.
Perforation speed : up to 28,000 sheets / hour.
Perforation capacity : 25 sheets 80gr./m².
Machine weight : 35kg.
Machine dimensions : W=985mm x D=744mm x H=300mm.
Electrical connection 220-240V - 50HZ.
Electric power : 2000w.
Complies with CE safety standards.
1 year warranty.

Get the perfect binding solution for your smaller projects with the Rhin-O-Tuff OD4012 11.7″ Vertical Punch! Its compact and lightweight design makes it easy to use and transport, while the unparalleled precision ensures your projects are always perfectly punched. Whether it’s textbooks, directories, instruction manuals, or business reports, the Rhin-O-Tuff HD6500 guarantees a flawless finish every time. Plus, with its Open-Ended design, the OD4012 can also handle larger projects when needed.

Fully Interchangeable Dies allow for quick transitions between binding types.
EZ-Change Die System is a significant improvement over traditional die change methods.
Fully Disengageable Pins provide flexible hole-punching configurations.
Standard Paper Stop and Scale System allows for quick adjustments and precise positioning.
Compatible with PAL-14 & PAL-M (Pick-A-Lift).
Don’t forget to add premium binding modules for Coil, Wire, or Comb binding and productivity modules for ultimate throughput.

11.7” (297 mm) open ended heavy duty die: Punch up to 30 sheets of 20-pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used.

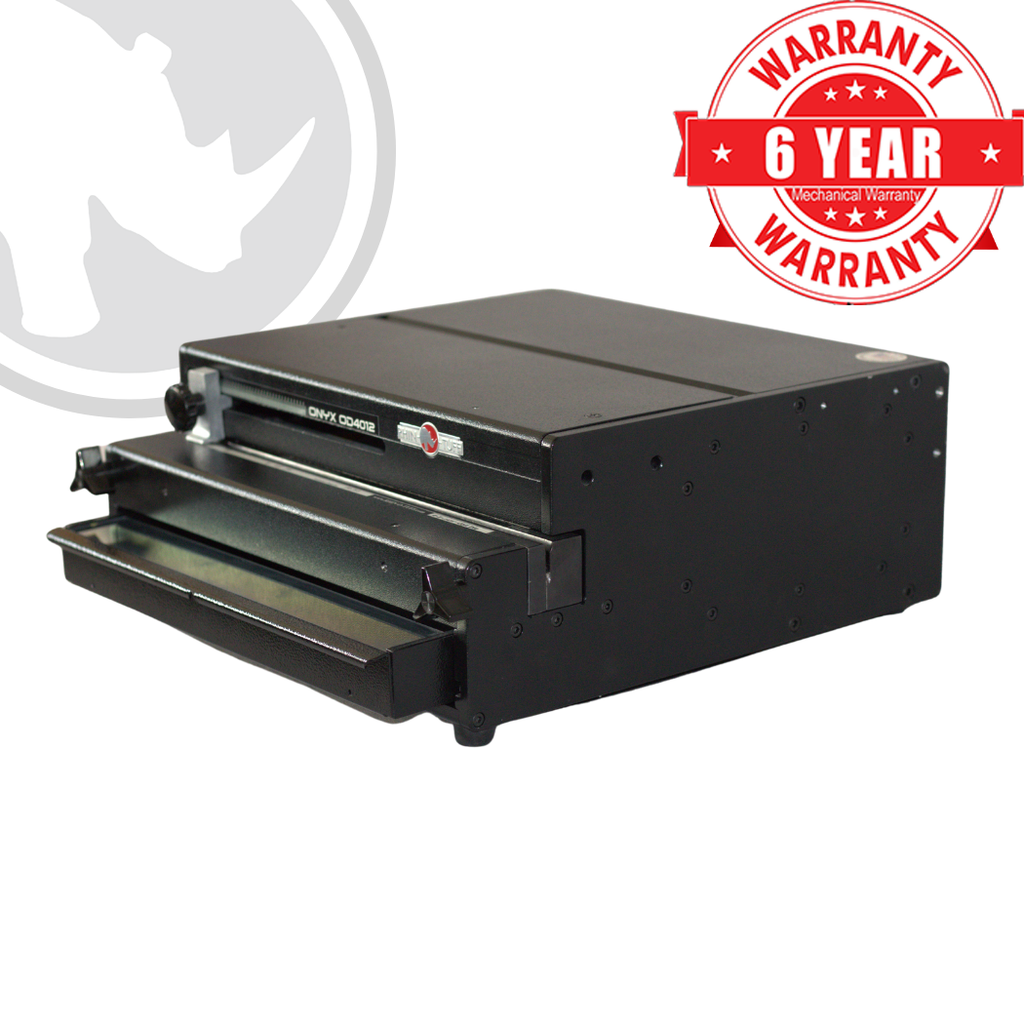

E-Z Change Die System: The OD4012 boasts the revolutionary E-Z Change Die System, allowing you to switch punch patterns swiftly and effortlessly. With just a few simple steps, you can adapt to varying document requirements with ease and efficiency.
Fast Cycle Times:Achieves 65 cycles per minute for productive operation.
Wide Sheet Punching: Compatible with 11-inch (A4) size dies with open sides, allowing for wider sheet punching capability.
Swing Away Die Pin Retainer System: Features a patented system that allows quick access to all die punch pins while securely holding them in place. Easily disengage any die punch pin for customization.

Pas de traduction en anglais.

Pas de traduction.

Eliminate paper jams and workflow inefficiencies with Rhin-O-Tuff Pal-14 Piks-A-Lift paper picker. This innovative device separates your documents into easy-to-punch lifts, optimizing your punching capabilities and eliminating guesswork. With the Piks-A-Lift, you can pick up the same number of sheets every time, increasing punching efficiency by up to 50%.

You can select the desired number of sheets per lift with accuracy, which makes it easier to ensure that your collated documents stay organized throughout the punching process. The Pal-14 Piks-A-Lift can handle up to 3 reams of paper at a time, accommodating legal-sized documents and index tabs. By using the Pal-14 Piks-A-Lift, you can experience faster job completion and increased productivity.

Seamlessly integrates with Rhin-O-Tuff vertical OD or HD punches and the APES system, the PAL-14 offers unmatched flexibility and scalability, accommodating a wide range of paper punching needs.

MORE THAN 98% RECYCLABLE.

Variable Paper Lift Thickness: Enjoy the flexibility to handle paper sizes ranging from 5.5 inch x 5.5 inch (140 mm x 140 mm) up to 8.5 inch x 14 inch (216 mm x 356 mm), including index tabs, clear covers, and over-sized covers. The PAL-14 adapts to your specific needs with ease.
Automatic Paper Selection: The PAL-14 intelligently selects and lifts the precise amount of paper for easy insertion and punching, eliminating the hassle of paper jams and inefficient punches. Simply adjust the dial, press the button, and experience smooth and accurate operations
Versatile Compatibility: The PAL-14 can be used as a stand-alone configuration or easily mounted to any Rhin-O-Tuff vertical OD or HD punch. Additionally, it can be combined with the APES system for enhanced efficiencies, making it suitable for a wide range of applications.

Meet the all-new GBC® Magnapunch™ Pro. This powerful interchangeable die punch is the fastest in the industry and delivers unparalleled reliability and durability.
Boasting a half-second punch cycle, the Magnapunch Pro provides your office or print shop with a best-in-class high-volume desktop punch.
Half-second punch cycle.
Efficient power system driven by flywheel technology that converts electric energy to kinetic energy, allowing for faster acceleration and punching.
Punches up to 49 sheets at a time (varies by punch pattern).
Punch activated by table top trigger or foot pedal to maximize throughput.
Easily accessible punch-pins.
Large chip tray with capacity for chips from 40,000 sheets.
All-metal housing.
Redesigned metal cover with die set ruler viewer.
Cast aluminum base that acts as a durable platform for the punching mechanism.
Durable precision worm gears constructed from high-grade carbonized steel, which allow for quick energy transfer and faster punching.
Enhanced edge guide with adjustable sliding knob and screw system.
Locking die set system with integrated safety switch, 13 die sets (including a new wire calendar die), and compatibility with Magnapunch 2.0 dies.

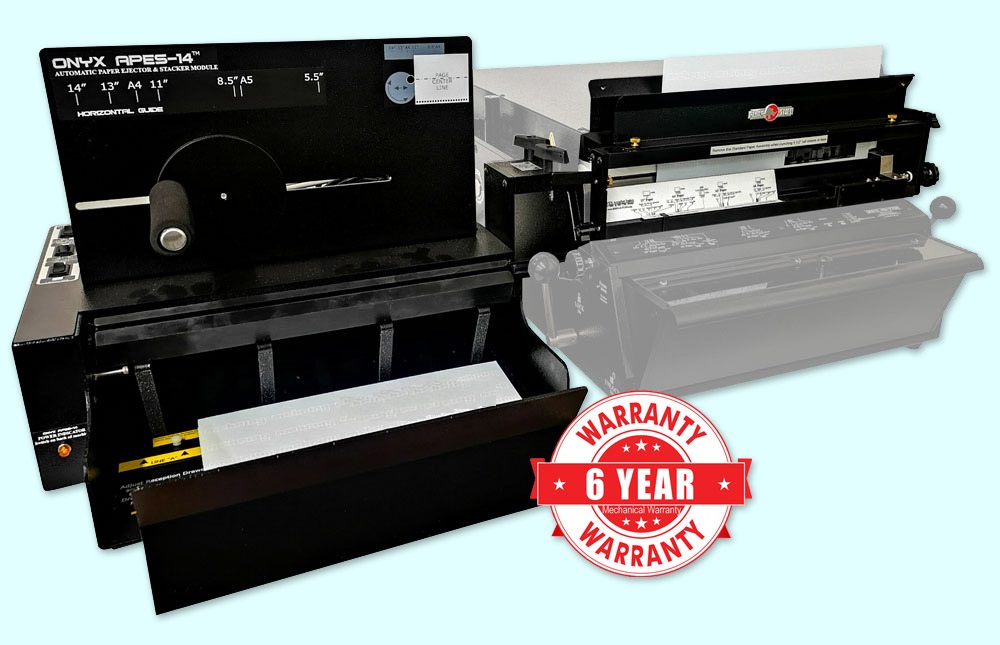

Unlock the full potential of your Rhin-O-Tuff HD punch with the Rhin-O-Tuff APES a revolutionary Automatic Paper Ejector & Stacker module designed to elevate the efficiency of your punching process. Seamlessly integrated with your Rhin-O-Tuff HD6500, HD7000, or HD7700, the APES offers an all-in-one solution, effortlessly punching, ejecting, and stacking in a single smooth operation. Say farewell to manual paper handling and welcome a 50% increase in productivity, allowing you to complete more projects in less time.

The APES represents our commitment to streamlining your punching process, automating paper handling, and boosting overall productivity by up to 50%.
The APES is designed to increase your punching output and extend the useful life of your existing HD7700, HD7000, or HD6500 machines.
Understanding the diversity of your needs, the APES is capable of handling various paper sizes from 5 1/2 x 5 1/2 inches up to 14 x 14 inches (140 X 140 mm to 356 X 356 mm), as well as cover stock and tabs.
Our commitment to fast and accurate results is unwavering. The APES offers superior simplicity of installation and setup, ensuring a hassle-free experience.
Upgrade your HD6500, HD7000, or HD7725 with the APES Automatic Paper Ejector and Stacker module designed for efficiency and durability.

MORE THAN 98% RECYCLABLE

Versatility: Universal design accommodates paper sizes ranging from 51⁄2″ x 51⁄2″ up to 14″ x 14″ (140 x 140mm to 356 x 356mm), ensuring compatibility with a wide range of applications.
Seamless Integration: The ONYX APES easily attaches to your Rhin-O-Tuff HD6500, HD7000, or HD7700, enhancing your existing equipment without the need for a large capital investment.
Maximize Productivity, Minimize Effort: Experience an increase in productivity of up to 50%, allowing you to complete more projects in less time.

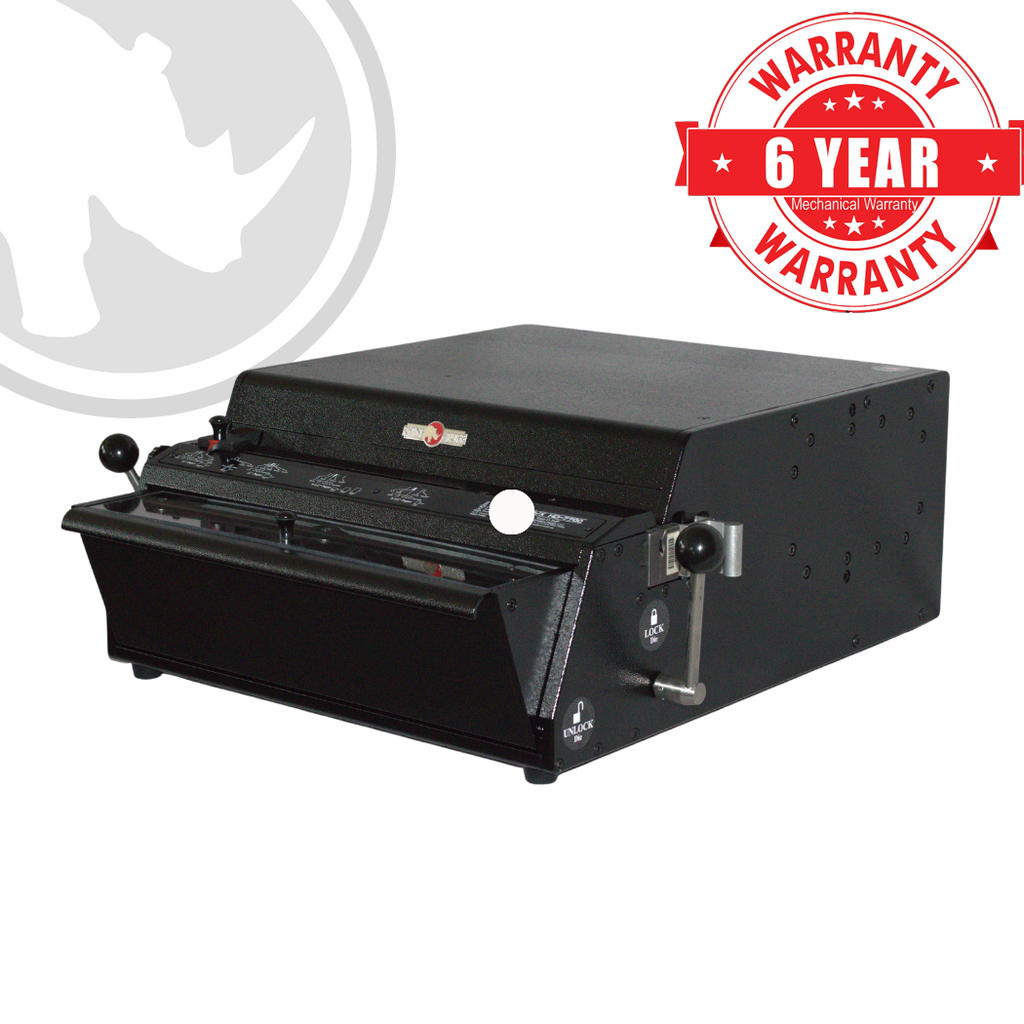

Searching for a better punching & binding experience? Look no further than the Rhin-O-Tuff HD7725 14″ Vertical Punch, the Ultimate Vertical Electric Punch. This powerful machine is designed for maximum throughput and can handle a wide range of high-volume projects, including textbooks, catalogs, business reports, and marketing materials. With unparalleled performance, the Rhin-O-Tuff HD7725 is engineered to exceed all your binding needs.

Fully Interchangeable Dies allow for seamless transitions between binding types.
Premium Quick-Change Die System enables rapid, tool-free die pattern swaps.
Fully Disengageable Pins provide flexible hole-punching configurations.
Premium Paper Stop and Scale System allows for quick adjustments and precise positioning.
Compatible with APES (Auto Paper Ejector & Stacker) and can be mounted with PAL-14 & PAL-M (Pick-A-Lift).
Don’t forget to add premium binding modules for Coil, Wire, or Comb binding and productivity modules for ultimate throughput.

14” (356 mm) open ended extra capacity die: Punch up to 55 sheets or 110 pages of 11 inch, 20-pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punchpattern used.
The Accu-Set Paper Stop:Set-up all hole placements easily & accurately to fit comb, wire, coil, and spiral binding machines, even on odd sized paper.
U-View waste tray:Holds up to 150% more waste than any other table top punch & eliminates troublesome overfills.
Diagnostic Display Lights: Give indications of important machine conditions.
Automatic and Manual Reverse: Providing extra insurance to reduce costly downtime & expensive service calls due to overload jams.

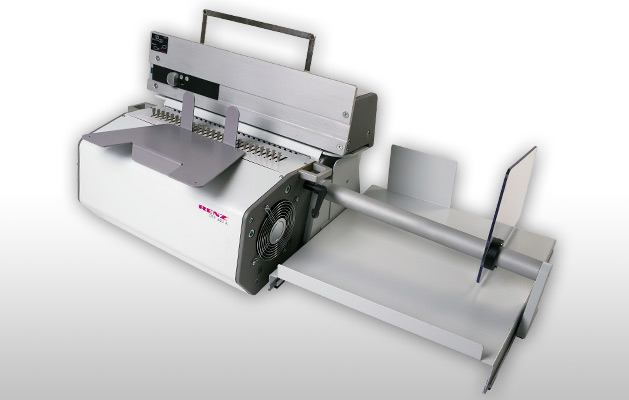

Electric punch table high performance.
Punching capacity approx. 1800 - 2000 cycles per hour.
Punching width 340 mm max.
Automatic or manual mode choice (footswitch).
Quick and easy tool change (2 min. Max.) Through retractable paper conveyor.
Vertical easy installation paper.
Paper guide to semi-automatic adjustment.
Receiver removable paper for non perforated paper.
Box of variable reception with a front drawer for perforated paper.
Automatic drain throat punch at a club Walking.
Punches punching tools can be disengaged by a
The distance to edge tools is adjustable.
Gear dog.
Special equipment:
Round shot thumb, 20mm, only for full binding, 3:1 pitch.
Warranty 1 year.

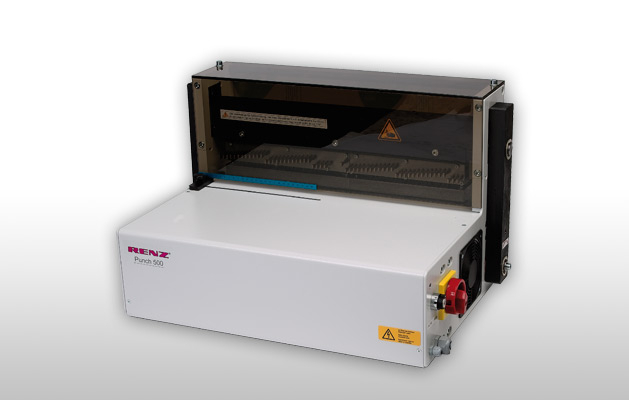

Electric punch RENZ Punch 500 with a universal vocation of perforating tools interchangeable.
Working width 500mm.
Cycles of theoretical perforation: 3000 - 3500/h.
Punching capacity in practice: 400-500/h.
Maximum thickness perforation: 2.5 -3.0mm.
QSA advantageous tools (punch knives disengageable by a)
Ultra-fast exchange of punching tools.
Perforating tools into two parts with boost.
Warranty 1 year.
