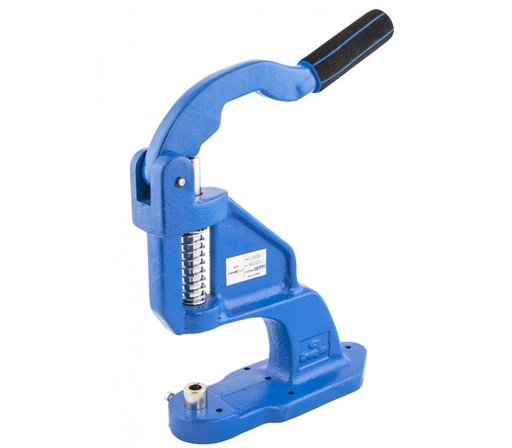

Robust eyelet press for the visual (tarpaulin, banner ...) and also for laying on various textiles.
Unbeatable value for money!
Optional interchangeable setting machine (dies) for laying different diameters of eyelets.
The GF-104 press uses self-piercing eyelets available in several internal diameters: 5mm - 8mm - 9.2mm - 11.6mm - 15.2mm and 16.2mm.
The GF-104 press also uses "All in one" eyelets for laying on textiles available in internal diameters from 25mm to 60mm.
Aligment tool (in option) perfect for precise spacing between two eyelets.
Number of head: 1.
Manual command.
Table model.

Using areas: textile industry ,sign banner industry, pvc brenda industry and other related industries.
For Tent, Canvas big size eyelets, ablong oval eyelets.
Adjustable Stroke Level.
Allows the installation of self-piercing galvanized eyelets with a diameter of 5mm to 16.7mm and eyelets for textiles with an "All in one" galvanized installation set (matrix) from 20mm to 60mm.
Minimum manual effort with maximum impact force.
Interchangeable dies setting.
Heavy duty durability.
Easy to carry.
Suitable numerous materials.
Parts and service avaliable.
Machine body made of high quality best quality iron casting raw material.
Aligment tool (in option) perfect for precise spacing between two eyelets.

Technical Spefications :
Net Weight : 14,5kg.
Throat Depth Dimension : 73mm.
Height Dimension : 420mm.
Width Dimension : 160mm.
Depth Dimension : 400mm.
Bottom Die adaptor hole : 11,8mm.
Top Of Die Screw : 6,35mm.

Piccolo 102-00 / 102-04 Basis
Single head eyeletting machine for manual operation with automatic eyelet infeed
Suitable for paper, cardboard, plastic etc.
Ideal for contracts, certificates and labels
Punches and eyelets in one work process (the eyelet punches the hole)
Adjustable rear and side stops
Model 102-00:
Available for eyelets with inner diameters of 4mm or 5.5mm.
With self-punching eyelets: up to 20 sheets with 80gr./m² paper or material thickness up to 2mm.
Model 102-04:
Available for an eyelet diameter in the range of an internal diameter of 3 – 7.5 mm
With self-piercing eyelets up to 30 sheets with 80gr./m² paper or material thickness up to 3mm.
With pre-punched material: up to 80 sheets with 80gr./m² paper or material thickness up to 8mm.
Easy to change over for another eyelet size in the range of 3 - 7.5mm.
Technical Data :
Working depth 85mm.
Dimensions : W=295mm x D=330mm x H=380mm.
Weight : 12kg.

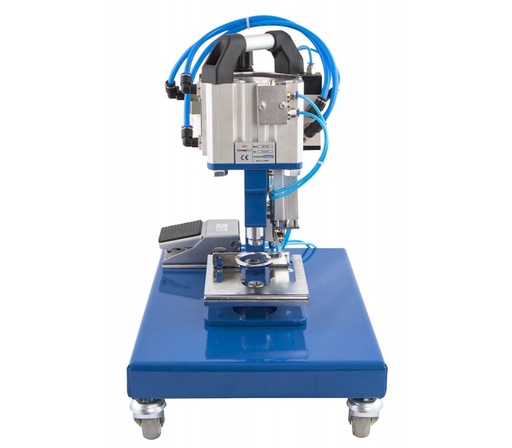

Pneumatic press GF-10 intended for the application of eyelets on cardboard, vinyl.
Equipped with optional interchangeable dies, it can apply eyelets with a diameter of 5mm to 16.2mm.
Very easy change of dies in seconds.
Equipped with a practical positioning guide.
Easy to wear, it can be used in any environment.
Impact pressure force: 1500 kg/cm².
Working pressure: 4 bar up to 8 bar
Air consumption: 0.3 liters.
Soundproof compressor (41db) not included and available as an option.
Complies with CE safety standard

Piccolo 102-30 / 102-34 Komfort
Manually-operated single eyeletting machine with automatic eyelet infeed
Suitable for paper, cardboard, plastic etc.
Ideal for contracts, certificates and labels
Punches and eyelets in one work process (the eyelet punches the hole)
Material support with steplessly adjustable rear and side stops guarantee exact positioning
Model 102-30:
Available for an eyelet size with inner diameter of 4 mm or 5.5 mm
With self-punching eyelets: up to 20 sheets with 80 g/m2 paper or material thickness up to 2 mm
Model 102-34:
Available for an eyelet diameter in the range of an internal diameter of 3 – 7.5 mm With self-piercing eyelets up to 30 sheets with 80 g/m2 paper or material thickness up to 3 mm With pre-punched material: up to 80 sheets with 80 g/m2 paper or material thickness up to 8 mm Easy to change over for another eyelet size in the range of 3 - 7.5 mm
Technical Data
Unit 102-30 102-34
Working depth mm 80 80
Width mm 440 440
Height mm 380 380
Depth mm 340 340
Weight kg 18 18

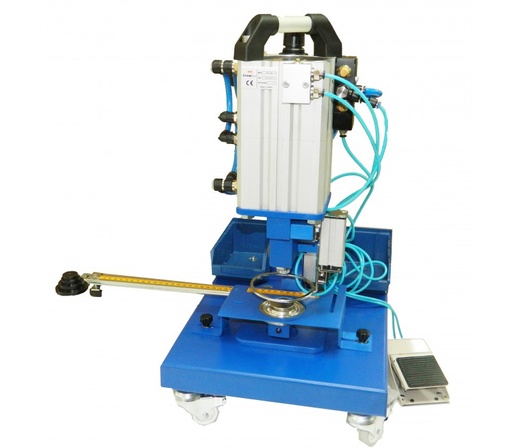

Interchangeable dies setting.
Heavy duty durability.
Easy to carry.
Suitable numerous materials.
Machine body made of high quality best quality iron casting laser cutting.
Impact Press Force : 2000kg/cm² (2 tone).
Working Pressure : 4 Bar up to 8 Bar.
Air consumption : 0,3 Litre
Hand security ring Ce certificated.
GF-10-B can fasten on bench or table or mobile base with wheel.
GF-10-B can work with any small compressor (option).
Compatiable with all self piercing grommet & eyelet dies number #1.7 up to #5.5 , and big size #7.5(25mm), #8.5(30mm), #GM34(28mm), #12LN (40mm), #12SN(40mm) curtain grommets and oval 40x20 , oval 42x22 DIN oval grommet and washer all size oval grommets and 40mm DIN Truck cover 40mm eyelet and washer.
Using areas: Curtain industry, textile industry, sign banner industry, pvc industry and other related industries.
Aligment tool incluted.
Technical Specifications :
Net Weight : 21kg.
Throat Depth Dimension : 90mm.
Height Dimension : 380mm.
Width Dimension : 200mm.
Depth Dimension : 130mm.
Bottom Die adaptor hole : 9,5mm.
Top Of Die Screw : 6,35mm.
Warranty 3 years.

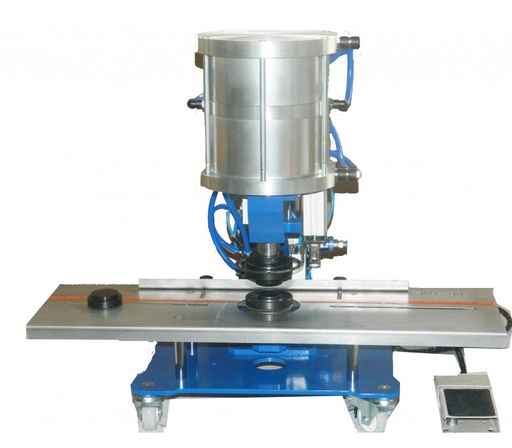

The GF-20 pneumatic press is particularly suitable for the application of eyelets on textiles.
Perforation and placement of the eyelet in a single operation!
It uses 25mm, 30mm, 40mm and 50mm inner diameter eyelets.
GF-20 Pneumatic Grommet Machine impact force capacity : 3 tone/1cm².
Air pressure requirement :8 Bar-100 litre minimum.
Interchangeable automatic dies settings : suitable for 50mm,40mm,30 mm,25mm inside hole diameter eyelets,grommets.
Gross weight : 51kg.
Hand guard safety system.
CE certificated.
GF-20 have wheels, you can fasten up onto table.

Piccolo 102-20 / 102-28
Single head eyeletting machine for foot operation with automatic eyelet feed
Suitable for paper, cardboard, plastic etc.
Ideal for contracts, certificates and labels
Punches and eyelets in one work process (the eyelet punches the hole)
Material support with steplessly adjustable rear and side stops guarantee exact positioning
Model 102-20 :
Available for an eyelet size with inner diameter of 4mm or 5.5mm.
With self-punching eyelets : up to 20 sheets with 80gr./m² paper or material thickness up to 2mm.
Model 102-28 :
Available for an eyelet diameter in the range of an internal diameter of 3 – 7.5 mm.
With self-piercing eyelets up to 30 sheets with 80gr./m² paper or material thickness up to 3mm.
With pre-punched material: up to 80 sheets with 80gr./m² paper or material thickness up to 8mm.
Easy to change over for another eyelet size in the range of 3 - 7.5mm.
Technical Data :
Working depth 55mm.
Dimensions : W=500mm x D=500mm x H=1150mm.
Weight : 44kg.

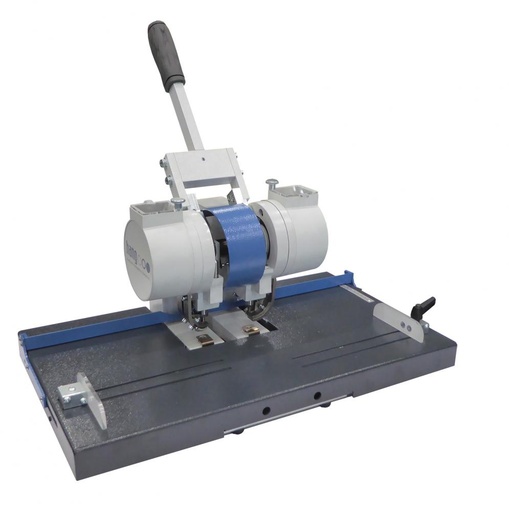

Piccolo 102-15
Twin head eyeletting machine for manual operation with automatic eyelet infeed
Fixed offset 80 mm
Suitable for paper, cardboard, plastic etc.
Ideal for contracts and certificates
Punches and eyelets in one work process (the eyelet punches the hole)
Material support with steplessly adjustable rear and self-centring side stops guarantee exact positioning
Available for eyelets with inner diameters of 3 - 7.5 mm
With self-punching eyelets: up to 30 sheets with 80 g/m2 paper or material thickness up to 3 mm
With pre-punched material: up to 50 sheets with 80 g/m2 paper or material thickness up to 8 mm
Easy to change over for another eyelet size in the range of 3 - 7.5 mm
Technical Data
Working depth mm 70
Width mm 620
Depth mm 340
Height mm 375
Weight kg 28

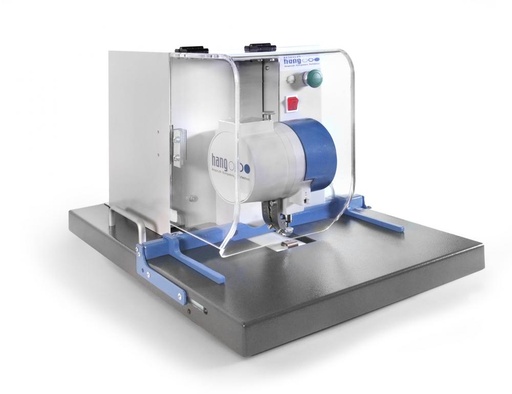

PiccoStar 102-50
Single head eyeletting machine with electrical drive.
Automatic eyelet feed.
Suitable for paper, cardboard, plastic ,...
Ideal for contracts, certificates and labels.
Punches and eyelets in one work process (the eyelet punches the hole).
Material support with steplessly adjustable rear and side stops guarantee exact positioning.
Pushbutton to release the eyeletting process.
Available for eyelets with inner diameters of 3 - 7.5mm.
With self-punching eyelets : up to 30 sheets with 80gr./m² paper or material thickness up to 3mm.
With pre-punched material : up to 50 sheets with 80gr./m² paper or material thickness up to 8mm.
Easy to change over for another eyelet size in the range of 3 - 7.5mm.
Option : Foot switch.
Technical Data :
Working depth 60mm.
Machine dimensions : W=470mm x D=580mm x H=370mm.
Weight : 43kg.
Warranty 1 year.

PiccoStar 102-60
Double eyeletting machine with electric drive.
Fixed offset 80mm.
Automatic eyelet feed.
Suitable for paper, cardboard, plastic etc.
Ideal for contracts and certificates.
Punches and eyelets in one work process (the eyelet punches the hole).
Material support with steplessly adjustable rear and self-centring side stops guarantee exact positioning.
Pushbutton to release the eyeletting process.
Available for eyelet diameters with inner diameters of 3 - 7.5mm.
With self-punching eyelets : up to 30 sheets with 80gr./m² paper or material thickness up to 3mm.
With pre-punched material : up to 50 sheets with 80gr./m² paper or material thickness up to 8mm.
Easy to change over for another eyelet size in the range of 3 - 7.5mm.
Options : Foot switch.
Technical Data :
Working depth 60mm.
Machine dimensions : W=610mm x D=580mm x H=370mm.
Weight 58kg.
Warranty 1 year.

Automatic Electric Eyelet Machine for fabric, Flag, Banner, Tarpaulin.
Operating modes : Ground pushing and desktop fixed.
Suitable fabrics : Chemical fabric, felex banner, tarpaulin, canvas, etc...
Speed : 3000pcs/hour.
Inner diameter : 12mm or 16mm.
Size : 650mm x 600mm x 900mm.
Power Supply : 220v-50/60Hz.
Rated power : 200w.
Weight : 55kg.
Warranty 1 year.

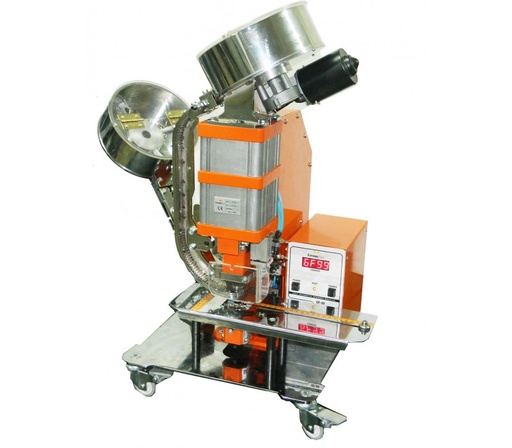

The GF-99 full automatic grommet machine with double dispensers, punches and places the eyelet in a single operation.
Pneumatic press requiring a compressor of at least 8 bar (as an option we recommend our PT50 compressor oil free, characteristics on our site).
Eyelet fastening capacity from 2500 to 2600 pieces per hour (depending on the operator).
The GF-99 press can place eyelets with an internal diameter of 8mm or 10mm or 12mm or 16mm (to be chosen when ordering).
Dual-feed telescopic system, durable assembly.
Control by pedal or push button.
Equipped as standard with an electronic digital counter and a laser pointer.
Table model (stand/support) optional.
Emergency stop button.

Technical characteristics :

Electrical connection : 220v (50/60Hz).
Pressure requirement : 8 bar air compressor.
Table model dimensions : H=95cm x W=85cm x D=50cm.
Weight : 58Kg.
Impact force capacity : 1.8 ton/cm².
Gooseneck depth : 150mm.
Complies with CE safety standards.

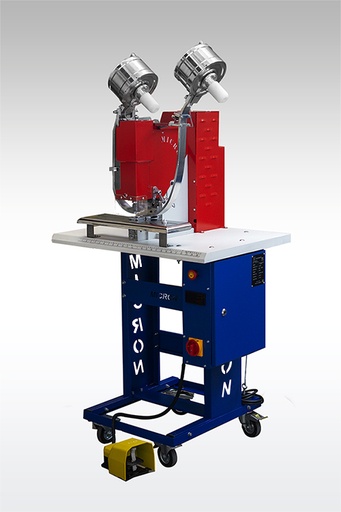

Automatic Fastening Attaching MachineShipping to be determined per weight & dimension!
• Fully automatic, self-loading machine. Fed by hoppers.
• Punches a hole and sets the grommet in one step.
• Can only accommodate one size die for the lifetime of the machine.
• Foot pedal for hand safety.
• Requires 220 volts of AC power to operate

Main features
Automatic rewind
Unwind system
Automatic eyelet loading
Pneumatic media Advancement (pinch roll)
Adjustable speed
Touch screen interface
10 memory (speed and distance of eyelet)
Maximum advancement speed 10 meter in one minutes
12 or 16 mm eyelet
Max with 1650 mm
Custom size on request
