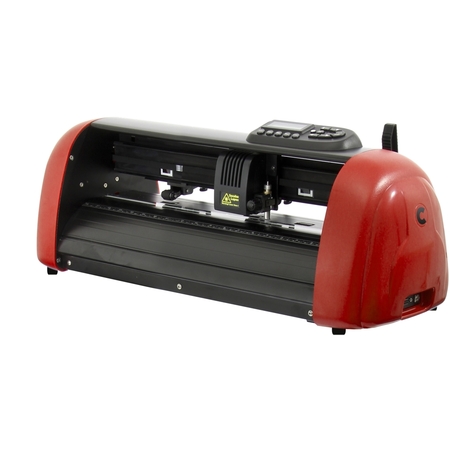

Secabo C30IV vinyl cutter with LAPOS2
The cutting plotters of the CIV series from Secabo are a consistent further development of the well-known CIII cutting plotter series from Secabo. The improved cutting quality as well as higher reliability and precision allow the use of the Secabo cutting plotter in almost all professional areas of signmaking. With a cutting width of up to 33cm, the C30IV cutting plotter can handle even large jobs and high volumes. With its stepper motor, all common materials such as adhesive films, self-adhesive films, flock films, flex films, stencil films, paper, cardboard, etc. in widths up to 42cm can be processed with the new Secabo C30IV cutting plotter. The large illuminated display as well as the large buttons allow an easy operation of the Secabo C30IV cutting plotter, with the improved LAPOS2 technology printed foils can be cut with contour accuracy. The C30IV cutting plotter is controlled comfortably via the supplied cutting software DrawCut LITE for Windows.

Features
Easy menu navigation
Easy menu navigation
comfortable control panel with illuminated LCD-display and large buttons

USB interface
USB interface
The device has a USB interface and is easy to install.40/33

Mac compatible
Mac compatible
This product is also available as a mac compatible version with the SignCut software (without LAPOS).

64bit enabled
64bit enabled
The device can be controlled by 64bit operating systems.

Plug and play
Plug and play
simple installation, no additional drivers necessary

Improved LAPOS
Improved LAPOS
The improved LAPOS facilitates faster reading of crop marks for a productive contour cut.

DrawCut LITE
DrawCut LITE
DrawCut LITE supplied - with controls for LAPOS2 and many functions for professional graphic design



Technical Data
scope of delivery Knife holder, drag-knife, DIN A4 plotting board, plotter pin, connecting cable, software, operating instructions
countour cutting function LAPOS², 4 crop marks
max. downforce 500 g
min. media width 50 mm
max. media width 420 mm
max. media thickness 1 mm
max. cutting size 310 mm
max. cutting speed 600 mm/s
mech. resolution 0.025 mm
interfaces serial, USB
motor stepper motor
weight without packaging 12 kg
weight with package 12,00 kg
Brand Secabo

Secabo C60IV vinyl cutter with LAPOS2
The cutting plotters of the CIV series from Secabo are a consistent further development of the well-known CIII cutting plotter series from Secabo. The use of the Secabo C60IV cutting plotter is possible in almost all professional areas of signmaking due to the improved cutting quality as well as higher reliability and precision. With a cutting width of up to 61cm, the C60IV cutting plotter can handle even large jobs and high quantities. With its stepper motor, all common materials such as adhesive films, self-adhesive films, flock films, flex films, stencil films, paper, cardboard, etc. in widths up to 72cm can be processed with the new Secabo C60IV cutting plotter. The large illuminated display as well as the large buttons allow an easy operation of the Secabo C60IV cutting plotter, with the improved LAPOS2 technology printed films can be cut with contour accuracy. The C60IV cutting plotter is conveniently controlled via the supplied DrawCut LITE cutting software. The practical stand with roll holder is optionally available.

Features
Easy menu navigation
Easy menu navigation
comfortable control panel with illuminated LCD-display and large buttons

USB interface
USB interface
The device has a USB interface and is easy to install.40/33

Mac compatible
Mac compatible
This product is also available as a mac compatible version with the SignCut software (without LAPOS).

64bit enabled
64bit enabled
The device can be controlled by 64bit operating systems.

Plug and play
Plug and play
simple installation, no additional drivers necessary

Improved LAPOS
Improved LAPOS
The improved LAPOS facilitates faster reading of crop marks for a productive contour cut.

DrawCut LITE
DrawCut LITE
DrawCut LITE supplied - with controls for LAPOS2 and many functions for professional graphic design



Technical Data
dimensions 92cm x 26cm x 26cm
scope of delivery Knife holder, drag knife, plotting pad DIN A3, plotting pen, connecting cable, software, operating instructions
countour cutting function LAPOS², 4 crop marks
max. downforce 500 g
max. media width 720 mm
min. media width 50 mm
max. media thickness 1 mm
max. cutting size 610 mm
max. cutting speed 600 mm/s
mech. resolution 0.025 mm
interfaces serial, USB
motor stepper motor
weight without packaging 16 kg
weight with package 16,00 kg
Brand Secabo

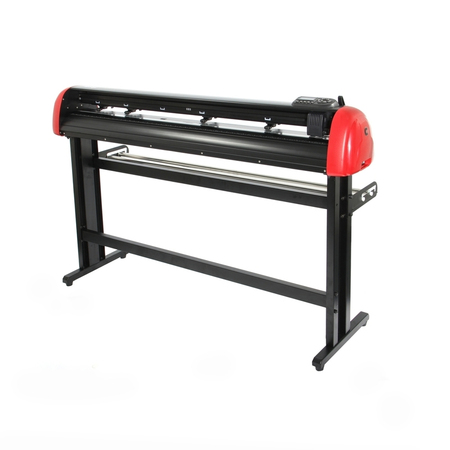

Secabo C120IV vinyl cutter with LAPOS2
The cutting plotters of the CIV series from Secabo are a logical further development of the well-known CIII cutting plotter series from Secabo. The use of the Secabo C120IV cutting plotter is possible due to the improved cutting quality as well as higher reliability and precision in almost all professional areas of the advertising technology. With a cutting width of up to 126cm, the C120IV cutting plotter can handle even large jobs and high volumes. With its stepper motor, all common materials such as adhesive films, self-adhesive films, flock films, flex films, stencil films, paper, cardboard etc. in widths up to 135 cm can be processed with the new Secabo C120IV cutting plotter. The large illuminated display as well as the large buttons allow easy operation of the Secabo C120IV cutting plotter, with the improved LAPOS2 technology, printed films can be cut precisely to the contour. The C120IV cutting plotter is controlled comfortably via the provided cutting software DrawCut LITE. Also included with the cutting plotter is a sturdy base with roll holder.


Features
Easy menu navigation
Easy menu navigation
comfortable control panel with illuminated LCD-display and large buttons

USB interface
USB interface
The device has a USB interface and is easy to install.40/33

Mac compatible
Mac compatible
This product is also available as a mac compatible version with the SignCut software (without LAPOS).

64bit enabled
64bit enabled
The device can be controlled by 64bit operating systems.

Plug and play
Plug and play
simple installation, no additional drivers necessary

Improved LAPOS
Improved LAPOS
The improved LAPOS facilitates faster reading of crop marks for a productive contour cut.

DrawCut LITE
DrawCut LITE
DrawCut LITE supplied - with controls for LAPOS2 and many functions for professional graphic design



Technical Data
dimensions 160cm x 26cm x 26cm
scope of delivery Knife holder, towing knife, DIN A3 plot underlay, stand with roller holder, plotting pen, connecting cable, software, operating instructions
countour cutting function LAPOS², 4 crop marks
max. downforce 500 g
max. media width 1350 mm
min. media width 50 mm
max. media thickness 1 mm
max. cutting size 1260 mm
max. cutting speed 600 mm/s
mech. resolution 0.025 mm
interfaces serial, USB
motor stepper motor
weight without packaging 41 kg
weight with package 41,00 kg
Brand Secabo

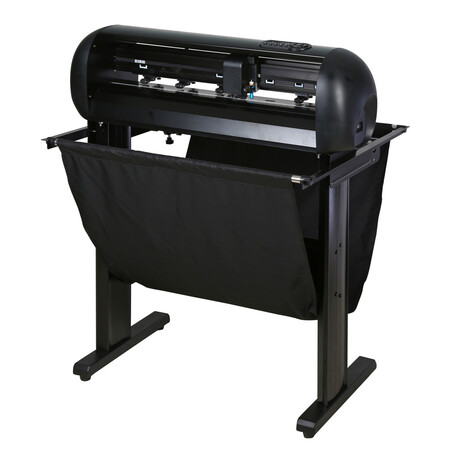

Secabo T60 II vinyl cutter with LAPOS Q
The new Secabo T60 II cutting plotter with modern automatic functions is ideal for processing large plots and high volumes in professional quality. With its powerful servo motor, it can process all common materials up to a maximum cutting width of 61 and a media width of up to 72 centimeters. The integrated LAPOS Q multi register mark detection system automatically registers set register marks so that even free forms can be cut precisely. The backlit LCD display and large gel buttons make it easy and convenient to use. The scope of delivery includes the DrawCut PRO cutting software for Windows as well as a sturdy stand with roller holder and a practical collection basket.

Multi-pass mark recognition system LAPOS Q - Precision meets performance
LAPOS Q is the fastest and most convenient sequential multi-pass mark recognition system in the world. Stickers, labels and other media can thus be cut out to exact contours in free shapes and even with the largest plots. The register marks are read in segment by segment as required, so the precision remains the same throughout the course of a large plot. Contour cut jobs can be read in easily by barcode.

DrawCut PRO cutting software - standard on board!
The multilingual professional cutting software DrawCut PRO for Windows is included in the scope of delivery. It not only reliably handles design and layout tasks and imports a wealth of graphic file formats, but also directs the Print&Cut applications of LAPOS Q including the automatic generation of cutting contours. DrawCut PRO has a unique vectorization algorithm for converting pixel graphics into path files and provides extensive text, shading and outline functions for the user.

New optimized controller - so you can keep track of everything

Sturdy stand with roller holder and collecting basket - because order is essential
A sturdy stand is of course also included in the scope of delivery. The Secabo cutting plotter is not only optically rounded off by a roll holder and a collecting basket. Thanks to these two components, working is particularly fun: film rolls are unwound smoothly and jerk-free and film residues are reliably collected.


Features
high precision
high precision
High precision for cutting of smallest fonts and objects.

servo drives
servo drives
silent, precise and powerful servo drives for best cutting results

Plug and play
Plug and play
simple installation, no additional drivers necessary

DrawCut PRO
DrawCut PRO
DrawCut PRO included - with control for LAPOS XPT, vectorization, text to path, shading, etc.

LAPOS Q
LAPOS Q
State-of-the-art contour cutting function for Print&Cut applications, automatic continuous recognition of register marks

Mac compatible
Mac compatible
This product is also available as a mac compatible version with the SignCut software (without LAPOS).

Easy menu navigation
Easy menu navigation
comfortable control panel with illuminated LCD-display and large buttons

64bit enabled
64bit enabled
The device can be controlled by 64bit operating systems.



Technical Data
dimensions 92cm x 26cm x 26cm
scope of delivery Cutting plotter, multilingual cutting software DrawCut PRO (Windows), drag-blade, ball-bearing knife holder, plotter pen, DIN A3 plotting board, connecting cable, stand with roller holder and collecting basket, user manual in German language
control back-illuminated graphic LCD display with gel buttons
countour cutting function LAPOS Q, sequential cut marks
max. downforce 50 - 750 g
max. media width 720 mm
max. media thickness 1 mm
max. cutting size 610 mm
max. cutting speed 960 mm/s
mech. resolution 0,01254 mm
interfaces USB
motor Servo motor
weight without packaging 25 kg
weight with package 25,00 kg
Brand Secabo

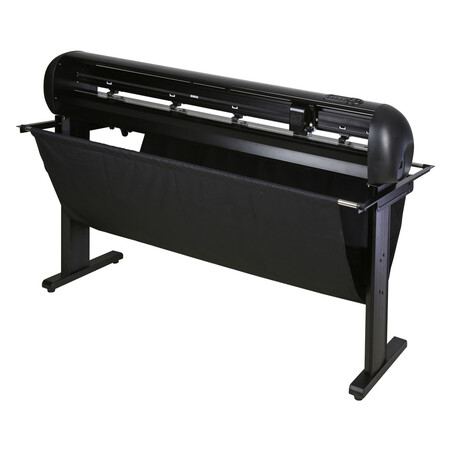

Secabo T120 II vinyl cutter with LAPOS Q
The Secabo T120 II cutting plotter with its advanced automatic functions is ideal for processing large plots and high volumes in professional quality. The integrated LAPOS Q multi-fiducial recognition system automatically registers set fiducials so that even free forms can be cut precisely. With its powerful servo motor, all common materials used in signmaking can be processed. The backlit LCD display and large gel buttons make it easy and convenient to use. The Secabo T120 II cutting plotter is designed for a maximum media width of 135 centimeters and a maximum cutting width of 126 centimeters. The scope of delivery includes the DrawCut PRO cutting software for Windows as well as a sturdy stand with roll holder and a practical collection basket.

Multi-pass mark recognition system LAPOS Q - Precision meets performance
LAPOS Q is the fastest and most convenient sequential multi-pass mark recognition system in the world. Stickers, labels and other media can thus be cut out to exact contours in free shapes and even with the largest plots. The register marks are read in segment by segment as required, so the precision remains the same throughout the course of a large plot. Contour cut jobs can be read in easily by barcode.

DrawCut PRO cutting software - standard on board!
The multilingual professional cutting software DrawCut PRO for Windows is included in the scope of delivery. It not only reliably handles design and layout tasks and imports a wealth of graphic file formats, but also directs the Print&Cut applications of LAPOS Q including the automatic generation of cutting contours. DrawCut PRO has a unique vectorization algorithm for converting pixel graphics into path files and provides extensive text, shading and outline functions for the user.

New optimized controller - so you can keep track of everything

Sturdy stand with roller holder and collecting basket - because order is essential
A sturdy stand is of course also included in the scope of delivery. The Secabo cutting plotter is not only optically rounded off by a roll holder and a collecting basket. Thanks to these two components, working is particularly fun: film rolls are unwound smoothly and jerk-free and film residues are reliably collected.


Features
high precision
high precision
High precision for cutting of smallest fonts and objects.

servo drives
servo drives
silent, precise and powerful servo drives for best cutting results

Plug and play
Plug and play
simple installation, no additional drivers necessary

DrawCut PRO
DrawCut PRO
DrawCut PRO included - with control for LAPOS XPT, vectorization, text to path, shading, etc.

LAPOS Q
LAPOS Q
State-of-the-art contour cutting function for Print&Cut applications, automatic continuous recognition of register marks

Mac compatible
Mac compatible
This product is also available as a mac compatible version with the SignCut software (without LAPOS).

Easy menu navigation
Easy menu navigation
comfortable control panel with illuminated LCD-display and large buttons

64bit enabled
64bit enabled
The device can be controlled by 64bit operating systems.



Technical Data
dimensions 160cm x 26cm x 26cm
scope of delivery Cutting plotter, multilingual cutting software DrawCut PRO (Windows), drag-blade, ball-bearing knife holder, plotter pen, DIN A3 plotting board, connecting cable, stand with roller holder and collecting basket, user manual in German language
control back-illuminated graphic LCD display with gel buttons
countour cutting function LAPOS Q, sequential cut marks
max. downforce 50 - 750 g
max. media width 1350 mm
max. media thickness 1 mm
max. cutting size 1260 mm
max. cutting speed 960 mm/s
mech. resolution 0,01254 mm
interfaces USB
motor Servo motor
weight without packaging 35 kg
weight with package 42,00 kg
Brand Secabo

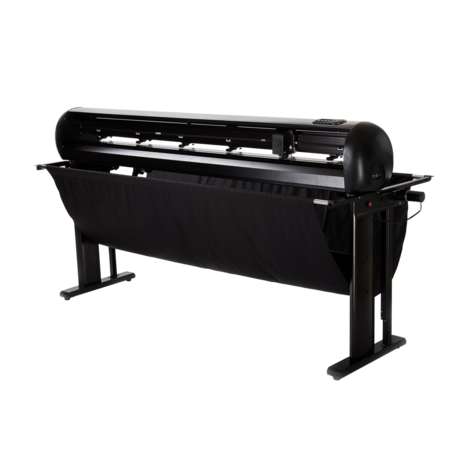

Secabo T160 II vinyl cutter with LAPOS Q
The new Secabo T160 II cutting plotter with advanced automatic functions is ideal for processing large plots and high volumes in professional quality. The integrated LAPOS Q multi-fiducial recognition system automatically registers set fiducials so that even free forms can be cut precisely. With its powerful servo motor, all common materials can be processed. The backlit LCD display and large gel buttons make it easy and convenient to use. The Secabo T160 II cutting plotter is designed for a maximum media width of 175 centimeters and a maximum cutting width of 160 centimeters. The scope of delivery includes the cutting software DrawCut PRO for Windows as well as a stable stand with roll holder, a practical collection basket and automatic film unwinding for jerk-free feeding even of large and heavy rolls.

Multi-pass mark recognition system LAPOS Q - Precision meets performance
LAPOS Q is the fastest and most convenient sequential multi-pass mark recognition system in the world. Stickers, labels and other media can thus be cut out to exact contours in free shapes and even with the largest plots. The register marks are read in segment by segment as required, so the precision remains the same throughout the course of a large plot. Contour cut jobs can be read in easily by barcode.

DrawCut PRO cutting software - standard on board!
The multilingual professional cutting software DrawCut PRO for Windows is included in the scope of delivery. It not only reliably handles design and layout tasks and imports a wealth of graphic file formats, but also directs the Print&Cut applications of LAPOS Q including the automatic generation of cutting contours. DrawCut PRO has a unique vectorization algorithm for converting pixel graphics into path files and provides extensive text, shading and outline functions for the user.

New optimized controller - so you can keep track of everything

Pedestal with automatic film unwinding and collecting basket - because order is essential
A sturdy stand is of course also included in the scope of delivery. A roll holder with automatic film unwinding ensures a jerk-free feeding of film even with large rolls and long plots. The collection basket not only rounds off the Secabo cutting plotter visually, it reliably collects film residues and the film does not touch the ground even with long plots. It therefore remains dust-free and can be processed more easily.

Features :
Easy menu navigation
comfortable control panel with illuminated LCD-display and large buttons

DrawCut PRO included - with control for LAPOS XPT, vectorization, text to path, shading, etc.

automatic vinyl feeding
The film is - controlled by a light sensor - automatically unwound and fed into the cutter.

High precision for cutting of smallest fonts and objects.

servo drives
silent, precise and powerful servo drives for best cutting results

Plug and play
simple installation, no additional drivers necessary

64bit enabled
The device can be controlled by 64bit operating systems.

Mac compatible
This product is also available as a mac compatible version with the SignCut software (without LAPOS).

low noise level which makes working in an office environment possible

LAPOS Q
State-of-the-art contour cutting function for Print&Cut applications, automatic continuous recognition of register marks

Technical Data
dimensions 192cm x 26cm x 26cm
scope of delivery Cutting plotter, multilingual cutting software DrawCut PRO (Windows), drag knife, ball bearing knife holder, plot pen, plot pad DIN A3, connection cable, stand with roll holder, automatic foil unwinding and collection basket, German user manual
control back-illuminated graphic LCD display with gel buttons
countour cutting function LAPOS Q, sequential cut marks
max. downforce 50 - 750 g
max. media width 1750 mm
max. media thickness 1 mm
max. cutting size 1600 mm
max. cutting speed 960 mm/s
mech. resolution 0,01254 mm
interfaces USB
motor Servo motor
weight without packaging 65 kg
weight with package 75,00 kg
Brand Secabo
