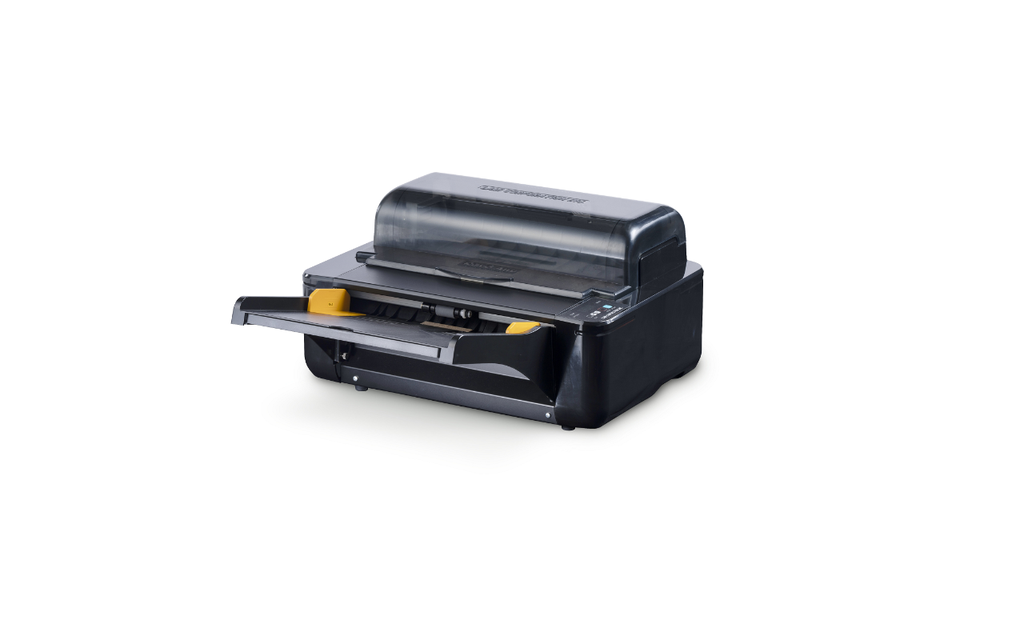

Comapct size that fits ANYwhere.
Easy film setting for ANYone.
Simple operation for ANY job required.
Feeding, Laminating, Cutting & Trimming are fully automated.
Press the start button and walk away.
With the cassette-lamination method, the lamination film setting work has become much easier, also it helps lamination edges aligned.
Possible to easily clean the inside by using the "Cover-Open Function".
Max. laminating width A3(305mm)
Max.Substrate thickness 50 / 80 / 100 / 125μ(exclusive film)*¹
Max. speed 750mm/min
Laminating temperature 90℃~120℃(Variable type)
Power requirement / consumption 【UL】 AC100V
【CE】 AC230V
External dimensions[W×D×H](mm) 630*² ×525×280
Weight 25kg
Available paper thickness 64 - 160g/㎡
Warm-up time 7minutes(approx)*³
Size of paper used 【UL】
Vertical: Ledger, Legal, Letter
Horizontal : Letter
【CE】
Vertical SRA3, A3, A4, A5, B4, B5
Horizontal : A4, A5, B5
*1 Only authorized Revo Film can be used.
*2 Exclude output tray.
*3 Depends on the environment.
*UL … For the United States
*CE … For Europe, Asia, and other countries

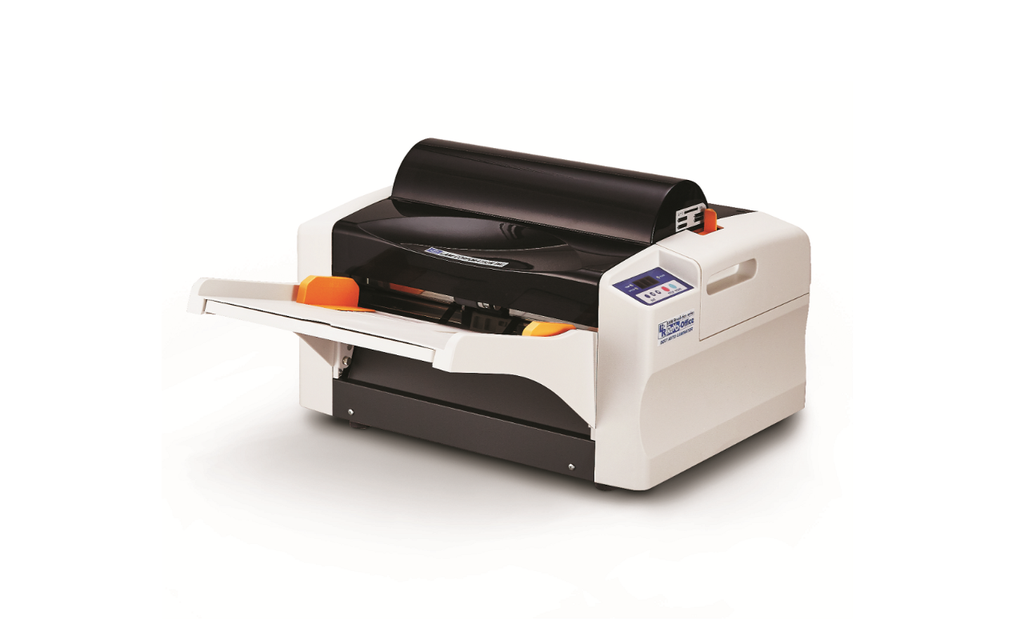

Lami Revo is "Economical Full Automatic Laminator" Lami Revo can do laminating from feeding papers to cutting automatically.
Compared to regular automatic-laminator,film setting of Lami Revo is extremely easy !
Possible easy inside clean by dopting "Cover open fuction".
Specification :
Max. laminating width : 305mm
Max. speed : 1.0m/min (Fixed)
Power requirements : AC230V
Power consumption : 1150 Watt
Width : 680mm.
Depth : 506mm.
Height : 337mm.
Weight : 30kg.
Warranty 1 year.

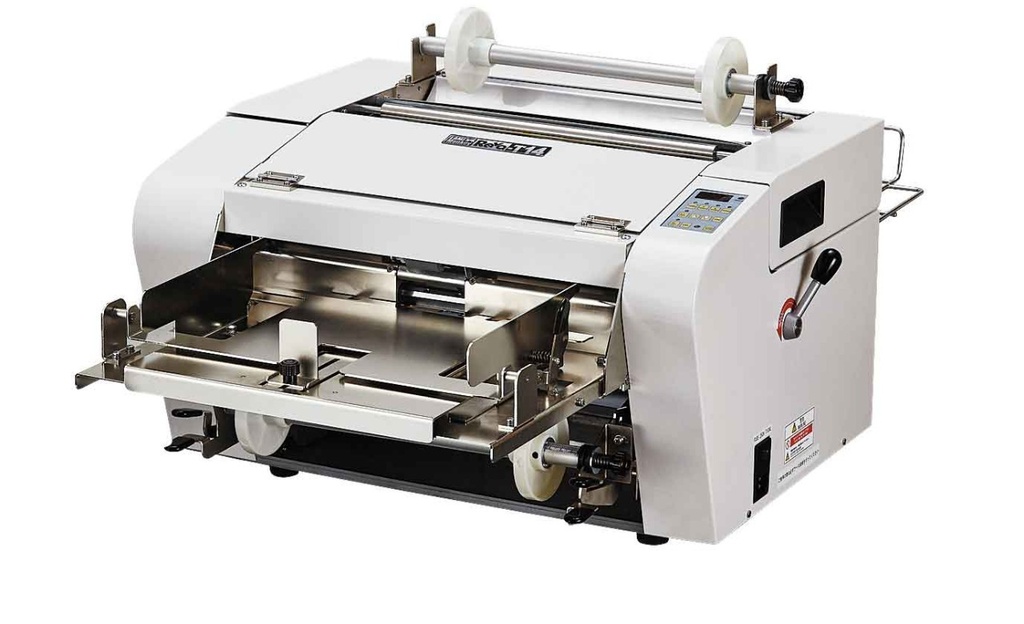

Full-Auto operated laminator Lami Revo-14T.
Auto feeding, Auto sheet cut, auto counting setting, custom border size.
Overwhelming productivity
High productivity, save time and labor cost, save power comsumption, no rejection due to human error.
Japanese quality assurance.
5 minutes fast warm up time.
Easy " inside cleaning" design.
Can load upto 300pcs papers.
Support max substrate upto 160grams thickness.
Both metal & heater rollers in used to ensure the best laminating quality.
Variety choice of sizes, films and finishing.
Made in Korea quality films.
Support A4 till A3 with Unlimitted length.
Available in 50µ, 80µ, 100µ & 125µ films.
Available in glossy, matt et Soft Touch Matt finishing.
Optional B4 & B5 shaft is available.
Max. laminating width : 305mm
Max. substrate thickness : 160gr./m².
Max. speed : 1.6m/min. (Fixed)
Processing temperature Room : temp.~120°;
Power requirements : 230V.
Power consumption : 1150 Watt.

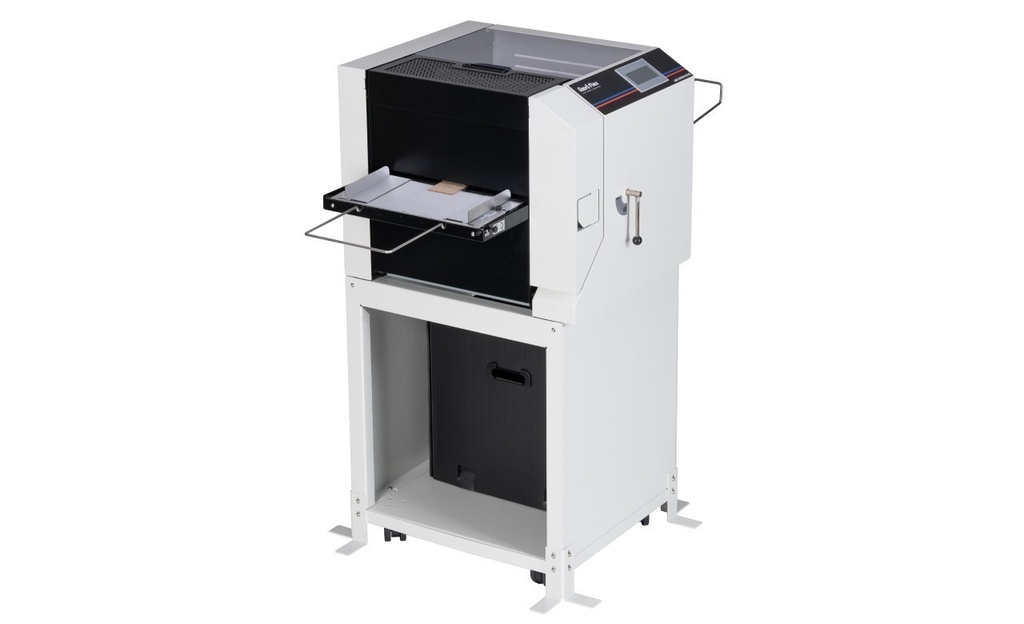

Fully Automatic Laminator with 4 Side Trim Function
With Revo-Flex, you can easily select With/No Margin, also the various functions can
make documents more expressive and suitable for any situation.
Feeding, Laminating, Cutting & Trimming are fully automated.
Press the start button and walk away.
4 Side Trim Function
Long-awaited new feature of Revo Series.
Side slitters are equipped, it can be With-Margin or No-Margin lamination.
LCD touch panel makes any setting intuitive and easy.
Possible to easily clean the inside by using the "Cover-Open Function".
Max. laminating width 320mm
Max.Substrate thickness 38/80/100/150μ(exclusive film)*¹
Max. speed 700～2,000mm/min (variable type)
Laminating temperature OFF、80～140℃
Power requirement / consumption 【UL】AC100V 50/60Hz 1000W
External dimensions[W×D×H](mm) 1,300 × 610 × 1,080
(With stand, feeder tray, extension tray, stacker)
Weight 70kg
Feeder tray capacity 200 Sheets (copy paper)
Available paper thickness 64 - 240g/m2
Warm-up time 5minutes(approx.)*²
Size of paper used A3/A4/A5/B4/B5/Letter/Digital
Finished size*³ With-Margin
　A3：303×426mm
　A4：303×216mm
　B4：263×370mm
　B5：263×188mm
　A5：216×154mm
No-Margin
　A3：294×417mm
　A4：294×207mm
　B4：254×361mm
　B5：254×179mm
　A5：207×145mm
*1 Only authorized Revo Film can be used.
*2 When set to 100℃(212℉) . Depends on the environment.
*3 Error range: ±0.5mm (W,H)

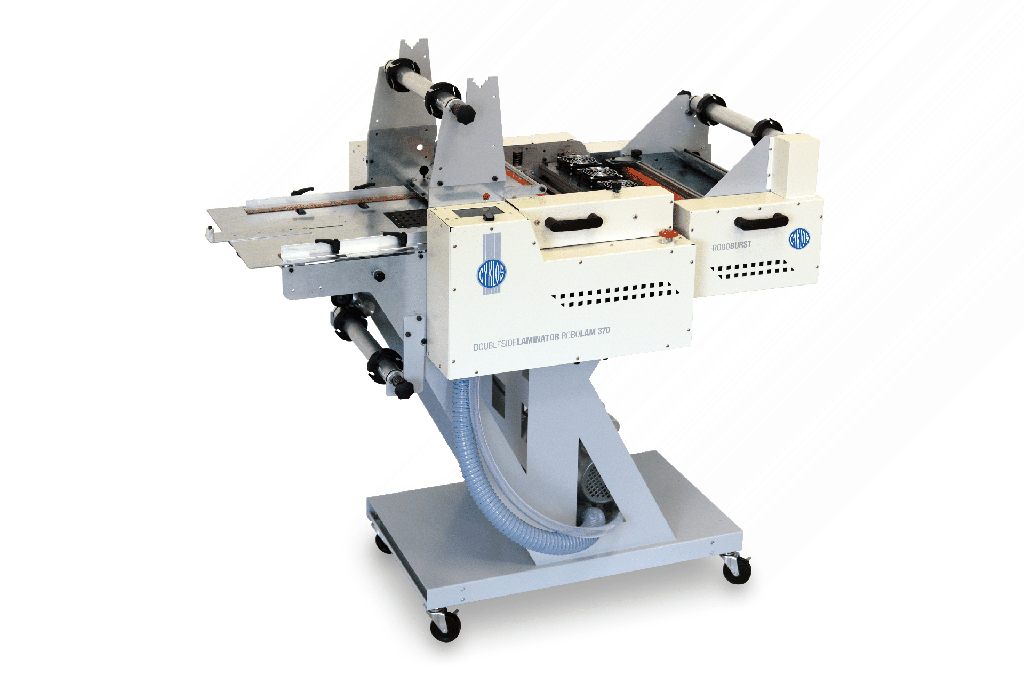

Our new Laminator has been designed as a multi-functional device combining interchangeable modular finishing device. For the time being, it is possible to connect a tearing separation unit, which also separates doble-sided lamination. We can also equip this unit with an unwinding device for the foiling function. In addition, we will soon launch a cutting unit that is completely unique to cut a sheet or divide it into business cards as part of the lamination process. This unit adjusts fully automatically in both cutting axes or by reading cutting marks.

Single and double side laminating. Two pairs of silicon heated rollers. Total 4 pcs heating rollers.Each one independently temperature regulated. 2 pcs transport rollers. Touchless temperature sensors position in the middle of each roller measuring roller surface. Laminator suitable for all kind of thermal laminating films. Roll holders for big commercial rolls up to 3000 m.

small footprint
single and double side laminating
use all kind of films up to 250 mic
two pairs of silicon heated rollers
any film thickness and type
mobil delivery table is standart equipment
double sheet detection and sheet length control
automatic regulation of the processing speed depending on the temperature of the laminating rollers
easy setup
modular Burst and Cut separator
automatic feeding with overlap or spacing control
quick set roll holders
roller open type
optional feed tray extension set from the standart 62 cm to 100 cm
optional finishing unit RoboBurst or RoboCut
optional bottom advanced film perforator
optional RoboBURST Foiling unit
1" / 25.4 mm roll core holder
2.25" / 57 mm roll core adapter
3" / 77 mm roll core adapter (classic style)

Parameters :
-WORKING WIDTH : 250 - 365 mm, min. paper format 250 x 150 mm
-GRAMMAGE : 135 - 400 g/m2 (laminating), 200 - 400 g/m2 (foiling)
-MAX.LAMINATING FOIL THICKNESS : 250 mic (for RoboBurst single side 40 mic, double side 30 mic)
-ROLL SIZE : Max 0.38 x 3000 m (25 mic)
-ROLL CORE : 77 mm (standart)
-INPUT CAPACITY : 8 mm
-SPEED : 8 m/min
-DIMENSIONS : 1130 x 690 x 1250 mm
-PACKING SIZE : 1 pallet - 1200 x 800 x 1210 mm (wooden box)
-WEIGHT : netto 110 kg (including delivery table)
-VOLTAGE / FREQUENCY / POWER : 230 V/ 50 Hz/ 15A
-CONTENT OF PACKING : 2 x roll holders, mobile delivery table

OPTIONAL ACCESSORIES :
-Feed tray extension
-Finishing unit RoboBurst
-Finishing unit RoboCut (we will introduce soon)
-RoboBurst foiling unit, 1"/25.4mm roll core holder, 2.25"/57mm roll core adapter, 3"/77mm roll core adapter (classic style)
-Base core holder shaft
-Bottom advanced film perforator

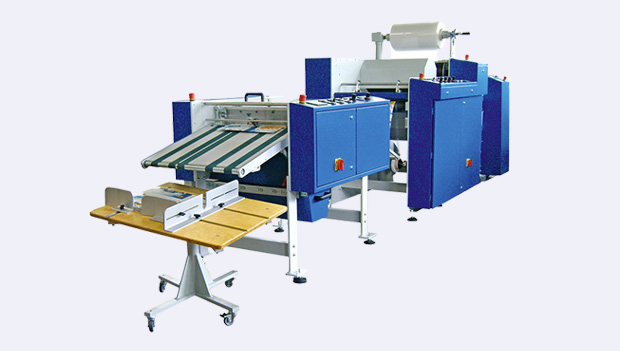

The Comet will strengthen the D&K range of encapsulation machines and has been developed with the Trade Encapsulator and Card Market in mind.
The Comet benefits from being modular in construction and its adjustable height makes it fully compatible with a range of feeders and cutters
The 260mm diameter Teflon coated pre-heat rollers make for scratch free results and the large 75mm diameter heated nip rollers, with advanced rubber compound, give maximum heat transfer for higher running speeds
Amongst its many features the Comet has PLC control with modem link to enable remote diagnostics, swing out mandrels for easy film loading, pneumatic operation of all rollers to allow differing pressures on nip and pull rollers and ample cooling with variable speed fans, which only operates in start mode to save energy
