Text and Date Perforation

This machine is supplied with a complete set of figure slides consisting of 18 pieces in its standard
version in order to be able to perforate a 6-digit date (28.01.12).
This model can contain 3 lines with a max. width of 80 mm each, for example a date and a fixed text
above or below it.
The standard character heights are 6, 8 or 10 mm.

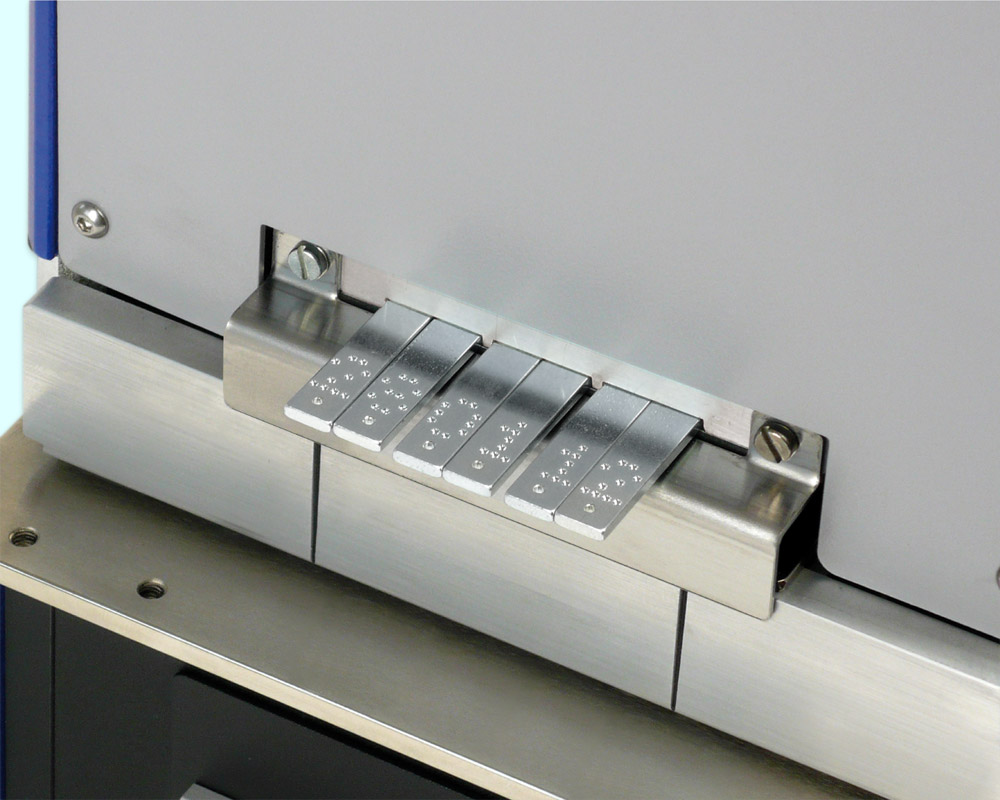

All perforating machines from our OFFICE series are equipped with an easy-to-exchange block-type-dieunit.
The insertion depth is ca. 42 mm.
Up to 20 sheets of 70 g/m2 paper can be perforated in one operation depending on the number of digits.
The insertion height is 2 mm.
The perforation is effected by lateral fastened push-buttons. The main switch is at the rear of the machine.
All OFFICE machines can be supplied with a foot switch or a safety lock.
In case of order please always state where on the forms the impression is required so that it appears legible.

Option : Automatic release.

Technical Data : PERNUMA OFFICE D
Type of current 230 V / 50 cps special voltage upon request
Insertion depth : ca. 42 mm
Weight net / gross : ca. 18 kg / 20.5 kg
Machine dimensions : ca. 15.4 x 29.0 x 31.5 cm
Packaging : carton
Packaging dimensions : ca. 39 x 33 x 54 cm

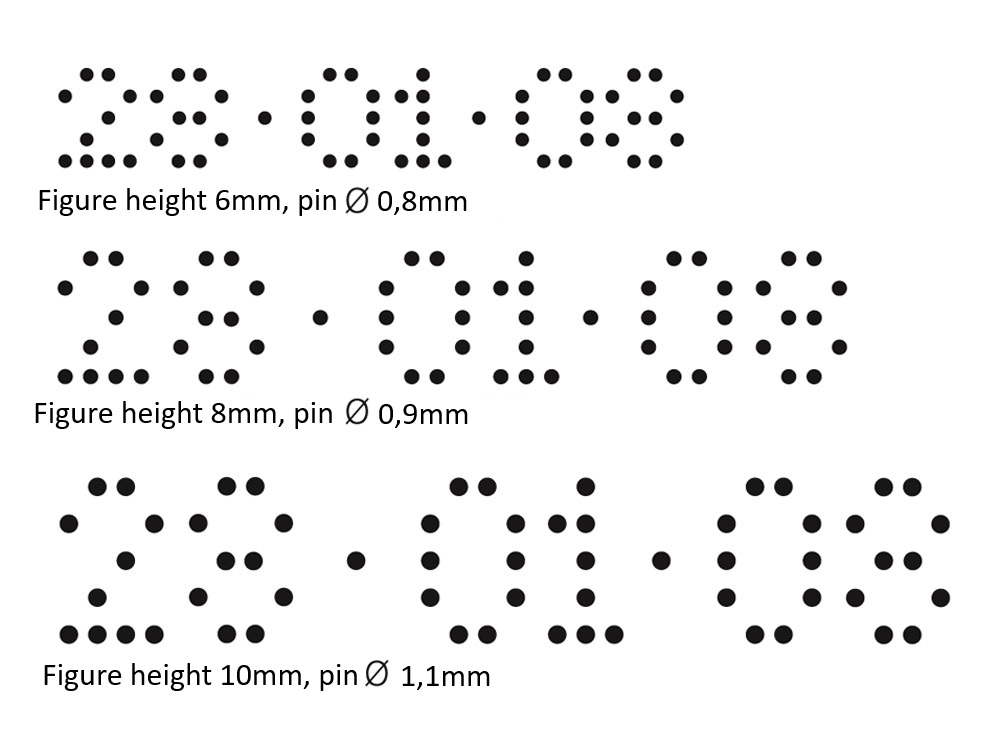

Figure height 6 mm, pin Ø 0.8 mm
Figure height 8 mm, pin Ø 0.9 mm
Figure height 10 mm, pin Ø 1.1 mm

This machine is manufactured with a fixed text of your choice.
This model can contain 3 lines with a max. width of 80 mm.
The standard character heights are 6, 8 or 10 mm.
All perforating machines from our OFFICE series are equipped with an easy-to-exchange block-type-dieunit.
The insertion depth is ca. 42 mm.
Up to 20 sheets of 70 g/m2 paper can be perforated in one operation depending on the number of digits.
The insertion height is 2 mm.
The perforation is effected by lateral fastened push-buttons.
The main switch is at the rear of the machine.
All OFFICE machines can be supplied with a foot switch or a safety lock.
In case of order please always state where on the
forms the impression is required so that it appears legible.

Option: automatic triggering

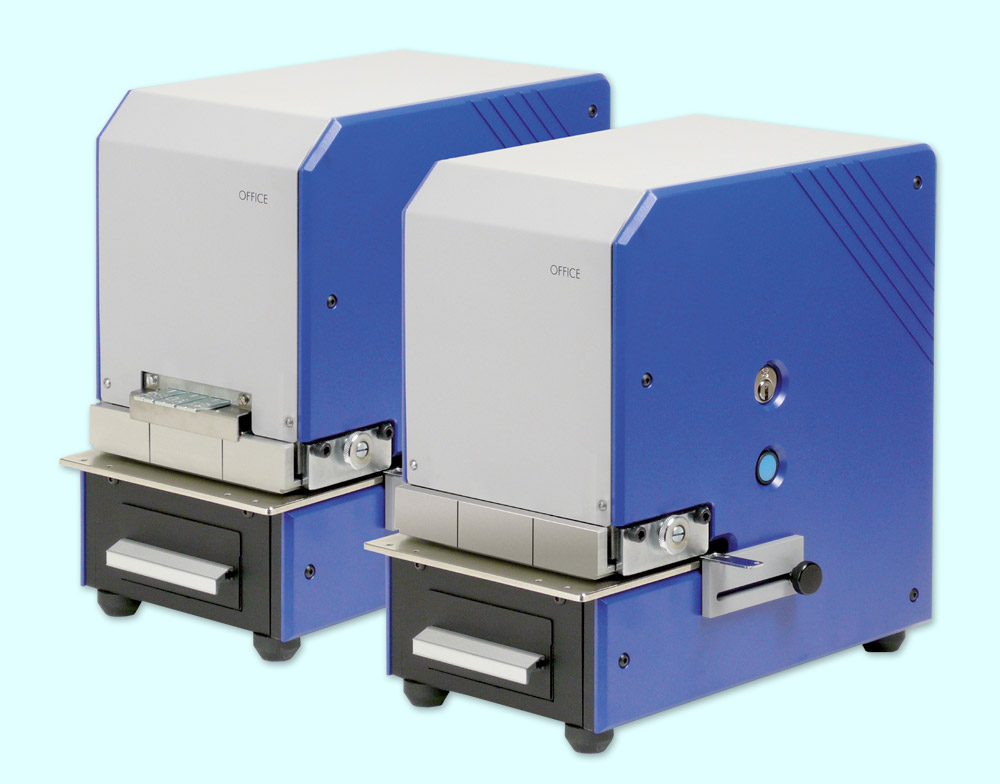

Technical Data : PERNUMA OFFICE T
Type of current : 230 V / 50 cps special voltage upon request
Insertion depth : ca. 42 mm
Weight net / gross ca. : 18 kg / 20.5 kg
Machine dimensions : ca. 15.4 x 29.0 x 31.5 cm
Packaging : carton
Packaging dimensions : ca. 39 x 33 x 54 cm

Figure height 6 mm, pin Ø 0.8 mm
Figure height 8 mm, pin Ø 0.9 mm
Figure height 10 mm, pin Ø 1.1 mm
