WS-601 electric wire stitching machine equipped with a hohner stapling head.
The WS-601 allows flat or saddle stapling with flat back staple quality.
Stapling capacity up to 60 sheets 80gsm.
Staples width 12mm.
Uses #26 (0,5mm) or #28 (0,4mm) wire spools.
Staple length adjustement.
Stitching speed : 75 cycles per minute.
Electric connection 220volts-50Hz - Power 100 watts.
Dimensions : H=770mm x W=500mm x D=350mm.
Weight 19kg.
Warranty 1 year.

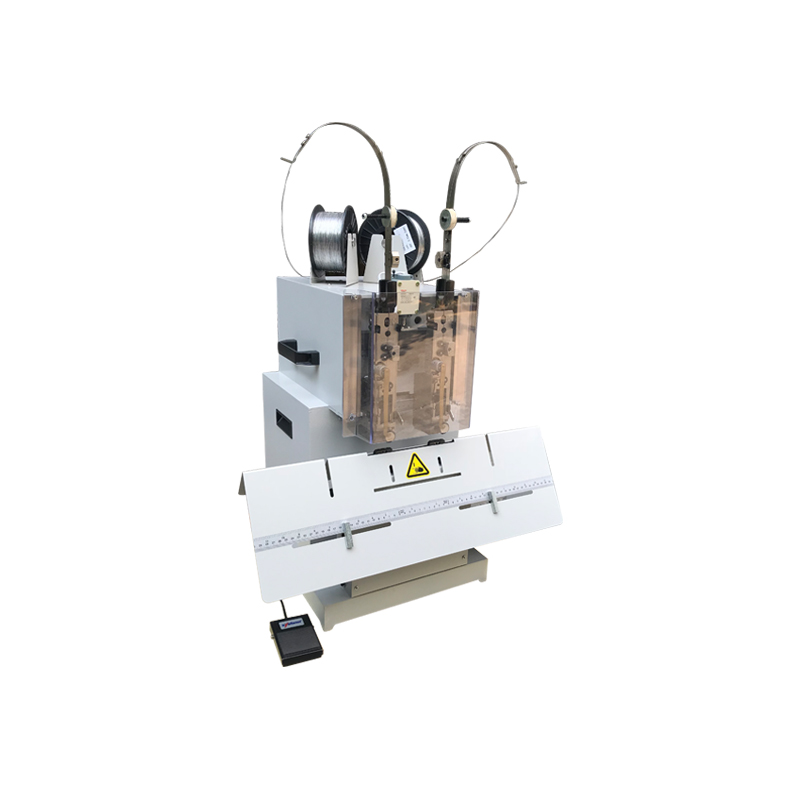

WS-602 electric stitching machine equipped with two robust stapling heads from the famous German manufacturer Hohner.
The WS-602 allows flat or saddle stapling.
Ajustable stapling heads spacing from 55 to 125mm.
The WS-602 stapler has a stapling capacity of up to 60 sheets of 80gsm.
Width of staples : 12mm.
Uses spools of n°26 (0,5mm) or n°28 (0,4mm) wire.
Perfectly flat spine stapling quality.
Staple length adjustment.
Speed : 75 cycles/minute.
Electric connection 220v-50Hz - Power 200 watts.
Dimensions : H=820mm x W=600mm x D=470mm.
Weight : 58kg.
Warranty 1 year.

This single head wire stitching machine offers:
The perfect solution for standard and loop stitching of pads and brochures
Robust construction.
Easily adjustable table from saddle for brochures, to flat for pads.
Maximum stitching speed : 203 staples per minute.
Table size : 700 x 240mm.
Thickness : 0-25mm.
Hohner patented cutting system for optimum wire feed, even for thicker products (Computer and Digital printing).
Optional, quickly exchangeable conversion parts for loop stitching.
Warranty 1 year.

This multi head wire stitching machine for mixed applications is characterised by:
Equipped as standard with Universal 52/8S stitching heads.
It is possible to fit up to four of these heads to the machine.
Standard and loop stitching or mixed applications.
Perfectly suitable as a stand-alone machine, for the completion of a whole system and/or test unit.
Maximum stitching thickness 8mm for standard stitching.
Easily convertible stitching table from pad stitching (flat) to brochures (saddle).
Many varieties of exchange parts sets for a wide range of staple options are available to fit at a later stage.
Simultaneous and central adjustment of stitching thickness and wire length of all heads with only one lever
A backstop and two side lays are fully adjustable for accurate and easy positioning of the staples.
Extremely easy for the operator to change from one format to another.
Perfectly suitable for small production runs, sample stitching or off-line applications.
Maximum stitching per head: 206 staples per minute.
Table size 550 x 280mm.
Warranty 1 year.

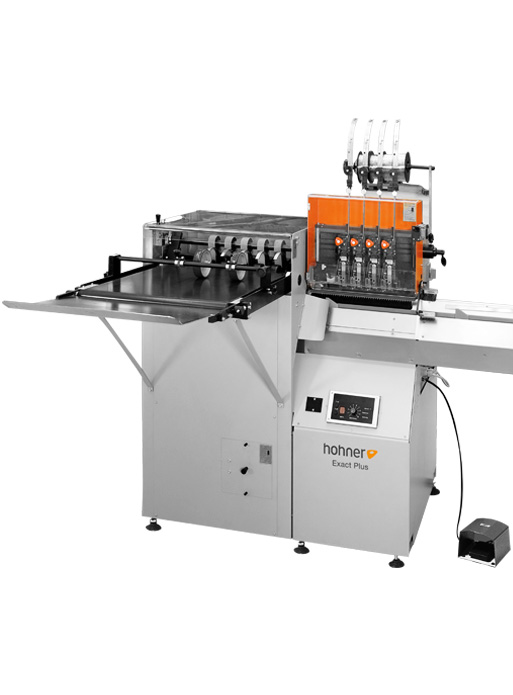

This stitching machine with handfeeding stations allows:
Standard stitching and loop stitching or mixed applications.
The difference between this machine and conventional saddle binders is the ability to gather and stitch unusual formats or paper weights.
Subsequent extension of up to 6 stations.
Highest efficiency with up to 4000 cycles per hour.
Gentle brochure transportation via double carriers to prevent damage to the product.
Can be equipped with up to 4 Universal 43/6 narrow stitching heads.
Fast conversion to “staggered stitch” production.
High amount of flexibility for small runs and sample stitching, as well as oversized formats
Brochure format (spine x head/tail): 100 x 80mm to 430 x 340mm.
Warranty 1 year.

Multi-head van pique, robust and specially designed for you.
Er zijn slechts 4 heads Hohner Universal 70/20 voor een diameter van 0 tot 20 mm.
Neem het conische cutout (patent) op voor een mildere penetratie.
Ideally, you should consider the possibility of an integrated party being involved.
Tafel omkeerbaar (blok in notebooks).
Table depth 230 mm, ideal for kalender products.
De extra opdrachten kunnen tot uiting komen.
Regel dengte en het middelpunt van het gelijktijdige doorkruisen van een lever voor de tous les têtes.
Adjustable lateral cleats at the back.
It is very flexible and can be formatted.
Optional verwisselingsset for looped-stitching.
Stitching speed (per head): 192 staples/min.
Table width: 1000x330mm
