PAPER DRILLS
Manual paper drills
Electric paper drills

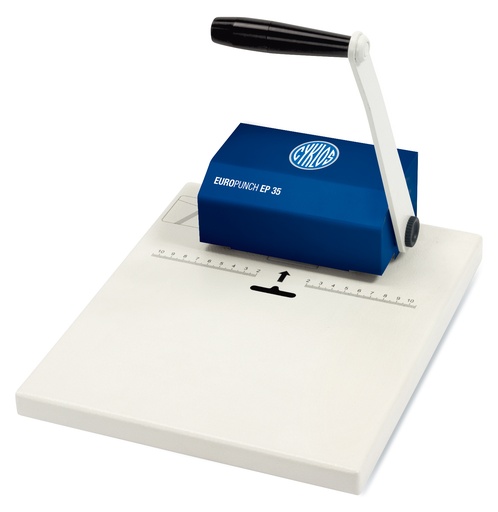

Cyklos - Euro Puch EP-35
La perforatrice EP 35, réalise une découpe sous forme de trou oblong permettant de suspendre un carton blister à un rayonnage.
Norme trou Europe.
Capacité de perforation max. 1,5mm dans le carton.
Dimensions L=300mm x P=250mm x H=92mm.
Poids :3kg.
Conforme aux normes de sécurité CE.
Garantie 2 ans.
0.0
EUR

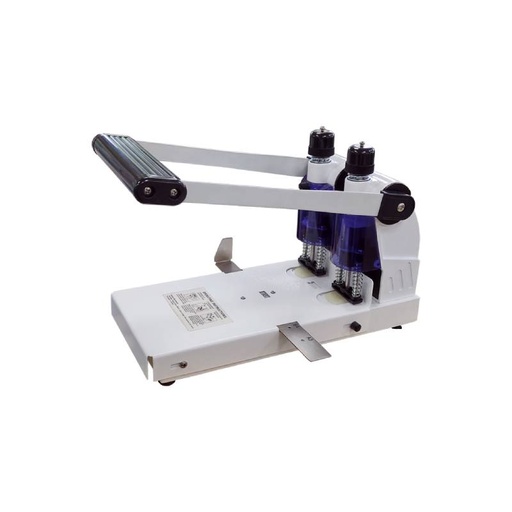

Printemat Punch 230
Perforateur manuel à forte capacité à 2 trous PUNCH 230.
Capacité de perforation : environ 300 feuilles 80gr./m².
Distance de perfo à partir de la marge : de 7mm à 20mm.
Utilise des mèches de 3mm à 6mm.
Ecartement entre 2 mèches : fixe à 80mm.
Dimensions : L=180mm x P=350mm x H=230mm.
Poids : 5,5kg.
Le perforateur est de livré de série avec 2 mèches diamètre 6mm.
Garantie 1 an.
Conforme aux normas de sécurité CE.
0.0
EUR

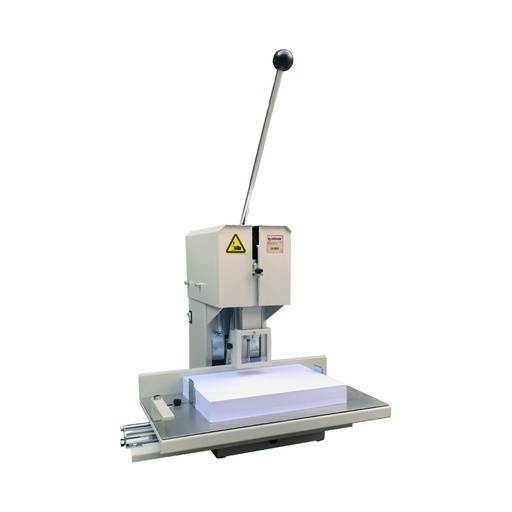

D50P Paper Drill
With the D50P electric hole punch, Nagel has created a compact tool for a flawless perforation of thick paper pads.
The D50P is frequently used by banks, in-house print shops, copy shops, notaries, public and tax accountants, i. e. anywhere that large quantities of stacked paper must be punched.
The D50P electric perforator is the perfect choice whenever the capacity of a manual perforator is no longer sufficient: Typical customers are banks, public offices, copy shops, notaries, tax advisors, etc.
The integrated centre register makes the perforator easy and safe to handle, there is no need to apply force.
There are default settings for the hole patterns of all common filing systems.
A program bar for special hole patterns is available as an option.
Variable, self-centering stops.
Stops for processing A3 size.
Elegant solution for drilling waste (drawer).
1 year warranty.
0.0
EUR
Printemat D50A Automatic paper drilling machine
Automatic paper drilling machine D-50A.
Equipped with auto paper centering side gauge.
Adjustable drilling margin from 4mm-25mm.
One touch operation.
Drilling capacity : 50mm.
Paper size : 350mm.
Drilling diameter : 3-9mm.
Drill margin : 25mm.
Simple moving table for drilling.
Drilling pitch : pre-programmed bar.
Safety guard for safe operation.
Dimension : H=480mm x W=530mm x D=480mm.
Weight : 36kg.
Ce-Conformity.
Warranty 1 year.
0.0
EUR
Perforator STAGO HS 50
Perforateur manuel de grande capacité et peut-être utilisé avec des outils pour arrondir les angles.
Perfore jusqu'à 250 feuilles 80gr./m².
Distance ajustable de perforation de 20mm à 80mm entre les deux mèches.
Utilise des mèches creuses de diamètre de 3mm à 12mm.
Utilise des outils pour arrondir les angles R4/R7/R10.
Couteau pour coupe droite et couteau pour encoche crochet calendrier.
Toutes les mèches et les couteaux sont en option.
Format maximum de perforation : jusqu'au format papier A3.
Dimensions : P=830mm x l=650mm x H=450mm.
Poids : 19kg.
Conforme aux normes de sécurité CE.
Garantie 2 ans.
0.0
EUR

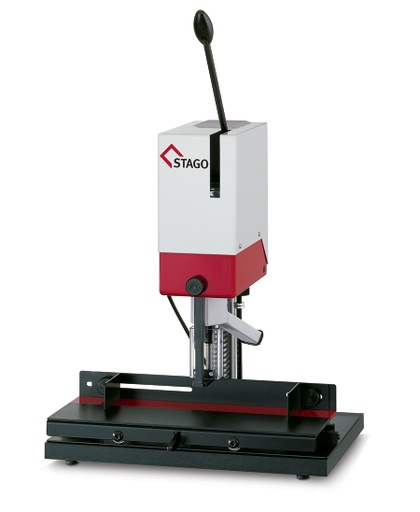

Drilling machine STAGO PB1006 S
With the Stago PB-1006S electric drill, effortlessly perforate bundles of up to 400 sheets!
A comfortable solution for all those perforations that you cannot achieve with a classic manual hole punch.
A model widely used in administrations, banks, small printing houses, workshops, etc.
Electric manual descent drill with 1 punching head.
Programmed tabulator.
Programming bar designed for perforations: 80mm, 80-80-80mm and 45-65-45mm.
Mobile table allowing the perforation of 1 to 4 holes.
Lateral stops (2) allowing perfect alignment of the bundles.
Drills from 2 to 8mm in diameter.
Punching capacity: 40mm.
Simple and secure use.
Reduced maintenance.
Dimensions: L=510mm x D=450mm x H=360mm.
Weight: 21kg.
Complies with CE safety standards.
0.0
EUR
Stago PB-1010 S Drilling machine
The Stago PB-1010 S machine are suitable for punching larger paper stacks in offices, law firms, schools, government agencies, copy shops, and small print shops.
The ergonomic, simple, and robust design enables them to have a wide range of applications.
Stacks of paper of up to 60mm can be punched in a user-friendly way and without much effort.
Three different table designs enable economical use for many different applications.
The sliding table with programme shaft (SP) allows it to define up to 6 different hole spacing.
Precise dual, double, US and also customised perforations are therefore not a problem.
The chip removal is performed automatically into a collection bag.
However, it is not only paper that can be punched, but cardboard, textiles, leather, plastics, etc. can also be machined by a wide range of drill bits with hole diameters of 2-15mm.
No. of drilling spindles : 1.
Drilling diameter : 2 - 9mm.
Drilling depth max. : 60mm.
Drilling speeds : 2400 U/min.
Table versions : sliding with programme shaft.
Throat depth : 86mm.
Table size : 650 x 380mm.
Materials : paper, cardboard, textiles, leather, plastics
Machine Dimensions : 700mmx650mmx450mm.
Weight : 42kg.
Warranty 1 year.
CE Conformity.
0.0
EUR

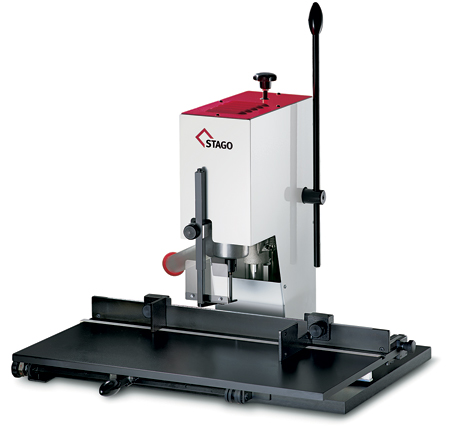

Stago PB -1015 S Drilling machine
The Stago PB-1015 S drilling machine are suitable for punching larger paper stacks in offices, law firms, schools, government agencies, copy shops, and small print shops.
The ergonomic, simple, and robust design enables them to have a wide range of applications.
Stacks of paper of up to 60mm can be punched in a user-friendly way and without much effort.
Three different table designs enable economical use for many different applications.
The sliding table with programme shaft (SP) allows it to define up to 6 different hole spacing.
Precise dual, double, US and also customised perforations are therefore not a problem.
The chip removal is performed automatically into a collection bag.
However, it is not only paper that can be punched, but cardboard, textiles, leather, plastics, etc. can also be machined by a wide range of drill bits with hole diameters of 2-15mm.
No. of drilling spindles : 1
Drilling diameter : 2 - 15mm.
Drilling depth max. : 60mm.
Drilling speeds : 1200 / 2400 U/min
Table versions : sliding with programme shaft.
Throat depth : 86mm.
Table size : 650 x 380mm.
Materials : paper, cardboard, textiles, leather, plastics
Machine Dimensions : 700mm x 650mm x 450mm.
0.0
EUR

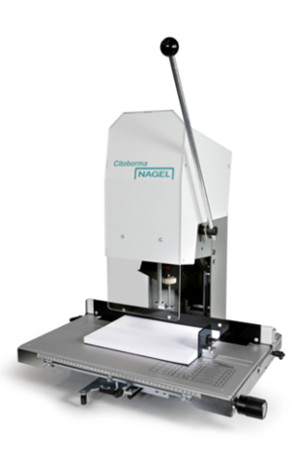

Nagel CITOBORMA 190
The Citoborma 90 1- and 2-spindle drilling machines are designed for easy and convenient handling.
All models have a powerful motor and are suitable for professional use.
The unique FlexoDrill° sliding table has a centre register and is suitable for both standard and large formats.
Six pre-set hole patterns can be selected in a matter of seconds.
The excellent design of this line of products permits convenient and time-saving work while ensuring an extremely precise drilling performance.
Table top model with one fixed drill spindle
Suitable for any hole pattern.
Powerful motor.
1 year warranty.
0.0
EUR

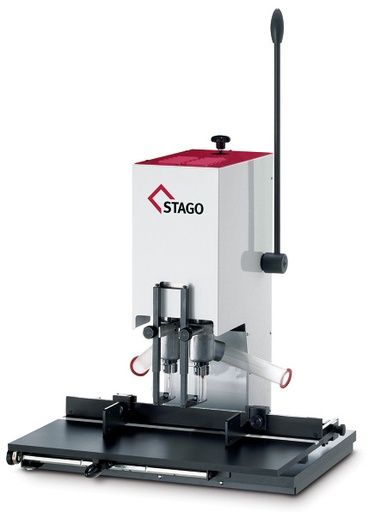

Stago PB-2015 S1 Drilling Machine
The PB-2015 series machines are true workhorses at medium to high runs.
Designed for continuous daily use in offices, law firms, schools, government agencies, copy shops, and small print shops.
The machines enable consistently accurate double-punched holes in paper stacks of up to 60mm.
The ergonomic machine design allows an almost effortless operation by hand lever or foot pedal.
For maximum productivity and performance, we recommend the automatic spindle stroke.
Freely adjustable drill spacing and the sliding table with programme shaft (6 hole patterns) enable economical use even for small volumes. Besides paper, other materials such as cardboard, textiles, leather, and plastics can be machined with hole diameters of 2-15mm.
No. of drilling spindles : 2.
Drilling spindle distance : 80mm.
Drilling diameter : 2 - 15mm
Drilling depth max. : 60mm.
Spindle stroke manual, hand lever.
Drilling speeds : 2400 U/min.
Sliding tables with programme shaft.
Throat depth : 110mm.
Table size : 650 x 380mm.
Materials : paper, cardboard, textiles, leather, plastics.
CE Conformity.
Warranty 1 year.
0.0
EUR

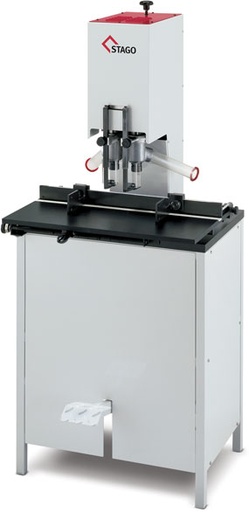

Stago PB-2015 S4 Drilling Machine
The Stago PB-2015 machine are true workhorses at medium to high runs.
Designed for continuous daily use in offices, law firms, schools, government agencies, copy shops, and small print shops.
The machine enable consistently accurate double-punched holes in paper stacks of up to 60mm.
The ergonomic machine design allows an almost effortless operation by hand lever or foot pedal.
For maximum productivity and performance, we recommend the automatic spindle stroke.
Freely adjustable drill spacing and the sliding table with programme shaft (6 hole patterns) enable economical use even for small volumes. Besides paper, other materials such as cardboard, textiles, leather, and plastics can be machined with hole diameters of 2-15mm.
0.0
EUR

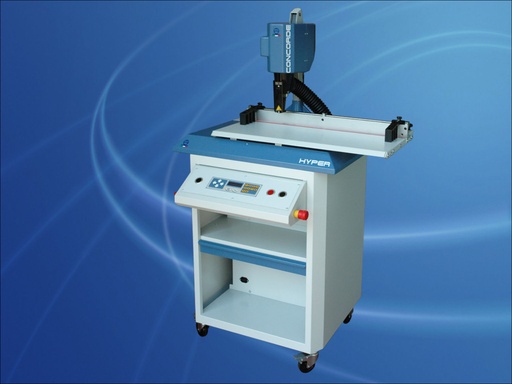

OMM Concorde Hyper
The Concorde Hyper distinguishes itself from the other models we produce, as it is able to drill to a minimum distance of 8mm. between holes.
This is possible by having a sliding table and adjustable stops.
The machine is manufactured in a single cast iron frame with the top in pressed steel and surmounted by a table sliding on bearings.
The movement of the table - which is produced by traction - as explained is connected to a tabulator.
This tabulator has adjustable stops, which executes the drilling of holes very near to each other, to a maximum lenght of 500mm.
With the addition of a motor operated stand it becomes CONCORDE HYPER.
It is no possible to dismantle this stand as it would require skilled staff to assemble..
Technical specifications :
WORKING TABLE SIZE : 75x35cm.
MOTOR POWER : HP 0.40.
POWER SUPPLY : 220v - 50Hz.
DRILLIG DEPTH : 70mm.
DRILLING MAXIMUM THICKNESS : 50mm.
DRILLING CAPACITY : Diam. 3 - 14mm.
WEIGHT : 140Kg.
CE-Conformity.
Warranty 1 year.
0.0
EUR

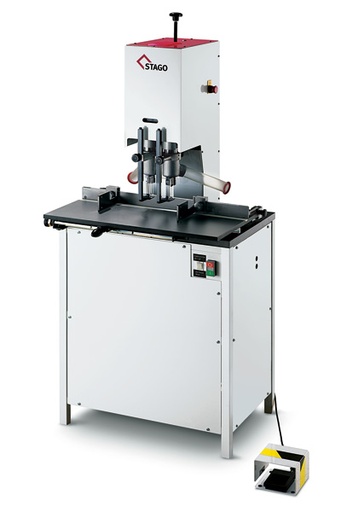

Stago PB-2015 S6 Drilling Machine
The ergonomic machine design allows an almost effortless operation by hand lever or foot pedal.
For maximum productivity and performance, we recommend the automatic spindle stroke.
Freely adjustable drill spacing and the sliding table with programme shaft (6 hole patterns) enable economical use even for small volumes. Besides paper, other materials such as cardboard, textiles, leather, and plastics can be machined with hole diameters of 2-15mm.
No. of drilling spindles : 2.
Drilling spindle distance : 60 - 120mm.
Drilling diameter : 2 - 15mm.
Drilling depth max. : 60mm.
Spindle stroke automatic, foot switch.
Drilling speeds : 2400 U/min.
Sliding table with programme shaft.
Throat depth : 110mm.
Table size : 650 x 380mm.
Materials : paper, cardboard, textiles, leather, plastics.
Machine Dimensions : 1580 x 650 x 620mm.
Weight : 130kg.
Power supply : 230V / 50Hz.
0.0
EUR

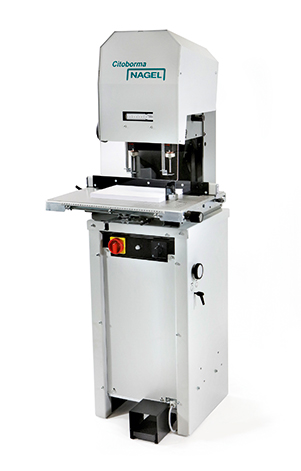

Nagel CITOBORMA 290
The Citoborma 90 1- and 2-spindle drilling machines are designed for easy and convenient handling.
All models have a powerful motor and are suitable for professional use.
The unique FlexoDrill° sliding table has a centre register and is suitable for both standard and large formats.
Six pre-set hole patterns can be selected in a matter of seconds.
The excellent design of this line of products permits convenient and time-saving work while ensuring an extremely precise drilling performance.
Ideal for drilling a filing pattern in one stroke.
Citoborma 290AB 2-head electric drilling rig.
Punching capacity: 60mm.
Number of drilling heads: 2
Spacing between perforations: 45-160mm.
Drill bit diameters: 2-14mm.
Side and rear stops.
Max insertion width: 470mm
Max insertion depth: 105 mm.
Stand with electric pedal control included.
Option: additional stop cleats.
Complies with CE safety standards.
0.0
EUR

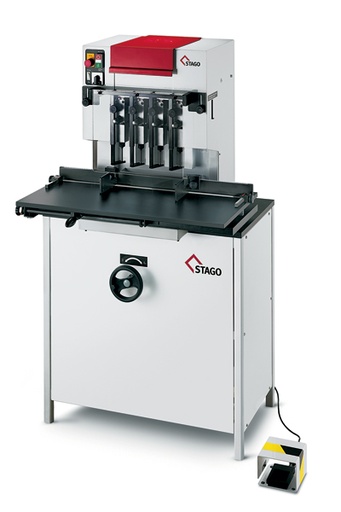

STAGO PB-5010 4AS
Long-term high performance and absolute precision.
This sentence describes the basic concept of the PB 5000 machine series exactly.
The performance speaks for itself: up to 5 high-performance drill spindles, a drill diameter of 2-10mm, a maximum stack height of up to 60mm, machinable materials: paper, cardboard, textiles, leather, and plastics.
The hole spacing can be adjusted within the range of 40-250mm.
The large dimensions of the support table variants sets the standard in the professional environment.
The ergonomic design enables effortless operation and high productivity.
The spindle stroke is done either manually by a foot peddle or automatically by a footswitch and motor drive.
The increased machine frame, the high-precision guides and maintenance-free drives guarantee a long machine life.
For extreme applications with high heat generation, the optional drill cooling and lubrication ensures a perfect drilling result.
No. of drilling spindles : 2-5.
Drilling spindle distance : 40 - 250mm (S6).
Drilling diameter : 2 - 10mm.
Drilling depth max. : 60 mm.
Spindle stroke : manual, pedal [F] / automatic, foot switch [A]
Table versions : fixed (F), sliding with programme shaft (S)
Throat depth : 75mm.
Table size : 800 / 415mm (F/S).
Materials : paper, cardboard, textiles, leather, plastics.
0.0
EUR

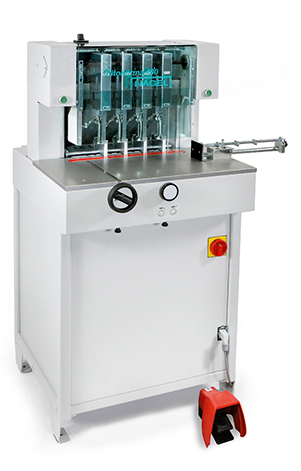

Nagel CITOBORMA 490 Vario
Robust and extremely precise even under heavy duty, the Citoborma 490 performs like a professional paper drill.
This easy-to-use machine for up to 6 drill heads comes with a wide range of standard functions.
For special requirements and sensitive substrates, the Citoborma 490 offers special drill heads, variable drilling and table lifting speed, drill bit cooling and lubrication and many other extras.
1–6 drill heads, for drill bit diameters from 2-35mm.
Throat depth of up to 270mm permits drilling of two A4 sheets (one A3 sheet) in a single pass.
Easy drill head and drill bit replacement to reduce set-up time
Optimum safety due to two-hand operation and safety cover.
Drill bit lubrication with cooling system (optional).
Infinitely variable drilling speed and table lifting (optional).
1 year warranty.
0.0
EUR
