Rate: Number of bind / h: 1.600
Width: 500mm
Allows connection up to 23 mm.

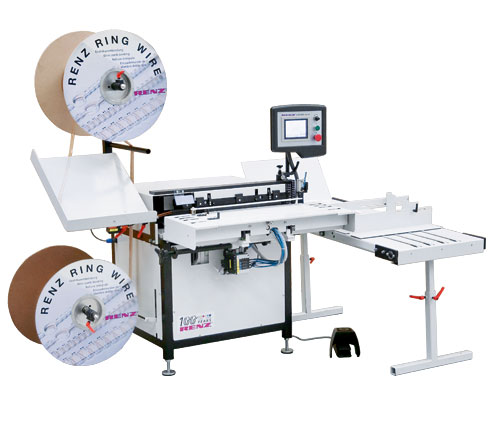

RENZ RING WIRE® semi-automatic industrial punching machine with high production rate for producing notebooks, calendars and documents with divided binding.

Semi-automatic ring punching machine for producing notebooks, calendars and divided-bound documents.
Various paper sizes supported for remarkable flexibility and productivity.
Automatic ejection of the product towards a conveyor at the machine outlet.
Configuration via touch screen.
Up to 230 sheets bound together.
Horizontal paper feed for easy media loading.
Automatic crimping table.
Other option:
KAS system for forming calendar suspension rods.
The sliding stop system allows you to bind documents with larger than average dimensions.

The speeds indicated were obtained using 80 g/m2 paper, the values ​​being likely to vary depending on the type of support used, the nature of the working environment and the performance of the operator. Depending on the type and configuration of the machine.
Very ergonomic touch control screen to quickly make format adjustments.
The automated binding table presses the support and holds the bundle in place during the binding stage. The device then automatically ejects the bundle from the notebook or calendar: compared to a standard binder, you obtain 60% greater efficiency.
A set of crimping bars is required for each spiral diameter. Renz crimping bars guarantee a perfectly executed operation in all circumstances.
Conveyor at the machine outlet.
Another option: Unique in its kind, the KAS system takes straight suspension rods and gives them the desired shape according to standard or European standards. For the Autobind 500 HS model: KAS 300: straight rods 80 to 300 mm in length.

Mechanical actuation cycles / h: 2,000
Pitch: 3:1, 2:1
Binding thickness: 1 - 23 mm
Ø of the binding strip: 5.5 - 28.5 mm (3/16“ - 1 1/8“)
Min. width binding width: 60 mm
Max width binding width: 500 mm
Long. min. from the unconnected edge: 100 mm
Long. max. from the unconnected edge: 500 mm
Binding: Foot control
Diameter change time: 15 min
Format adjustment (except diameter): 1 min
Calendar Hanging Rods: Optional
Machine dimensions (L x D x H): 2,050 x 1,960 x 1,700 mm
Machine weight: 220 kg (1)
Machine dimensions (L x D x H): 1,730 x 1,230 x 1,600 mm
Weight of the machine including packaging: 385 kg (1)
Compressed air: 7.5 bar / 330 - 340 l/min
Power supply: 230V~50Hz / 0.8kW or 115V~60Hz / 0.8kW

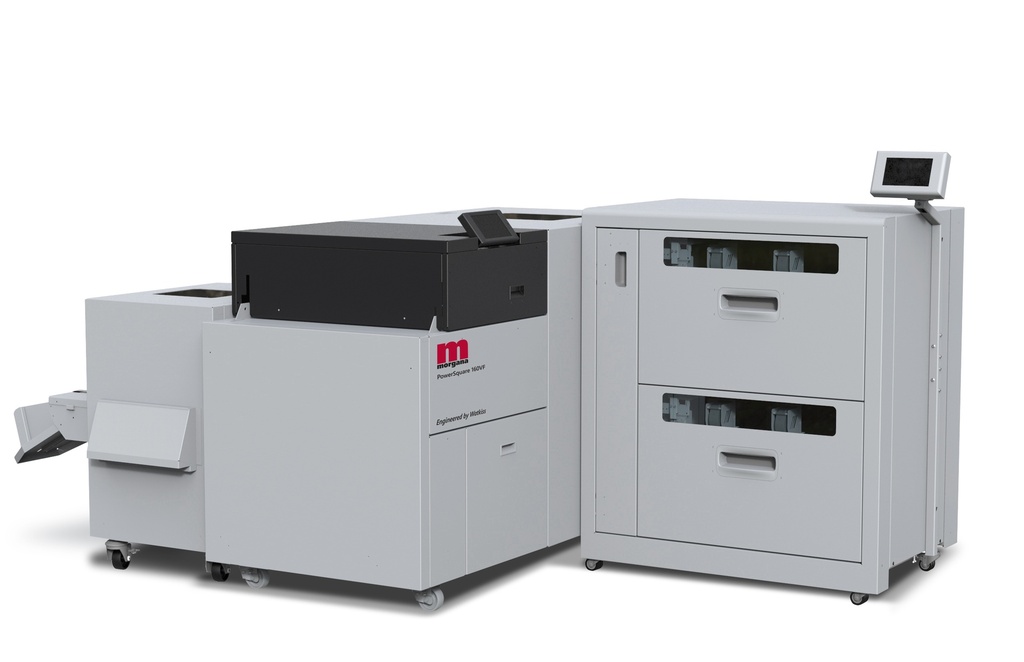

The Morgana PowerSquare™ 160VF Booklet maker – An open-architecture, complete booklet making system that staples, folds, forms and trims in a single pass to produce added value – SquareBack™ books.
The Morgana PowerSquare™ 160VF Booklet maker system with its high capacity dual bin feeder offers a flexible solution for a wide range of booklet types and sizes. The system is fed by the VFX vacuum assisted feeder which has a loading capacity of up to 540mm / 21″, giving long uninterrupted production runs. Pre-collated sets can be placed into both bins for longer runs, or covers can be placed into one of the bins when they need to be merged with collated sets. The feeder can also be loaded on the run with automatic bin switching.
Key Features of the Morgana PowerSquare™ 160VF Booklet maker
Paper Size 160VF – Min: 200 x 200mm / 7.8″ x 7.8″ to Max: 350 x 620mm / 13.7″ x 24.4″
Paper Size 160 – Min: 140 x 200mm / 5.5″ x 7.8″ to Max: 370 x 620mm / 14.5 / 24.5″
Stock Range 160VF – 60 – 300gsm / 16lb bond – 82lb cover dependent on paper
Stock Range 160 – 60 – 400gsm / 16lb bond – 105lb cover dependent on paper
Book thickness:
Minimum set thickness – 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum finished book thickness – 8mm / 0.3″ (approx 160 pages 80gsm / 20lb bond)
Maximum set thickness – 4mm / 0.15″ (approx 40 sheets 80gsm / 20lb bond)
Stapling – Auto-adjusting staple pitch according to sheet size, range 105-150mm
Staples per cartridge – 5000
added value – SquareBack™ books.
The Morgana PowerSquare™ 160VF Booklet maker system with its high capacity dual bin feeder offers a flexible solution for a wide range of booklet types and sizes. The system is fed by the VFX vacuum assisted feeder which has a loading capacity of up to 540mm / 21″, giving long uninterrupted production runs. Pre-collated sets can be placed into both bins for longer runs, or covers can be placed into one of the bins when they need to be merged with collated sets. The feeder can also be loaded on the run with automatic bin switching.

Key Features of the Morgana PowerSquare™ 160VF Booklet maker
Paper Size 160VF – Min: 200 x 200mm / 7.8″ x 7.8″ to Max: 350 x 620mm / 13.7″ x 24.4″
Paper Size 160 – Min: 140 x 200mm / 5.5″ x 7.8″ to Max: 370 x 620mm / 14.5 / 24.5″
Stock Range 160VF – 60 – 300gsm / 16lb bond – 82lb cover dependent on paper
Stock Range 160 – 60 – 400gsm / 16lb bond – 105lb cover dependent on paper
Book thickness:
Minimum set thickness – 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum finished book thickness – 8mm / 0.3″ (approx 160 pages 80gsm / 20lb bond)
Maximum set thickness – 4mm / 0.15″ (approx 40 sheets 80gsm / 20lb bond)
Stapling – Auto-adjusting staple pitch according to sheet size, range 105-150mm
Staples per cartridge – 5000
Two-­Knife Trimmer
The PowerSquare Two-­Knife Trimmer (P2T) is a compact module that completes the booklet making process by trimming the top and bottom edges of the book. It provides a professional solution for full-­bleed printed work, especially important for colour printed applications.

Fully automated from the PowerSquare’s user interface, up to 40mm / 1.6″ can be trimmed from each end of the book, and the trim position can be offset to match the image position. All trimmings are transported outside the machine to a high capacity external waste box, allowing continuous operation.
Up to 6 staples per set
The Morgana PowerSquare™ 160VF Booklet maker now has the capability to apply up to six staples per book. Making it possible to run smaller applications 2 or 3up on a set, saving valuable time and money.
Specifications
PowerSquare™ 160VF Specs
Minimum : 200mm x 200mm / 7.8” x 7.8"
Maximum : 350mm x 620mm / 13.7" x 24.4”
Stock range : 60-300gsm / 16lb bond – 110lb cover
Book thickness
Minimum set thickness : 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum finished book thickness : 8mm / 0.15” (approx 160 pages 80gsm / 20lb bond)
2 low impact staple heads with moving clinchers.
Auto-adjusting staple pitch according to sheet size, range : 105-150mm / 4”- 6”
Staples per cartridge : 5000
No. of bins : 2
Power : 100-230V 50-60Hz
VFX Dual Bin Feeder
No. of bins : 2
Bin capacity : 2 x 270mm / 10.6”
Sheet size, max : 350 x 660mm / 13.8” x 26”
Sheet size, min : 120 x 210mm / 4.72” x 8.26”
Paper weight, max: 300gsm / 110 lb Cover
Paper weight, min : 60gsm / 18lb Bond
Centre registration : Yes
Air separation : Yes
Error detection : Double feed, misfeed, empty bin, paper jam
Dimensions : H1260 x W1017 x D700mm / H49.6” x W40” x D27.6”
Weight : 250kg / 617lbs

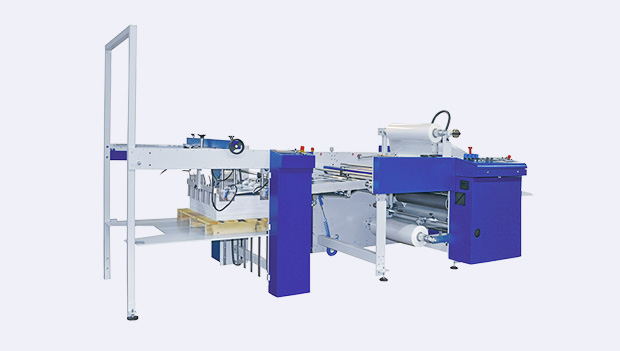

Fully automated B1 single-sided Thermal Lamination System
Available in portrait or landscape feed versions
Working speeds of up to 40 metres per minute
High pile feeder with pallet loading to maximise efficiency for longer run work
Pre-loader available as an option
Scrolled in-feed roller to help feed lightweight and digitally produced sheets
Cantilevered mandrel with air shaft to speed film roll changes
Film can be moved laterally on the run to minimise waste and down time
Film slitter for non-standard sheet sizes
PLC controlled
Chrome laminating roller with electrical band heating
Compressed air powered nip roller
Decurl bar which can be adjusted on the run
Compact burster type sheet separator
Jogger at delivery
Delivery stacker available as an option
Dimensions Portrait : L – 2480mm (excl delivery unit) W – 1710mm H – 1480mm
Dimensions Landscape : L – 2480mm (excl delivery unit) W – 2010mm H – 1480mm
Weight Portrait : 1600kg
Landscape : 1800kg
Electrical requirements Portrait : 3 phase, 14.4kw, 400v
Landscape : 3 phase, 19.2kw, 400v
Air requirements : 15 cfm @ 100 psi dry air
Maximum recommended stock : 600gsm
Minimum recommended stock : 115gsm
Maximum sheet size - Portrait : 760mm x 1050mm
Maximum sheet size - Landscape : 1050mm x 1050mm
Minimum sheet size : 210mm x 220mm
Speed : Up to 40m per minute
Core size : 75mm (3”)
Variation of overlap : +/- 2.0mm
Heating Electrical bands
Optional stacker : Yes
Optional pre-loader : Yes
Nip Pressure : 26,0 kN

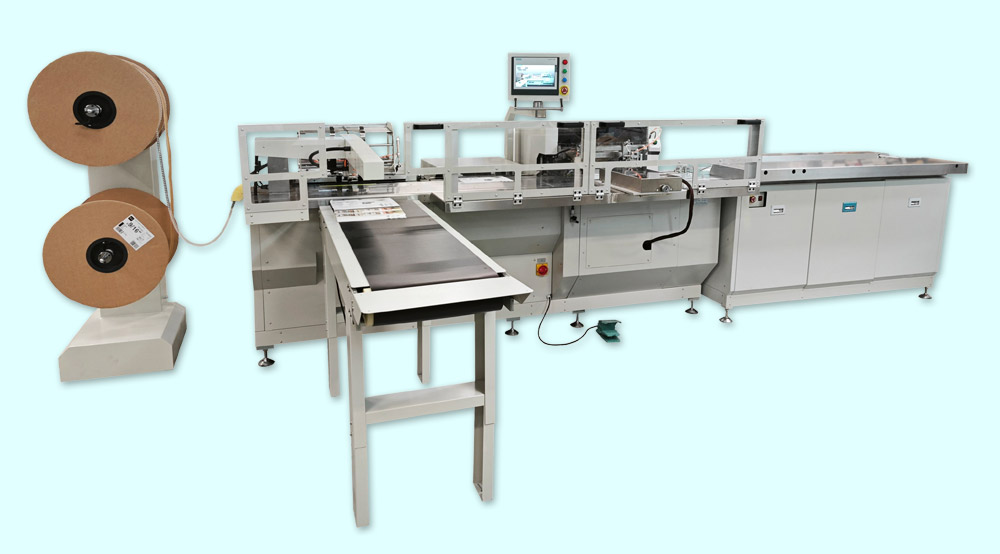

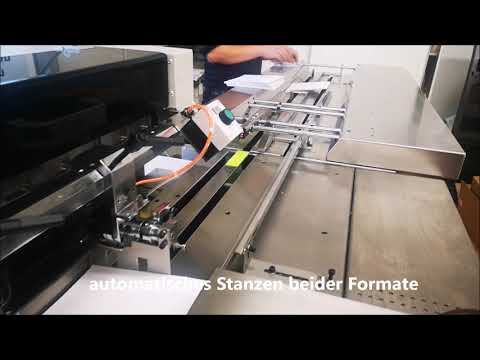

Fully automatic binding machine for wall and desk calendars, notepads, books, pocket calendars and other documents. Automatic integration of calendar hooks.

Features :
Touch screen.
Length of calendar hook: 70 - 300 mm
Working speed: up to 1500 pounds/hour
Dimensions H x W x D in cm: 160x600x130cm
Weight: 1400 kg
Power supply: 400V / 2.5 kW
Maximum document format: 580 x 420mm
Minimum document format: 120x105mm
Punching width:
-minimum: 72 millimeters
-maximum: 580 millimeters
Diameters of wire-O : from 6.9mm to 19.0mm (1/4" to 3/4")
Number of modules: 4 (advance, punching, alignment, closing)

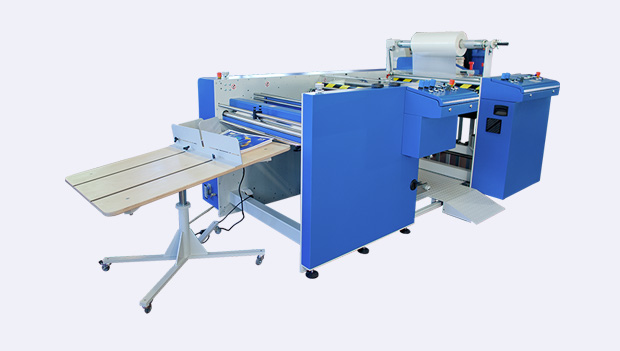

Triton PB fully automated double-sided B1 Thermal Lamination System.
Available in portrait or landscape feed versions.
Unique double-sided configuration comprising two separately controlled laminating stations, each with a heated chrome roller and rubber nip roller to give an identical finish to each side of the sheet.
Working speeds of up to 40 metres per minute.
High pile feeder with pallet loading to maximise efficiency for longer run work.
Pre-loader available as an option.
Scrolled in-feed roller to help feed lightweight and digitally produced sheets.
Cantilevered mandrel with air shaft to speed film roll changes.
Film can be moved laterally on the run to minimise waste and down time
Film slitter for non-standard sheet sizes.
PLC controlled.
Chrome laminating roller with electrical band heating.
Compressed air powered nip roller.
Decurl bar which can be adjusted on the run.
Compact burster type sheet separator.
Jogger at delivery.
Delivery stacker available as an option.

The Polaris is a high speed fully automatic single sided
laminator for sheets up to 760mm x 1050mm or 1050mm x 1050mm size and is equally at home in the busy printer or trade house.
Dimensions: Polaris L “ 3225mm W “ 1465mm H “ 1420mm
Dimensions: Jogger L “ 1060mm W “ 760mm
Weights: Feeder & Laminator 1500kg
Separator: 400kg.
Stacker: 600kg.
Speed: 50m/minute.
Minimum Sheet Size: 210mm x 297mm (A4)
Maximum Sheet Size: 760mm x 1050mm
Stock Weights: 90-450gsm
Power Consumption: 20kw
Air including Stacker: 20cm
