The HYDROCUT 750 hydraulic paper guillotine is essential processing machine for digital printing houses.
The highest security level (two-hand operation, optical light
curtain) and low noise level peculiar to it during operation.
The adjustment of cutting length takes place with stepping motor satisfied all requirements.
The pressing of the paper to bind always takes place with hydraulics but it is possible to move the paper press with foot before hydraulic pressing.
The degree of the pressing is adjustable while the cutting force is adjusted by the manufacturer.
The changing of the blade is simple; to do it safely we supply an appliance compulsory to buy.
Accessory of the machine is the cutting line display.
The adjustment of the cutting length happens with microcontroller Mitsubishi aided digitally displayed back gauge.
The machine can be programmed with absolute and relative memory
storing.
Specifications :
Maximum Cutting lenght : 750mm.
Maximum Cutting depth : 750mm.
Minimum Cutting depth : 35mm.
Maximum Cutting Height : 100mm.
Mono phase power supply : 230 volts-50Hz - 16A - 3kw.
Paper pressing : foot pedal and hydraulically.
Adjustable pressing volume (Bar) : 10-80.ch
Optical cutting line display : Yes.
Safeguards : optical light curtain, two-hand operation.
User interface : touch screen & job memory.
Air table & side table (2pieces) : option.
Dimensions of the machines : D=1850mm x W=1630mm x H=1500mm.
Net weight : 700kg.

Main features :
Processing time (welding cooling)
Time Programmable for welding up to a max. 5 min.
Programmable time for cooling up to a max. 5 min
Welded steel frame epoxy powder coated.
Fixed welding bar integrated in the working table
Equipped with a flat teflon heating band
Control unit impulse for uniform distribution of temperature on the seal bar
Easy-to-use control panel to define up to 20 different welding programs
Welding bar powered by pneumatic pistons

Optionals :
Extensions, add 1 meters both sides
Double laser ray
Kit FAP (fast automatic pocket)
Compressor (24lt. - 8bar)

Datasheet : 2600
Heating lenght about : 2600 mm
Heating width about : 25 mm
Working pressure : 220 kg/cm
Electrode temperature : from 70° to 250° C
Air pressure : 7/8 Bar
Dimensions : L3400xP1300xH1400 mm
Machine weight : 870 kg
Height of work table : 1000 mm
Power supply : 220/240V 50/60Hz
Consumption: about 14,4kW. 60A 2P+T

A solution accessible to everyone for printing in black and color.

The responsiveness of the ComColor FT5000 gives you great flexibility. This professional printer is ideal for you who need to manage multiple prints up to A4 format. You will also appreciate the small footprint, ideal when space is at a premium.

The advantages:
-High performance:
Thanks to the ComColor FT feeding device, you can print double-sided without loss of speed, at 100 ppm up to A4 format: enough to significantly increase your productivity and reduce your paper consumption!

-Unmatched reliability:
Thanks to FORCEJET™ cold inkjet technology, the availability rate is optimal. The paper is not exposed to any heat source and does not curl: this considerably reduces the risk of incidents linked to the passage of the paper.

Flexibility:
The responsiveness of the ComColor FT5000 allows you to print a wide variety of documents with a single device. You print on demand, according to your needs.

-Color :
With RISO cold inkjet technology, you benefit from an extremely competitive cost per color copy: no more depriving yourself of the impact of color for budgetary reasons!

Various optional modules:
-Comcolor Express RS1200C controller
-HS7000 scanner
-2000 sheet input tray
-Staggered sorting reception tray + stapling
-Envelope feeder
-FT shaping module

Automatic letter opener OL 1000 plus
The perfect and professional way of opening your incoming mail
The OL 1000 plus opens your incoming mail automatically, quick and safely: The envelope is milled completely on the long edge without touching the content. You won't have any sharp edges.

Your mixed mail of up to 12 mm each will be opened perfectly and reliable. The OL 1000 plus is suitable for high volumes of incoming mail (up to 40.000 envelopes/h).

Its compact construction (letter opener, conveyor stacker and cabinet) allow an optimal, rational and space saving operation.

Highlights of the automatic letter opener OL 1000 plus
Large feeding tray with automatic, self adjusting feeding station for envelopes
Reliable opening of a mixture of envelope sizes
Envelope thickness up to 12 mm
Opening technology: Milling technique for highest security of the envelope content
No sharp edges at the envelope after milling
Adjustable milling depth (0 - 3 mm)
Integrated conveyor stacker
Counter for incoming mails as well as for outgoing mails (switch for opening/non opening)
Pre-counter/counter (optional)
Cabinet
Speed: up to 40.000 envelopes/ h

Processing envelopes quick, secure and versatile!
Processing incoming mail with the OL 1000 plus "in its best form":

Enter the envelopes - also a mixture of envelope sizes, without pre-sorting
Press start button
Take off the opened and stacked envelopes at the end of the conveyor belt. If the counting funciton is active, the individual letters are still counted for e.g. assigning the internal costs
This counting function of the HEFTER Systemform OL 1000 plus can also be helpful for processing outgoing mails.

In addition it's also applicable for precounting/count down counting (optional) to find out the number of envelopes having been opened. The function "opening the envelopes" can be switched off. This is useful for e.g.:

Your finished outgoing mail is given to an external service provider
or you work as a service provider yourself

Technical data & downloads of the automatic letter opener OL 1000 plus
Technical specifications OL 1000 plus
Important technical data: OL 1000 plus
Max. envelope thickness: up to 12 mm
Weight: 111 kg
Speed: max. up to 40.000 envelopes/h
Dimensions: 114 x 53 x 147 cm
Power supply: 220 -240 V / 50 Hz

LCD Touch Screen display with intuitive and easy-to-use software.
Auto-alignment.
Double sensor to read cross-marks.
Adjustable speed X & Y axis.
Excellent cutting area visibility.
Pneumatic Pinch Roll with silent compressor inside the machine.
Automatic waste collecting system.
Plug & Play.
Up to 10 pneumatic vertical cutting units.
Double load reel.
Tower Light.
New alignment system of vertical cutting units.
Open cutting units (no paper jam).
Monolithic machine structure.
Standard loading jumbo Roll 300mt.
Up to 20 customizable memories.
MATERIALS :
Paper (laminated or encapsulated).
Wallpaper.
Canvas & Polyester (with liner).
Reflective material.
PVC banner.
Vinyl & Vinyl sticker.
Display back lit & front lit.
Magnetic rubber.
Polycarbonate in film.
Optional Extras :
Single cutting unit (max 10).
Central twin cutting unit.
Laser ray for vertical cut.
Table for copies collection.
Dimensions : L=2520mm x D=800mm x H=1000mm.
Weight : 290kg.
Warranty parts only.

Very robust machines designed for continuous operation, equipped with a new training technique, used to perforate paper, cardboard and plastics up to 70cm working width.
Easy handling through footswitch or sitting or standing.
The vertical paper ensures easy handling and friendly particularly large formats.
Further, grooving is also possible to place any of the sheet.
The side openings allow the perforation of double length formats.
The great advantage of Punchers Super 700, besides their ability to particularly high perforation is the possibility to use
almost all drilling tools or other brands, using adapters.
They therefore allow universal use.
Tool change easy and fast in minutes.
Their sophisticated technique that has been proven for years guaranteed them a long life.
With interchangeable tools, it is possible to work such as grooving, perforating and cutting directories.
Working width 700mm.
For medium and large print runs, especially in the production of calendars.
Format of the perforated page : max. 700mm.
Format of the imperforate page min. 60mm.
Punching thickness : max. 4.5 mm (depending on the tool).
Drilling speed : 400 - 500 rounds / h (depending on the operator).
Laying the paper : horizontal.
Weight : 40 to 1000 gr./m².
Cutting directory : yes.
Interchangeable tools : yes.
Tool change in a few minutes.
Format change: in minutes thanks to QSA tools.
Edge distance adjustable sheet yes.
Perforating punches detachable yes.
Dimensions: Length x Width x Height: 900 x 850 x 1100mm.
Warranty 1 year.

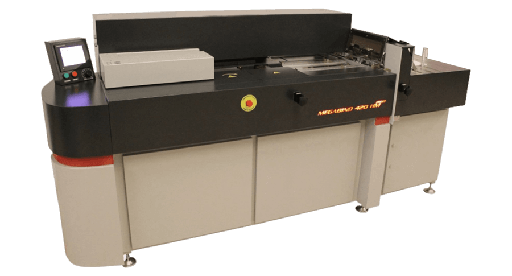

The Megabind 420 Hot-Melt automatic bookbinder machine
Is a member of the LAMIBIND family of products; and has all the necessary functions and more that are required by a medium size printing shop.
The machine is equipped with special slitting knives mounted on a precision milling disk which provides the optimum preparation for the bonding surface.
The milling disk height is adjustable via the touchscreen; up to 3mm can be cut off from the spine of the document.
The Megabind is supplied with an automatic cover feeding system with integrated creasing for the spine and hinges.
With it’s user friendly touch-screen this machine helps every operator to make professional quality books very easily.
From this user friendly interface it is simple and easy to adjust the milling height, binding time, glue length regulation and the cover feeder.
Reliable components are the backbone of every great machine; therefore we have implemented the most stable electronics and electrical components available to us.
Maximum document thickness is 50mm.
Maximum document length is 420mm.
Warranty 1 jaar.

The AutoCreaser Pro XL paper creasing system is an easy to use automatic paper creasing system with a cost efficient vacuum top feeder.
The unique creasing rule in the AutoCreaser Pro XL eliminates paper tearing and therefore cracking.
Running at a maximum of 8.500 A4 sheets per hour, with no loss of accuracy, this is our most productive creaser to date.
The new AutoCreaser Pro XL takes a sheet size of 385mm x 1300mm with the table extension, this comes as standard with this new paper creasing system.
Edge registered vacuum top feeder with an outstanding load capacity of 200mm / 7.8”.
New sheet separation controlled by optical sensor array – automatically adapts to different media, weights and types
Automatic feeding parameter selection based on paper size and thickness – simplifies set up regardless of operator skill
Ultrasonic double sheet detection
Table extendible up to 1300mm to support popular longer sheet applications
Powerful creasing unit can accept standard and narrow creasing blades as well as optional cross perforation blades.
Optional second creaser enables up/down creasing in one pass.
Simplified adjustments and blade changeovers without special tools.
Inline rotary perforation, up to five at the same time.
Optional cross perforation unit available.
Max loading capacity 200mm.
Max paper size W x L: 385mm x 700mm (1300mm with extension table).
Min paper size W x L: 93mm x 210mm.
Max paper thickness: 400gsm.
Min paper thickness: 80gsm.
Max sheets per hour: 8500
Max number of creases per sheet: 30
Min crease to crease distance 0.1mm.
Stacker capacity 120mm
Stacker max paper size W x L : 385mm x up to 900mm.
Footprint with table extension L2540mm x W730mm x H1074mm.
Warranty 1 year.

Today’s digital presses are more powerful than ever and the need for finishing technology that turns this power into great applications is essential.
The Autocut Pro delivers the benefits of three functions in one – highly accurate cutting and slitting and high speed creasing in an easy to use system.
If you are looking to make the printed page stand out in new ways and if you’re using a wider range of media and working with new, larger formats then the AutoCut Pro combined with Morgana’s AutoFold Pro module easily turns long sheets into applications such as beautifully finished six panel brochures.
Technical Specifications :
Basic function Slit, Cross Cut, Crease, High Speed Crease only mode
Paper size (max) 330mm x 700mm.
Paper size (min) 210mm x 210mm.
Minimum finished work size : 85mm x 50mm.
Paper weight : 120gsm- 350gsm.
Operation 4” touch screen.
Job memories Preset job / customized job.
Feeding mechanism Upper belt tri-suction feed system.
Skew adjustment Standard
Side Aligner Standard.
Double feed detection Standard.
Cut mark registration Standard.
Warranty 1 year.
Ce-Conformity.

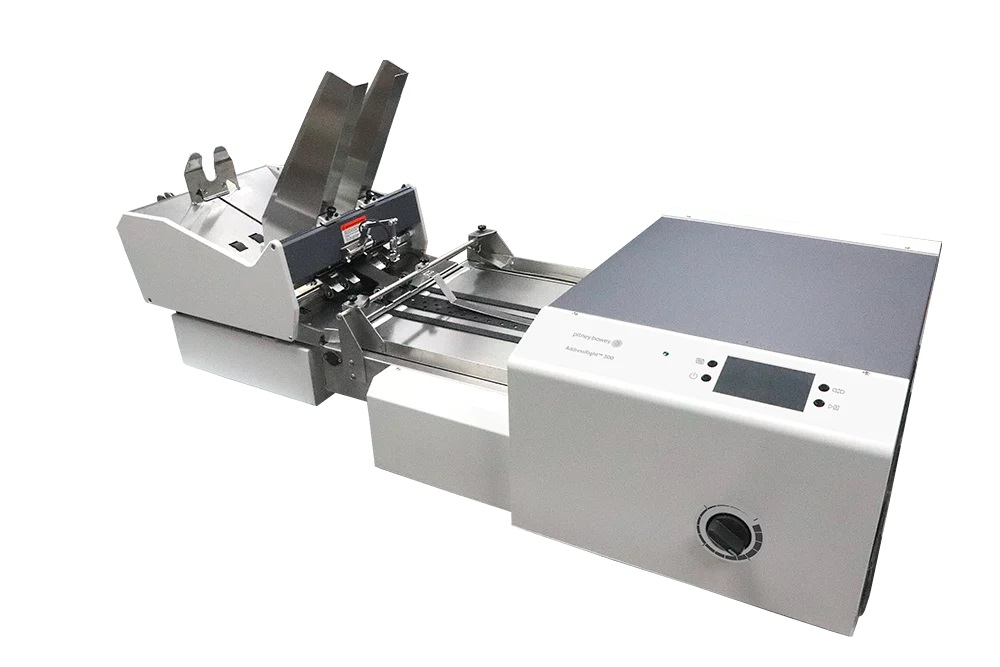

Create mail that stands out from the crowd, personalized mail with a professional look.

Add personalized messages to the outside of your mail to increase the chances that your mail will be opened and read. For even more personalization, all of our addressing solutions offer spot colors in different shades.
Solid steel construction
Fixed printhead technology using 8 heads
Operator-friendly display
High processing speed
Spot color printing

With a powerful addressing solution, you can achieve better-looking mail, improved productivity and results, and lower costs. The Addressright 300 is a fixed-head inkjet printer that uses 3 rows of heads printing (2 x 2 and 1 x 4). Bolt-on magazine operates left to right and holds up to 750 (empty) envelopes. Standard delivery with a recovery bin + an output stacker can be added as an option. Ideal for printing addresses + barcodes, return addresses and message lines in a single pass. AddressRight printers are designed to work in tandem with our Flexmail mail management software.

Model: Address Printers
Rate: 30,000 envelopes/h
Number of print heads: 8
Image area: 101.6 x 381 mm
Support size: 2 to 254 mm, Length: 127 to 381 mm / Width: 76
Media Thickness: 2mm/Max: 12mm, Min: 0
Envelope tray capacity: 750
Print Colors: Black and spot color
Dimensions (H x W x L): 2 cm, 30.8 x 85 x 64
Weight: 43.5kg

The HYDROCUT 850 hydraulic paper guillotine is essential processing machine for digital printing houses.
The highest security level (two-hand operation, optical light
curtain) and low noise level peculiar to it during operation.
The adjustment of cutting length takes place with stepping motor satisfied all requirements.
The pressing of the paper to bind always takes place with hydraulics but it is possible to move the paper press with foot before hydraulic pressing.
The degree of the pressing is adjustable while the cutting force is adjusted by the manufacturer.
The changing of the blade is simple; to
do it safely we supply an appliance compulsory to buy.
Accessory of the machine is the cutting line display.
The adjustment of the cutting length happens with microcontroller aided digitally displayed back gauge.
The machine can be programmed with absolute and relative memory
storing.
Specifications :
Maximum Cutting lenght : 850mm.
Maximum Cutting depth : 850mm.
Minimum Cutting depth : 35mm.
Maximum Cutting Height : 100mm.
Mono phase power supply : 380volts-16A-P=3kw.
Paper pressing : foot pedal and hydraulically.
Adjustable pressing volume (Bar) : 10-80.ch
Optical cutting line display : Yes.
Safeguards : optical light curtain, two-hand operation.
User interface : touch screen & job memory.
Air table : option.
Dimensions of the machines : D=1950mm x W=1730mm x H=1500mm.
Dimensions of the machines with tables : D=1950mm x W=2330mm x H=1500mm.
Net weight : 750kg.

Compteur de feuilles

La machine de comptage de feuilles Wondly est un produit de haute technologie avec des performances supérieures, elle dispose d'un ordinateur à écran couleur de 6 pouces et d'une commande de servomoteur.
Tout type et toute épaisseur de papier peuvent être comptés précisément et rapidement.
Différents types de papier peuvent être mélangés en comptant simultanément.
La machine de comptage de papier Wondly dispose de plusieurs fonctionnalités pour répondre aux besoins de différents utilisateurs : en plus du mode de comptage de papier standard, il y a la fonction d'insertion d'intercalaire qui peut sélectionner différentes quantités de papiers.
La fonction de détection de quantité de papier sert à vérifier si le nombre prédéterminé et le nombre réel correspondent ou non.
La fonction de comptage de nombre spécifiée sert à trier le nombre de feuilles requises de la pile.
Fonction d'autodiagnostic.
L'opérateur peut savoir à partir d'un message d'erreur clair affiché sur l'écran qui indique si le défaut de la machine est causé par ses propres erreurs de fonctionnement ou si la machine elle-même présente des conditions de fonctionnement anormales.
Il a une structure d'étiquette en papier qui change rapidement.
Données techniques :
Epaisseur du papier: 30 à 230 gr./m² (papier carbone, papier d'impression offset, papier couché, etc...).
Format papier min. : 100 x 150mm.
Format papier max. : 546 x 788mm.
Hauteur d'empilage du papier max. : 300mm
Alimentation / tension: 220/240 volts-50Hz
Puissance Moteur: 0,4 kW.
Largeur de la table de collecte : 600x600mm.
Hauteur de la largeur de la table de collecte : 760mm.
Taille de la machine: L=900mm x P=1080mm x H=1500mm.
Poids de la machine: 230kg.
Étiquette pour papier en pile: largeur-6 mm, longueur-100mm
Puissance consommée: 600W.
Conforme aux normes de sécurité CE.
Garantie 1 an.

PK automatic intelligent cutting system adopts fully automatic vacuum chuck and automatic lifting and feeding platform. Equipped with various of tools, it can quickly and precisely make through cutting, half cutting, creasing and marking. It is suitable for sample making and short-run customized production for Signs, printing and Packaging industries. It is a cost-effective smart equipment that meets all your creative processing.

High Precision Vision Registration System (CCD)
With high definition CCD camera, it can make automatic and accurate registration contour cutting of various printed materials, to avoid manual positioning and printing error, for simple and accurate cutting. Multiple positioning method can meet different materials processing demands, to fully guarantee the cutting accuracy.

Automatic Sheet Loading System
Automatic sheets loading system suitable for printed materials automatic processing in short run production.

QR Code Scanning System
IECHO software supports QR code scanning to retrieve relevant cutting files saved in the computer to conduct cutting tasks, which meets the customers’ requirements for cutting different types of materials and patterns automatically and continuously, saving human labor and time.

Computer, stand, screen, mouse, keyboard and compressor* included
*entrey level compressor included for low-mid use. Possibility to order in option a high capacity compressor for high volumes.

PARAMETER :
Cutting Head Type : PK Plus
Machine Type : PK0705 Plus
Cutting Area(L*w) : 750mm x 530mm
Flooring Area(L*W*H) : 2350mm x 1000mm x 1150mm
Cutting TOOL : Oscillating tool, Universal Cutting Tool,Creasing Wheel, Kiss cut tool
Cutting Material : KT Board, PP Paper,Foam Boad, Sticker, Reflective Material, Card Board, Plastic Sheet, Corrugated Board, Grey Board, Corrugated Plastic, ABS Board, Magnetic Sticker
Cutting Thickness : <6mm
Media : Vacuum System
Max Cutting Speed : 1000mm/s
Cutting Accuracy : ±0.1mm
Data Formal : PLT、DXF、HPGL、PDF、EPS
Voltage : 220V±10%50HZ
Power : 4KW

360T Series

First Station 2 to 6 Folding Plates :
Max. Format : 360*750mm
Min. Format : 50*105mm
Paper gram : 30-250gsm
Mechanical speed : 180m/min

First Station 8 to 18 Folding Plates :
Max. Format : 360*1000mm
Min. Format : 50*105mm
Paper gram : 30-250gsm
Mechanical speed : 180m/min

Advantages:

1.Equipped with an automatic dual control system for the height of the paper pile.
2.High performance sheet-separating feeder.
3.Feeding system adopts three-hole suction wheel.
4.Nonskid, wear proof, anti-rust steel, PU folding roller with screw stripe,so that the contact area is increased by 75% in contacting with the paper.
5.Electrical system controlled by PLC smoothly controlled by VVVE with overload protecting function.
6.Sensitive automatic control device of double sheet and jammed sheet man-machine interface facilitates parameter input.
7.Creasing, perforation, slitting.
8.Belt driving guarantees smoothly driving and low noise.
9.Designing the angle of the transitional that the paper wrinkled would be prevent efficiently.
10.Electrically controlled knife of photoelectric integragion realizes high speed superior reliability and minor paper wastage.

Position Digital Display
Make adjustment more efficent and higher precision; the debugging time is about 3-5 minutes
Feeder
High performace feeder make paper feeding more stable .
Touch Screen Control
Frequency conversion control automatic lifting;Tracking paper feeding system.
Electronic Control Switch
Adopt imported Schneider PLC and frequency conversion stepless regulation
Double Sheet Detection
If occurs double sheet during feeding paper , it will automatically alarm and stop feeding.
Automatic Supply Oil
Automaticlly maintain the core part– gear and prolong the usage life of the machine.

Your black and color prints in complete autonomy.

Take it to the next level with the ComColor FT5230 professional printer. Ideal for printing your documents in black and color, this inkjet solution combines versatility and performance.

The advantages:
-High performance:
The horizontal passage of the paper under the print heads promotes high printing speed, with minimized offset. You manage up to 120 pages per minute and benefit from a record availability rate.

-Unmatched reliability:
With FORCEJET™ cold inkjet technology, the paper is not exposed to any heat source and does not curl: this considerably reduces the risk of incidents linked to the passage of the paper.

-Autonomy:
Thanks to the optional 2000-sheet tray, your capacity increases tenfold, up to 4000 sheets with the front feed trays! The ComColor FT5230 allows you to reduce the need for subcontracting. You save time and money.

-Versatility:
The ComColor FT5230 professional printer is modular via different accessories and allows you to diversify your media: administrative documents, reports, presentations, booklets, leaflets, posters, letterhead, invoices, pay slips, envelopes, etc.

Various optional modules:
-Comcolor Express RS1200C controller
-HS7000 scanner
-2000 sheet input tray
-Staggered sorting reception tray + stapling
-Envelope feeder
-FT shaping module

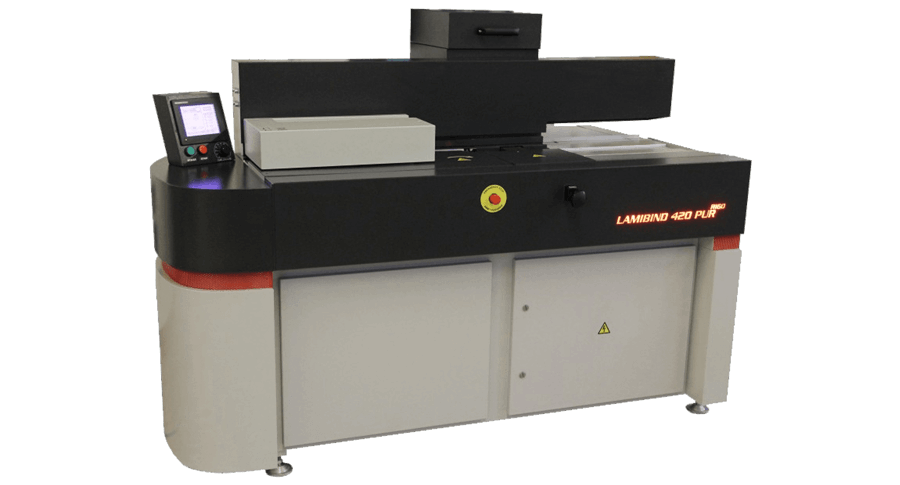

The Lamibind 420 PUR-Melt semi automatic bookbinding machine.
Is one of the world’s most cost effective professional semi-automatic PUR binding machines.
This machine is equipped with a unique “high pressure” closed PUR application system, which has made Rigo binders the envy of all other digital PUR binding manufacturers.
Both the spine and side-glue application is PUR.
Moreover it is also a hybrid machine as both EVA and PUR glues can be used in this machine.
It is the best choice for short and medium run binding.
The 2kg candle provides good production flow, high efficiency and less waste! For PUR application, spine preparation is the most important factor.
Therefore the machine is equipped with special slitting knives mounted on a precision milling disk which provides the optimum preparation for the bonding surface.
With it’s user friendly touch-screen this machine helps every operator to make professional quality books very easily.
Reliable components are the backbone of every great machine; therefore we have implemented the most stable electronics and electrical components available to us.
Maximum document thickness is 50mm.
Maximum document length is 420mm.
Warranty 1 year

Fully automatic single and double side laminator, designed for simple and efficient operation, capable of supporting intensive work runs . Veladuo ensures a wide range of paper formats and supports materials up to 500 g/m2. With a production capacity of up to 10 m/min, it guarantees high-level performance. The high pile vacuum feeder allows automatic operations without operator supervision.

With Veladuo, a perfectly laminated document is always guaranteed, thanks to the pressure applied by the pneumatic system, which is fully adjustable according to the job requirments. The machine is equipped with both vacuum feeder and bursting system, which allows a fully automatic laminating process either on single and double side lamination. All settings can be managed in a few seconds directly from the large and intuitive touchscreen display. Veladuo automatically adjusts the feeding speed according to the paper position to ensure accurate overlap for every fed sheet.

High-pile automatic feeder, precision meets silence!
The laminator is equipped with a high-pile suction feeder that ensures efficient handling of various paper weights. Precise adjustments of the air flow allows to process even the most challenging electrostatically charged papers. Its patented suction system optimizes sheet pickup, even with slippery papers, and operates with low noise, as it does not require a vacuum pump. This feeder can accommodate sheets up to 999 mm in length and a stack height of 150 mm, enhancing the machine’s versatility for a wide range of laminating needs and reliability in high-demand environments

Creasing tool double thickness:
The patent creasing tool rotates on itself to adjust from narrow to large in less than one second

An intuitive interface is available through the 7” touchscreen display, where alle the job settings can be fully customized accoring to needs. Among the features of the new software, the possibility to obtain production reports and integrate the machine in an Industry 4.0 perspective. The innovative user interface allows an optimal user experience by guiding the operator in setting the optimal parameters required for each process with extreme ease.

Technical features
Veladuo
Lamination Single & Double Side
Max paper width 370 mm
Max laminatin film width 350 mm
Paper length 200 - 999 mm
Paper weight 120 - 500 g/m2
Pressure Pneumatic
Feeding system High pile vacuum feeder
Feeder stack height 150 mm
Working speed up to 10 m/min
Sheet separation Automatic (only OPP)
Power supply 230VAC – 50/60Hz
Electrical absorption 2200 W
Dimensions (WxDxH) 1937x 722 x1318 mm
Weight 200 kg

Electrostatic and mobility :
Thanks to the ESD wheels, peaks in tension are discharged in a controlled manner, without any consequences. Smart mobility increase worker productivity and more efficient space organization

Delivery blowing :
favors the precise laying of laminated sheets, especially when processing double side lamination

De-curl system :
Significantly improves the flatness of the sheet on single side lamination, ensuring smoother and more professional-looking documents.

Foiling capabilities:
The foil rewinder allows even more flexibility, handling not just lamination but also foil sleekin

Main features
Automatic rewind
Unwind system
Automatic eyelet loading
Pneumatic media Advancement (pinch roll)
Adjustable speed
Touch screen interface
10 memory (speed and distance of eyelet)
Maximum advancement speed 10 meter in one minutes
12 or 16 mm eyelet
Max with 1650 mm
Custom size on request

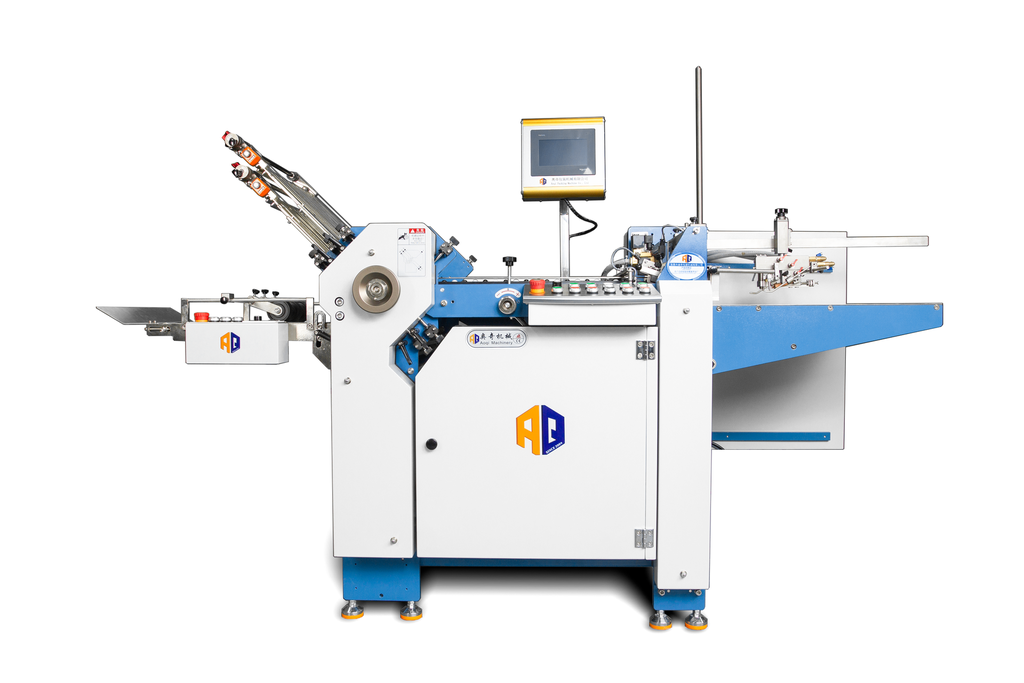

480T Series

First Station 4 Folding Plates :
Max. Format : 480*750mm
Min. Format : 50*105mm
Paper gram : 30-250gsm
Mechanical speed : 180m/min

First Station 6 to 18 Folding Plates :
Max. Format : 480*1000mm
Min. Format : 50*105mm
Paper gram : 30-250gsm
Mechanical speed : 180m/min

Advantages:

1.Equipped with an automatic dual control system for the height of the paper pile.
2.High performance sheet-separating feeder.
3.Feeding system adopts three-hole suction wheel.
4.Nonskid, wear proof, anti-rust steel, PU folding roller with screw stripe,so that the contact area is increased by 75% in contacting with the paper.
5.Electrical system controlled by PLC smoothly controlled by VVVE with overload protecting function.
6.Sensitive automatic control device of double sheet and jammed sheet man-machine interface facilitates parameter input.
7.Creasing, perforation, slitting.
8.Belt driving guarantees smoothly driving and low noise.
9.Designing the angle of the transitional that the paper wrinkled would be prevent efficiently.
10.Electrically controlled knife of photoelectric integragion realizes high speed superior reliability and minor paper wastage.

Position Digital Display
Make adjustment more efficent and higher precision; the debugging time is about 3-5 minutes
Feeder
High performace feeder make paper feeding more stable .
Touch Screen Control
Frequency conversion control automatic lifting;Tracking paper feeding system.
Electronic Control Switch
Adopt imported Schneider PLC and frequency conversion stepless regulation
Double Sheet Detection
If occurs double sheet during feeding paper , it will automatically alarm and stop feeding.
Automatic Supply Oil
Automaticlly maintain the core part– gear and prolong the usage life of the machine.

Other optional equipments as for your folding requirements :
Transfer Unit
Independent knife
Vertical stacker
Flattening unit
labeling machine
Gluing unit ( HHS brand )
Parallel Knife

Save valuable time, money and resources in your print production workflow with the UCHIDA AeroCut X Cutter & Creaser.
An all in one slitter, cutter and creaser for finishing digitally printed applications such as business cards, postcards, flyers, greeting cards, tickets and coupons in varying sizes and paper thicknesses.
Featuring enhanced productivity and user friendliness, it is the new generation model of the original AeroCut that's robust, built to last, designed and calibrated with Japanese engineering.
Creasing Unit with five level creasing pressure adjustments.
Slitting and Cutting Units with self sharpening blades featuring two single blades to trim top/bottom margins of sheets and two double blades for bleed center gutters.
Feeding Unit that operates by tri-suction air with patented feeding mechanism to reduce misfeeds such as double feeds and prevent paper jams from occurring.
Sheet skew adjustment and alignment.
Cut mark registration.
Feed Tray stacking capacity up to 100mm.
Flex mode operation allowing multiple cuts of a particular size from a single sheet along with preferred number of creases.
Detachable rollers to allow easy cleaning and removal of paper jams.
