The all NEW Morgana BM5000 booklet maker series is the latest member of the Plockmatic Group booklet making family.
Engineered for mid-to-high volume customers with the highest quality and functionality requirements.
With an increasing number of printing systems available to handle larger cut-sheet sizes, A4 / US letter landscape and oversize booklets can now be produced easily and cost-effectively.
The new BM5000 Series delivers these new applications by handling up to 620mm long sheets.
Paper Size Min : 206mm x 210mm.
Paper Size Max : 320mm x 620mm.
Stock Range : 65 – 300gsm cover dependent on paper.
Minimum set thickness : 1 sheet 80gsm (when folded makes an 4 page leaflet).
Maximum set thickness : 3.5mm (BM5035) and 5mm (BM5050) - approx.50 sheets of 80gsm.
Maximum finished book : book thickness – 10mm (approx 200 pages 80gsm)
Stapling – Easy change, low maintenance, heavy duty staple cartridges
Staples per cartridge : 5000.
The Finishing module now places both SquareFold and Face Trim capabilities in one single module – and comes as standard.
It adds the finishing touch with a square folded edge and printable spine.
Gives booklets the professional look of a perfect bound book.
The Booklet Maker can be specified with either two staples or up to four stitching heads.
This gives customers the ability to further tailor their system and finish a wider variety of booklet sizes.
The system also can provide edge stitching in one or two locations for even more flexibility.
Optional extras : Convenience feeder, CST crease/side trimming module, VFX High Capacity feeder, side trimming module ST5000.
Warranty 1 year.

The Neptune is a fully automatic laminator for sheets up to
B3 size.
Compact and easy to use, the Neptune is designed
with todays short run print-on-demand market in mind.
Its features make it equally adept at running both digital and
lithographic output.
Equipped with the optional rewind system for use of transfer films for gilding (Sleeking films).
Speeds of up to 15m/minute.
Maximum laminating width of 370mm.
Maximum recommended stock : 400gsm.
Minimum recommended stock : 115gsm.
Maximum sheet size : 360mm x 540mm (option feeder 660mm-740mm-880mm-990mm).
Minimum sheet size : 205mm x 297mm.
PLC controlled.
Compact footprint.
Heated Chrome top roller.
Pneumatically controlled Rubber nip roller.
De-curl bar which can be adjusted on the run.
Burster type sheet separator.
Warranty 1 year.

Multi-head van pique, robust and specially designed for you.
Er zijn slechts 4 heads Hohner Universal 70/20 voor een diameter van 0 tot 20 mm.
Neem het conische cutout (patent) op voor een mildere penetratie.
Ideally, you should consider the possibility of an integrated party being involved.
Tafel omkeerbaar (blok in notebooks).
Table depth 230 mm, ideal for kalender products.
De extra opdrachten kunnen tot uiting komen.
Regel dengte en het middelpunt van het gelijktijdige doorkruisen van een lever voor de tous les têtes.
Adjustable lateral cleats at the back.
It is very flexible and can be formatted.
Optional verwisselingsset for looped-stitching.
Stitching speed (per head): 192 staples/min.
Table width: 1000x330mm

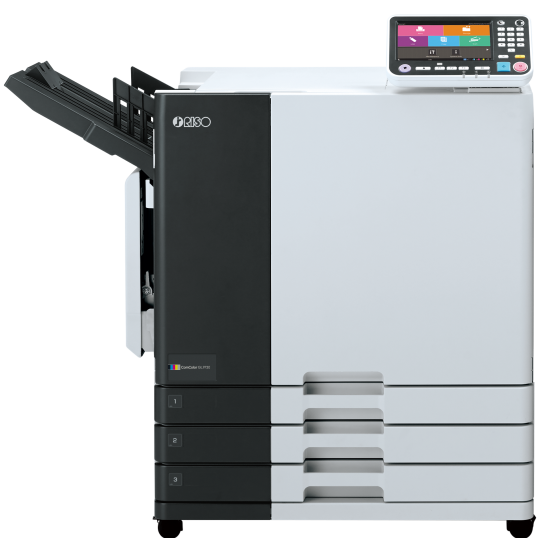

Your COLOR prints at full speed.

Ultra-fast and ultra-reliable, with the ComColor FT5430 professional printer, opt for advanced performance. Ideal for peaceful management of your production peaks in complete autonomy.

The advantages:
-Ultra-fast:
Allow less than 5 seconds for your first impression. The horizontal passage of the paper under the print heads promotes high printing speed, with minimized offset. You manage up to 140 pages per minute and benefit from a record availability rate.

-Unmatched reliability:
With FORCEJET™ cold inkjet technology, print with complete peace of mind. The paper is not exposed to any heat source and does not curl: this considerably reduces the risk of incidents linked to the passage of the paper.

-Versatility:
The ComColor FT5430 comes with multiple accessories to vary your media. With the finishing module, finishing processes are simplified and more efficient than ever. The module adapts to the rhythm of the printing speed. You can easily print stapled files at 125ppm and create your own booklets of up to 80 pages!

-Autonomy:
Thanks to the additional 2000-sheet tray, your autonomy capacity is increased tenfold up to 4000 sheets with the front feed trays! Compact and easy to use, the ComColor FT5430 allows you to reduce the need for subcontracting. You save time and money.

Various optional modules:
-Comcolor Express RS1200C controller
-HS7000 scanner
-2000 sheet input tray
-Staggered sorting reception tray + stapling
-Envelope feeder
-FT shaping module

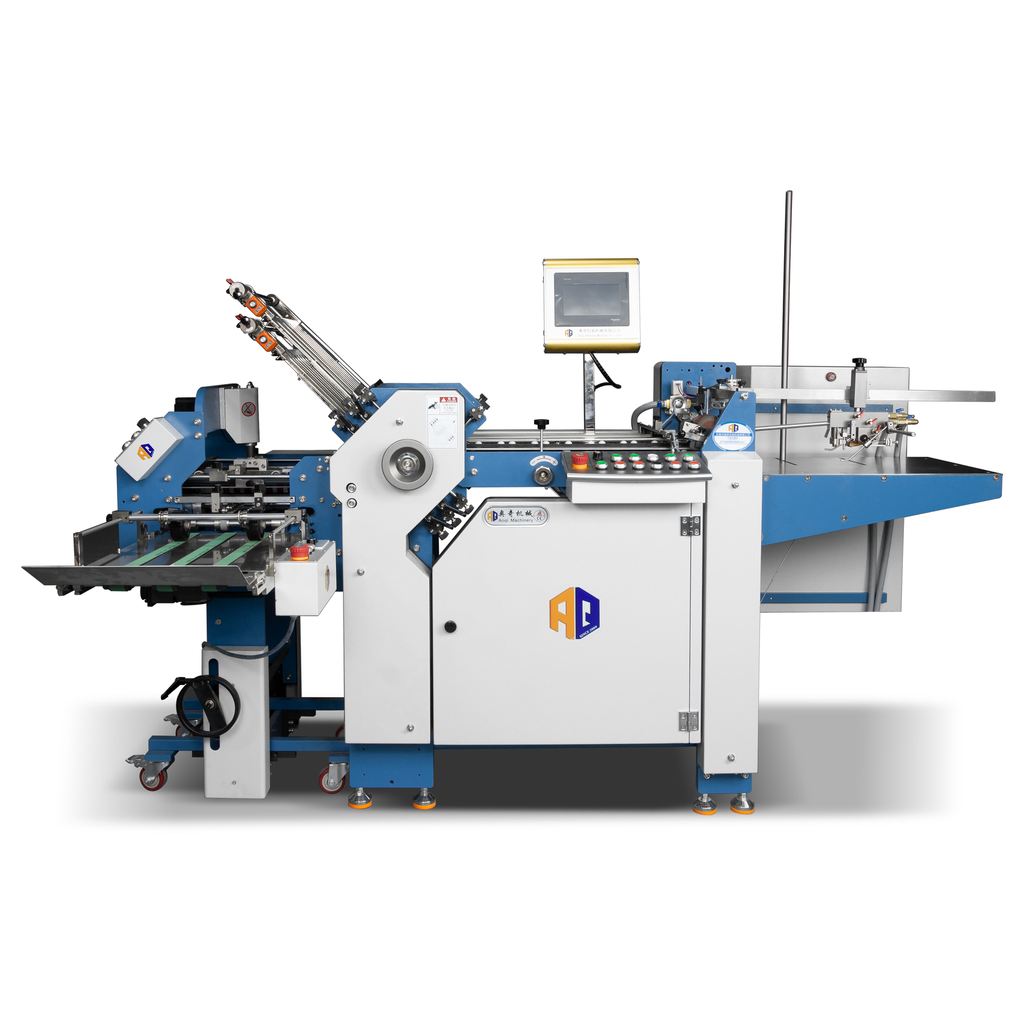

Folding machine 2-18 pockets 360T Series + Crossfold module (1 fold) in line.
The crossfold module can be separated easoly accordingly to the type of job to do.

Dual control panels (Digital display + buttons panel), easy to operate.
High performance feeder head.
Manual buckle plate.
Three-hole suction wheel.
Double sheet detection.
Air pump Eurovac.
Schneider PLC.
Sensors.

The crossfold module (Independant knife) is designed to handle products that are too small or too thick.
It makes a signle final crossfold?
Max. infeed size : 360x260mm
Min. infeed size : 100x25mm
Speed : 500 times/min.
Power : 220V, 0,37KW.


Max. infeed size : 360x750mm
Min. infeed size : 50x105mm
Paper thickness : 30-250g
Max speed : 200m/min
Power : 380V, 3,05KW
CE Certification

Main features :
LCD Touch Screen display with intuitive and easy-to-use software
Wallpaper automatic vertical alignment
Marks reading sensor
Self-identification and marks learning
X&Y axis adjustable speed
Excellent visibility of the cutting area
Pneumatic Pinch Roll with silent compressor inside the machine
Up to 10 vertical cutting units
Double loading roll
Tower Light
New alignment system of vertical cutting units
Open vertical cutting edges (no paper jam)
Monolithic machine body
Plug & Play
Standard jumbo Roll holder max, diameter 400 mm
Up to 20 Personalized Memories
Pneumatic system to separate the cutting waste

Optionals :
Vertical single pneumatic cutting unit (max 10)
Double central pneumatic cutting unit
Vertical cutting guide laser
Table extension for copy collection
Motorized stacker with air blade
Automatic table for copy collection
New Fixed table for copy collection stacker edition

Materials :
Paper (laminated or encapsulated)
Wallpaper
Canvas & Polyester (with liner)
Reflective material
PVC banner
Vinyl & Self-adhesive vinyl
Backlit & frontlit display
Magnetic rubber
Polycarbonate in film
Special materials to be tested

Width : 1650 mm
Cutting thickness : X axis : 1,2 mm max Y axis : 1 mm max
Speed Advancement : 1-50 m/minute
Cutting unit max : 10 vertical unit
Horizontal cutting speed : 1-150 m/minute
Power sup : 230V - 50Hz - 650W
Maximum roll capacity wallpaper : 70 kg

Banding machine with printer & eye mark sensor for registration.

-Schneider touch screen +PLC
-With Markem SmartDate X45 Thermal transfer printer
-Belt power table
-Side dispenser for easy band loading
-SS 314 machine body
-Available in 30mm/40mm/50mm/75mm/100mm/125mm/150mm wide band
- Material Specification :
Thickness: 40-130 mic,
Length: 500-1200meters
Core: 76mm
-Arch Size : 370*200 mm
-Banding Size :
Min:50*10mm
Max: 360*200mm
-Table Height : 980mm
-60 seconds for Pre-Heating time
-Welding method : Heat Sealing
-With counter
-Applicable for both Kraft paper band and OPP film
-Jumbo roller dispenser to load 500-1200 meters roll
-Schneider Servo motor
-Easy maintenance
-Customize arch size
-Power Supply : 220V 50hz 1phase or 110V 60hz 1phase
-Power Rate : 1250W
-Banding Speed : 27 bands/Minute
-Banding Tension : 5-40N

-Markem SmartDate X45 thermal printer :

-Printing Area : 32*40mm
-Driven type : Pneumatic
-Printing Speed : 50 to 600 mm/s
-Resolution : 8 dots/mm
-Voltage : 90-260V
-Software : CoLOS
-Printing Color : Black
-Printing Content : QR code, Bar Code, Black pattern Image, Date, Numbers, Characters,
-Ink Ribbon : L 700 *W22 or 33MM

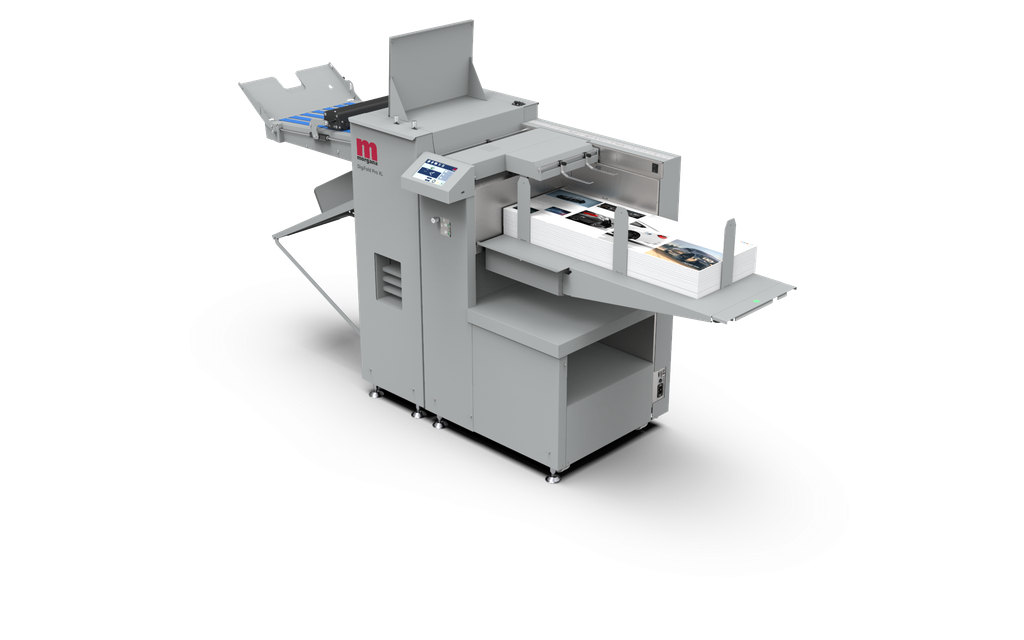

The DigiFold Pro XL is the latest addition to the Morgana DigiFold family.
Developed on the well proven Morgana DigiFold Pro, built with our unique, open design, suction feeder that handles stock sizes from 210 – 1300mm in length.
This heavy-duty automatic creasing and folding system is designed to complement mid to high volume digital and offset production presses.
The Morgana DigiFold Pro XL is designed to complement the long sheet capabilities enabled in the production printers of today.
It features a standard pull-out extension that enables sheet sizes up to 1300mm.
This opens the door to new applications, such as covers for landscape booklets, book covers for oversized perfect bound books, multi-panel brochures and many other applications made from these long sheets.
Folds up to 6.000 A4 per hour / crease only – 7,500 per hour.
Max loading capacity up to 200mm.
Top fed vacuum feeder, ensures stable production for long runs.
Fully automatic operator functions.
Key in sheet size, media type and thickness and the Pro XL will automatically set speed, roller gap and fan settings.
A unique air knife system for sheet separation.
Full cross perforation available, plus up to five inline perforation/scoring wheels.
Up to 30 creases per sheet (static crease.)
Equipped with both a belt-stacker for folded sheets and a delivery tray for crease only jobs.
Max loading capacity 200mm.
Max paper size W x L: 385mm x 700mm (1300mm with extension table).
Min paper size W x L: 93mm x 210mm.
Max paper thickness: 400gsm.
Min paper thickness: 80gsm.
Max sheets per hour: 6000 Sheets per hour, A4/half fold, one crease only 7,500.
DynaCrease standard, Static crease optional
Max number of creases per sheet: 30 (with optional static creasing tool)
Min crease to crease distance 0.1mm.
Stacker capacity 120mm.
Footprint with table extension 2765mm x 730mm.
Warranty 1 year.

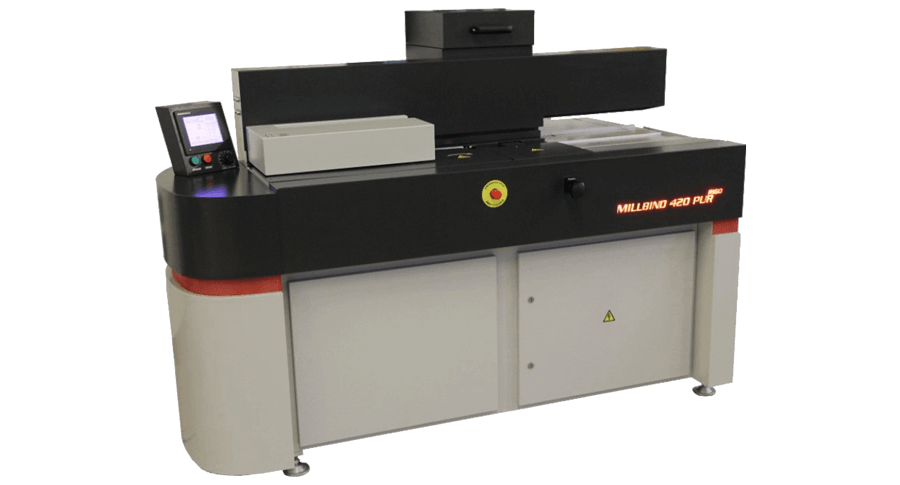

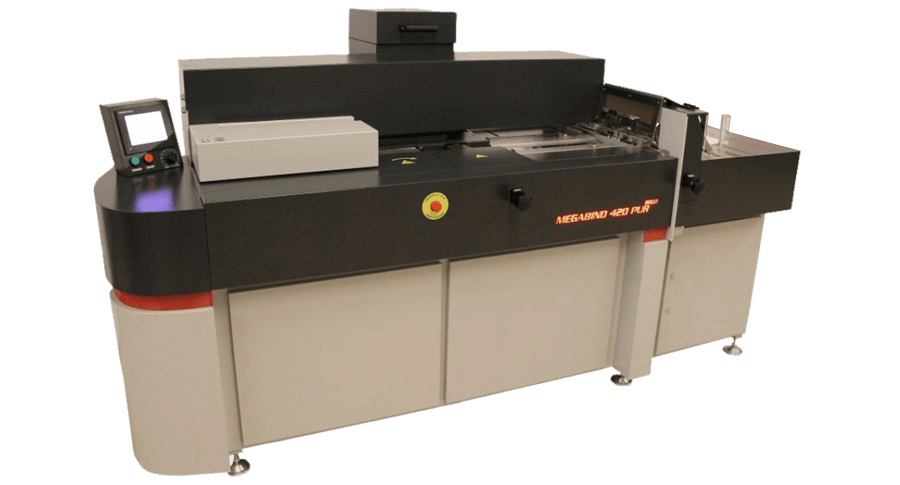

Standard features:
Unique closed PUR system including gear pump for precise glue application (PUR spine and side gluing) (tank capacity: 3 kgs)
Adjustable glue cut-off from the touch screen
Adjustable book positioning from the touch screen(max. 10 mm)
Adjustable milling depth via touch screen (0 – 3 mm) and notching
Large cover holder, with skew adjustment
Paper dust extractor
Cover sensor
3~400V

Available options for this model:
Magnetic bookblock support
Sideshelf
Tape binding
Tiltable milling unit
Automatic carriage start
Glue level indication
Remote service support, Industry 4.0 ready

GC-480 PRO 4 is a casemaker dedicated to produce hard cover cases. The machine closes all 4 case sides and corners in one pass thanks to two turning in modules. The air is all pressed out during the process.

The glue application unit is used to cover flat surfaces such as paper, leather, PVC with a thin layer of glue. The machine is able to use hot glues, which allows the use of organic adhesives of animal origin, eliminating the risk of cover waving due to the large amount of water in the glue – not requiring a long pressing time of the finished cover, reducing the time needed to clean the machine to an absolute minimum. The offered machine is a simple control, large and durable rollers made of stainless steel, standard equipped with preheating to prevent water condensation on the sheet and water supply from the tank activated by pressing a button. All this makes the work as easy as possible and eliminates many potential problems occurring when operating similar devices.

Casemaking table allows you to work on a variety of materials with different properties. It has centre LED backlight for positioning and motorized conveyor belt with suction that moves in and out the case. The turning in module does not require an air supply and works mechanically, very quietly in comparison to other devices on the market.

Gluing unit features:

can be used with cold glue or hot glue (recommended extra glue tank if using both, machines comes with one tank)
2 stainless steel, big diameters rollers (acid resistant) for better glue application
Electric heater, metal tray with glue disposed into water tank heated by the heater.
Rollers speed fluent adjustment from panel
Preheating bar before metal rollers (prevents water collection on table) in standard
Water tank with pump for adding water to glue tank by pressing button on panel
In standard version made for application of glue for material from 80 gsm to 250 gsm (with optional rigid board module up to 5mm material thickness)
Cleaning time after job about 5 minutes
Casemaker features:

Colour touch screen for settings and diagnostics
Motorized rollers for edge turning in and pressing the case, does not require any compressor. Silent operation.
Motorized, vacuum table (pump included) for moving the case in and out
Possibility to do pressing only or turning in and pressing.
LED cover central backlight from bottom
Board positioner operated by hand
Foot pedal for board stoppers
Top shelf for boards and covers
OPERATION:

The operator manually feeds the cover to the gluing machine where the glue is automatically applied
The cover sheet smeared with glue is placed by operator it on the table, then manually adds grey boards and a spine board.
The operator presses the pedal and case is moved into turning in module. First section closes 2 edges, next corners are closed. Case drops into motorized conveyor belt that pushes it into second turning in section closing next 2 edges. Covers that leave the machine are immediately usable. During the turning in operation, the cover is pressed through a system of guide rollers removing the air.
Technical info
Max rollers speed 5,6- 16 m/min
Max paper width (mm) 520 mm (glue application only)
Material thickness** gluing only :80-300 gsm or up to 5mm (with optional rigid boards module) turning in: 80-250 gsm
Heating time ~15 min
Temperature (°C) 0-95 degrees (possible to work with cold glue with 0 degrees temperature ex. when making inner paper)
Glue tank capacity 4l
Glue type*** Organic glue (*** possible to work with cold glue with 0 degrees temperature ex. when making inner paper)
Productivity* ~ 240-300 pcs/ hour
Cover material type Paper, textile, laminated paper, photopaper, eco leather, pvc, polyurethane
Min size of open case 145 x 145 mm
Max size of open case 480 x 770 mm - edge turn in 20mm
Board thickness** 1,5 mm- 4 mm
Spine width 1-100mm
The minimum distance between boards when producing covers without a spine 4 mm
Overlap covering material adjustable in range 10-20 mm
Vacuum on table YES (integrated air blower)
Power supply 3 Ph, 400V/50Hz
Power installed 3,8 kW (heater switched on); 0,8 kW (heater switched off).
Dimensions 299cm x 194 x 117 cm - min door width. 135cm
Weight (kg) 900 kg
Air compressor Not required
NOTE! * depends on the type of material and operator skills ** tested values. Out-of-range materials must be checked prior to purchase. *** it is also possible to use cold glue, e.g. in the case of pasting the inside end paper under a binder

480TS Series
First Station 4 Folding Plates :
Max. Format : 480*1000mm
Min. Format : 70*120mm
Paper gram : 40-300gsm
Mechanical speed : 220m/min

Advantages:

1.Equipped with an automatic dual control system for the height of the paper pile.
2.High performance sheet-separating feeder.
3.Feeding system adopts three-hole suction wheel.
4.Nonskid, wear proof, anti-rust steel, PU folding roller with screw stripe,so that the contact area is increased by 75% in contacting with the paper.
5.Electrical system controlled by PLC smoothly controlled by VVVE with overload protecting function.
6.Sensitive automatic control device of double sheet and jammed sheet man-machine interface facilitates parameter input.
7.Creasing, perforation, slitting.
8.Belt driving guarantees smoothly driving and low noise.
9.Designing the angle of the transitional that the paper wrinkled would be prevent efficiently.
10.Electrically controlled knife of photoelectric integragion realizes high speed superior reliability and minor paper wastage.

Position Digital Display
Make adjustment more efficent and higher precision; the debugging time is about 3-5 minutes
Feeder
High performace feeder make paper feeding more stable .
Touch Screen Control
Frequency conversion control automatic lifting;Tracking paper feeding system.
Electronic Control Switch
Adopt imported Schneider PLC and frequency conversion stepless regulation
Double Sheet Detection
If occurs double sheet during feeding paper , it will automatically alarm and stop feeding.
Automatic Supply Oil
Automaticlly maintain the core part– gear and prolong the usage life of the machine.

Other optional equipments as for your folding requirements :
Transfer Unit
Independent knife
Vertical stacker
Flattening unit
labeling machine
Gluing unit ( HHS brand )
Parallel Knife

A high-speed sheet-fed inkjet solution.

With the ComColor GL7430 printer, print all your black and color documents quickly and at lower cost.

The advantages:
-High performance:
The ComColor GL7430 offers you a printing speed of up to 140 pages per minute with an optimal availability rate guaranteed. It allows you to cope with all printing requests in record time.

-Unmatched reliability:
With FORCEJET™ cold inkjet technology, the paper is not exposed to any heat source and does not curl: this considerably reduces the risk of incidents linked to the passage of the paper.

-Optimized rendering:
The ComColor GL7430 is packed with features that ensure stable print quality and therefore consistent results at high speed. For color printing, the application of a gray ink in addition to CMYK inks results in a faithful rendering, with subtle gradients, with more intense colors.

-Versatile solution:
The ComColor GL7430 professional printer is fully modular and allows you to diversify your media. It adapts to your needs and is easy to use.

Various optional modules:
-Comcolor Express RS1200C controller
-Fiery FS2100C Controller
-Alphastream Starter/Pro controller
-HS7000 scanner
-2000 sheet input tray
-4000 sheet input tray
-High capacity reception: 4000 sheets
-Perfect Binder binding module
-Staggered sorting reception tray + stapling
-Envelope feeder
-FT shaping module

The machine UV Coating Machine Odyssey Compact is conceived to protect the printed matters after offset, digital and flexographic printing.
It mainly uses UV paints or water-based acrylic paints according to the demand.
It is an ‘All in one’ unit including the varnishing machine and the oven.
Its overall dimensions are really contained.
The machine has two tanks: the one contains the paint and the other one contains the detergent product, which allows to obtain a quick washing of the rollers once the work is finished.
It is also equipped with two levers for a rapid removal of the spreading rollers.
The rotation speed is adjusted by an electronic system.
For the automatic feeding, the ODYSSEY Compact can be connected to all modular feeders of our production.
For high production, our Stacker high pile can be connected on the exit.
The production ranges from 4000 to 6000 copies/hour according to the quantity of paint to be smeared on the printed matter.
Working width : 520mm
Working table format : 680 x 600mm
UV lamp power :7000W
Max working speed : 50m/min.
Energy (at 30m/min) : 120 W/cm².
Varnish tank capacity : 5l.
Washing tank capacity : 5l.
Warranty 1 year.

Sturdily built machine, cast iron thoughout. All parts are protected by special scratch and acid resistant paint.
Maximum working width 500 mm.
ENDEVOR is a newly conceived machine, easy and practical set-up ensures little or no waste is generated when handling printed matter. Designed to process even minimal numbers of copies, in especially fast times, it is especially suitable for creasing paper printed on digital machines.
ENDEVOR is extremely easy to use; sheets are inserted manually and fed through automatically.
Computerized control allows programming of up to 50 different channels, each of which can contain a maximum of 100 creasing positions (stations).
The machine is equipped with a creasing comb for paper up to 250 g., and special creasing tools or perforating combs are available on request.

MOTOR POWER : 2 Kw 0.40
WORK TABLE SIZE : 680 x 590 mm.
POWER SUPPLY : 220 V monofase
MAXIMUM PERFORATING THICKNESS : 0.5 - 0.8 mm
PACKING DIMENSIONS : 85 x 70 x 54 cm.
NET WEIGHT : 110 Kg.
GROSS WEIGHT : 130 Kg.
The worktable is equipped with two side and one back millimetric adjustable squares.
Two adjustable side blowing points.
Central front blowing point with adjustable height and air power.
Two sectors drum with internal suction adjusting on the power and on the line of suction to the point of tangency moved by a mechanic pomp.
Millimetric regulation of the double sheet through mechanic locking adjustable horizontally and vertically.
Manual sheet feeding up to 500 mm paper pile and automatic lifting through an engine.
Supplied with high and low stopping stroke and with automatic lifting and coming down device controlled by an optical photocell installed on the central arm to permit the regulation of the different paper sizes.
Maximum size of sheet up to 500x700 mm. Speed and tension of the dragging sheet carpet can be set.
Micrometric adjustable support square. Speed and tension of the sheet dragging carpet can be set.
The balls guide regulate the sheet; different types of balls (plastic or iron balls) are available depending on the paper thickness.
The sheet feeder is arranged with electrical connection to other units for simultaneous processing (creasing, punching and folding).
Adapt to be connected with: creasing machines, laminating machines, UV coaters, folding machines,
inkjet printers, and much more.

Options: 40m3 pump, electronic double sheet detector, infrared remote control.

TECHNICAL DATA:

Working width : 520 mm
Power supply : 230 V monofase
Power : 2,7 Kw
Working speed : Max 75 m/min
Max paper pile high : 500 mm
Max sheet size : 520 x 720 mm
Dimensions - weight = 1750 x 1700 x 800(h) – 180 Kg

A series designed for printing professionals.

With the ComColor GL9730 inkjet printer, migrate your monochrome production to four-color printing at controlled costs. Extremely compact, it fits in any room and requires no fittings.

The advantages:
-Unmatched productivity:
With the ComColor GL series feeder, you can print in black and color without any loss of speed, at 165 pages per minute.

-Unparalleled reliability:
FORCEJET™ inkjet technology guarantees an optimal availability rate, the paper is not exposed to any heat source and does not curl: this reduces the risk of incidents linked to the passage of the paper and in post-production for enveloping and shaping.

-Optimized rendering:
The ComColor GL9730 is packed with features that ensure stable print quality and therefore consistent results at high speed. And for color printing, the application of a gray ink in addition to CMYK inks results in a faithful rendering, with subtle gradients, with more intense colors.

-Versatile solution:
Administrative documents, carbonless paper, reports, booklets, notices, letterhead, invoices, pay slips, transactional printouts... With the ComColor GL9730 production printer and its optional accessories, diversify your activities.

Various optional modules:
-Comcolor Express RS1200C controller
-Fiery FS2100C Controller
-Alphastream Starter/Pro controller
-HS7000 scanner
-2000 sheet input tray
-4000 sheet input tray
-High capacity reception: 4000 sheets
-Perfect Binder binding module
-Staggered sorting reception tray + stapling
-Envelope feeder
-FT shaping module

The Megabind 420 PUR-Melt automatic bookbinder machine.
Is one of the most cost effective professional automatic PUR binding machines in the world.
It is a member of the LAMIBIND family of products; and has all the necessary functions and more that are required by a medium size printing shop.
This machine is equipped with a unique “high pressure” closed PUR application system, which has made Rigo binders the envy of all other digital PUR binding manufacturers.
Both the spine and side-glue application is PUR.
Moreover it is also a hybrid machine as both EVA and PUR glues can be used in this machine.
It is the perfect machine for fast turn around and higher volume PUR binding.
The 2kg candle provides good production flow, high efficiency and less waste! For PUR application, spine preparation is the most important factor.
Therefore the machine is equipped with special slitting knives mounted on a precision milling disk which provides the optimum preparation for the bonding surface.
The milling disk height is adjustable via the touchscreen; up to 3mm (0,08”) can be cut off from the spine of the document.
The Megabind is supplied with an automatic cover feeding system with integrated creasing for the spine and hinges.
With it’s user friendly touch-screen this machine helps every operator to make professional quality books very easily.
From this user friendly interface it is simple and easy to adjust the milling height, binding time, glue length regulation and the cover feeder. Reliable components are the backbone of every great machine; therefore we have implemented the most stable electronics and electrical components available to us.

Maximum document thickness is 50mm(2”)
Maximum document length is 420mm (16,5”)

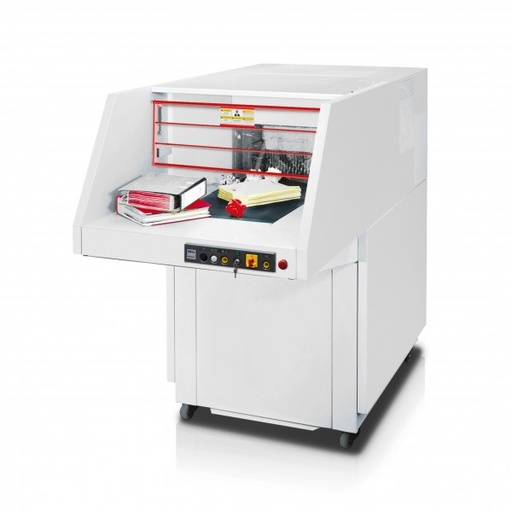

Simply giant: ideal for destroying large quantities of paper or entire binders.

Available in security level P-2 (cross cut) & P-3 (cross cut).

Ergonomically controlled keyboard with on / off / return keys and light symbols visualizing the different operating states of the shredder.
The robust cutting block easily destroys entire files, mechanism included - even in continuous operation.
The cutting block lubricator is standard equipment.
The trolley, delivered as standard, is easily removed, thanks to the rear door of the shredder.
Thanks to the waste evacuation system with transport belt, there is the possibility of doubling the average destruction capacity (the shredder is no longer immobilized when changing plastic bags).

Technical informations :

Height: 1714mm
Width: 1036mm
Depth: 2170 mm
Weight: 1130 kg
Opening: 500mm.
Receptacle capacity: 300 Liters

Security level: P-2:
Cutting width: 8x40-80mm cross cut.
Capacity (70g/m² sheets): 600-700
Cutting cylinders accept: Staples & Paperclips, Credit Cards, CDs & Floppy Disks & Binders

Security level: P-3:
Cutting width: 6x50mm cross cut.
Capacity (70g/m² sheets): 300-400
Cutting cylinders accept: Staples & Paperclips, Credit Cards, CDs & Floppy Disks & Binders

Fully automated compact double-sided B3 laminator.
Designed for the growing photobook and print-on-demand market.
Twin laminating stations give an identical finish on both sides of the sheet.
Speeds of up to 15m/minute.
Maximum laminating width of 370mm.
PLC controlled.
Compact footprint.
Equally adept at running Litho or Digital output.
Heated Chrome top roller.
Pneumatically controlled Rubber nip roller.
De-curl bar which can be adjusted on the run.
Burster type sheet separator.
Optional rewind unit for foiling.

business card cutter The top model UCHIDA AeroCut X Pro automatic card is versatile, efficient, fast and flexible.
The automatic business card cutter, postcard, crease, perforation in one machine can cut postcards, greeting cards, gift cards and other cards.
Works with copiers, printers.
Digital, offset printing machine as well.
The device is not very large.
Save space It is also easy to use.
Just the first time you can use it.
There is no need for employees to control the machine to work. The machine will automatically cut it.
The machine can cut business cards with precision, accuracy and speed, made in Japan.
op Suction Feeder.
Slitting, Cutting, Creasing, Perforating.
Cross Perforating and Jump Perforating included.
Substrate size from 210 x 210mm up to 370 x 750mm.
Up to 1600mm with optional extension.
Substrate weight from 120 to 400GSM.
Up to 4080 centre creases per hour or up to 189 business cards per minute (21 up).
Job Set Up additional Software and Ethernet connection included.
Barcode Reader included.
Cros and Jump Perforation included.
Belt Conveyor included.
Waste delivery conveyor optional.

Professional laminator designed for mounting, laminating, encapsulation, laying of application tape and double-sided adhesive application tape. Suitable for high precision and large productions. Equipped with 7 roll shafts that are all electronically adjustable.
Available in size 160 or 210cm


Smart Remote Service: Millennium can be connected to the internet network for remote assistance, for fast and efficient diagnostics
PERFECT LAMINATION,
PROFESSIONAL RESULTS
Dual-hot laminator suitable for high precision and large productions. Equipped with 7 adjustable shafts
Wide range of working types, thanks to the independent temperature setting of both rubber rollers (up to 140°C)
Setting and visualisation of all functions through the big touch screen display: rollers temperatures adjustment, motorized lifting of the upper roller, pressure between the rollers and control of clutches and brakes
Ten working memories to set the most frequent adjustments
Automatic scheduled starting of the machine with preheating function
Automatic rollers cooling function at the end of the job

SUITABLE MATERIALS :
Printed flexible media
Rigid panels
Cardboard (packaging)
Car wrapping
Floor graphics
Backlit displays
Graphics for exhibitions
Roll-up banner & pop-up displays
Table displays
Many more..

NEW touch screen control panel
Touch screen control panel for the complete control of all functions
Rear traction rollers
Electronic working speed adjustment
Reference square with guide
Vacuum feed in table for thin papers (optional)
Millimeter scale on each shaft
Rear rewinding shaft
