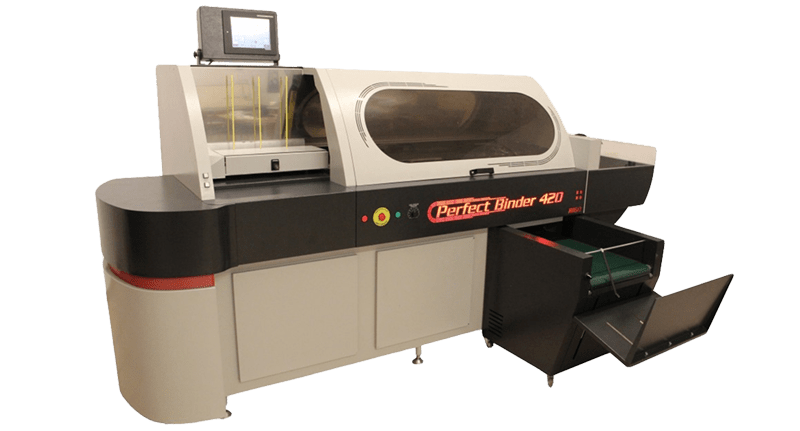

The Perfect Binder 420 Hot-Melt automatic bookbinding machine.
Is a fully automatic setup single clamp binding machine.
This machine is setup very simply by placing a “book block” into the clamp and retracting your hands from the clamping area.
Safety for this machine is performed by a set of optical light barriers.
This machine will set itself up to each book that is placed into the clamping area each cycle.
The Perfect Binder 420 is a member of the LAMIBIND family of products and has all the necessary functions and more that are required by a medium to large size printing business. One of the great advantages to this machine is a vibrating plate under the book clamp that allows the pages in each book block to settle correctly before clamping.
It is the perfect machine for fast turn around, individual book publishing and higher volume binding.
The machine is equipped with special slitting knives mounted on a precision milling disk, which provides the optimum preparation for the bonding surface.
All aspects of the binding process can be adjusted via the colour touch-screen including clamp opening width, glue length regulation, binding time, spine binding pressure (dependant on cover thickness), creasing width and the milling disk height which consequently can be adjusted up to 3mm (0,08”) enabling folded sections to be milled from the spine of the document.
With labour saving equipment like a pneumatic cover feeding system it also has integrated creasing for the spine and hinges.
Creasing for the spine width is automatically set ensuring that each book is perfectly bound.
The Perfect Binder 420 has a very user friendly touch-screen interface which helps every operator to feel at ease while helping them to make professional quality books every time.
Reliable components are the backbone of every great machine; therefore we have implemented the most stable electronics and electrical components available to us.
The Perfect Binder 420 can also be supplied with a vapor and paper chip extraction unit and a motorized reception conveyer.

PK automatic intelligent cutting system adopts fully automatic vacuum chuck and automatic lifting and feeding platform. Equipped with various of tools, it can quickly and precisely make through cutting, half cutting, creasing and marking. It is suitable for sample making and short-run customized production for Signs, printing and Packaging industries. It is a cost-effective smart equipment that meets all your creative processing.

Automatic sheets loading system suitable for printed materials automatic processing in short run production

QR Code Scanning System
IECHO software supports QR code scanning to retrieve relevant cutting files saved in the computer to conduct cutting tasks, which meets the customers’ requirements for cutting different types of materials and patterns automatically and continuously, saving human labor and time.

High Precision Vision Registration System (CCD)
With high definition CCD camera, it can make automatic and accurate registration contour cutting of various printed materials, to avoid manual positioning and printing error, for simple and accurate cutting. Multiple positioning method can meet different materials processing demands, to fully guarantee the cutting accuracy.

Computer, stand, screen, mouse, keyboard and compressor* included
*entrey level compressor included for low-mid use. Possibility to order in option a high capacity compressor for high volumes.

Delivery conveyor and stacker in option.

PARAMETER :
Cutting Head Type : PK Pro Max
Machine Type : PK1209 Pro Max
Cutting Area(L*W) : 1200mmx900mm
Flooring Area(L*WH) : 3200mm×1 500mm×11 50mm
Cutting TOOL : Oscillating tool, Universal Cutting Tool, Creasing Wheel,
Kiss cut tool, Drag knife
Cutting Material : KT Board, PP Paper, Foam Board, Sticker, reflective
material, Card Board, Plastic Sheet, Corrugated Board,
Grey Board, Corrugated Plastic, ABS Board, Magnetic Sticker
Cutting Thickness : ≤10mm
Media : Vacuum System
Max Cutting Speed : 1500mm/s
Cutting Accuracy : ±0.1mm
Data Format : PLT、DXF、HPGL、PDF、EPS
Voltage : 220v±10%50Hz
Power : 6.5kw

Perforateur entièrement automatique, compact et productif, idéal pour vos moyens et importants tirages de perforation.
Système d'alimentation automatique permettant de traiter sans aucun problème des liasses de documents mixés issus d'impressions offsets et numériques.
Moteur puissant et silencieux de 900w permettant la perforation de liasses jusqu'à 1,2mm d'épaisseur.
Table d'alimentation haute pile, automatiquement ajustée en hauteur.
Table de réception haute pile inclinée pour un taquage parfait des documents perforés.
Ecran LCD tactile pour une utilisation aisée.
Grand réceptacle à confettis amovible.
Machine compacte, montée sur roulette.
Principales caractéristiques techniques :
Cycles d'actionnement mécanique : 3.600/heure.
Largeur min. de perforation : 148mm.
Largeur max. de perforation : 320mm.
Long. min. du bord non perforé : 148mm.
Long. max. du bord non perforé : 300mm.
Épaisseur max. de perforation : 1.2mm.
Perforation Automatique.
Matrices de perforation proposées : Pas 3:1 wire-O, Pas 2:1 wire -O, coil, reliure plastique, etc...
Poinçons débrayables (QSA).
Temps de changement de matrice : 1,5 minute.
Dimensions de la machine : L=1.420 x l=812 x H=1.326mm.
Poids de la machine : 380kg.
Alimentation électrique : 230V~50Hz / 0.9kW.
Conforme aux normes de sécurité CE.
Garantie 1 an.

Europa now revised to take B2 sheet size.
Compact fully automated lamination system based on the successful Jupiter range.
High pile feeder to maximise efficiency for longer run work.
Equally adept at running Litho or Digital output.
Heated Steel Top Roller.
Rubber Nip Roller.
Scrolled in-feed roller to help feed lightweight and digitally produced sheets.
De-curl bar which can be adjusted on the run.
Burster type sheet separator.
Integral catch tray.
PLC controlled.
Compact footprint.
Hinged support mandrel to allow for easy roll changes.
Film can be moved laterally on the run.
Capable of running at speeds of up to 20m/minute.
Equipped with the optional rewind system for use of transfer films for gilding (Sleeking films).

series designed for printing professionals.

With the VALEZUS T1200 inkjet printer, migrate your monochrome production to four-color printing at controlled costs. Extremely compact, it fits in any room and requires no fittings.

The advantages:
-Unmatched productivity:
Thanks to the VALEZUS range feeder, you can print in black and color without any loss of speed, at 165 pages per minute.

-Unparalleled reliability:
FORCEJET™ inkjet technology guarantees an optimal availability rate, the paper is not exposed to any heat source and does not curl: this reduces the risk of incidents linked to the passage of the paper and in post-production for inserting and shaping.

-Optimized rendering:
The VALEZUS T1200 is equipped with features that ensure stable print quality and therefore consistent results at high speed. And for color printing, the application of a gray ink in addition to CMYK inks results in a faithful rendering, with subtle gradients, with more intense colors.

-Various applications:
Administrative documents, carbonless paper, reports, booklets, notices, letterhead, invoices, pay slips, transactional printouts... With the VALEZUS T1200 production printer, diversify your activities.

Various optional modules:
-Comcolor Express RS1200C controller
-Fiery FS2100C Controller
-Alphastream Starter/Pro controller
-HS7000 scanner
-2000 sheet input tray
-4000 sheet input tray
-2x 4000 sheet input tray
-High capacity reception: 4000 sheets
-High capacity reception: 2x 4000 sheets
-Perfect Binder binding module

Main features :
LCD Touch Screen display with intuitive and easy-to-use software
Wallpaper automatic vertical alignment +7/-7 cm
Marks reading sensor
Self-identification and marks learning
X&Y axis adjustable speed
Excellent visibility of the cutting area
Pinch Roll with silent compressor on the machine for material loading
Up to 10 vertical pneumatic cutting units
Double loading roll
Tower Light
New manual system of vertical cutting units alignment
Open vertical cutting edges (no paper jam)
Monolithic machine body
Plug & Play
Up to 20 Personalized Memories
Pneumatic system to separate the cutting waste

Optionals :
Vertical single pneumatic cutting unit (max 10)
Double central pneumatic cutting unit
Vertical cutting guide laser
Table extension for copy collection
Motorized stacker with air blade
Automatic table for copy collection

Materials :
Paper (laminated or encapsulated)
Wallpaper
Canvas & Polyester (with liner)
Reflective material
PVC banner
Vinyl & Self-adhesive vinyl
Backlit & frontlit display
Magnetic rubber
Polycarbonate in film
Special materials to be tested

Width : 1650mm
Cutting thickness : X axis : 1,2 mm max Y axis : 1 mm max
Speed Advancement : 1-18 m/minute
Cutting unit max : 10 vertical unit
Horizontal cutting speed : 1-150 m/minute
Power sup : 230V - 50Hz - 650W
Maximum roll capacity wallpaper : 400 kg

User friendly, flexible, semi-automatic RENZ RING WIRE® binding machine for books, calendars and skip binding.
Semi-automatic ring wire binding machine for books, calendars and skip binding.
High flexibility of different paper formats.
Ability to bind oversized products.
Touch screen assisted setup process.
Short setup times no tools required.
Binds up to 260 sheets.
Product is easily loaded by hanging it on to the element.
No special training is required.
Wheels allow the machine to be moved easily
Optional extra : Shingle conveyor.
KAS calendar hanger systems.
Warranty 1 year.

The redesigned die cutter, ideal for short-run digital print finishing. Customers want printed materials faster, personalized, and in the quantity they need, whether it’s for uniquely shaped cards or boxes. AeroDieCut gives printers and marketing service providers a new way to do this. It is easier than traditional large-format die cutters and more productive than cutting plotters and laser cutters. AeroDieCut can process complex cuts, creases, and perforations on printed materials in a single pass.

Feed Unit
The patented “Tri-suction feeder” ensures consistent paper feeding. The feeding unit equips an ultra-sonic sensor for double feed detection, and a cut-mark sensor to compensate image shift.

Easy Touch Screen Operation
The 4.3” coloured touch screen makes job settings and operation easy. 100 Job memories can be stored in the machine.

Main Unit (Press unit)
The main press unit uses a patented “moving press rollers” mechanism to press the paper. This makes the die-cutting process much quieter and power efficient than conventional die cutters.

Features
Die board size: 350 x 550 mm*
Max. paper size 365 x 515mm
Paper Weight: 120 - 400 gsm. / 6 - 16 pt.*
Speed: 1,000 sheets per hour

Specifications :
Basic function : Cut, round cut, crease, perforate, emboss
In-feed paper size : 297(W)x420(L) - 365(W)x515(L) mm
Maximum finished size : 320(W)x505(L) mm
Paper weight : 120 - *400 gsm *Depending on paper quality
Operation : 4.3" colored touch screen with arm
Job memories : 100 job memories
Feeding mechanism :
-Upper belt tri-suction feed (Patented)
-Side blow
-Skew adjustment
-Side aligner
-Ultra sonic double feed detection
-Cut mark registration
Feed tray stacking capacity : 100mm
Speed :1,000 sheets/hour
Footprint : 2,700(W)*x1,070(D)x1,100(H) mm
Power source : 100-120V or 200-240VAC, 50/60Hz single phase, 400W
Net weight : 410kg

Compact fully automated B2 lamination system.
Flying Knife sheet separation for OPP, Nylon and Polyester films.
High pile feeder to maximise efficiency for longer run work.
Equally adept at running Litho or Digital output.
Heated Steel Top Roller.
Rubber Nip Roller.
Scrolled in-feed roller to help feed lightweight and digitally produced sheets.
De-curl bar which can be adjusted on the run.
Integral catch tray.
PLC controlled.
Compact footprint.
Hinged support mandrel to allow for easy roll changes.
Film can be moved laterally on the run.
Capable of running at speeds of up to 20m/minute.
Available with longer feed table - 88cm, 95cm & 104cm.
Optional Stacker delivery system.
Optional rewind unit for foiling.

WB-500 is the new binding concept from Rilecart. The complete and versatile machine for digital printers and small binderies, as well as for today’s flexibility requirements of sized industrial binderies and offset printers.

-Immediate set up in size changes thanks to touch screen.

-hanger feeder otpion and suitable working depth for calendar binding.

-Italian manufacturing for highest robustness and reliability.

-No need for specific closing tools.

How does it works:
The operator sets the pitch, diameter, number of loops per piece and lenght to be bound in the computer. The machine automatically unwinds the spool, cuts the length to the set number of loops and carries it to the binding position. The operator then inserts the pre-punched block of sheets onto the waiting open wire comb.
Once inserted, he has only to push the footswitch and the book is automatically carried to the closing press, where it is automatically closed and ejected in to the box. There are no tools to change as the closing press is automatically adjustable for all the diameters and sizes.

Features:
Uses wires on spools.
For 3:1” and 2:1” pitch from 1/4″ to 1-1/4”.
Maximum binding length: 500 mm.
Minimum binding length: 50 mm.
Maximum speed: 1100 cycles per hour. Effective speed
depends on operator’s ability and on the item to be bound.
Optionals:
Hanger feeder for 10 to 30 cm calendar hangers
Technical Specifications:
220 V single phase 50/60 Hz; 1,5Kw
H1715 x D1100 x L2623 mm.
400 Kg

Morgana PowerSquare™ 160 Booklet Maker – An open-architecture, complete booklet making system that staples, folds, forms and trims in a single pass to produce added value SquareBack™ books.
The Morgana PowerSquare™ 160 booklet making system meets the needs of mid to high volume printers, capable of producing A4 / 8.5” x 11” landscape books. The machine is configured with one or two precise and reliable vacuum feeders, each with a 270mm / 10.6” capacity. OMR is standard, with optional barcode readers. Finishing your print jobs offline gives you flexibility in your workflow and handles the output from multiple digital engines.

The PowerSquare™ 160 is a modular open-architecture system that is flexible and versatile: it lets you produce booklets from a wide range of sheet sizes and materials, including A4 landscape format and heavy cover stocks. With optional accessories for full bleed trimming and book stacking, enabling you to increase productivity and efficiency.
Hand feeding with the Morgana PowerSquare™ 160 Booklet Maker
Hand feeding is often the most practical solution for low volume digital printed jobs, where ease of set-up along with flexible media sizes are important. Book quality is never a compromise with the fully featured Hand fed PowerSquare™ 160. This model is designed with an easy upgrade path to add feeders or operate inline to your printer.
Two-­Knife Trimmer
The PowerSquare Two-­Knife Trimmer (P2T) is a compact module that completes the booklet making process by trimming the top and bottom edges of the book. It provides a professional solution for full-­bleed printed work, especially important for colour printed applications.

Fully automated from the PowerSquare’s user interface, up to 40mm can be trimmed from each end of the book, and the trim position can be offset to match the image position. All trimmings are transported outside the machine to a high capacity external waste box, allowing continuous operation.
Up to 6 staples per set
The PowerSquare 160 now has the capability to apply up to six staples per book. Making it possible to run smaller applications 2 or 3up on a set, saving valuable time and money.
Specifications
PowerSquare™ 160
Sheet size (min) : 200 x 140 mm / 7.87" x 5.5"
Sheet size (max) : 370 x 620 mm / 14.5" x 24.4"
Paper weight (min) : 60 gsm / 16 lb Bond
Paper weight (max) : 400 gsm / 150 lb Cover
Book thickness (min) : 1 sheet folded / 2 sheets stitched and folded
Book thickness (max) : 8mm (approx. 160 pages @80 gsm)
Dimensions L x W x H: 825mm / 32.5" x 1760mm / 69" x 1250mm / 49.2"
Power requirements : 220-240V 50/60Hz, single phase
Weight : 435kg / 959lb
Stapling
Staples per booklet : 2 - 6
Staples per cartridge : 5000
Trimming
Face trim (Max) : 28 mm / 1.1"
Trimmed booklet size (Min) : 78 mm / 3.07"
Stacking
Output conveyor capacity : 20 booklets
Book Stacker capacity (Optional) : 930 mm / 36.6"
Power requirements : 100-230V 50-60Hz

The Comet will strengthen the D&K range of encapsulation machines and has been developed with the Trade Encapsulator and Card Market in mind.
The Comet benefits from being modular in construction and its adjustable height makes it fully compatible with a range of feeders and cutters
The 260mm diameter Teflon coated pre-heat rollers make for scratch free results and the large 75mm diameter heated nip rollers, with advanced rubber compound, give maximum heat transfer for higher running speeds
Amongst its many features the Comet has PLC control with modem link to enable remote diagnostics, swing out mandrels for easy film loading, pneumatic operation of all rollers to allow differing pressures on nip and pull rollers and ample cooling with variable speed fans, which only operates in start mode to save energy

Unique double-sided configuration comprising two separately controlled laminating stations, each with a heated chrome roller and rubber nip roller to give an identical finish to each side of the sheet.
High pile feeder to maximise efficiency for longer run work.
Equally adept at running Litho or Digital output.
Heated Chrome Top Rollers.
Rubber Nip Rollers.
Scrolled in-feed roller to help feed lightweight and digitally produced sheets.
De-curl bar which can be adjusted on the run.
Burster type sheet separator.
Integral catch tray.
PLC controlled.
Compact footprint.
Hinged support mandrels to allow for easy roll changes.
Film can be moved laterally on the run.
Capable of running at speeds of up to 20m/minute
Other versions of the Europa include standard single-sided and EL - single-sided with embossing station.

Rate: Number of bind / h: 1,200
Width: 500mm
Allows connection up to 23 mm.

RENZ RING WIRE® semi-automatic industrial punching machine with high production rate for producing notebooks, calendars and documents with divided binding.

Semi-automatic ring punching machine for producing notebooks, calendars and divided-bound documents.
Various paper sizes supported for remarkable flexibility and productivity.
Configuration via touch screen.
Up to 230 sheets bound together.
Horizontal paper feed for easy media loading.
Automatic crimping table.
Other option:
KAS system for forming calendar suspension rods.
The sliding stop system allows you to bind documents with larger than average dimensions.
The speeds indicated were obtained using 80 g/m2 paper, the values ​​being likely to vary depending on the type of support used, the nature of the working environment and the performance of the operator.

Very ergonomic touch control screen to quickly make format adjustments.
The automated binding table presses the support and holds the bundle in place during the binding stage.
A set of crimping bars is required for each spiral diameter. Renz crimping bars guarantee a perfectly executed operation in all circumstances.
Another option: Unique in its kind, the KAS system takes straight suspension rods and gives them the desired shape according to standard or European standards.
For the Autobind series: KAS 300: straight rods from 80 to 300 mm in length.
For the AB 700 model: KAS 500: straight rods from 80 to 500 mm in length.

Mechanical actuation cycles / h: 2,000
Pitch: 3:1, 2:1
Binding thickness: 1 - 23 mm
Ø of the binding strip: 5.5 - 28.5 mm (3/16" - 1 1/8")
Min. width binding width: 60 mm
Max width binding width: 500 mm
Long. min. from the unconnected edge: 100 mm
Long. max. from the unconnected edge: 500 mm
Binding: Foot control
Diameter change time: 15 min
Format adjustment (except diameter): 1 min
Calendar Hanging Rods: Optional
Machine dimensions (L x D x H): 1,650 x 1,560 x 1,700 mm
Machine weight: 212 kg (1)
Machine dimensions (L x D x H): 1,730 x 1,230 x 1,600 mm
Weight of the machine including packaging: 380 kg (1)
Compressed air: 7.5 bar / 300 - 320 l/min
Power supply: 230V~50Hz / 0.6kW or 115V~60Hz / 0.6kW
Technical changes may be made without notice. 1 mm = 10 sheets of 80 g/m2 paper. The speeds indicated were obtained using 80 g/m2 paper, the values ​​being likely to vary depending on the type of support used, the nature of the working environment and the performance of the operator. Depending on the type and configuration of the machine.
(1) Weight excluding crimping bars.

Europa EL has a standard laminating head and a further station for embossing or, potentially, higher pressure laminating, to allow either conventional single-sided lamination or laminating and embossing in a single pass.
Compact fully automated lamination system based on the successful Jupiter range
High pile feeder to maximise efficiency for longer run work
Equally adept at running Litho or Digital output
Scrolled in-feed roller to help feed lightweight and digitally produced sheets
De-curl bar which can be adjusted on the run
Burster type sheet separator
Integral catch tray
PLC controlled
Compact footprint
Hinged support mandrel to allow for easy roll changes
Film can be moved laterally on the run
Capable of running at speeds of up to 20m/minute
Optional rewind unit for foiling
Second station for embossing

Dimensions including collection tray – PB/EL : L – 3180mm W – 1440mm H – 1440mm
Extended Feed Table add:-L88- 280mm / L95 – 420mm / L105 – 620mm
Weight – Europa FK, EL & PB : 900 kg
Electrical requirements – Europa EL/PB : 3 phase, 400v, 12.0kw
Air requirements : 10cfm dry air at 100 psi / 16m³/h
Maximum recommended stock : 400gs
Minimum recommended stock : 115gs
Maximum sheet size : 540mm x 740mm (Option for sheet lengths 880mm, 950mm and 1050mm)
Minimum sheet size : 205mm x 220mm
Maximum laminating width : 530mm
Speed : Up to 20m/minute
Temperature range : 70ºC - 140 ºC
Core size : 75mm (3”)
Film range - 25 microns – 42 microns
Pile weight : 250kg
Nip pressure : 1.2 metric tonnes

Far 5/55 has been developed for fast punching of loose sheets in large quantities with any size and type of holes required for the different binding systems: wires, spiral, plastic combs.
The Far 5/55 machine has been designed and manufactured with the utmost care in order to achieve top standard reliability and a long working life.
Change over of the tools is very fast and safe.
How does it works :
Far 5/55 can be fed continuously with material of variable thickness (paper and/or light cardboard).
Sheets are safely picked-up by an apposite device in bunches of 1,5 to 2mm each time, centred and then punched with precision and accuracy.
The sheets are solidly shift by four transport belts into the punching area where they are registered by a special device and then punched. Punched materials are preserved in numerical sequence and collected on a conveyor separately driven, in shingle style, so that the further procedure in made easier.
Features :
Maximum thickness per stroke : 2,5mm (standard 1,5 mm).
Maximum punching size : 550mm x 550mm.
Minimum punching size : 160mm (on punching side) x 120mm.
Speed : adjustable up to 120 strokes/minute.
Punching distance from the edge : adjustable up to 40mm.
Wide range of punching tools available, including tool for plastic-coils holes.
Technical Spécifications :
Power Supply : 240V single phase 50/60Hz.
Power Drive : 3Kw.
Dimensions machine : W=3200mm x D=760mm x H=1200mm.
Weight: 1250Kg.
Standard Punching Tools :
GF-55/3G: 3:1” pitch, three 3,7 x 4,0mm hole/inc., 550mm punching length, including thumb cut for hanger application.
GF-55/3: 3:1” pitch, three 3,7 x 4,0mm hole/inc., 550mm punching length. Suitable when using 5/16”, 3/8” and 7/16” wires.
GF-55/2: 2:1” pitch, two 4,7 x 5, mm. hole/inc., 550mm. punching length. Suitable when using 5/8” and 3/4″ wires.
Any other shape of punching bars may be supplied on request.
Warranty 1 year.

Standard features:
Unique closed PUR system including gear pump for precise glue application (PUR spine and side gluing) (tank capacity: 3 kgs)
Variable speed based on job requirements
Automatic book ejection to a sophisticated stackerunit
Adjustable book positioning from the touch screen (max. 10 mm)
Book releasing mode is adjustable via touch screen
Tiltable milling unit
Adjustable glue cut-off from the touch screen
Automatic cover feeding with inline scoring
Adjustable milling depth via touch screen (0 – 3 mm) and notching
Built in jogger
Automatic setup according to block thickness (side gluing and scoring)
Automatic carriage start
Paper dust extractor
Cover sensor
3~400V

Available options for this model:
Ultrasonic double sheet detection
Additional scoring wheels (1 set)
Glue fume extractor
Glue level indication
Cover positioner with adjustable angle & Automatic cover positioning & Separate, switchable EVA side gluing unit
Remote service support, Industry 4.0 ready

The Jupiter 5474 automated laminator comes equipped with touch screen for easy operator interface.
All controls for the machine are plc driven giving excellent reliability.
The Jupiter can produce up to 5000 B3 sheets per hour and comes complete with a unique infeed decurling roller allowing constant reliable feeding of troublesome stocks especially for feeding of digitally printed stock.
Dimensions (H x W x L) 1400mm x 1200mm x 1950mm.
Weight 650 Kg
Electrical requirements 3 Phase, 415V, 5Kw
Air requirements 15 cfm @ 100 psi Dry Air
Maximum recommended stock 450 gsm
Minimum recommended stock 90 gsm
Maximum sheet size 540cm x 740cm
Minimum sheet size 205cm x 220cm
Production speed : 35 meter/min.
Core size 75mm (3")
Heating Sealed oil filled roller
Feeder : yes.
Separator : yes.
In line slitting : yes.
Jogger : yes.
Warranty 1 year.

Each Renz machine is the result of numerous technical innovations and considerable practical experience.
The AP-360 Digital meets a variety of requirements, which were established as the result of an intensive exchange of ideas with users.
The result is top quality punching technology delivering totally new levels of performance and economic efficiency.
Control system AP-360 Digital :
Format adjustment without tools using servo motors ensures the quickest possible set up times. The machine settings are entered on the screen and can be saved in memory for repeated use.

Improved profits :
Punching can be a bottleneck in the production chain whether you produce small and average sized runs or extremely large runs. Efficient production of these jobs is the key to added profits.
The AP-360 Digital gives you the shortest set up times and allows you to punch small quantities efficiently.
In addition, the AP-360 is mounted on wheels for easy transport and the compact profile can pass through standard doorways.
Two finger pick up system :
Not available in other machines in this category. The layers of paper are picked up gently, even when punching mixed paper types and heavy weight papers. An adjustable air blower is available (optional).
Turn-over drum :
After punching, the sheets are rotated around a large drum to maintain the correct page sequence at the output station.
Punching unit with QSA* dies :
Paper format can be changed in seconds with QSA* punching dies.
This feature reduces the set up time by as much as 15 minutes and is unique for fully automatic punching machines (*QSA = Quick Size Adjustment).
Drive system :
Heavy duty components and the latest stepper motor technology are used for reliable operation with minimal wear and a long life span.
Warranty 1 year.

D&K PROTEUS 76105 Fully automated B1 Thermal Lamination System.
Working speeds of up to 35 metres per minute.
Very economical footprint.
Fully automated.
PLC controls.
Compact sheet burster.
Oil-filled chrome laminating roller.
Compressed air powered nip.
In-feed roller to assist the feeding of digital stock.
Warranty 1 year.
