The SF-9350II duplicator prints at 600 x 600 dpi giving you better results than ever. With its versatility and high-tech design, it adapts easily to all types of jobs.
The SF-9350EII model offers high quality printing regardless of the type of document: forms, envelopes, leaflets, flyers or teaching materials.
To obtain even better quality results, you can easily connect your duplicator to a PC with a USB cable or print direct from a USB key.
Do you need to print a large run right away ? Don’t panic.
The SF-9350EII duplicator prints at 150 pages per minute, i.e. 1,000 pages in just 7 minutes.
You can print high volumes even at the last minute!
RISO's iQuality System has a huge number of advantages, including: guaranteed optimum printing quality; elimination of operator errors; warning when ink or masters are running out; reduction of wasted paper.
Key features :
Print speed: up to 150ppm.
Paper format : A4/A3.
Scanning and printing image resolution: 600dpi x 600dpi.
Print paper weight: 46gsm - 210gsm.
USB and network connection.
RISO iQuality SystemTM.
Warranty 1 year.

Fastbind PUREVA NEO.
Ease and speed for both PUR and EVA production.
The Fastbind PUREVA offers digital finishing a compact all-in-one solution for high quality PUR and EVA production at low cost.
With traditional PUR machines, the maintenance can be expensive and time consuming, making it sometimes hard to assure reliable finishing to meet deadlines and to avoid last minute reparations.
PUREVA’s innovative glue mechanism is easily cleaned or even changed, thanks to economical glue cartridges that make it possible to change from PUR to EVA in seconds.
With no setup time, PUREVA offers an easy manual operation for flexible binding applications.
If PUR technology is required for smaller production quantities and specialty papers, the investment is usually high.
Now anyone can take advantage of PUR quality with a remarkably low investment and use as a bonus one machine for all binding needs. Thanks to its integrated casing-in system, PUREVA produces effortlessly both soft and hard cover books for higher margins.
Spécifications :
Electronic adjustable temperature control with single-button operation.
New advanced PGO roughening unit for both PUR and EVA binding.
Interchangeable and reusable glue cartridge (patents pending).
EVA cartridge requires no cleaning.
PUR cartridge can be cleaned in minutes.
Built-in casing-in unit for hard cover books
Odorless, closed glue tank and fume extraction Hood.
Security lock for glue tank and integrated heat control.
Top and side gluing for stronger bindings.
Maximum binding size: SRA3+nd a versatile product range.
Warranty 1 year.

The USM series models are clearly the flagships of staplers.
They feature the highest variability and an enormous stapling capacity of up to 250 sheets (80g plain paper).
Depending on the model, stapling with up to 6 stapling heads is possible.
The spacing can be freely selected within the range of 40-360mm. STAGO-typical robust design for continuous daily use.
An active clencher matrix and an infinitely variable stapling thickness adjustment guarantee a perfect stapling result.
Due to very short conversion times between different usage scenarios (flat-, saddle stapler, flat-, loop staple, different dimensions, etc.), the USM series is economical on short runs.
Stapling heads : 1-4.
Distance between heads : 40-240mm.
Flat stapling : 2-250 sheets 80gr.
Saddle stapling : yes.
Automation : yes - with module BMK 1800.
Working height : 880mm.

Neolt Sword ELS: power and excellence in vertical cutting.
Built on the success of Sword and Sword EL, here's the most innovative multifunctional and automated vertical cutter ever made by Neolt Factory, once again designed on the basis of customers' demand.
Custom-built, but accessible to many.
Absolute manufacturing excellence, Italian design, uncompromising power, high cutting precision: this is the promise of Sword ELs for modern sign makers, stand builders and industrial and artisan businesses with high cutting volumes of rigid and special substrates. All with a keen eye on the budget and with the highest levels of investment protection.
Multi-tool, multi-material, ultra-fast and XXL.
Sword ELs is characterized by a light and elegant, but at the same time robust and reliable body.
The unique design of the cutter equipped with millimetric ruler allows a safe and quick tool change, with the possibility of having two fixed blades always in position for the cutting of carboards and Forex, alongside with to a third motorized 30.000 rpm tool for cutting methacrylate and Dibond up to 5mm thick, with creasing function for folding-only requirements.
Available in 155cm, 210cm, 250cm and 310cm heights, Sword ELs can reach speeds up to 24 meters per minute, and thanks to the solid and extra large base it can accomodate large size boards.

Raineuse et micro-perforeuse automatique GPM 450 AIRSPEED 450.
le rainurage et la perforation (y comprise croisée) sont facilités par un système unique d'alimentation permettant le traitement de tous types de papier entre 80gr./m² et 400gr./m².
L'exactitude de fonctionnement, la fiabilité de la machine, la polyvalence d'utilisation, les nouveaux outils rotatifs de perforation et de découpe en option ainsi qu’une plus grande vitesse sont autant de facteurs complémentaires aux autres options déjà référencées sur le modèle à friction GPM-450 Speed rendant extrêmement avantageux !
Caractéristiques techniques :
Largeur de travail : 115 à 456mm.
Grammage : 80 à 400 gr./m² (rainage, perforation) – 80 à 250 gr./m² (micro-perforation).
Épaisseurs des rainages : CITO 1,0 mm – Papier de 80 à 200gr./m².
Distance minimum et maximum entre chaque rainage : 1/999mm.
Large plateau d’alimentation approprié au format A2
Capacité du plateau d’alimentation : 70mm.
Vitesse : 3.000 feuilles A4/heure (1 pli par feuille).
Nombre maximum de pli par passage : 15.
Grand display 7 pouces pour réglages faciles et précis.
Compteur de lots.
Programme de mémorisation des travaux.
Programmes prédéfinis (1/2, 1/3, 1/4, book cover).
Nombre maximum de roulette de perforation : 13 (1 en équipement standard)
Dimensions (lxpxh sur table) : 1320 x 755 x 1225mm.
Poids : 140kg.
Alimentation électrique : 230 V / 50Hz.
Équipement compris : 2 outils de rainage, 1 outil de perforation, 1 kit de perforation (roulette) et 1 kit de découpe.
Table incluse.
Options :
Outil de perforation Wiro 3:1 trous carrés 4x4mm.
Outil de perforation Wiro 3:1 calendrier trous carrés 4x4mm.
Outil de perforation Wiro 3:1 trous ronds diam 4mm.
Outil de perforation Wiro 3:1 calendrier trous ronds diam 4mm.
Outil de perforation Wiro 2:1 trous carrés 5x5mm.
Kit de perforation 9 TPI (roulette) supplémentaire.
Kit de découpe (roulette) supplémentaire.
Kit de découpe « Kiss cutting » (roulette).
Garantie 1 an.
Conforme aux normes de sécurité CE.

Grafcut is a European manufacturer of guillotines for the graphic and paper industries with over 30 years of experience.
Its range consists of compact, automated and durable trimmers.
For its production, Grafcut uses only reliable high-end components and the latest technologies.
All products are developed according to the highest safety requirements and are CE certified.
Fully hydraulic.
Large cutting capacity : 80mm.
7" colour touch screen.
High cutting tolerance : 0.1mm.
Minimum cut: 22mm (40mm as standard with the press plate).
Adjustable hydraulic pressure.
Light safety barriers.
Side tables (stainless steel) as an option.
Blowing table as an option.

Technical characteristics:
Cutting width : 520mm.
Cutting length : 520mm (530mm manually).
Cutting height : 80mm.
Blade drive : Hydraulic.
Press drive : Hydraulic and adjustable pressure.
Rear square : automatic, touch screen programming, tolerance 0.1mm.
Programs : 100 to 100 positions each (paper ejection, cuts, business card cuts)
Foot press control : yes.
Minimum cut : 22mm (40mm with press plate).
Safety: barriers immaterial, safety switch, blade, electronic control of the control of the 2 blade descent handles.
Dimensions without side tables : W=833mm x D=1215mm x H=1244mm.
Dimensions with side tables : W=1533mm x D=1215mm x H=1244mm.
Weight : 350kg.
Electrical connection 230V/50Hz - P=2kw.
2-year warranty.
Complies with CE safety standards.

Guillotine with automatic clamp and programmable EP power backgauge.
Efficient and safe cutting and trimming is guaranteed by the IR light beam safety curtain on the front table.
Additional safety is provided by the transparent safety cover on the rear table.
Touchpad :
Extremely convenient and easy-to-use: Electronic control module for the power backgauge with multilingual touch pad. 99 programs with up to 99 steps can be stored.
Also useful: the pre-programmed DIN sizes and the automatic memory for repeat cuts.
Cutting length : 650mm.
Cutting height : 80mm.
Narrow cut : 25mm.
Table depth : 610mm.
Power supply : 230 Volt / 50Hz.
Motor performance (input capacity) : 1,42kW.
Dimensions : H=1290mm x W=992mm x D=1220mm.
Dimensions with side tables : H=1290mm x W=1565mm x D=1220mm.
Weight : 312kg.
Warranty 1 year.

Semi-Auto hydraulic laminator.
Semi-auto feeding with overlap feature.
Pneumatic auto separation.
The anti-curl bar allows thin film laminates to be flat.
Mirror chrome heating roller
Thermal or Cold laminating
Touch screen display system
Digital foiling
2 rolls film installation
Adjustable electric hydraulic pressure system
MAIN FEATURE
Model: SF-540
Max laminate width: 540mm.
Max laminate length : 1200mm.
Laminate paper: 157-350gsm.
Max speed: 15 meters/min.
Control system: Hydraulic.
Max temperature: 140 degree.
Heating mode: Oil heating.
Upper roll: High gloss chromium plating 160mm.
Down roll: Silicon rubber 100mm.
Display: Touch screen.
Motor: AC motor.
Input power: 4000W.
Paper overlap accuracy: 1.5mm
Power: 220V - 240V, 50-60Hz
Core size: 3 inch
Film thickness: 17 - 42 mic
Machine dimensions: 1780x840x1420mm.
Net weight: 240kg.
Warranty 1 year.

Wide-format professional heat-assisted top roller laminator for self-adhesive materials (working width 1600 mm).

Suitable for laminating digital printing media for the visual communication, like floor graphics, window graphics, backlit displays, stickers and pre-spaced stickers, pop-up, graphics for trade fairs, shopping centres, retail outlets, car wrapping and many more.

It allows to mount graphics on boards.

Cost-effective laminator with very good quality, price and performance.

Designed and manufactured completely in Italy.

EASY LAMINATION,
GREAT RESULTS
Working flexibility: it mounts images on panels, applies double-sided adhesive films, application tape and protective film
Cost-effective: very good quality, price and performance
Easy to use control panel to set working parameters
Intuitive pressure control of the roller thanks to the pressure regulator and the gauge
Excellent results without air bubbles and defects
Time saving: easy adjustments of the media thanks to the swing-up steel feed table and the automatic locking system of the shafts. Load and unload of rolls of materials in seconds
New cutting unit with titanium coated blades, durable over time, for greater precision and long-term safety (optional)
Easy to use: compact dimensions, light and easy to move
Long-term reliability and safety
Low maintenance costs
Made in Italy: designed and manufactured completely in Italy
SUITABLE
MATERIALS
Floor graphics / Window graphics / Backlit display
Trade shows graphics
Roll-up banners / Pop-up / Stickers
Rigid boards and flexible media
Table top displays
Car wrapping
Pre-spaced stickers
Many more..

Heat-assisted top roller laminator
Control panel
Control panel for adjusting temperature, speed and many more parameters
Pneumatic lifting and lowering of the upper roller
Gauge to display the pressure of the upper roller
Pressure regulator of the upper roller
Cutting unit
Aluminum shafts
Swing-up steel feed table
Front tray
Feed-in guide (optional)
NEW Lowering of the upper roller with pedal on the back side
It works with air compressor (not included)
Feeding control by hand (control panel) or foot pedal (hand free operation)

•This machine has been designed for applying tapes to blocs.
•It is of all sheet-steel fire painted and suitable to execute large or small productions.
•The VEGA is equipped with a speed regulator allowing to reach a maximum production of 1200 pieces per hour, according to the type of the blocs.
•The minimum thickness is of book which can be taped is 5 mm and the maximum thickness is 30 mm. the length can be infinite.
•By using blocs with the same thickness is not necessary to previously adjust the length for the cut of the tape, as the machine automatically cuts to the correct length.
•Self- adhesive or thermo-adhesive tapes can be used.
•Thermo-adhesive tapes need the installation of an heating unit on the machine (optional)

Professional guillotine with hydraulic blade and clamp drive, 55cm
EASY-CUT, programmable power backgauge with touch pad
and IR light beam safety curtain on the front table.
Hydraulic blade and clamp drive.
Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting.
Comprehensive SCS safety package :
IR light beam safety curtain on the front table;
safety cover on the rear table;
lockable main switch;
electronically controlled true two-hand operation;
24 volt controls (low voltage);
safety drive;
automatic blade and clamp return from every position;
blade changing device with covered cutting edge;
blade depth adjustment from the outside of the machine;easy blade and cutting stick change from the front of the machine without removing covers.
Foot pedal for pre-clamping or as mechanical cutting line indicator. Optical cutting line with bright and durable LEDs.
Electric backgauge drive with touch pad for easy setting, multilingual operator guidance and digital display.
Measurement readout in cm or inches (display accurate to 1/10mm or 1/100 inch). 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step).
Program runs automatically.
10-button key pad for presetting of measurement.
Pre-programmed measurements for A3 to A6 standard paper sizes.
Memory key for repeat cuts. Automatic SET function for reference
measurement via start button.
Programmable EJECT function - for pushing out the paper.
Self-diagnostic system with error indication on display.
Electronic hand wheel for manual backgauge positioning with
infinitely variable speed control (from very slow to very fast). Adjusting knob for infinitely variable clamp pressure (min. 200 / max. 1100 daN) and pressure gauge.
Cutting length: 550mm.
Cutting height: 95mm.
Narrow cut: 32mm.
Table depth: 570mm.

The HYDROCUT 550 hydraulic paper guillotine is essential processing machine for digital printing houses.
The highest security level (two-hand operation, optical light
curtain) and low noise level peculiar to it during operation.
The adjustment of cutting length takes place with stepping motor satisfied all requirements.
The pressing of the paper to bind always takes place with hydraulics but it is possible to move the paper press with foot before hydraulic pressing.
The degree of the pressing is adjustable while the cutting force is adjusted by the manufacturer.
The changing of the blade is simple; to
do it safely we supply an appliance compulsory to buy.
Accessory of the machine is the cutting line display.
The adjustment of the cutting length happens with microcontroller Mitsubishi aided digitally displayed back gauge.
The machine can be programmed with absolute and relative memory
storing.
Specifications :
Maximum Cutting lenght : 550mm.
Maximum Cutting depth : 550mm.
Minimum Cutting depth : 35mm.
Maximum Cutting Height : 80mm.
Mono phase power supply : 230 volts-50Hz - 16A.
Paper pressing : foot pedal and hydraulically.
Adjustable pressing volume (Bar) : 10-80.ch
Optical cutting line display : Yes.
Safeguards : optical light curtain, two-hand operation.
User interface : touch screen & job memory.
Air table & side table (2pieces) : option.
Dimensions of the machines : D=1650mm x W=1430mm x H=1470mm.
Net weight : 550kg.

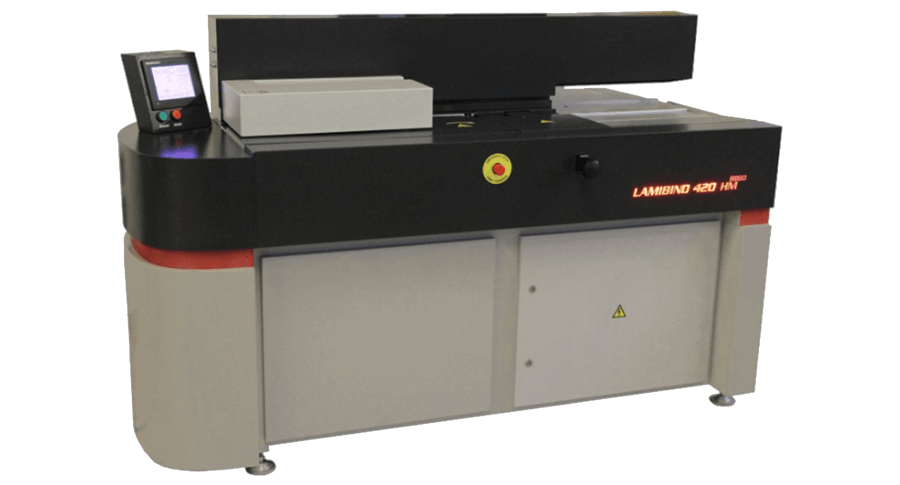

The Lamibind 420 Hot-Melt semi automatic bookbinding machine
Is the best choice for short and medium run binding.
The machine is equipped with special slitting knives mounted on a precision milling disk which provides the optimum preparation for the bonding surface.
The machine possesses with binding timer and automatic return of carriage clamp.
High-capacity vacuuming system takes care of extraction of paper chips and glue vapours.
With it’s user friendly touch-screen this machine helps every operator to make professional quality books very easily.
Reliable components are the backbone of every great machine; therefore we have implemented the most stable electronics and electrical components available to us.
Maximum document thickness is 50mm.
Maximum document length is 420mm.
CE-Conformity.
Warranty 1 year.

COMPACT is a semiautomatic machine that allows the production of hard covers, photo albums or luxury boxes.
The machine consist of professional hot & cold gluer with high diameter stainless steel rollers, vacuum table, positioning device for multi-piece cases and manual turning-in
mechanism. It is designed as entry level machine for small runs. Can apply glue on flat surfaces like paper, eco leather, pvc. It requires little space for installation.

Gluing unit features:
Cold or Hot glue ready
2 stainless steel rollers (acid resistant , full inside), have big diameter for better application
Electric heater, metal tray with glue disposed into water tank heated by the heater.
Thermostat for fluent adjustment of temperature with LCD screen
Rollers speed fluent adjustment from panel
Anti-condensation preheating bar before metal rollers in standard (prevents water to stay on table and transmit into paper).
Water tank in the bottom of base-adding water to glue tank by pressing button on panel.
In standard version made for application of glue for material from 80gsm to 300gsm.
Cleaning time after job about 5 minutes.
Optional extra module for application of glue intorigid boards.
Possibility to use cold or hot glue (we recommend to have 2nd separate glue tank for different jobs).

Casemaker features :
Table with vacuum.
Board side guides dropped manually included magnets for cover positioning.
2 rubber rollers for turning in the edges of cover with bottom metal bar stopper (possible to dismantle the metal bar and push case trough for pressing).

Technical info :
Range of gluing unit speed (m/min) 5,6- 16m/min.
Glue temperature 0-95 °C.
Heating time approx. 20 minutes.
Covering material thickness 80-300 gsm only gluing (up to 5mm with optional rigid boards module) 80-250 gsm turning in.
Max width of covering material for gluing only (mm) up to 800mm.
Max size of open case 760 x 1060mm (edge turn in 20mm).
Min size of open case 30 x 70mm.
Board thickness* 1 mm-6 mm.
Power supply 1- phase, 230 V/50hz.
Min size of open case 30 x 7 mm (*depends on operator skills)
Board thickness 1 mm- 6 mm
Spine width 1-100mm
The minimum distance between boards when producing covers without a spine from 1mm.
Overlap covering material 8-45mm.
Types of covering material Fabric, laminated paper, photo paper, imitation leather, PVC, polyurethane.
Maximum no. of boards 6 when using standard spacers (additional spacers available as an option).
Glue application on rigid boards Up to 5 mm thick with optional kit.
Glue tank capacity 4l.
Glue types : Cold water glue or hot animal glue.
Productivity ~ 150 pcs/hour.
Dimensions : 1823mm x 1300mm x 1170mm.
Weight : 350kg .
Power supply 1-phase, 230 V/50hz - 3,3 kW ; 0,5 kW with cold glue only.
Vacuum on table YES (integrated air blower).
Air compressor not requested.
Warranty 1 year

The DigiCut 67Hhas unique features for a paper cutter in the small formatmarket segment.
The all hydraulic operation is controlled by an OMRON PLC,ensuring high accuracy and stable performance.
The rear paper table is slot-less as aresult of the double guided back-gauge design. High specification infrared safetylight-guard,
allowing safe, unobstructed access to cutting area.
The maximum cutting width of 67cm.
The DigiCut 67H is equipped with a 50 memory digital program system with up to 16 steps permemory.
The PLC ensures a cutting accuracy of +/- 0.3mm.
Easy to use, intuitivetouch-screen control with clear information display panel.
All hydraulic clamp and knife operation.
Blade change function and independent foot pedal control of clamp for
gauging/pre-clamping.
Specifications:
Max. cutting width: 670mm.
Max. cutting height: 80mm.
Hydraulic cutting, hydraulic pressing.
Omron PLC control unit.
Touch screen display.
Memory: 50 programms/each 16 steps.
Dimensions : 1400 x 1010 x 1390mm.
Accuracy: 0,3mm.
Eject function.
Easy to programm.
Cm or inches.
Weight: 410kg.
Power: 230V, 3.5Kw

Main features :
Processing time (welding cooling) Time Programmable for welding up to a max. 5 min. Programmable time for cooling up to a max. 5 min
Welded steel frame epoxy powder coated. Fixed welding bar integrated in the working table
Equipped with a flat teflon heating band
Control unit impulse for uniform distribution of temperature on the seal bar
Easy-to-use control panel to define up to 20 different welding programs
Welding bar powered by pneumatic pistons
Optionals :
Extensions, add 1 meters both sides
Double laser ray
Kit FAP (fast automatic pocket)
Compressor (24lt. - 8bar)

Datasheet : 1300
Heating lenght about : 1300 mm
Heating width about : 25 mm
Working pressure : 220 kg/cm
Electrode temperature : from 70° to 250° C
Air pressure : 7/8 Bar
Dimensions : L1500xP1300xH1400 mm
Machine weight : 433 kg
Height of work table : 1000 mm
Power supply :400V 50/60Hz
Consumption: 6 kW. plug CEE (red) 16A 3P+T

Neolt Sword ELS: power and excellence in vertical cutting.
Built on the success of Sword and Sword EL, here's the most innovative multifunctional and automated vertical cutter ever made by Neolt Factory, once again designed on the basis of customers' demand.
Custom-built, but accessible to many.
Absolute manufacturing excellence, Italian design, uncompromising power, high cutting precision: this is the promise of Sword ELs for modern sign makers, stand builders and industrial and artisan businesses with high cutting volumes of rigid and special substrates. All with a keen eye on the budget and with the highest levels of investment protection.
Multi-tool, multi-material, ultra-fast and XXL.
Sword ELs is characterized by a light and elegant, but at the same time robust and reliable body.
The unique design of the cutter equipped with millimetric ruler allows a safe and quick tool change, with the possibility of having two fixed blades always in position for the cutting of carboards and Forex, alongside with to a third motorized 30.000 rpm tool for cutting methacrylate and Dibond up to 5mm thick, with creasing function for folding-only requirements.
Available in 155cm, 210cm, 250cm and 310cm heights, Sword ELs can reach speeds up to 24 meters per minute, and thanks to the solid and extra large base it can accomodate large size boards.

Main features :
Equipped with multiple cutting units for simultaneous cutting on all four sides
A mobile optical sensor reads the most diverse cutting marks for the accurate cutting
Manual alignment of the prints to be cut in the longitudinal direction, while the vertical cutting units are set manually
Speed 500 linear meter/hr
Available for most varied materials, including photo papers, vinyl, paper for inkjet printing, polyester or polycarbonate films up to a thickness of 0.5 mm
Easy loading of the reels
Electronic controls with visual displays allow the operator to easily check any errors or malfunctions
Vertical self-sharpening Blade
Horizontal self-sharpening Blade

Optionals :
Laser
Single vertical blade
Double vertical balde
Online kit (this optional allow to put the machine online with almost all the printer)
Datasheet Generals
Max. operating width 1650 mm
Dimensions 165 > 2160x800x1110 mm; 165 Kit on line > 1650x1940x350 mm
Weight 165 > 95 kg; 165 Kit on line > 36 kg
Consumption 0,5 A
Datasheet Horizontal cut Vertical cut
Max thickness 1 mm 0.5 mm
Speed 40 m/min (131,24 ft/min.) 12,5 m/min (41,01 ft/min.)
Tolerance ± 1mm. to the mt /
The manufacturers reserves the right to change technical and aesthetical specifications without notice.
Datasheet Reel
Max. diameter of roll Ø 300 mm
Max. width of roll 1650 mm
Max. weight of roll 60 kg

The Vulcan FC-500VC flatbed cutting plotter is ideal for light to medium production and design samples.

Ideally suited for packaging boxes, tags, cards and labels.

Camera system, User friendly touch screen, Advanced contour cutting, Network interface, U-Disk function and QRcode system, make the FC-500VC special.

Perforation cut, Die cut, Kiss cut and Creasing, make your ideas come true.

Camera System
The FC-5000VC has a high resolution camera that can actually see registration marks, even on colored and transparent materials, or if the registration marks themselves are white or light colored .
Fast scanning speed, SRA3 size, less than 3 seconds.
5mm registration marks will save paper/money.

Friendly touch screen panel
Vacuum (on/off), friendly for holding papers down (ON) and replacing papers (OFF). Move to origin, move carriage back to origin by one press, save time and exactly accurate position.
Recut, it's perfect for repeating same jobs X1/X10, to move carriage by two different speeds

Advanced feature for contour cutting
The Vulcan FC-500VC has an advanced feature
to compensate for print skew or positioning skew -effectively redrawing the artwork according to the error.
performs adjustments of size, tilt and warp for contour cutting by scanning 4 marks, it can be more precisely than other methods.

Network interface
It's very stable for long distance communicationt
To control one flatbed cutting by different computers
To control different flatbed cutting by one computer

USB flash memory
Save PLT files to USB flash memory, the PLT files can be output directly to the flatbed cutting by plug-in, means users to operate FC-500VC without a computer, great for batch production. 32M memory on motherboard, ensure to read and load the PLT files from USB flash memory quickly

Item: FC-700VC
Configuration : Digital servo system, Flatbed
Media hold-down method : Vacuum suction
Maximum cutting speed : 700 mm/s (10 to 700 mm/s )
Cutting pressure :
Tool1: Max.5.88N(600 gf)
Tool 2: Max. 5.88 N (600 gf)
Effective cutting area : 790x1085mm
Mountable media (Y-axis direction) : 940
Minimum character size : 5 mm square
Mechanical resolution : 0.005 mm (5µm)
Programmable resolution : HP-GL: 0.025 mm
Repeatability : Max 0.1mm
Standard interfaces : USB2.0 (Full Speed) / U-Disk / Ethernet
Memory : 32MB
Command sets : HP-GL
Number of tools : 3 tools
Tool types : Cutter blade / Calibration tool / Creasing tool
Operating screen : 4.3-inch touch LCD
Power supply : 100 to 240 V AC, 50/60 Hz (Auto switching)
Power consumption : Max. 150W of machine, Max.550W of (vaccum pump)
Operating environment : Temperature: 10 to 35 degrees C (35 to 95 degrees F)
Humidity : 35 to 75% RH (non-condensing)
External dimensions : 1420(Y)x1212(X)x1050(H)mm
Packaging dimensions G.W. / N.W. :
168x153x61cm (machine)
78x67x72CM (vaccum pump)
Compatible OS : Windows and Mac

The Lamidesk SuperSpeed ​​CNC is an easy-to-use application table.
The SuperSpeed ​​CNC is available in several versions: manual or optional motorized version.
Several table sizes are available (cm): 300x160, 300x210, 400x160, 400x210, 500x160, 500x210, 600x160.
Several options available: Led lighting, heating roller, cutting mat.
On the motorized version, the user can mount large prints on their own.
Thanks to its very robust structure and quality components, the Lamidesk can work continuously, absorbing large volumes.
Easy to use, the Lamidesk has no bridge above the roller which makes mounting prints very easy.
The optional roll holder makes it easy to work with a roll of laminate or tape application.
You don't have to mount the roller on the bar but just put it on top!
Optional LED lighting can be integrated into the table. This lighting facilitates positioning.
Thanks to the CNC control, you can determine a position yourself according to your wishes.
CNC control allows you to work faster and more efficiently!
The Lamidesk SuperSpeed ​​CNC has a standard mounting height of up to 100mm. Optionally, you have the option of mounting up to a height of 300mm.
SuperSpeed ​​CNCs are supplied without a compressor, optional on our compressor page. The BB-15V model is perfectly suited.
Robust European manufacture, the warranty is 1 year.
Complies with CE safety standards.
