Agrafeuse automatique USM 140 idéale pour tout vos travaux professionnels.
D'une très grande capacité de 250 feuilles, elle vous permettra d'agrafer vos documents les plus épais.
Vous pourrez régler la distance entre les têtes de 40 a 140mm, et ainsi adapter l'agrafage à tout type de documents, en vous garantissant un résultat d'agrafage parfait.
Le déclenchement de l'agrafage ce fait via une pédale au pied.
Nombre de têtes d'agrafage : 2 .
Distance ajustable entre les têtes : 40-140mm.
Agrafage à plat : 2-250 feuilles 80gr/m².
Agrafage à cheval : oui.
Hauteur de travail : 880mm.

The SureBind System 3 Pro Strip Binder is ideal for large offices that repeatedly require high volume, securely bound documents fast. Able to bind the largest of documents up to 750 sheets, it is fully electronic with a punch taking up to 26 80gsm sheets and a host of features.
Secure binding is achieved by welding 2 strips together to create a permanent spine.
Binds up to 750 sheets (80gsm).
Binding cycle 8 seconds or less. (for documents under 1")
Extra large drawer for paper chips and pin debris
Adjustable paper alignment guide.
Twin motors allows simultaneous punching and binding
De-bind facility for adding or removing pages
Electric Punching Throat: Punch up to 26 sheets of 80gsm paper in a single lift.
Special dual blade system ensures a hot blade is always at the right temperature to cut the pins.
Dual Punching Controls: Hands-free foot pedal or push button allows you to choose your preferred punching method.
An optional document bind counter to monitor throughput.
Binds A4 or A5 documents.
Binding cycle 10-18 seconds. (for documents over 1").

The Multinak S is a twin-headed stapler with electric drive that staples booklets and pads up to 27mm.
The machine is particularly efficient when it is used for frequently changing run lengths.
Its versatility and durability have made it indispensable to the graphic arts industry.

The Concorde Hyper distinguishes itself from the other models we produce, as it is able to drill to a minimum distance of 8mm. between holes.
This is possible by having a sliding table and adjustable stops.
The machine is manufactured in a single cast iron frame with the top in pressed steel and surmounted by a table sliding on bearings.
The movement of the table - which is produced by traction - as explained is connected to a tabulator.
This tabulator has adjustable stops, which executes the drilling of holes very near to each other, to a maximum lenght of 500mm.
With the addition of a motor operated stand it becomes CONCORDE HYPER.
It is no possible to dismantle this stand as it would require skilled staff to assemble..
Technical specifications :
WORKING TABLE SIZE : 75x35cm.
MOTOR POWER : HP 0.40.
POWER SUPPLY : 220v - 50Hz.
DRILLIG DEPTH : 70mm.
DRILLING MAXIMUM THICKNESS : 50mm.
DRILLING CAPACITY : Diam. 3 - 14mm.
WEIGHT : 140Kg.
CE-Conformity.
Warranty 1 year.

Automatic Fastening Attaching MachineShipping to be determined per weight & dimension!
• Fully automatic, self-loading machine. Fed by hoppers.
• Punches a hole and sets the grommet in one step.
• Can only accommodate one size die for the lifetime of the machine.
• Foot pedal for hand safety.
• Requires 220 volts of AC power to operate

Automatic wrapper on stand + Sunpack WK04-30BP upper press.
Equipped with a touch screen and very easy to use, it is one of the fastest of its generation.
Equipped with a counter.
Minimum dimensions of supports to be strapped: 30mm x 10mm.
Maximum dimensions of supports to be strapped: 400mm x 180mm.
Width of strapping bands: 29.2 - 29.6mm.
Fully automatic machine.
Strapping tension adjustable from 5 to 40N.
Strapping speed: 20 cycles/min.
Banner rolls up to 800 meters long in white or brown kraft paper or transaprent polypropylene (PP).
Trigger modes: with push button or automatic by cell or by pedal.
Dimensions: L=607mm x D=347mm x H=1220mm.
Weight: 75kg.
Electrical connection 220 volts - 50/60Hz.
Electric power 450 watts.
Complies with CE safety standards.

GRAFCUT 52E optimal solution for digital printers.
cutting the maximum format 520mm width x 530mm depth.
High cutting accuracy 0,1 mm of max paper stack 80mm.
22mm smallest cut (false clamp 50mm in standard).
Mechanical drive for knife and clamp.
Clamping without cutting option.
Clamping pressure adjustment via touch screen.
Cutting line indicator.
Technical info :
Cutting width : 520mm.
Cutting depth : 520mm (program mode)/530mm (manual crank).
Cutting height : 80mm.
Smallest cut : 22mm without false clamp (40mm with false clamp).
Front table height : 904mm.
Front table lenght : 466mm.
Cutting accuracy : 0,1mm.
Optional side tables dimension : 350mm x 400mm.
Power supply: 230V/50 Hz, 2kw.
Blade drive : Electro-mechanical.
Clamp drive : Electro-mechanical (electronically adjustable).
Backguage : Electro-mechanical.
Dimensions w/o side tables : 833 x 1215 x 1244(H)mm (it is possible to reduce width to 785mm for transportation).
Dimensions with side tables : 1533 x 1215 x 1244(H)mm (it is possible to reduce width to 785 mm for transportation).
Weight : 310kg.
Warranty : 2 years.

Fastbind Casematic a46 Smart Workstation is the first stand-alone Fastbind case maker.
It is intended for very small to extra-large format hard covers: you produce cases from under A6 to over 45x 45cm (18”x18”) under one minute with no set-up time.
Make book covers, ring binders,
luxury cases, wall art or photo album covers.
This is the perfect case making solution for all your on-demand, short and medium runs finishing needs.
With the ergonomic Fastbind Casematic a46 Smart Workstation, the case making process is intuitive: place the printed tacking sheet on the table, position the boards, cut the four corners, and fold the sides.
Thanks to the light table, the position of your cover is always precise, and the spine text set exactly in the correct position.
The patented support shelf prevents mistakes: you place the boards accurately the first time and reduce the risk of air bubbles.
Quick change spacers allow you to change the width of the gap between the spine and the boards.
The case making process is further eased by clever automation.
You can adjust the brightness of the light and the size of the illuminated area for shorter or longer covers.
The vacuum,maintains the sheet in place during positioning. Once the boards are placed, the guides are automatically lifted, and the air table assist moving the cover around.
Then, as you place the cover in the folding unit, it will clamp the edges for you. Making a hard cover has never been easier.
Fastbind Casematic a46 Smart Workstation is a fully equipped workstation, with spine side and back guides, spacers and corner cutter.
You organize your work efficiently as the multi-purpose stand comes with shelves and two small sliding side tables.
You can use the top and bottom shelves to store supplies.
The side tables can support small additional devices such as a gluing unit, a small guillotine, a small laminator, or a Fastbind Presso.
You can also add a FotoMount mounting wall on top of the table to produce lay-flat photo books.
The stand is built on wheels, so you can move your unit where you most need it.
You can also move the top shelf front or back depending on the operator’s preferences.
Fastbind Casematic a46a is flexible and will adjust to your own needs.
Warranty 2 years

Trimmer with touch screen control, automatic pressure device, EASY-CUT and pivoting protective guard on the front table.

Reference: 52553111
Cutting capacity: 80 mm thickness
Cutting length: 520 mm
Table depth: 520 mm
Minimum cut: 35 mm

Professional paper cutter with light curtain on the front table, touch screen control, automatic pressure device and EASY-CUT.

Reference: 52603111
Cutting capacity: 80 mm thickness
Cutting length: 520 mm
Table depth: 520 mm
Minimum cut: 35 mm

Secabo FC100 Flatbed Cutter with DrawCut PRO
The Secabo FC100 flatbed plotter including software is ideal for the production of small and medium-sized series productions and design samples. The free-standing unit with particularly quiet vacuum pump offers a maximum working area of 78cm x 108cm and reliably fixes the placed material on the vacuum table. The underlaid felt mat allows smooth working even with complete material diameters. As an alternative to the drag knife, two grooving and creasing tools in different sizes are included. Depending on the paper thickness, the appropriate tool is thus available to cut out objects with exact contours and to create grooves or folding edges. The multilingual cutting software DrawCut PRO and the multi-pass mark recognition system LAPOS Q are included and support professional results. The vacuum pump with acoustic enclosure and 3x drag knives 60° and 6x drag knives 45° are also included.

Multi-pass mark recognition system LAPOS Q - Precision meets performance
LAPOS Q is the fastest and most convenient sequential multi-register mark recognition system in the world. Paper, cardboard, stickers, labels and other media can be cut out to exact contours in free forms and even with the largest plots. The register marks are read in segment by segment as required, so the precision remains the same over the course of a large plot. Contour cut jobs can be read in easily by barcode.

DrawCut PRO cutting software - standard on board!
The multilingual professional cutting software DrawCut PRO for Windows is included in the scope of delivery. It not only reliably handles design and layout tasks and imports a wealth of graphic file formats, but also directs the Print&Cut applications of LAPOS Q, including the automatic generation of cutting contours and groove lines for your flatbed cutting plotter. DrawCut PRO has a unique vectorization algorithm for converting pixel graphics into path files and provides extensive text, shading and outline functions for the user.

Vacuum table for best fixation of your cutting objects
Both the FC50 and FC100 are fitted with vacuum tables as standard, which ensure that your cutting objects are securely fixed in place by means of the vacuum pumps that are also supplied. There are two different cutting supports to choose from, which provide the vacuum - depending on the application - more diffusely or with pinpoint accuracy.

echnical Data
interfaces USB
countour cutting function LAPOS Q, sequential cut marks
scope of delivery Flatbed vinyl cutter, multi-lingual cutting software DrawCut PRO (Windows), pedestal, drag knife, ball-bearing knife holder, plot pen, groove tools in two sizes, connection cable, vacuum pump with enclosure, felt mat for vacuum table, user manual in English language
max. work area 78cm x 108cm
max. thickness 1,5 mm
downforce 50g - 500g g
control back-illuminated graphic LCD display with gel buttons
Max. cutting speed 600 mm/s
Dimensions (W x D x H) 128cm x 127cm x 98cm
max. grammage 400 g/m²
weight without packaging 140 kg
weight with package 188,00 kg
Brand Secabo

Perfection demands specialization – ROWE is convinced about this. This is the reason why ROWE has been concentrating on specialization in wide format for more than 60 years.
The wide format scanner ROWE Scan 850i 60 Series, with its 4 models provide for unbelievable innovation and productivity.
The ultimate professional large format scanner.
Key features :
2400 x 1200dpi optical with 9600 dpi maximum resolution.
Maximum 60" image width (maximum original width 63.2") - length not limited by the scanner.
Super-Speed USB3.0 + RES interface.
Includes 2 year on site warranty, Includes ROWE ScanManager TWAIN, Scan-to-Net, Scan-to-USB, Scan-to-E-Mail, Scan-to-Cloud
Scans media up to 0.08in - handles ALL technical documents and most art media.
High speed scans in 16 bit monochrome, gray-scale and 48 bit color
Not only the standard sRGB color space but also the user defined color spaces like Adobe RGB, or Device RGB are supported
Scan Speed "C" Model 7.0" RGB / 15.0" Mono ips, "E" Model 15.0" RGB / 15.0" Mono ips @200 dpi.

The Mail Bag Digit is the ideal machine to wrap newspapers, catalogues, bulletins and overall publications.
It only uses one film roll of clear or printed polyethylene (max. thickness 30 microns), placed on a motorized roller.
The film is driven in a width adjustable forming box that folds it forming an envelope/bag around the product.
Closing the bag is done by using longitudinal and cross sealing arms, then the product is automatically ejected.
We have guaranteed low prices on all our manual and auto mail bagging systems.
Suitable for transparent PE film or biodegradable film.
Options:
Motorized exit mat.
Double photocell for dark / color films.
Shrinking tunnel.
8 - 20mm conformator.
Technical characteristics :
Package width : from 160mm to 250mm.
Package length : from 100mm to 360mm.
Package thickness : Up to 20mm.
Power supply : 220/230 volts.
Power : 0.5kw.
Hourly production : 1200 cycles / hour.
Machine dimensions : D=600mm x W=830mm x H=1055mm.
Machine weight : 130kg.
Complies with CE safety standards.
1 year warranty.

UCHIDA's New Paper Folding Machine The Aerofold.
Its belt suction feeding system can fold up to SRA3 size of various types of papers, such as offset, coated, art, digital printed papers and more.
Maximum Paper Size: 330mm (W) x 488mm (L)
Minimum Paper Size: 120mm (W) x 210mm (L)
Maximum Paper Weight: 160g/m2 (Single fold : 230g/m2)
Minimum Paper Weight: 52.3g/m2
Maximum Stacking Capacity: 500 sheets (80g/m2)
Folding Pattern: Single, Letter, Zigzag, Double Parallel. Fold-Out.
Maximum Folding Speed: 15,000/hr
Minimum Folding Speed: 2,500/hour
Speed Adjustment: Adjustable (in 5 steps)
Folding pattern setting: Automatic
Folding Position Setting: Automatic
Feed Table Elevation: Automatic
Counter: 4 digits, addition/subtraction digital counter
Preset Function: Equipped
Paper Feeding system: Upper Belt Feeding system
Memory Function: 30 kinds
Length of election table: 340mm
Double Feed Detection: Equipped
Paper Jam Detection: Equipped
Empty Feed Detection: Equipped
Option: Perforator unit/Scoring unit
Paper Ejection Roller: Automatic setting
Slant adjustment: Equipped

Automatic letter opener OL 750
Opens and counts your envelopes
The OL 750 opens your incoming mail by milling technique. The envelope edge is milled without touching the content. The result is a reliable opening of envelopes of up to 5 mm thickness with no sharp edges so that operators won't cut their fingers.

The OL 750 can open up to 10.000 envelopes/day.

Highlights of the automatic letter opener OL 750
Automatic,self-aligning feeding of the envelopes
Secure opening of a mixture of envelope sizes and thickness
Envelope thickness up to about 5 mm
Opening technique: Milling, giving highest security to the sheets inside
No sharp edges after opening
Robust millling head
Integrated stacker
Counter for opened envelopes as well as for the finished outgoing mail (switch for selection between opening/non-opening)
Speed: up to 400 letters/minute

The professional and secure way of opening your incoming mail!
If you not only need to open your incoming mail rationally and secure but also want to count letters, then the automatic letter opener OL 750 is your choice. This counting function of the HEFTER Systemform OL 750 - also without opening the envelopes - is of special use if you want to give your outgoing mail to an external service provider or if you are operating yourself as service providor.

The OL 750 can then be used as an envelope counter as well.

Technical data & downloads of the automatic letter opener OL 750
Technical specifications OL 750
Important technical data: OL 750
Envelope sizes up to B4
Max. envelope thickness: up to 5 mm
Weight: 23 kg
Speed: up to 400 envelopes/ min.
Dimensions: 102 x 40 x 36 cm
Power supply: 220 -240 V / 50 Hz

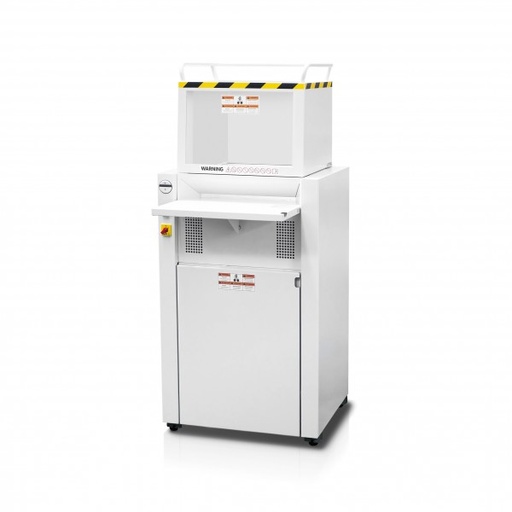

High capacity compact funnel shredder for centralized use. With automatic lubrication of the cutting block.

Available in security level P-3 (cross cut), P-4 (cross cut), P-5 (cross cut).

Intuitive use: EASY-SWITCH control with user guidance using color codes and light symbols.
A second opening with a folding feeding table allows papers to be destroyed flat (automatic on/off by cell).
Automatic lubrication of the cutting block during destruction to ensure regular performance.
Safety of use: Folding funnel with electrical protection, to remove possible jams.
Fins for metered introduction of crumpled paper towards the cutting block.
Simple and quick evacuation of the receiving trolley from the front, with electrical door protection.

Technical informations :

Height: 1700mm
Width: 740mm
Depth: 765mm
Weight: 253 kg
Opening: 460mm.
Receptacle capacity: 230 Liters

Security level: P-3:
Cutting width: 6x50mm cross cut.
Capacity (70g/m² sheets): 85-95
Cutting cylinders accept: Staples, Paperclips, Credit Cards, CDs & Floppy Disks.

Security level: P-4:
Cutting width: 4x40mm cross cut
Capacity (70g/m² sheets): 65-75
Cutting cylinders accept: Staples & Paperclips, Credit Cards, CDs & Floppy Disks.

Security level: P-5:
Cutting width: 2x15mm cross cut
Capacity (70g/m² sheets): 35-45
Cutting cylinders accept: Staples & Paperclips, Credit Cards, CDs & Floppy Disks.

An entry level electric vertical cutting system for small to mid-sized sign makers with high cutting volumes.
Features & Benefits:
Maximum Cutting Capacity: 30mm.
Electric motor.
Millimetric base for tool positioning.
Adjustable cutting speed with potentiometer.
Constant and consistent cutting strength.
Foot pedal start up.
Low blade consumption.
Two fixed blades for different materials.
Tool for dibond and aluminium cut.
Diamond wheel for glass engraving.
Suitable for: Cardboard, foam mount, gator foam, spongy media, expanded polyurethane, plastic from 0.5mm, films, plastic alveolar, reboard, leather, Forex.

Main features
The folding pitch is equal to 190 or 210 mm with adjustable margins using the keyboard
The cross fold is selectable between 297 and 305 mm
The paper output is selectable between front and rear
Digital keyboard for size selection
35 meters/min speed
A0 size in 5 seconds
Suitable for paper from 80 to 120 gsm
Insert guide reference
Suitable for Blueback paper 115/120Gsm
Safety stop
Datasheet 1250 :
Paper width : 1250 mm
Types of paper : common, sensitized, plotter, blueback
Grams : 80÷ 110g/m2
Folding methods : normal, aligned, compensated with or without a 20-25-30mm edge, DIN rules and Cross Fold max A0
Power supply : 230 V - 50/60 Hz / 110 V - 50/60 Hz
Folding speed : A0 format in 5 sec
Consumption : Max 3a
Dimensions : L1630xP1000xH1040 mm
Machine weight : 155 Kg

Glue Binding Machine Autobinder K9.
Auto Adjustment according to thick and thin book.
Micro adjustable glue grinding roller with independent temperature control.
Heavy duty structure.
Specifications :
Max Length : 460mm.
Max Thickness : 60mm.
Warming Time : 30min.
Speed 300 – 450 books/hr.
Premelt.
Milling speed & height adjustement.
3 Glue rollers.
Side gluing.
3 Binding Modes.
Color Touch Screen 7".
Guides on both sides ensures stable carriage movement.
Auto clamp high speed & self-adaption.
Auto cover clamp.
Open flat.
Jogger.
Power supply 220 volts - 50Hz, 3400 w.
Machine size : W=1680mm x 750mm x H=1140mm.
Weight : 320kg.
Warranty 1 year.
CE-Conformity.

Next-generation programmable powered guillotine – for increased efficiency and productivity by working smarter.
With IR light beam safety curtain and hydraulic clamp drive.
Cutting height : 80mm.
Cutting length : 560mm.
Table depth : 560mm.
Narrow cut : 15/60mm.
Fully hydraulic clamp.
Infinitely adjustable clamp pressure.
False clamp plate with pre-clamping foot treadle.
IR Safety Curtain.
LT model has air bed on front and rear tables.
15.6″ Multi-Touch screen and control panel.
Red LED cut line indicators.
White LED lights on front table for lighting up work area.
Precision drive providing fine adjustment of the back gauge.
Optional side tables for increased work area.
Warranty 1 year.
