The Vulcan FC-500VC flatbed cutting plotter is ideal for light to medium production and design samples.

Ideally suited for packaging boxes, tags, cards and labels.

Camera system, User friendly touch screen, Advanced contour cutting, Network interface, U-Disk function and QRcode system, make the FC-500VC special.

Perforation cut, Die cut, Kiss cut and Creasing, make your ideas come true.

Camera System
The FC-5000VC has a high resolution camera that can actually see registration marks, even on colored and transparent materials, or if the registration marks themselves are white or light colored .
Fast scanning speed, SRA3 size, less than 3 seconds.
5mm registration marks will save paper/money.

Friendly touch screen panel
Vacuum (on/off), friendly for holding papers down (ON) and replacing papers (OFF). Move to origin, move carriage back to origin by one press, save time and exactly accurate position.
Recut, it's perfect for repeating same jobs X1/X10, to move carriage by two different speeds

Advanced feature for contour cutting
The Vulcan FC-500VC has an advanced feature
to compensate for print skew or positioning skew -effectively redrawing the artwork according to the error.
performs adjustments of size, tilt and warp for contour cutting by scanning 4 marks, it can be more precisely than other methods.

Network interface
It's very stable for long distance communicationt
To control one flatbed cutting by different computers
To control different flatbed cutting by one computer

USB flash memory
Save PLT files to USB flash memory, the PLT files can be output directly to the flatbed cutting by plug-in, means users to operate FC-500VC without a computer, great for batch production. 32M memory on motherboard, ensure to read and load the PLT files from USB flash memory quickly

Item FC-500VC
Configuration Digital servo system, Flatbed
Media hold-down method Vacuum suction
Maximum cutting speed 700 mm/s (10 to 700 mm/s )
Cutting pressure :
Tool1: Max.5.88N(600 gf)
Tool 2: Max. 5.88 N (600 gf)
Effective cutting area : 495x685mm
Mountable media (Y-axis direction) : 640
Minimum character size : 5 mm square
Mechanical resolution : 0.005 mm (5µm)
Programmable resolution : HP-GL: 0.025 mm
Repeatability : Max 0.1mm
Standard interfaces : USB2.0 (Full Speed) / U-Disk / Ethernet
Memory : 32MB
Command sets : HP-GL
Number of tools : 3 tools
Tool types : Cutter blade / Calibration tool / Creasing tool
Operating screen : 4.3-inch touch LCD
Power supply : 100 to 240 V AC, 50/60 Hz (Auto switching)
Power consumption : Max. 150W of machine, Max.550W of (vaccum pump)
Operating environment : Temperature: 10 to 35 degrees C (35 to 95 degrees F)
Humidity : 35 to 75% RH (non-condensing)
External dimensions : 981(Y)x977(X)x1047(H)mm
Packaging dimensions G.W. / N.W. :
115x110x61CM (machine)
47x43x37CM (vaccum pump)
Compatible OS : Windows and Mac

The e-cut electromechanical guillotine family is the most effective choice for small and medium size print shops.
Providing the astonishing cutting experience we have reached a speed like no one else.
During the designing process our aim was to produce a compact size machine with all the essential feature, which you have ever dreamed of.
The dual axis back gauge driving provides long lasting and stable preciosity of paper positioning even foot pedal supports you for easiness.
High level light guards are a must, however unique safety features has been developed for maximum safety experience as the side LED lights warns surrounded people for caution.
Adjustable pressing force and an easily programmable versatile software helps every operator to get the most out of the machine via the color touch screen.
Adjustable pressure and equipped with a press pedal.
OMRON programming software with storage of 100 programs at 20 cutting positions.
Equipped with a long life HSS blade.
Technical characteristics :
Cutting width : 550mm.
Cutting depth : 520mm.
Cutting height : 70mm.
Minimum cut : 25mm.
Cutting precision : 0.1mm.
Dimensions : W=840mm x D=1280mm x H=1450mm.
Dimensions with side tables : W=1450mm x D=1280mm x H=1450mm.
Weight : 410kg.
Electrical connection 220-240v - 50Hz.
Power 2.4kw.
Robust European manufacture.
1 year warranty.

The compact CL 2019 is robustly manufactured in Europe.
Carbon fiber design.
Brushed stainless steel parts.
Protected linear guide.
Hydraulic shock absorbers at the end of the table.
Worktable perfectly flat when the rolling roller is lowered.
The solution uses an integrated mechanism that ensures incredible reliability and stability at the table.
The legs of the table are foldable to ensure a convenient and easy assembly.
The table can thus be moved very easily from one place to another.
Optional shelves can be easily added with pre-drilled mounting points.
Each machine pulley contains two precision bearings embedded in a protective casing.
This results in incredible durability, extreme accuracy and a much longer machine life.
An engine can be added at any time by the user and in just a few minutes.
This increases the working speed and ease of use.
A set of LED backlight can be added at any time by the user and in just minutes.
No tools are needed.
An incredible power of 280 watts LED adds another dimension to your work and eliminates the stress of the alignment process!
Technical characteristics :
Dimensions of the table: L= 296cm x W= 165cm x H= 105cm.
Working dimensions: W= 255cm x W= 138cm x H= 90cm.
Weight: 204kg.
Total warranty 1 year & 5 years on parts (the glass worktable is excluded from the warranty).
Complies with CE safety standards.

The SF5350EII duplicator offers you unequalled print quality at an affordable price.
The perforation density in the masters (600 dpi) and RISO’s image processing system smooth lines, produce more natural photos and contrasts and legible texts, even in small formats.
The efficiency of the SF5350II duplicator enables you to print large runs even at the last minute.
Its print speed of 150 pages per minute means you can complete tasks even with tight deadlines.
You can print 1,000 pages in just 7 minutes.
Print costs on the RISO SF5350EII duplicator decrease when your copy volume increases.
You can scan your original documents or send your data direct from your PC for printing with a better quality-price ratio than on photocopiers, printers or at your local print shop.
Numerous paper types are compatible with the SF5350 model: very thin or very thick paper, envelopes and cards, so you can do most of your printing in-house and reduce outsourcing.
Ink saving mode reduces print costs by minimising the amount of ink used. You can also reduce paper costs by combining several originals on the same sheet.
Key features :
Print speed: up to 150ppm.
Paper format : A4/A3.
Printing image resolution: 300dpi x 600dpi.
Scanning resolution: 600dpi x 600dpi.
Print paper weight: 46gsm - 210gsm.
USB and network connection.
RISO iQuality SystemTM.

The ergonomic machine design allows an almost effortless operation by hand lever or foot pedal.
For maximum productivity and performance, we recommend the automatic spindle stroke.
Freely adjustable drill spacing and the sliding table with programme shaft (6 hole patterns) enable economical use even for small volumes. Besides paper, other materials such as cardboard, textiles, leather, and plastics can be machined with hole diameters of 2-15mm.
No. of drilling spindles : 2.
Drilling spindle distance : 60 - 120mm.
Drilling diameter : 2 - 15mm.
Drilling depth max. : 60mm.
Spindle stroke automatic, foot switch.
Drilling speeds : 2400 U/min.
Sliding table with programme shaft.
Throat depth : 110mm.
Table size : 650 x 380mm.
Materials : paper, cardboard, textiles, leather, plastics.
Machine Dimensions : 1580 x 650 x 620mm.
Weight : 130kg.
Power supply : 230V / 50Hz.

Neolt Sword ELS: power and excellence in vertical cutting.
Built on the success of Sword and Sword EL, here's the most innovative multifunctional and automated vertical cutter ever made by Neolt Factory, once again designed on the basis of customers' demand.
Custom-built, but accessible to many.
Absolute manufacturing excellence, Italian design, uncompromising power, high cutting precision: this is the promise of Sword ELs for modern sign makers, stand builders and industrial and artisan businesses with high cutting volumes of rigid and special substrates. All with a keen eye on the budget and with the highest levels of investment protection.
Multi-tool, multi-material, ultra-fast and XXL.
Sword ELs is characterized by a light and elegant, but at the same time robust and reliable body.
The unique design of the cutter equipped with millimetric ruler allows a safe and quick tool change, with the possibility of having two fixed blades always in position for the cutting of carboards and Forex, alongside with to a third motorized 30.000 rpm tool for cutting methacrylate and Dibond up to 5mm thick, with creasing function for folding-only requirements.
Available in 155cm, 210cm, 250cm and 310cm heights, Sword ELs can reach speeds up to 24 meters per minute, and thanks to the solid and extra large base it can accomodate large size boards.

Grafik are a new guillotine to the UK and are developing a strong presence in the print market with key products such as the Grafik 650EG Programmable Guillotine enabling them to do this.
Grafik are a leading supplier of print and finishing systems around the world, specializing in production, development and sales since 1996.
They have a passionate team who all have the same attitude 'A relentless pursuit of perfection' and they are constantly refining and enhancing the product range to make the best user experience possible, which is what makes the Grafik Machines so unique.
European design style;
Automatic clamp and programmable back gauge with LCD display.
99 programs with 9 steps each.
LCD Display with mm/inch.
Infrared rays for safety operation.
Clear safety cover on the rear table.
Safety two-hand operation.
Safety blade change device.
Optical cutting line.
Blade fine-depth can be adjusted from outside of machine.
Easy cutting stick changed.
Main power switch and safety key lock.
Electronic hand wheel for back gauge position with variable speed.
Option :side tables.
Guillotine with automatic clamp and programmable EP power backgauge.
Technical Data :
Cutting length : 650mm.
Cutting height : 80mm.
Narrow cut : 25mm.
Table depth : 610mm.
Power supply (other voltages available): 230 Volt - 50Hz/60Hz.
Motor performance (input capacity): 1,42kW.
Dimensions : H=1293mm x W=992mm x D=1220mm.
Dimensions with side tables:H=1293mm x W=1565mm x D=1220mm.
Weight : 302kg.
Weight with side tables : 311kg.
CE Conformity.
Warranty 1 year.

UV coating is a process whereby a polymer resin changes from a liquid to a solid with the help of an ultraviolet light source. UV coating can be a direct replacement for lamination and provides a protective covering that adds value to any document, increasing the vibrancy and richness of its colours (as well as protection from scratching and fingerprints).

The UV53 offers competitive cost of investment for the machine and the cost of consumables in the long term is remarkably lower than lamination.

Our coating machine features:

Perfect solution for full coating of offset and digital stocks (tested on Canon, HP Indigo, Konica Minolta, Ricoh and Xerox)
Gloss or matt coating available
Adjustable speed of rollers and thickness of varnish
1 x UV lamp curing UV and 3 x IR lamps (for pre-heating also wax based toners)
High quality rubber roller for varnish application; metal roller for varnish thickness adjustment
Japan made varnish pump
Scraping blade allowing to do double side coatings in two passes
Integrated fan blower to connect with indoor filter or outdoor trough pipe
High quality electronics
Compact footprint (only small working space required)
Easy to move thanks to wheels
Simple to use (easy adjustments as well as short time cleaning procedure)
Can work together with external pile feeders

Technical info :
Max. sheet width 530 mm (no limitation of paper length)
Paper gsm range 130 – 450 gsm
Speed electronically adjustable in range 3-20 m/min
Varnish coat thickness 5 – 25,4 micron
Dimensions 830 x 940 x 1000 mm
Weight ~200 kg
Power supply 3 phase 400V/50Hz, fuse 32A
Note *coating effect depends on the varnish type as well as on the type and quality of paper. The best coating result can be reached on the gloss, coated papers. Uncoated papers absorb varnish and UV varnishing effect may not be satisfying.

Trimmer with touch screen control, automatic pressure device, EASY-CUT and pivoting protective guard on the front table.

Reference: 66553111
Cutting capacity: 80 mm thickness
Cutting length: 650 mm
Table depth: 610 mm
Minimum cut: 25 mm

Shield is a laminating unit that combines innovation, performance, low investment level, full upgradability and protection of the investiment in the medium/long term.
The Shield series is in fact designed and built to fit the widest range of applications, from car wrapping to interior decoration and corrugated packaging, up to a wide range of display graphics and sign-making applications.
Thanks to its pneumatic technology, the Shield series reduces the setup time of the machine and the need to employ specialized personnel.
Contrary to laminators with electric pressure technology, the possibility of error in the thickness calculation is in fact reduced to zero.
The availability of a version with heated rollers further increases the fields of use.
Main Features
Plug & Play: Shield Series of laminators are equipped with internal air compressor.
It's enough to plug it in, bring the laminator up to temperature and start working;
Eco-sustainable air pressure system with much lower energy consumption compared to electric motors;
Self-adaptive: the air pressure system with independent pistons automatically adjusts to different thicknesses and the manages the flatness defects of the substrate.
The rollers get adapted to the surface in real time;
Flexible: it's possible to pre-set the pressure applied to each substrate.
Once the material is placed is always possible to make adjustments to the pressure;
Options and Accessories
Among the options available are the main rollers heated up to 50°C, the manual horizontal cutting unit and a variable number of vertical cutting units in output, positionable at user's will

Create a letter that stands out
, personalized mail with a professional look.

Add personalized messages to the outside of your mail to increase the chances that your mail will be opened and read. For even more personalization, all of our addressing solutions offer spot colors in different shades.
Solid steel construction
Fixed print head technology using 4 heads
Operator-friendly display
High processing speed
Spot color printing

With a powerful addressing solution, you can achieve better-looking mail, improved productivity and results, and reduced costs.
The Addressright 100 is a fixed head inkjet printer that uses 1 row of 4 printheads. The built-in feeder operates from right to left and can hold up to 500 (empty) envelopes. Standard delivery with a recovery bin + an output stacker can be added as an option. Ideal for printing addresses and barcodes. AddressRight printers are designed to work in tandem with our Flexmail mail management software.

Model: Address Printers
Rate: 22,000 envelopes/h
Number of print heads: 4
Image area: 50.8 x 381 mm
Support size: 2 to 254 mm, Length: 127 to 381 mm / Width: 76
Media Thickness: 2mm/Max: 6mm, Min: 0
Envelope tray capacity: 500
Print Colors: Black and spot color
Dimensions (H x W x L): 3 x 36, 55, 8 cm, 8 x 57
Weight: 27.3 kg

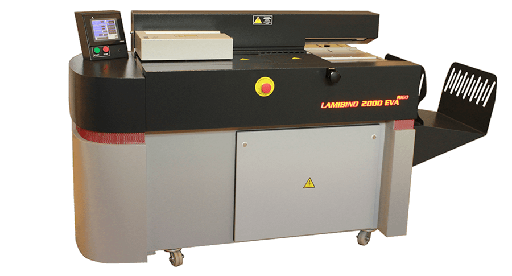

The Lamibind 2000 EVA semi automatic bookbinding machine is easy to handle simple bookbinder machine which is excellently suitable for quick printers, ideally suited for short run A4-A5 books.
It has tiltable milling section and a binding unit which is equipped with cover sensor furthermore it is prepared for tape binding process.
The design of the glue tank gives the possibility to use different type of glue for the spine including glue cut off as well as for side glue application applied by disks.
With its user friendly color touch-screen it is possible to adjust the book position on the cover, this machine helps every operator to make professional quality books very easily.
Reliable components are the backbone of every great machine; therefore we have implemented the most stable electronics and electrical components available for us.
Maximum document thickness is 40mm.
Maximum document length is 340mm.
Warranty 1 year.

Le numéroteur automatique Morgana FSN II est doté d’un margeur à succion permettant de traiter du gros volume.
Le numéroteur FSN II utilise le système de numérotation rotatif, procédé déjà éprouvé sur les presses offset.
Doté d'un margeur à succion, adapté à un chargement en continu.
Equipé de 2 supports sans tête (de 1 à 8 têtes en option).
Tête de numérotation standard : 7 chiffres Gothic de 4,76mm de haut.
Réglages instantanés.
Pression d’impression réglable.
Nombreuses combinaisons de têtes d'impressions en option :
Tête parallèle comptant ou décomptant.
Tête convex comptant ou décomptant.
Nombreux outils de façonnage (micro-perforation, rainage, coupe) en option.
Format papier minimum accepté : 210 x 125mm.
Format papier maximum accepté : 457 x 457mm.
Grammage minimum accepté : 56gr./m².
Grammage maximum accepté :
Vitesse maximum : 9000 feuilles par heure.
Dimensions : L=1340mm x P=781mm x H=1050mm.
Poids : 162kg.
Alimentation électrique 220 volts-50Hz.
Conforme aux normes de sécurité CE.
Garantie 1 an.

Neolt Sword ELS: power and excellence in vertical cutting.
Built on the success of Sword and Sword EL, here's the most innovative multifunctional and automated vertical cutter ever made by Neolt Factory, once again designed on the basis of customers' demand.
Custom-built, but accessible to many.
Absolute manufacturing excellence, Italian design, uncompromising power, high cutting precision: this is the promise of Sword ELs for modern sign makers, stand builders and industrial and artisan businesses with high cutting volumes of rigid and special substrates. All with a keen eye on the budget and with the highest levels of investment protection.
Multi-tool, multi-material, ultra-fast and XXL.
Sword ELs is characterized by a light and elegant, but at the same time robust and reliable body.
The unique design of the cutter equipped with millimetric ruler allows a safe and quick tool change, with the possibility of having two fixed blades always in position for the cutting of carboards and Forex, alongside with to a third motorized 30.000 rpm tool for cutting methacrylate and Dibond up to 5mm thick, with creasing function for folding-only requirements.
Available in 155cm, 210cm, 250cm and 310cm heights, Sword ELs can reach speeds up to 24 meters per minute, and thanks to the solid and extra large base it can accomodate large size boards.

Electric punch RENZ Punch 500 with a universal vocation of perforating tools interchangeable.
Working width 500mm.
Cycles of theoretical perforation: 3000 - 3500/h.
Punching capacity in practice: 400-500/h.
Maximum thickness perforation: 2.5 -3.0mm.
QSA advantageous tools (punch knives disengageable by a)
Ultra-fast exchange of punching tools.
Perforating tools into two parts with boost.
Warranty 1 year.

The Citoborma 90 1- and 2-spindle drilling machines are designed for easy and convenient handling.
All models have a powerful motor and are suitable for professional use.
The unique FlexoDrill° sliding table has a centre register and is suitable for both standard and large formats.
Six pre-set hole patterns can be selected in a matter of seconds.
The excellent design of this line of products permits convenient and time-saving work while ensuring an extremely precise drilling performance.
Ideal for drilling a filing pattern in one stroke.

Citoborma 290AB 2-head electric drilling rig.
Punching capacity: 60mm.
Number of drilling heads: 2
Spacing between perforations: 45-160mm.
Drill bit diameters: 2-14mm.
Side and rear stops.
Max insertion width: 470mm
Max insertion depth: 105 mm.
Stand with electric pedal control included.
Option: additional stop cleats.
Complies with CE safety standards.

Main features :
Adjustments from keyboard and display of the thickness of the support to be laminated, up to 40mm
Simple loading and positioning of the material
Oscillating feeding table for easy loading of the material
Separate regulation with separate display of the temperatures of the two rubberized rollers
Regulation from 0 ° C to 120 ° C for model "H"
Foot pedal control for hands-free work
Comprehensive safety system with emergency stop and optical safety protection with self-verification
Viewing and reporting of any anomalies
Electronic adjustment from the keyboard and visualization on the display of the speed of the rollers
Power supply voltage and frequency 400V / 50Hz. or 220V 50-60Hz
Absorbed power 12A 6200W. For 400V / 50Hz

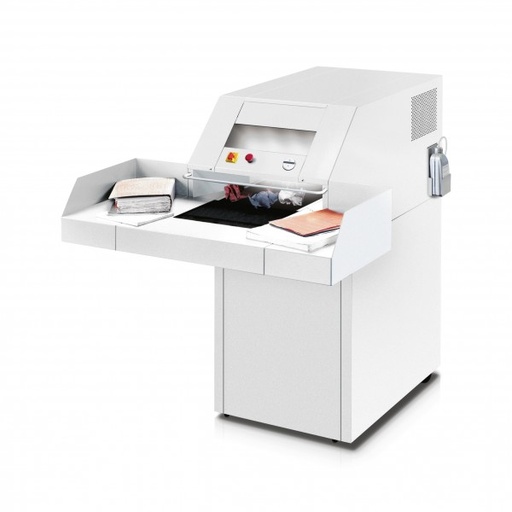

High capacity shredder with infeed table and transport belt.

Available in security level P-2 (fiber cut), P-3 (cross cut), P-4 (cross cut), P-5 (cross cut).

Intuitive use: EASY-SWITCH control with user guidance using color codes and light symbols.
Thanks to the bag holder on telescopic slides, the full bag is easily handled and replaceable.
Automatic lubrication of the cutting block during destruction to ensure regular performance.
The high capacity shredder is equipped with a large infeed table and benefits from a high throughput speed.
The feeding area and the transport belt are illuminated by LEDs.

Technical informations :

Height: 1440 mm
Width: 1240mm
Depth: 1700 mm
Weight: 357 kg
Opening: 410mm.
Receptacle capacity: 300 Liters

Security level: P-2:
Cutting width: 6mm fiber cut.
Capacity (70g/m² sheets): 100-120
Cutting cylinders accept: Staples & Paperclips, Credit Cards, CDs & Floppy Disks

Security level: P-3:
Cutting width: 6x50mm cross cut.
Capacity (70g/m² sheets): 85-100
Cutting cylinders accept: Staples & Paperclips, Credit Cards, CDs & Floppy Disks

Security level: P-4:
Cutting width: 4x40mm cross cut
Capacity (70g/m² sheets): 65-75
Cutting cylinders accept: Staples & Paperclips, Credit Cards, CDs & Floppy Disks

Security level: P-5:
Cutting width: 2x15mm cross cut
Capacity (70g/m² sheets): 43-48
Cutting cylinders accept: Staples & Paperclips, Credit Cards, CDs & Floppy Disks

HERCULES is manufactured for multiple working on all kind of booklets, book, cards, card index, etc..
Its strong structure allows a quick, exact and constant working.
The heads holding tools are specifically designed for working in pairs, and therefore it is possible to approach or to move away by a simple movement from a minimum of 45mm to a maximum of 550mm.
The descent of the heads is driven by motor and can be operated by a foot switch pedal or push-buttons.
The machine is also equipped with a button allowing heads to descend slowly, which make the adjustment of tools easier.
Side and back lays make possible any kind of support for the different requirements.
Warranty 1 year.

Full-Auto operated laminator Lami Revo-14T.
Auto feeding, Auto sheet cut, auto counting setting, custom border size.
Overwhelming productivity
High productivity, save time and labor cost, save power comsumption, no rejection due to human error.
Japanese quality assurance.
5 minutes fast warm up time.
Easy " inside cleaning" design.
Can load upto 300pcs papers.
Support max substrate upto 160grams thickness.
Both metal & heater rollers in used to ensure the best laminating quality.
Variety choice of sizes, films and finishing.
Made in Korea quality films.
Support A4 till A3 with Unlimitted length.
Available in 50µ, 80µ, 100µ & 125µ films.
Available in glossy, matt et Soft Touch Matt finishing.
Optional B4 & B5 shaft is available.
Max. laminating width : 305mm
Max. substrate thickness : 160gr./m².
Max. speed : 1.6m/min. (Fixed)
Processing temperature Room : temp.~120°;
Power requirements : 230V.
Power consumption : 1150 Watt.
