The Stago PB-1015 S drilling machine are suitable for punching larger paper stacks in offices, law firms, schools, government agencies, copy shops, and small print shops.
The ergonomic, simple, and robust design enables them to have a wide range of applications.
Stacks of paper of up to 60mm can be punched in a user-friendly way and without much effort.
Three different table designs enable economical use for many different applications.
The sliding table with programme shaft (SP) allows it to define up to 6 different hole spacing.
Precise dual, double, US and also customised perforations are therefore not a problem.
The chip removal is performed automatically into a collection bag.
However, it is not only paper that can be punched, but cardboard, textiles, leather, plastics, etc. can also be machined by a wide range of drill bits with hole diameters of 2-15mm.
No. of drilling spindles : 1
Drilling diameter : 2 - 15mm.
Drilling depth max. : 60mm.
Drilling speeds : 1200 / 2400 U/min
Table versions : sliding with programme shaft.
Throat depth : 86mm.
Table size : 650 x 380mm.
Materials : paper, cardboard, textiles, leather, plastics
Machine Dimensions : 700mm x 650mm x 450mm.

Combined plan cutter/folder
2 in 1 machine freeing up space in your offices or workshops
A SINUS folder underneath
A 130 cm cutter above
Assistance in lifting the cutter by 2 pneumatic cylinders
OPTIONS
Colored front and rear covers: colors to be defined
Customization of the front cover: contact us
SIMPLICITY
Your plans or documents folded in just a few moments to a constant width of 21 cm.
EFFICIENCY
1 folds per second
10 times faster than manual folding
Useful width of the tops 115 cm
Paper weight from 70 to 150g/m²
ERGONOMICS
Disengagement of the knee mechanism completely freeing the operator's hands
Introductory mat in two parts to facilitate the release of the plan
ROBUSTNESS
Our folders are designed for very long use
High-performance steel and composite mechanism
FEATURES :
Useful folding width (cm): 115
Maximum length of the plan (cm): 350
Paper weight: 70 to 150 g/m²
Useful cutting width (cm): 130
maximum cutting thickness (cm): 0.8
Machine dimension (l x d x h/h): 1510 x 720 x 1200 / 1550 mm
Weight (cm): 83
Warranty: 10 years

Piccolo 102-15
Twin head eyeletting machine for manual operation with automatic eyelet infeed
Fixed offset 80 mm
Suitable for paper, cardboard, plastic etc.
Ideal for contracts and certificates
Punches and eyelets in one work process (the eyelet punches the hole)
Material support with steplessly adjustable rear and self-centring side stops guarantee exact positioning
Available for eyelets with inner diameters of 3 - 7.5 mm
With self-punching eyelets: up to 30 sheets with 80 g/m2 paper or material thickness up to 3 mm
With pre-punched material: up to 50 sheets with 80 g/m2 paper or material thickness up to 8 mm
Easy to change over for another eyelet size in the range of 3 - 7.5 mm
Technical Data
Working depth mm 70
Width mm 620
Depth mm 340
Height mm 375
Weight kg 28

Capacité de perforation de feuilles :11.000 feuilles/heure.
Largeur min. de perforation : 10mm.
Largeur max. de perforation : 360mm.
Long. min. du bord non perforé : 50mm.
Long. max. du bord non perforé : 500mm.
Épaisseur max. de perforation : 2.0mm.
Perforation Electrique.
Matrices de perforation proposées : Oval 5.0 x 4.0 mm - Pas 0.2475”
Poinçons débrayables (QSA) : oui.
Profondeur de marge réglable : non.
Épaisseur de reliure 1 - 16mm.
Ø de la baguette de reliure 6 - 20mm.
Largeur min. de reliure : 10mm.
Largeur max. de reliure : 360mm.
Nombre de cahiers réalisés : 100/heure.

Grapholux Classic light tables
Classic light tables are professional tables adjustable in inclination and elevation with balanced system and mechanical locking. Grapholux worktop can be adjusted in horizontal or vertical position, and in all intermediate positions, with a solid and comfortable pedal brake or lateral lever brake. Classic light table with Grapholux worktop is designed to be used also with drafting machine, and can be used in sit or stand position. We suggest our drafting stools for a professional ergonomic workstation.

Grapholux worktops are designed with aluminum structure, plastic corners, glass top. Tracing surface illuminated by LED lamps, according to the size of the worktop. The electrical system is designed according to the CE guidelines, 220/240V, 50Hz.

Available in different sizes :
-M031/407 : 73x103cm (4x13W LED)
-M021/410 : 85x130cm (5x19W LED)
-M021/411 : 102x162cm (6x21W LED)

The versatile Fastback® 9 is the most compact and affordable binding machine that Powis makes. Its desktop footprint (13"x19.5") is small enough to fit the most cramped conditions.

The Fastback 9 handles both tape binding and hardcover book binding and is a great choice for the small office/home office (SOHO). It's also suitable for companies that do not have a central copy shop, and require that each department handle its own binding.

In spite of its size and price point, the Fastback 9 is a powerful machine that can produce finished binding 3.5 times faster than traditional punch-and-bind systems. It binds from 10 to 250 sheets and is perfect for short-run and occasional jobs.

Use the Fastback 9 with our L-Strip and Lx-Strip™ binding strips, and the Halfback™ covers, as well as most other Powis covers, including the Bindercovers™. Their distinctive design is perfect for creating the ultimate in professional-looking reports.

For a new level of binding customization, the Powis Image Strip allows you to promote your brand, enhance your image, and ensure that each prospectus, manual, case study and report you produce is a cut above the competition.

Pas de traduction.

Glue Binding Machine Smart K3.
Auto Adjustment according to thick and thin book.
Micro adjustable glue grinding roller with independent temperature control.
Heavy duty structure.
Specifications :
Max Length : 335mm.
Max Thickness : 60mm.
Warming Time : 25min.
Speed 350 books/hr.
Premelt.
Milling speed & height adjustement.
1 Glue roller.
Side gluing.
3 Binding Modes.
Color Touch Screen 7".
Guides on both sides ensures stable carriage movement.
Auto clamp high speed & self-adaption.
Auto cover clamp.
Open flat.
Jogger.
Power supply 220 volts - 50Hz, 2600 w.
Machine size : W=1250mm x 670mm x H=1060mm.
Weight : 210kg.
Warranty 1 year.
CE-Conformity.

The machine is constructed of cast iron, in a single block.
The worktable and the brackets are made of aluminum.
System work, with descent of the head by hand lever is extremely simple.
The machine offers various employment opportunities: rounding corners, straight cut, perforation, etc.. on all kinds of materials.
VICKING 2 by adding the carrier and the pedal.
Warranty 2 years.

Standard included :
Steel working plane with sheet holder made of transparent plastic for easy reference
The working plane is painted with an epoxydic powder
Provided with lamp over cutting area
Fixed blade in painted stainless steel, mounted on a reinforced cutting plane
Cutting starter from pedal or with aluminum profile on the cutting table

Materials :
Acrylic film
Hot sealing film
Paper
Photo-film
Photo-paper
Polyprop.film
Vinyl

Optional :
Roll holder

Datasheet 100 130 150 200 250
Max cutting thickness 0,6 mm 0,6 mm 0,6 mm 0,6 mm 0,6 mm
Cutting length 100 cm 130 cm 150 cm 200 cm 250 cm
Length 147 cm 177 cm 197 cm 247 cm 297 cm
Width 48 cm 48 cm 48 cm 48 cm 48 cm
Height with stand 101 cm 101 cm 101 cm 101 cm 101 cm
Height working table 87 cm 87 cm 87 cm 87 cm 87 cm
Weight 24 kg 30 kg 35 kg 46 kg 51 kg
Weight of the support 14 kg 16 kg 17 kg 25 kg 28 kg
Cutting speed 2 m/sec-6,56 ft/sec
Power supply 230V/50Hz-110V/60Hz

WS-601 electric wire stitching machine equipped with a hohner stapling head.
The WS-601 allows flat or saddle stapling with flat back staple quality.
Stapling capacity up to 60 sheets 80gsm.
Staples width 12mm.
Uses #26 (0,5mm) or #28 (0,4mm) wire spools.
Staple length adjustement.
Stitching speed : 75 cycles per minute.
Electric connection 220volts-50Hz - Power 100 watts.
Dimensions : H=770mm x W=500mm x D=350mm.
Weight 19kg.
Warranty 1 year.

The ideal solution to fully wrap and protect your product.
The PACK SM 5040 has 6 programs which includes a seal only option so that the machine can be used as a heat sealer as well as a shrink system if necessary.
Other features include adjustable shrink and hood opening delay, a movable work shelf and easy maintenance access.
Max pack size: L=450mm x W=330mm x H=150mm.
Production cycle with good quality 400pcs/hour.
Variable temp, variable closing time, variable film width roll dispenser.
Power Supply: 220v 50Hz 1Phase.
Power : 4800w.
Production speed:400pcs/hour.
Machine size: L=1370mm x W=670mm x H=1080mm.
Net Weight: 130kg.
Warranty 1 year.

Foil Fusing is a technology that uses heater rollers to fuse foils to toner images from a laser printer or a duplicator.
Customers don’t even need specific make-ready materials or special skills when using the foil fusers.
Just print/copy an image from a laser printer/duplicator, then images will be able to be foiled on the toner areas with optimum operation temperature and speed.
Foiling from toner images, no make-ready supplies or dies are needed.
Automated feed and stop.
Foiling speed up to 3250mm per minute.
Warranty 1 year.
CE-Conformity.

Renz ECL 500.
Working width up to 500mm.
up to 1500 strokes / closing time with and without hook.
For all diameters from 3/16 "to 1 1/2" (regardless of it).
A security system incorporated avoids injuries to fingers and ensures optimal protection of users.
Solid metal version, for workshops binding, the copy shops and printing services a business, etc..
Quick and easy adjustment on different diameters in just seconds.
Warranty 1 year.
• Support for binding on front.

Standard included :
Steel working plane with sheet holder made of transparent plastic for easy reference
The working plane is painted with an epoxydic powder
Provided with lamp over cutting area
Fixed blade in painted stainless steel, mounted on a reinforced cutting plane
Cutting starter from pedal or with aluminum profile on the cutting table
Blade holder carriage sliding on a square bar, suitable for banner, vinyl media
The cutter is supplied with a containment bracket for the correct positioning of the material for cutting
Open rear aluminum profile, to allow cutting large format materials

Materials :
Art board
Banner
Board
Cibachrome
Acrylic film
Hot sealing film
Jute
Carton
Paper
Photo-film
Photo-paper
Polyprop.film
Rubber
Veneer sheet

Optional :
Roll holder

Datasheet 145 165 210 250 300 360
Max cutting thickness 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Cutting length 145 cm 165 cm 210 cm 250 cm 300 cm 360 cm
Length 193 cm 214 cm 259 cm 299 cm 349 cm 404 cm
Width 50 cm 50 cm 50 cm 50 cm 50 cm 50 cm
Height with stand 101 cm 101 cm 101 cm 101 cm 101 cm 101 cm
Height working table 87 cm 87 cm 87 cm 87 cm 87 cm 87 cm
Weight 40 kg 45 kg 56 kg 66 kg 79 cm 62 cm
Weight of the support 22 kg 23,5 kg 26,5 kg 36,5 kg 39 kg 42,5 kg
Cutting speed 1 m/sec - 3,28 ft/sec
Power supply 230V/50Hz-110V/60Hz

Standard included :
Steel working plane with sheet holder made of transparent plastic for easy reference
The working plane is painted with an epoxydic powder
Provided with LED lamp inside cutting area
Fixed blade in painted stainless steel, mounted on a reinforced cutting plane
Adjustable speed
Foot pedal starter
The cutter is supplied with a containment bracket for the correct positioning of the material for cutting
Robust cutting head with double rotating blade
Laser ray guide for cutting reference
Media Fixing bar

Materials :
Art board
Banner
Board
Cibachrome
Acrylic
Hard carton
Hot sealing film
Jute
Leather
Lithoplate
Magnetic vinyl
Carton
Paper
Photo-film
Photo-paper
Polyprop.film
Printing plate
Polystyrene
Rubber
Sheet
Vinyl

Optional :
Roll holder

Datasheet 165 210 260 320
Max cutting thickness 4,5 mm 4,5 mm 4,5 mm 4,5 mm
Cutting length 165 cm 210 cm 260 cm 320 cm
Length 224 cm 274 cm 324 cm 384 cm
Width 50 cm 50 cm 50 cm 50 cm
Height with stand 102 cm 102 cm 102 cm 102 cm
Height working table 87 cm 87 cm 87 cm 87 cm
Weight 59 kg 72 kg 85 kg 97 kg
Weight of the support 32,5 kg 36,5 kg 39 kg 42,5 kg
Carriage speed 0,45 m/sec - 1,48 ft/sec
Power supply 230V/50Hz-110V/60Hz

Reliable and fast electric trimmer with a self-sharpening circular rotating blade for flexible materials.
Designed to improve your productivity every day with great precision and speed.
It cuts materials up to 1,8mm (0,07 in.) in thickness and its cutting speed is adjustable up to 100 m/min. (328 ft/min.).
Electrical trimming machine designed to improve your productivity every day with great precision and speed.
It cuts material up to 1,8mm (0,07 in.) in thickness.
Adjustable cutting speed up to 100 m/min. (328 ft/min.)
Innovative “Accu View” cutting system that allows choosing between two working modes: the first one ensures maximum speed, the second one guarantees absolute accuracy.
Unique trimmer on the market thanks to its cutting unit mounted on a linear recirculating ball bearing system for long lasting operations
useful LED illuminating system to make the cutting easier.
Solid construction to satisfy high performance over time.
Frame on wheels, easy to be moved around and space saving.
SUITABLE MATERIALS :
Paper.
Cardboard.
Polyester film.
PVC banner (up to 900 gr/m2 - 27 oz./ya2).
Digital printing supports.
Laminated prints.
Polycarbonate film.
Polypropylene PP-film (up to 1,2 mm - 0,04 in.).
Reflective film.
Canvas & TNT.
Magnetic rubber.
Many more.

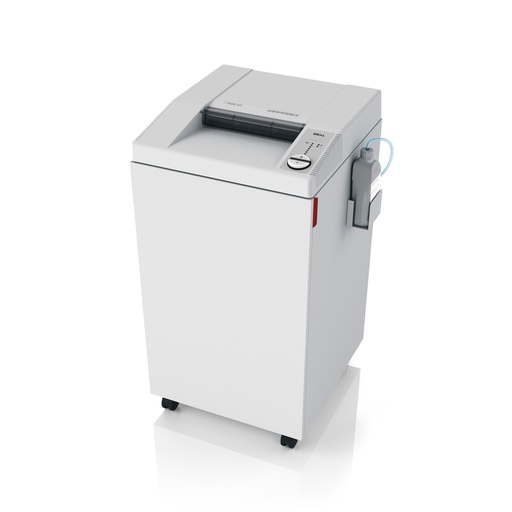

Centralized office shredders with automatic lubrication and EASY-TOUCH switch for intuitive use.

Available in security level P-4 (cross cut), P-5 (cross cut), P-7 (Super Micro-fiber cut).

For over 60 years, a stated objective of Krug & Priester has been the production of machines of a high level of quality and longevity. Convinced of this high level of quality of the special hardened steel knives which are the most stressed parts of the shredders, we have applied a lifetime guarantee on the breakage of these knives.
Intuitive use: EASY-SWITCH control with user guidance using color codes and light symbols.
All shredders are equipped with a lightweight container, which can be used with or without disposable plastic bags.
The patented ECC system indicates the capacity used during shredding to avoid jams.
Automatic lubrication of the cutting block during destruction to ensure regular performance.
Infallible security: electronically controlled security shutter at the opening for effective protection (fingers, jewelry, ties, etc.).
Thanks to the high energy efficiency of our shredder models, from the 2245 to the 4005 model, we are the first shredder manufacturer to have obtained the “Blue Angel” label. The energy saving function causes a “zero energy” mode on these shredder models which stops completely and no longer consumes any energy after 15 minutes.

Technical informations :

Height: 1020mm
Width: 548mm
Depth: 590mm
Weight: 102kg
Opening: 310mm.
Receptacle capacity: 140 Liters

Security level: P-4:
Cutting width: 4x40mm cross cut
Capacity (70g/m² sheets): 40-45
Cutting cylinders accepting: Staples & Paperclips, Credit Cards & CDs, Floppy Disks.

Security level: P-5:
Cutting width: 2x15mm cross cut
Capacity (70g/m² sheets): 25-30
Cutting cylinders accept: Staples & Paperclips & Credit Cards & CDs.

Security level: P-7:
Cutting width: 0.8x5mm Super Micro-fiber cut.
Capacity (70g/m² sheets): 12-15

With its powerful electric motor and the integrated foot release, the Tak 18 electric pad stapler is perfect for stapling thick pads of up to 14 mm.

The pad stapler is made of a non-distorting cast iron body and equipped with a robust stapling head. All wear parts can be easily replaced. The back stop is infinitely variable.

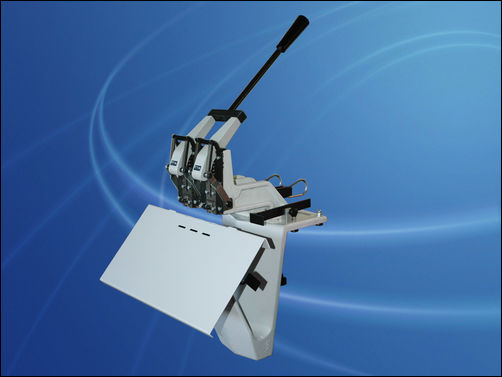

The COLUMBIA uses the whole range of standard staples series 50 and 24, including button-hole, and will staple thicknesses ranging from one sheet up to a maximum of 17mm.
the stapling head is standard throughout the range and the base varies for different applications.
Dimensions : W=58cm x D=37cm x H=29cm.
Weight : 27kg.
Warranty 1 year.
