•The SOYUZ machine is fully patented and has been designed and manufactured to allow fast and accurate operation for large or small quantities of books.
•The single cast-alluminium frame and overall construction permits the backing tape to be applied to the spine, cut to the correct length, and formed to the front and back of the books in one straight-through operation.
•Self-adhesive or gummed tapes can be used.
•The minimum thickness of book which can be taped is 5 mm (with cardboard support), and the maximum thickness is 35 mm. the maximum length of spine is 410 mm with automatic tape cut off, but longer spines can be accomodated if the cut off knife is triggered manually.

Convenient, electric guillotine with automatic clamp and 435mm table depth (for formats up to A3).
Technical Data :
Cutting length: 430mm.
Cutting height: 40mm.
Narrow cut: 35mm.
Table depth: 435mm.

Piccolo 102-20 / 102-28
Single head eyeletting machine for foot operation with automatic eyelet feed
Suitable for paper, cardboard, plastic etc.
Ideal for contracts, certificates and labels
Punches and eyelets in one work process (the eyelet punches the hole)
Material support with steplessly adjustable rear and side stops guarantee exact positioning
Model 102-20 :
Available for an eyelet size with inner diameter of 4mm or 5.5mm.
With self-punching eyelets : up to 20 sheets with 80gr./m² paper or material thickness up to 2mm.
Model 102-28 :
Available for an eyelet diameter in the range of an internal diameter of 3 – 7.5 mm.
With self-piercing eyelets up to 30 sheets with 80gr./m² paper or material thickness up to 3mm.
With pre-punched material: up to 80 sheets with 80gr./m² paper or material thickness up to 8mm.
Easy to change over for another eyelet size in the range of 3 - 7.5mm.
Technical Data :
Working depth 55mm.
Dimensions : W=500mm x D=500mm x H=1150mm.
Weight : 44kg.

Electric punch high yields interchangeable tools.
Use tools Wire-o 3.1 (34 holes) and 2.1 (23 holes), and the perforation holes 21 for plastic spiral.
Change tools in less than 1 minute.
Punching capacity: 35 sheets 80g.
Drilling speed: up to 20,000 sheets / hour.
All punches are releasable for punching out standard formats.
Warranty 1 year.

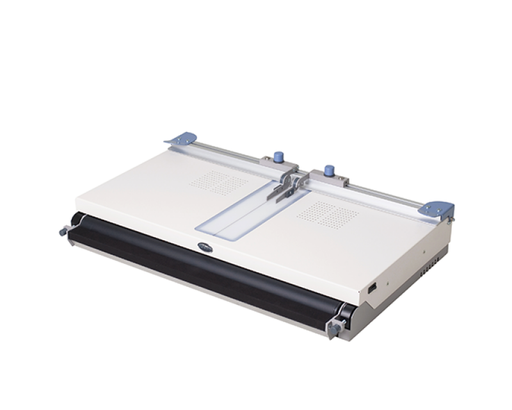

With the advanced Fastbind Casematic H32 Pro™, produce professional tailor-made cases in the format of your choice, up to 330 x 330mm in a matter of minutes.
Design the personalised cover, print it on your digital printer (laser or inkjet).
The easy steps on your Casematic H32™ produce hardcovers to use with the range of Fastbind binding options and for making personalised ring binders from CD size to 12” x 12” and A4 landscape.
The H32Pro features the edge folding device for simpler hardcover making.
Fully featured and compact, this table top unit can be used for producing hardcovers for all your on-demand requirements.
Max finished case size 330 x 330mm.
Includes adjustable edge folding unit.
Compatible with Fastbind FotoMount F32™ and Fastbind Perfect Binders.

Horizontal filing cabinets with metal top or metal frame with glass top, for an easy display of inner drawer contents.
Bottom drawer specially conceived for exhibitions and events.
Available customization for museums, art galleries, retail stores and show-rooms upon request.
Chrome plated steel handles or integrated musuem type handles.
10H frontal panel store documents up to 7,7cm in height or objects up to 8,5cm in height.
Available in semi-gloss or Matt white RAL9016, Matt black RAL9005, or Matt Grey RAL7035.
Avalaible in slides 300mm or 500mm.
Option : Glass top display

The SP-360E Electric Perforator is a mixed solution intended for copy-services and administrations needing a high-performance device.
Automatic paper ejection after electric vertical punching 35-40 sheets.
Supplied without punching tools to choose from as options.
Choice of the type of perforation interchangeable tools: Plastic & Metal Rings Pitch 3:1 & Pitch 2:1, Coil Pitch 4:1.
Adjustable perforation depth : Yes.
Maximum document length : 360mm.
Perforation speed : up to 28,000 sheets / hour.
Perforation capacity : 25 sheets 80gr./m².
Machine weight : 35kg.
Machine dimensions : W=985mm x D=744mm x H=300mm.
Electrical connection 220-240V - 50HZ.
Electric power : 2000w.
Complies with CE safety standards.
1 year warranty.

WK02-30 automatic wrapping machine.
Very easy to use.
Minimum dimensions of supports to be strapped: 30mm x 10mm.
Maximum dimensions of supports to be strapped: 460mm x 180mm.
Width of strapping bands: 29mm.
Fully automatic machine.
Strapping tension adjustable from 5 to 40N.
Strapping speed: 25 pieces/min.
Strapping rolls up to 150 meters long in white or brown kraft paper, or transaprent polypropylene (PP).
Trigger modes: with push button or automatic by cell or by pedal.
Dimensions: L=611mm x D=364mm x H=475mm.
Weight: 32kg.
Electrical connection 220 volts - 50/60Hz.
Optional mobile support (model WK02-30B on site) allowing the placement of a roll up to 800 meters in length for greater autonomy.
Complies with CE safety standards.

PB-2000 table thermo-binding machine ideal for small series.
Use with glue EVA or PlanaMelt.
Automatic carriage clamping.
Automatic and disengageable Greeking.
Automatic casing of covers.
Technical characteristics :
Maximum binding length: 330mm.
Maximum binding thickness: 38mm.
Rate: around 120 bindings / hour.
Power supply - Power: 220V. - 1000W.
Dimensions (W x D x H): 650 x 550 x 270mm.
Weight: 53kg.
Mobile support available as an option.
1 year warranty.
Complies with CE safety standards.

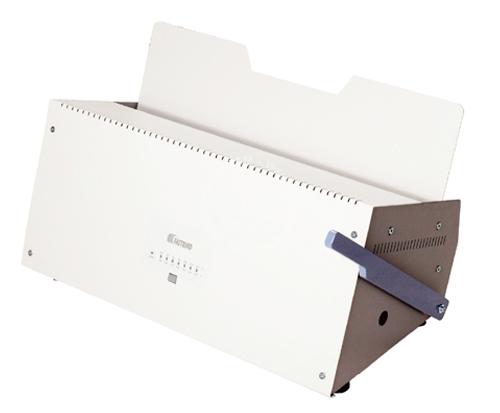

The Presso™ is a thermal press designed to make high quality grooves quickly and easily.
The groove improves the appearance of all hard cover books.
It makes symmetrical, deep, smooth grooves that hold tight against the book block…every time.
The Fastbind Presso can be used with hard cover books up to 45 mm thick with a spine length up to 470 mm.
It comes with with three spacer plates allowing quick set up for spine stick thickness and hinge area changes.

The Royal Sovereign RSL-1062 is a roller laminator where you can choose the speed, temperature and roller spacing. This will help you achieve a perfect lamination result for you and your customers. Economical professional laminator for all types of visuals. Laminator on mobile stand. Hot lamination. Lamination width: 1060mm. Film thickness: 25 to 250µ. Speed: up to 2.5 meters/min. Mounting thickness: up to 6mm. Adjustable temperature up to 160°. Number of rollers: 2

The little all-rounder among STAGO staplers is ideal for professional use in offices, law firms, schools, government agencies and copy shops.
The Stago HM-6 is characterised by its ease of use.
The conversion of the stop table between the flat stapler and saddle stapler takes a few steps and is quickly and easily possible even for inexperienced users.
Freely adjustable stops ensure an accurate, repeatable stapling position.
For a perfect stapling result without annoying marks, the stapling force can be finely adjusted via a dial.
For longer runs, the HM 6/2 model with twin stapling heads and a fixed staple clearance of 80 mm is suitable (binder dimension). Perfect for booklet making with loop staples in one working step.
Customised solutions can also be implemented inexpensively on the basis of the HM-6.

Get the perfect binding solution for your smaller projects with the Rhin-O-Tuff OD4012 11.7″ Vertical Punch! Its compact and lightweight design makes it easy to use and transport, while the unparalleled precision ensures your projects are always perfectly punched. Whether it’s textbooks, directories, instruction manuals, or business reports, the Rhin-O-Tuff HD6500 guarantees a flawless finish every time. Plus, with its Open-Ended design, the OD4012 can also handle larger projects when needed.

Fully Interchangeable Dies allow for quick transitions between binding types.
EZ-Change Die System is a significant improvement over traditional die change methods.
Fully Disengageable Pins provide flexible hole-punching configurations.
Standard Paper Stop and Scale System allows for quick adjustments and precise positioning.
Compatible with PAL-14 & PAL-M (Pick-A-Lift).
Don’t forget to add premium binding modules for Coil, Wire, or Comb binding and productivity modules for ultimate throughput.

11.7” (297 mm) open ended heavy duty die: Punch up to 30 sheets of 20-pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used.
E-Z Change Die System: The OD4012 boasts the revolutionary E-Z Change Die System, allowing you to switch punch patterns swiftly and effortlessly. With just a few simple steps, you can adapt to varying document requirements with ease and efficiency.
Fast Cycle Times:Achieves 65 cycles per minute for productive operation.
Wide Sheet Punching: Compatible with 11-inch (A4) size dies with open sides, allowing for wider sheet punching capability.
Swing Away Die Pin Retainer System: Features a patented system that allows quick access to all die punch pins while securely holding them in place. Easily disengage any die punch pin for customization.

Comapct size that fits ANYwhere.
Easy film setting for ANYone.
Simple operation for ANY job required.
Feeding, Laminating, Cutting & Trimming are fully automated.
Press the start button and walk away.
With the cassette-lamination method, the lamination film setting work has become much easier, also it helps lamination edges aligned.
Possible to easily clean the inside by using the "Cover-Open Function".
Max. laminating width A3(305mm)
Max.Substrate thickness 50 / 80 / 100 / 125μ(exclusive film)*¹
Max. speed 750mm/min
Laminating temperature 90℃~120℃(Variable type)
Power requirement / consumption 【UL】 AC100V
【CE】 AC230V
External dimensions[W×D×H](mm) 630*² ×525×280
Weight 25kg
Available paper thickness 64 - 160g/㎡
Warm-up time 7minutes(approx)*³
Size of paper used 【UL】
Vertical: Ledger, Legal, Letter
Horizontal : Letter
【CE】
Vertical SRA3, A3, A4, A5, B4, B5
Horizontal : A4, A5, B5
*1 Only authorized Revo Film can be used.
*2 Exclude output tray.
*3 Depends on the environment.
*UL … For the United States
*CE … For Europe, Asia, and other countries

Hot & Cold Digital Roll Laminator.
Safety Guard - Rollers shall be stoped automatically if will be opened.
Special Core - 3 sizes(25, 58 and 76mm) in one unit.
Auto Power Off - If this roll laminator will not be used for more than 2 hours continuously, its power can be automatically off.
LCD Display.
Emergency Stop.
Side Cutters.
Air Cooling Fans.
Foot Switch.
Maximum Laminating Width : 1200mm
Maximum Film Thickness : 250 micron.
Heat-Up Time : 8 - 10 Minutes.
Laminating Temperature Range 0 - 150ºC.
Thickness for montage : 13mm.
Max Speed : 3,3 Meter Per Minute.
Document Size : Up to A0
Dimensions : W=1490mm x D=460mm x H=1274mm.
Warranty : 1 Year.

Specifications :
*Video shows 8308 with 8312P Cross Folder operation. 8312P Cross Folder is optional.

8308 Paper Folder

Main specifications:

-A3, 4 folding plates
Max. Paper Size : 300 x 630mm
Min. Paper Size : 68 x 128mm
Paper Thickness : 50 ~ 180gsm
Loading Capacity : 500 sheets (80gsm)
Folding Speed/hr : 12000 sheets (adjustable)
Folding Plate : 4
Counter : Total counter and batch counter
Dimensions (LxWxH) : 1250x480x520mm
Weight :48kgs
Optional :
Vertical tray (VRA3),
Knife folder (8500),
Cross Folder (8312P, 8314P)

Suggested combination:
8308 Paper Folder + VRA3 Vertical Receiving Tray (for small paper)
8308 Paper Folder + 8500 Knife Folder
8308 Paper Folder + 8312P Cross Folder
8308 Paper Folder + 8314P Cross Folder

Previous：8307B Paper Folder
Next：8312P Cross Folder

Package size min.: 700 x 60mm.
Loop: max. cm circumference: 150
Automatic control by micro switch
Programming the size of the loop
Strapping: 2 strengths
Table LxW mm: 406 x 355
Polypropylene strip, length x width: 760 x 6mm.
Warranty 1 year.

Strongly made in cast iron.
Perforating light 50 cm. Hand operated.
Graduated side gauge on graph tables. Chance to perforate half
sheet only.
The machine is well constructed and allows perforations with the
minimum effort. The model MARINER is designed with detachable
panels for easy and economic transport.
Warranty 2 years.

Pas de traduction en anglais.

Folding machine TF MEGA-A plus (up to A3)
Automatic, reliable, good – 7 fold types incl. cross fold
The TF MEGA-A plus is the comfortable and real cheap solution with regard to versatile applications in offices, in mail rooms or copyshops.
Highlights of the folding machine TF Mega-A plus
Paper sizes from A6 up to A3
7 fold types: single, Z-, wrap, double parallel, door, engineering and cross fold
Automatic fold type and fine adjustment
Adjustable contact pressure of the paper feed
Adjustable separation of the sheets
Central form width setting
Paper weights: 50 - 160 g/ m2
Fine adjustment of the fold parallelity (seewing)
Pre-counter with interval function
"Paper-out" and jam control
Double sheet control
Operating display with 4 digit job counter, pre-counter and status information
Automatic adjustable conveyor stacker
Max. speed 14.400 sheets/ h
High performance at a reasonable price – Folding from A6 up to A3
This folding machine TF MEGA-A plus offers any standard fold type - even cross fold in two steps. The adjustment of the fold type is done automatically with the operating display. Additionally, an exact fine adjustment can be made by a keystroke - if necessary. For processing different paper weights trouble free, not only the pressure to the feeded paper can be adjusted but also the separator pad. Even the integrated conveyor stacker is automatically adjusted - depending on paper form and fold type - thus always prepared for best performance. It has a capacity of up to 300 sheets.
