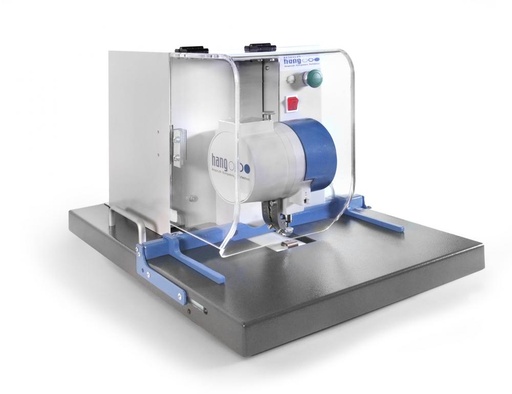

PiccoStar 102-50
Single head eyeletting machine with electrical drive.
Automatic eyelet feed.
Suitable for paper, cardboard, plastic ,...
Ideal for contracts, certificates and labels.
Punches and eyelets in one work process (the eyelet punches the hole).
Material support with steplessly adjustable rear and side stops guarantee exact positioning.
Pushbutton to release the eyeletting process.
Available for eyelets with inner diameters of 3 - 7.5mm.
With self-punching eyelets : up to 30 sheets with 80gr./m² paper or material thickness up to 3mm.
With pre-punched material : up to 50 sheets with 80gr./m² paper or material thickness up to 8mm.
Easy to change over for another eyelet size in the range of 3 - 7.5mm.
Option : Foot switch.
Technical Data :
Working depth 60mm.
Machine dimensions : W=470mm x D=580mm x H=370mm.
Weight : 43kg.
Warranty 1 year.

Keencut STEELTRAK has been designed and built by Keencut engineers to surpass all current standards and meet the exeptional demands of the 21st century sign industry.
Building on the huge success of the all-purpose Keencut Excalibur, and recognising the increasing demands of thicker, tougher sign materials, the design brief was simple:

“Create a brand new vertical cutting machine exclusively for the Sign Maker. It must be the best manual cutter ever made but offer exceptional value for money. It must be strong, versatile, capable, easy to use, virtually maintenance free and built to last almost indefinitely. It must withstand the closest scrutiny, the toughest tests and deserve a place in every sign making workshop.”

Designed to meet with the refinishing needs of service centers and offices with any type of production volume.
The extraordinary noiselessness and compactness, combined with the made in Italy structural solidity, pleasant design and availability in the most popular paper sizes, make the NeoFold PL the perfect complement to any toner or inkjet printer for CAD and cartography.
The touch screen display for easy, versatile and intuitive use.
It has a power consumption of 50W only and is so silent it can be installed also in offices and technical studios.
Copies collecting stand.
Paper entry table extension (optional).
Equipped with a 7’’ touch screen display.
Rear opening systems: easy access to the machine for internal cleaning and maintenance
Double folding start: automatic paper detection sensor and foot pedal.
Folding width : 920mm.
Max. Crossfold : Max. A0.
Max Sheet Length : Endless with modules of 2,5mt.
Grams : from 60 to 110gsm.
Max. speed : 20mt/min.
Power Supply : 230v - 50/60Hz.
Consumption : 50W.
Dimensions : W=116cm x D=100cm x H=31cm.
Machine Weight : 48,5kg.
Stand weight (option) : 11,5kg.
Decibel : 65db.
Warranty 1 year.

The Fastback® Model 20 is the ideal tape binding machine for all corporations, financial institutions, copy shops, print environments, or education establishments.
Create professional-looking presentations, yearbooks or bound documents at a fraction of the time required to bind with alternative bind solutions such as coil, comb, or wire.

This machine offers unprecedented ease of use with its LCD display that guides the user through each operation using animated illustration.
The Fastback 20 works with all of the Powis binding materials, from the versatile Super Strip to the customized Image Strip to the Perfectback strips for perfect bind books.
It can create anything from a simple report to a 350-sheet hardcover book.
Key Features :
•Binds 10 to 350 sheets in 13-20 seconds
•LCD graphics based user interface
•Binds tape strips, hardcover, and perfect bound documents
•3.5 times faster than punch and bind
•Minimal training required
•Easy to produce professional documents

Sword is the entry-level vertical cutting system designed on the real needs of small and medium sign makers, fitters and retail, industry and companies with high volumes of cut.
Fixed blade n°1 - (1 to 30mm).
Materials: cardboard / foam kmount / gato foam / spongy media / Expanded polhyurethane / plastic from 0,5mm / films / plastic alveolar / reboard.
Fixed blade n°2 to forex(max.10mm) & leather en Plastic (min. 0,5mm).
KNIFE (OPTIONAL) :
• Blade for Dibond from 1 to 3mm
• Blade V-Cut 45° & 60° from 5 to 19mm
• Blade GlassCut (max. 3mm).
• Blade per PlexCut da 1 to 5mm.
Materials: reboard / spongy media / expanded polyurethane.
Options and Accessories :
Millimeter rows for a perfect positioning of the subtrate reel, container for the collection of waste and integrated lamp for illuminating the cutting area.

WS-602 electric stitching machine equipped with two robust stapling heads from the famous German manufacturer Hohner.
The WS-602 allows flat or saddle stapling.
Ajustable stapling heads spacing from 55 to 125mm.
The WS-602 stapler has a stapling capacity of up to 60 sheets of 80gsm.
Width of staples : 12mm.
Uses spools of n°26 (0,5mm) or n°28 (0,4mm) wire.
Perfectly flat spine stapling quality.
Staple length adjustment.
Speed : 75 cycles/minute.
Electric connection 220v-50Hz - Power 200 watts.
Dimensions : H=820mm x W=600mm x D=470mm.
Weight : 58kg.
Warranty 1 year.

The Citoborma 90 1- and 2-spindle drilling machines are designed for easy and convenient handling.
All models have a powerful motor and are suitable for professional use.
The unique FlexoDrill° sliding table has a centre register and is suitable for both standard and large formats.
Six pre-set hole patterns can be selected in a matter of seconds.
The excellent design of this line of products permits convenient and time-saving work while ensuring an extremely precise drilling performance.
Table top model with one fixed drill spindle
Suitable for any hole pattern.
Powerful motor.
1 year warranty.

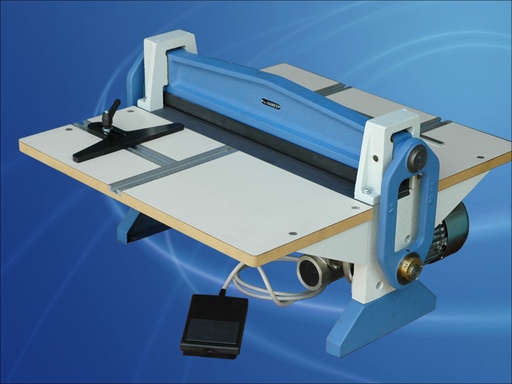

Electric creasing & perforating machine OMM Mariner 2.
This machine has the same features as model MARINER but it is
motor operated.
Both models allow to execute linear perforation like stamp or other
shapes perforations according to the requested tool.
An optional creasing comb may be supplied.
Potenza motore
Motor power 2kw.
Electrical connection Single Phase;
Work flat size : 680 x 590mm.
Drilling thickness : 0,5-0,8mm.
Packing dimensions : 76 x 30 x 46cm.
Net weight : 64Kg.
Warranty 2 years.

The Magicard Ultima is a high-definition touch screen retransfer ID card printer that delivers photo-like images, vibrant colours and crisp, detailed text. Combining all three guarantees a sleek corporate image is maintained on every printed card.

Prints high definition CR80 credit card sized cards, including PVC, PET, ABS, PVH and polycarbonate.
Single-sided and dual-sided model available.
HoloKote® advanced security feature included free of charge.
3-year Magicover plus warranty.
Product weight: 21.00 kg

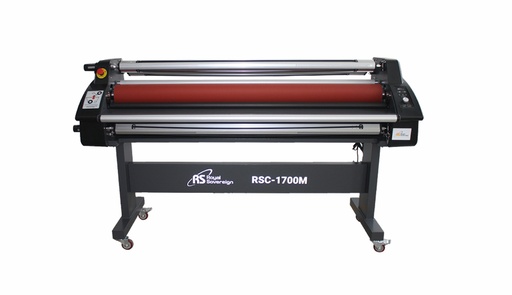

Royal Sovereign RSC-1700M cold laminator allowing mounting up to thicknesses of 25mm and speed up to 15 meters/minute.
Equipped with high quality silicone rollers with a diameter of 150mm.
Maximum lamination width : 152cm.
Electric roller pressure.
Allows lamination with film thicknesses from 20µ to 500µ.
Two-position heated upper roller : 40° or 60°.
Safety laser (no protective cover).
Longitudinal section.
Equipped with 3 knives for vertical cuts in the direction of the media.
Trigger pedal for easy release of the machine from behind it.
Electric power 1600 watts.
Dimensions : L=210cm x D=62cm x H=123cm.
Weight : 190kg.
1 year warranty.
Complies with CE safety standards

Secabo FC50 Flatbed Cutter with DrawCut PRO
The flatbed cutting plotter Secabo FC50 including software is ideally suited for the production of small series and design samples. The compact desktop device offers a maximum working area of 35cm x 52cm and reliably fixes the applied material on a vacuum table. The underlying felt mat allows smooth work even with complete material averages. As an alternative to the drag knife, there are two groove and groove tools in different sizes. Thus, depending on the paper thickness, the right tool is available to cut out objects with exact contour and to create grooves or folded edges. The multilingual cutting software DrawCut PRO and the multi-registration mark recognition system LAPOS Q are included in delivery and support professional results. The vacuum pump with acoustic enclosure is already included in delivery, the silencer for noise reduction is optionally available.

Technical Data
interfaces USB
countour cutting function LAPOS Q, sequential cut marks
scope of delivery Flatbed cutter, multilingual cutting software DrawCut PRO (Windows), drag knife, ball bearing knife holder, plot pen, grooving tool in two sizes, connection cable, vacuum pump, felt mat for vacuum table, acoustic enclosure and German user manual.
max. work area 35cm x 52cm
max. thickness 1,5 mm
downforce 50g - 500g g
control back-illuminated graphic LCD display with gel buttons
Max. cutting speed 600 mm/s
Dimensions (W x D x H) 76cm x 86cm x 30cm
max. grammage 400 g/m²
weight without packaging 35 kg
weight with package 72,00 kg
Brand Secabo

With a print speed of 130 pages per minute, large print runs are completed in a flash: printing 500 sheets takes under 4 minutes.
You can thus print examination papers for an entire school or leaflets for an advertising campaign in record time.
Although the maximum print format is A4, you can scan A3 documents and reduce them to A4.
The ADF has a 10-sheet capacity and works with a print program that gives you unrivalled versatility.
For example, if you are printing different materials for several classes, with a certain number of students for each class, you simply set your documents, programme the number of copies for each class and press the “Start” button.
You will automatically get the right number of copies for each of the documents.
The paper feed tray holds up to 1,000 sheets (depending on the paper weight) which allows long, uninterrupted print runs.
KEY FEATURES :
Print speed: up to 130 ppm.
Paper format : A4.
Scanning and printing image resolution: 300dpi x 600dpi.
Print paper weight: 50gsm - 157gsm.
RISO iQuality SystemTM.

Fastbind Elite binding machine offers the largest flexibility.
It quickly produces hard and soft cover books as well as Manager covers, tear-off pads and strip binding.
Why buy several binders when all you need is one? Elite is ideal for print/copy shops, publishers, binderies, school yearbooks and photographers.
The end result is perfect binding that is strong, square and affordable.
Flexible binding system.
Easy to use.
Dust free spine rougening.
Compact and fully featured.

Glue Binding Machine Smart K6.
Auto Adjustment according to thick and thin book.
Micro adjustable glue grinding roller with independent temperature control.
Heavy duty structure.
Specifications :
Max Length : 335mm.
Max Thickness : 60mm.
Warming Time : 25min.
Speed 300 – 450 books/hr.
Premelt.
Milling speed & height adjustement.
2 Glue rollers.
Side gluing.
3 Binding Modes.
Color Touch Screen 7".
Guides on both sides ensures stable carriage movement.
Auto clamp high speed & self-adaption.
Auto cover clamp.
Open flat.
Jogger.
Power supply 220 volts - 50Hz, 2600 w.
Machine size : W=1300mm x 670mm x H=1030mm.
Weight : 240kg.
Warranty 1 year.
CE-Conformity

The PB-2015 series machines are true workhorses at medium to high runs.
Designed for continuous daily use in offices, law firms, schools, government agencies, copy shops, and small print shops.
The machines enable consistently accurate double-punched holes in paper stacks of up to 60mm.
The ergonomic machine design allows an almost effortless operation by hand lever or foot pedal.
For maximum productivity and performance, we recommend the automatic spindle stroke.
Freely adjustable drill spacing and the sliding table with programme shaft (6 hole patterns) enable economical use even for small volumes. Besides paper, other materials such as cardboard, textiles, leather, and plastics can be machined with hole diameters of 2-15mm.
No. of drilling spindles : 2.
Drilling spindle distance : 80mm.
Drilling diameter : 2 - 15mm
Drilling depth max. : 60mm.
Spindle stroke manual, hand lever.
Drilling speeds : 2400 U/min.
Sliding tables with programme shaft.
Throat depth : 110mm.
Table size : 650 x 380mm.
Materials : paper, cardboard, textiles, leather, plastics.
CE Conformity.
Warranty 1 year.

The machine is constructed of cast iron, in a single block with motor. The worktable and the brackets are made of aluminum.
System work, with descent of the head by hand lever is extremely simple.
The machine offers various employment opportunities: rounding corners, straight cut, perforation, etc.. on all kinds of materials.

ROWE has fulfilled a vision with its new ROWE Scan 450i:
Development of a new class of high-tech scanners
“Made in Germany“ with groundbreaking innovations.
The ROWE Scan 450i has three models with scanning widths of 24”, 36” and 44”.
Standard equipment for all scanners is SuperSpeed USB 3.0 + RES, ROWE ScanCloud and ROWE ScanMatrix+ which is a unique technology worldwide.
Your advantage: Scanning
with the patented process ROWE DYNAMIC STITCHING, fully automatic transformation of originals with poor contrast into perfect scans due to the image improvement technology ROWE PRO LOGIC and brilliant, natural colors as a result of ROWE SELECTED TRUE LI GHT.
Also unique: A new process that makes it possible to scan and at the same time recognise the width of the original – all in one process, as well as independently recognising damaged or ripped corners on the originals.
The result is excellent productivity whilst at the same
time protecting the documents.
Of particular importance to ROWE customers – top results regarding modularity, cost and environment. Thanks to the patented ROWE SAFE DRIVE technology the scan glass has a life-cycle up to 500% longer than standard scanners.
A power consumption of less than
0.4% in energy saving mode also protects the environment.
Technology protected by patents.
SuperSpeed USB 3.0 + RES.
2400 x 1200 dpi optical
Cloud enabled.

XY DTF is the game changer cutter that will transform your dtf production and make it fully automatic. Suitable for max 800mm media wide. Equipped with an internal compressor that power all the pinch roll for the media feed and also the pneumatic vertical blade. Mechanical muovement that allow you to modify the angle inclination of roll media. With a smart interface you can choose between 2 main programs:
Automatic mode (Programmed size and number of copy);
Mark mode (2 marks line for automatic cutting).

Main features :
Adjustable pression for pinch roll and vertical blade
Touch screen control
Pneumatic vertical blade (1 included other extra optional)
Optionals :
Additionnal Vertical Pneumatic blade
Stand
Copy collection tray

SF-500EU The first table-top booklet maker with a squarefold press
Highlights:
Will perform folding, stapling, and square pressing in one pass.
The whole process takes only approximately 9 seconds.
It forms the spine of the stapled booklet with a perfect, high-quality bind.
Technical Features:
Dual staple heads with 4 positions for a wide variety of booklet sizes.
Fold, staple and press in a single, one-pass operation.
Produces square back booklets.
LCD display makes for easy and convenient configuration.
Technical Information :
Speed Fold & Staple for 720 booklets/h.
Fold & Staple & Press for 360 booklets/h.
Fold types Stapling - Folding - Pressing.
Feeding table 25 sheets 80gsm.
Cover thickness max 220gsm.
Stapling positons 2 Stapling head positons in equipment, up to 4 (option)
Staple Capacity 210 staples.
Staples: 26/6, 26/8
Highlights Automatic with adjustable set-up time.
Format papier min. : 148mm x 210mm.
Format Papier max. : 320mm x 450mm.

Features :
-High speed automatic strapping machine (up to 1,1 second/strap)
-German Dunker DC motor
-Manual and auto mode operation
-Loop ejecting function and refeed function
-Rigid structure design
-Built for 24 hours continuous operation
-Tension adjustment. Very easy from control panel
-PCB + LCD screen, visualize temperature and banding tension
-Banding count function
-Easy strep loading and unloading
-Can be used for 5mm strap.

Specification :
Model N° Q80KS
Strap tape PP strap
Strap specification Width 5 / 9 / 12mm ; thickness 0,35 – 0,65mm
Arch size (W*H) 600x500mm (standard) – 800x600mm – 1000x500mm – 1250x500mm
Strapping size Max : 600x450 – Min : 100x50mm (for model 600x500mm)
Power 220V, 50Hz 1 phase, 500W
Control system PCB
Motor German Dunker DC motor
Strapping speed 1,1 second/strap
Tension 10-400N
Welding method Heat sealing
Machine size 1255*700*1400 (600x500mm)
Weight 160kg
