The ideal solution to fully wrap and protect your product.
The PACK SM 5040 has 6 programs which includes a seal only option so that the machine can be used as a heat sealer as well as a shrink system if necessary.
Other features include adjustable shrink and hood opening delay, a movable work shelf and easy maintenance access.
Max pack size: L=700mm x W=500mm x H=150mm.
Production cycle with good quality 600pcs/hour.
Variable temp, variable closing time, variable film width roll dispenser.
Power Supply: 220v 50Hz 1Phase.
Power : 6500w.
Production speed:600pcs/hour.
Machine size: L=1853mm x W=1011mm x H=1093mm.
Net Weight: 250kg.
Warranty 1 year.

The VICUT Card Cutter CC-330 is designed for automatic cutting many types of paper cards with fast speed, it is controlled by a micro-computer offering convenient cutting through preset layouts for consistency and ease of use.
The interchangeable cutting cassette offers more optional functions such as creasing and perforating, and the cutting size also can be customized.
Works along with any digital printer, or even digital photocopier, the Card Cutting machine CC-330 can produce professionally-cut business cards, postal cards, photos, tickets and so on.
Warmly welcomed by the printing shops, DIY photo shops and design companies, thanks to its affordable cost, flexible functions and fast speed.
Technical Parameters :
Paper Size SRA3 : 297mm x 480mm.
Cutting size : Longitudinal : 89/85/90/95mm or customized - Horizontal : 45/50/54mm or 1-600mm, fully adjustable.
Cutting Method : longitudinal : cut by self sharpening slitting cassette - Horizontal : cutting with a lateral cutter.
Cutting speed : up to 150 business cards per minutes.
Cutting position control : Front edge detection/cut registration mark.
Paper feeding method : Dual roller auto-feeding paper tray.
Feeding Tray Capacity : 50 sheets 300gr./m².
Paper thickness : 180gr./m² to 400gr./m².
Output tray card capacity : 220x3 pcs.
Cutting tolerance : 0.2mm.
Power Supply : 220volts-50Hz, 0.5A.
Weight : 31kg.
Machine dimension : W=760xD=550xH=310mm.
Optional function : Cutting+creasing & Cutting+perforating.
Warranty 1 year.

Automatic stand wrapping machine WK02-30B.
Very easy to use.
Minimum dimensions of supports to be strapped: 30mm x 10mm.
Maximum dimensions of supports to be strapped: 460mm x 180mm.
Width of strapping bands: 29mm.
Fully automatic machine.
Strapping tension adjustable from 5 to 40N.
Strapping speed: 25 pieces/min.
Strapping rolls up to 800 meters long in white or brown kraft paper, or transaprent polypropylene (PP).
Trigger modes: with push button or automatic by cell or by pedal.
Dimensions: L=611mm x D=364mm x H=1175mm.
Weight: 72kg.
Electrical connection 220 volts - 50/60Hz.
Complies with CE safety standards.

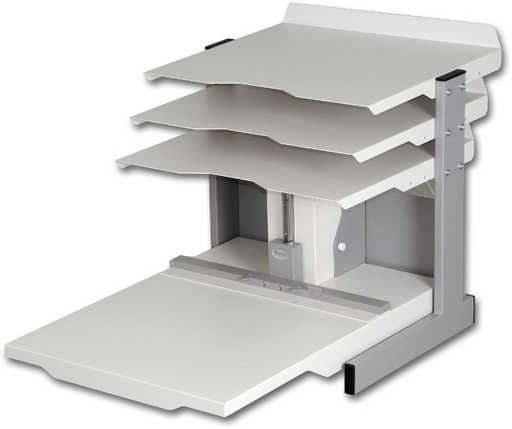

Fastbind FotoMount F46e™ is an electrically operated large format PhotoBook maker using the pioneering Fastbind Mountinglift™ system (patents pending).
With the exceptionally precise Mountinglift, professional deluxe PhotoBooks can be produced faster and easier than ever before.
Tabletop in size, it offers the flexibility and quality previously available only from equipment costing much more.
Covers can be either soft card covers, pre-made standard hardcovers or personalised hardcovers produced on a Casematic.

• For book sizes up to 457 x 457mm.
• Binds photographic & digital paper.
• Albums open flat – 180 degrees.
• Compatible with Fastbind Casematic H46Pro™ and FotoCreaser C47e™

Meet the all-new GBC® Magnapunch™ Pro. This powerful interchangeable die punch is the fastest in the industry and delivers unparalleled reliability and durability.
Boasting a half-second punch cycle, the Magnapunch Pro provides your office or print shop with a best-in-class high-volume desktop punch.
Half-second punch cycle.
Efficient power system driven by flywheel technology that converts electric energy to kinetic energy, allowing for faster acceleration and punching.
Punches up to 49 sheets at a time (varies by punch pattern).
Punch activated by table top trigger or foot pedal to maximize throughput.
Easily accessible punch-pins.
Large chip tray with capacity for chips from 40,000 sheets.
All-metal housing.
Redesigned metal cover with die set ruler viewer.
Cast aluminum base that acts as a durable platform for the punching mechanism.
Durable precision worm gears constructed from high-grade carbonized steel, which allow for quick energy transfer and faster punching.
Enhanced edge guide with adjustable sliding knob and screw system.
Locking die set system with integrated safety switch, 13 die sets (including a new wire calendar die), and compatibility with Magnapunch 2.0 dies.

Power guillotine with manual spindle clamping system and 475mm cutting length
Technical Data :
Cutting length : 475mm.
Cutting height : 80mm.
Narrow cut : 30mm.
Table depth : 458mm.
Power supply : 230 Volt/50Hz.
Motor performance (input capacity) : 1.1kW.
Dimensions : H1410mm x W=762mm x D=1053mm.
Dimensions with side tables : H=1410mm x W=1349mm x D=1053mm.
Weight : 212kg.
Weight with side tables : 221kg.
Warranty 1 year.

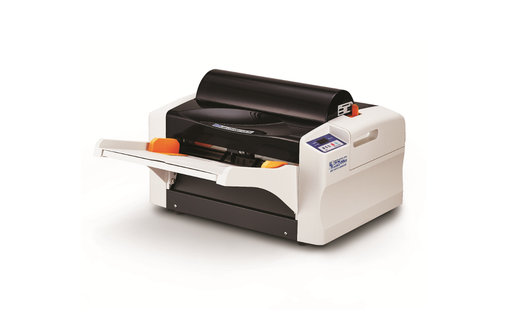

Lami Revo is "Economical Full Automatic Laminator" Lami Revo can do laminating from feeding papers to cutting automatically.
Compared to regular automatic-laminator,film setting of Lami Revo is extremely easy !
Possible easy inside clean by dopting "Cover open fuction".
Specification :
Max. laminating width : 305mm
Max. speed : 1.0m/min (Fixed)
Power requirements : AC230V
Power consumption : 1150 Watt
Width : 680mm.
Depth : 506mm.
Height : 337mm.
Weight : 30kg.
Warranty 1 year.

Electric paper cutter with automatic pressure device and a cutting length of 475 mm.

Reference: 48503111
Cutting capacity: 80 mm thickness
Cutting length: 475 mm
Table depth: 458 mm
Minimum cut: 30 mm

Trimmer with touch screen control, automatic pressure device, EASY-CUT and pivoting protective guard on the front table.

Reference: 48553111
Cutting capacity: 80 mm thickness
Cutting length: 475 mm
Table depth: 450 mm
Minimum cut: 35 mm

Professional paper cutter with light curtain on the front table, touch screen control, automatic pressure device and EASY-CUT.

Reference: 48603111
Cutting capacity: 80 mm thickness
Cutting length: 475 mm
Table depth: 450 mm
Minimum cut: 35 mm

The photoelectric cell light curtain on the front table guarantees rational work in complete safety.
Electronic knurled knob for variable speed movement from 'slow' to 'fast' of the backgauge.
The new patented EASY-CUT device is a two-hand control with simultaneous action on the two levers to trigger the blade.
Multi-language touch control screen with pre-programmed DIN A6 to A3 formats, possibility of saving 99 programs of 99 positions each and recording repetitive cuts.
Easy replacement of the blade from the front without dismantling the guards, thanks to the device with edge protection.
The necessary tools for blade changing and after-sales service are always available and within reach on the machine.

Dimensions:

Height: 1296mm
Width: 762mm
Depth: 992mm
Weight: 232 kg
Width with side tables: 1349 mm
Weight with side tables: 241 kg
Cutting length: 475 mm
Maximum cutting capacity: 80 mm
Minimum cut: 35mm
Table depth: 450 mm

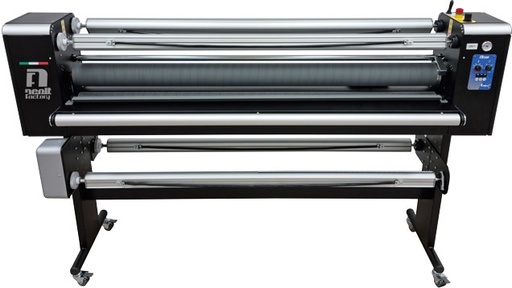

Main features :
Pneumatic laminator (compressor not included)
Silicone roll for 120c model and rubber for 50c model
Adjustable Pneumatic pressure regulation
Easy pneumatic roll movement (up and down)
Hands Safety sensor
Self-adaptive, the air pressure system with independent pistons adapts automatically to different thicknesses
Adjustable stainless steel rolls friction
Pedal for safety precedure start
Adjustable speed and temperature regulation

Optionals :
Roll holder with clutch
Rewinder roll
Available in the following versions :
Laylam 50°C
Laylam 120°C
The manufacturers reserves the right to change technical and aesthetical specifications without notice.

Datasheet : 1650
Dimensions : 215x45xh140 cm
Max working width : 1650 mm
Max speed : 6 m/min
Max laminating thickness : 30 mm
Depth table included : 450 mm
Height working table : 920 mm
Net weight : 200 kg
Electrical requirements : 230v - 50Hz / 110v - 60Hz
Power consumption : 7,5A - 1800W

Raineuse semi-automatique

La raineuse semi-automatique STAGO NRM-330 a été développée spécifiquement pour l'impression numérique et les courts tirages offset.
Le procédé de rainage est une de barre professionnelle qui évite d'endommager la surface lors du pliage des impressions de haute qualité.
Le NRM 330 est livré avec deux largeurs de rainage standard. Le changement de l'outil ne prend que quelques secondes.
Le NRM 330 produit de haute qualité pour les flyers , brochures, cartes de vœux ou des cartes de visite pliée , même sur papier couché ou imprimés avec de grandes zones sombres (aplats de couleur).
Le panneau de contrôle multilingue intégré vous permet de stocker jusqu'à 9 programmes chacun avec jusqu'à 9 positions de pliage.
En utilisant la dernière technologie d'entraînement des postes de pliage avec une grande précision de 0,1 mm.
Les butées sont à réglage fin pour permettre à l' angle d' être corrigée pour compenser les erreurs sur l'impression.
Le papier est alimenté manuellement, puis rainé et éjecté avec réception automatique de papier.
Capacité de production jusqu'à 3000 feuilles par heure ( Din A4/un pli ).

A top-selling universal machine.
Easy to use and fully designed with memory function up to 36 folding positions.
Technical spécifications :
Folding capacity: 1,800 to 14,400sheets/hr.
Folding position settings : Automatic.
Max. paper size: 300 x 432mm.
Min. paper size: 91 x 128mm (single fold only).
Paper quality: 46.5 to 160g/m2 (230g/m2 for single fold).
Dimensions (WxDxH) : 1030x545×500mm.
Weight: 30.6kg.

SKYLAM 1650 Hot & Cold Digital Roll Laminator.
Safety Guard - Rollers shall be stopped automatically if will be opened.
Special Core - 3 sizes(25, 58 and 76mm) in one unit.
Auto Power Off.
2 LCD Displays.
Emergency Stop.
Side Cutters.
Air Cooling Fans.
Foot Switch.
Maximum Laminating Width : 1630mm.
Maximum Film Thickness : 250 micron.
Heat-Up Time : 8 - 10 Minutes.
Laminating Temperature Range : 0 - 140ºC.
Max Speed : 3 Minutes Per Minute.
Warranty : 1 Year.

Sword is the entry-level vertical cutting system designed on the real needs of small and medium sign makers, fitters and retail, industry and companies with high volumes of cut.
Fixed blade n°1 - (1 to 30mm).
Materials: cardboard / foam kmount / gato foam / spongy media / Expanded polhyurethane / plastic from 0,5mm / films / plastic alveolar / reboard.
Fixed blade n°2 to forex(max.10mm) & leather en Plastic (min. 0,5mm).
KNIFE (OPTIONAL) :
• Blade for Dibond from 1 to 3mm
• Blade V-Cut 45° & 60° from 5 to 19mm
• Blade GlassCut (max. 3mm).
• Blade per PlexCut da 1 to 5mm.
Materials: reboard / spongy media / expanded polyurethane.
Options and Accessories :
Millimeter rows for a perfect positioning of the subtrate reel, container for the collection of waste and integrated lamp for illuminating the cutting area.

Keencut STEELTRAK has been designed and built by Keencut engineers to surpass all current standards and meet the exeptional demands of the 21st century sign industry.
Building on the huge success of the all-purpose Keencut Excalibur, and recognising the increasing demands of thicker, tougher sign materials, the design brief was simple:

“Create a brand new vertical cutting machine exclusively for the Sign Maker. It must be the best manual cutter ever made but offer exceptional value for money. It must be strong, versatile, capable, easy to use, virtually maintenance free and built to last almost indefinitely. It must withstand the closest scrutiny, the toughest tests and deserve a place in every sign making workshop.”

Secabo TP10 pneumatic heat press 80cm x 100cm
The newly developed heat press Secabo TP10 is for professional textile printers of large objects: With an extra large work area of 80 x 100 cm, the transfer press is particularly suitable for heat transfers on expansive media such as flags, sheets or room dividers made of textile. The base plate acts as a drawer, which allows comfortable arranging of transfer objects and can be handled despite its size with little effort. The pressure of the TP10 transfer press is produced by compressed air, which means working with consistent and reproducible results. The pneumatic head of the heat plate allows due to vertical contact pressure a flawless transferring of various materials without displacement effects, etc. The Secabo TP10 heat press with a heat output of 5.1 kW is suitable for all standard transfer processes and thus can be used in almost all areas of technology transfer.

Technical Data
dimensions 105cm x 90cm x 145cm
working area 80cm x 100cm
scope of delivery heat press, power cord, compressor valve, manual
pressure setting setting of pneumatic pressure
max. downforce 150 g/cm²
max temperature 225 °C
maximum time preset 999 s
power supply 3P+N+PE, 5.1kW. The connection by an electrician is recommended.
environment +5°C - +35°C / 30% - 70% relative humidity
weight without packaging 320,00 kg
weight with package 320,00 kg
Brand Secabo

HSM ProfiPack P425 Packaging Quilting Machines
This robust quilting machine optimizes the packaging material and transforms several layers of old cardboard into protective mattresses or filling material in a single step. The professional device with swivel castors can be moved and used freely.

As soon as the emergency stop switch is actuated, the device stops automatically.
Thanks to the sturdy swivel castors with brakes, the device can be moved.
The high degree of drive efficiency allows particularly long-lasting operation of the device.
The packaging material can be used wherever it is needed and offers optimal protection for objects.
The efficient drive concept ensures powerful operation under continuous load.
The packaging material can be custom-made by freely adjusting the working width with the graduated scale.
The intuitive control panel with LED displays and a robust keypad indicates the operating status of the device.
The induction-hardened steel cutting cylinders resist cardboard staples and guarantee a long service life.
Depending on usage, the quilting volume can be adjusted to the packing material as needed.

La Masterpress EMD+ électrique est une machine de dorure à chaud avec une zone chauffante d'embossing jusqu'au format A4.
LA Masterpress EMD+ peut être utilisée avec des matrices de magnésium, de laiton ou de cuivre, fixées avec de la colle ou des vis.
La Masterpress EMD+ peut également être utilisée avec des logos ou écriture en laiton pour faciliter la composition : parfaite pour les noms, titres, cahiers de thèse, annuaires, livres photo, etc.
L'affichage électronique indique la température réglable (30 à 190 ° C), le temps de pression, la force de pression, la longueur de la feuille, le contrôle de hauteur et le compteur.
Avec une pression pouvant atteindre jusqu'à 7 tonnes, la presse à estamper à chaud est une option polyvalente pour les imprimeries ou une option d'impression verticale à court tirage pour les entreprises expérimentées de dorure sur de plus grandes machines.
Caractéristiques techniques :
Taille maximale de la matrice: 200 x 300mm.
Hauteur max. du support : 64mm.
Température ajustable : 30 - 190°C.
Temps de chauffe à 190° = 15 minutes.
Largeur maximale de la couverture (sans limiteur latéral): aucune.
Pression maximale: 7000kg.
Écran LCD: oui.
Largeur maximale du rouleau de dorure : 230mm.
Rembobinage automatique du film: oui.
Alimentation électrique : 220 - 240 V, 50/60 Hz.
Puissance nominale: 1500W.
Poids: 168kg.
Dimensions: H=1619mm x L=650mm x P=600mm.
Dimensions avec tables latérales et frontale : H=1619mm x L=885mm x P=834mm.
Garantie 2 ans.
Conforme aux normes de sécurité CE.

Industrial laminator, MF1700-F2 is perfect for most applications of sign and graphic. The Dual-heated rollers with max temperature of 120C offers the possibility not only for laminating but also for mounting and encapsulating up to 1630mm.

Additionally, its fully adjustable tungsten blades can cut most materials with a lifetime that over 15000m.
Smart Entry System
Easy to check speed, temperature, and Lamination statistics.
Pneumatic active cutting
Active cutter by pneumatic.
Fully adjustable trimmer holder.
Plug & play - Strong and integrated frame. Plug & play.
Double heated lamination
Smart Entry System —— Front Panel :
Speed, temp, and lamination statistics, easy to check figures of set temp, real temp, and button speed, as well as find your lamination records in 30 days
Date and time display
Roller up and down

Smart Entry System —— Rear Panel :
Run or stop lamination
Speed statistics, show button speed, which is convenient to adjust machine speed
Active cutter device, easy to use

Pneumatic active cutting roller :
Active cutters by button on rear panel
Fully position adjustable cutters
High flexibility silicon cutting roller

Safety vertical cutter :
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade
Upgraded with two paddles on 2 single trimmer holders
Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m

Premium silicon rollers :
Premium 130mm diameter silicon rollers provide heavy duty work and good finishes
Options for Double heated hot lamination offers the possibility not one for laminating but also for mounting and encapsulating
Max temperature could customize to 150℃

Plug & play :
Plug & play, more friendly for assemble
Strong and integrated frame, easy to use

Pro Series : MF1700-F2
Smart System : ENTRY (Option for PRO)
Front Panel : Speed and temperature
Rear Panel : Speed
Lamination Statistics : Yes
Foot Pedal : Single foot pedal
Max Lam Width : 1630mm/64''
Max Lam Thickness : 28mm/1.1''
Max Speed : 20m/min
Heating : Dual
Max Temp : 120°C
Up and Down : Pneumatic
Roller : Silicon(130mm)
Trimmer Holder : 2 Single and 1 Double Central blades
Power Input : 5200W
N.W. : 260KGS
