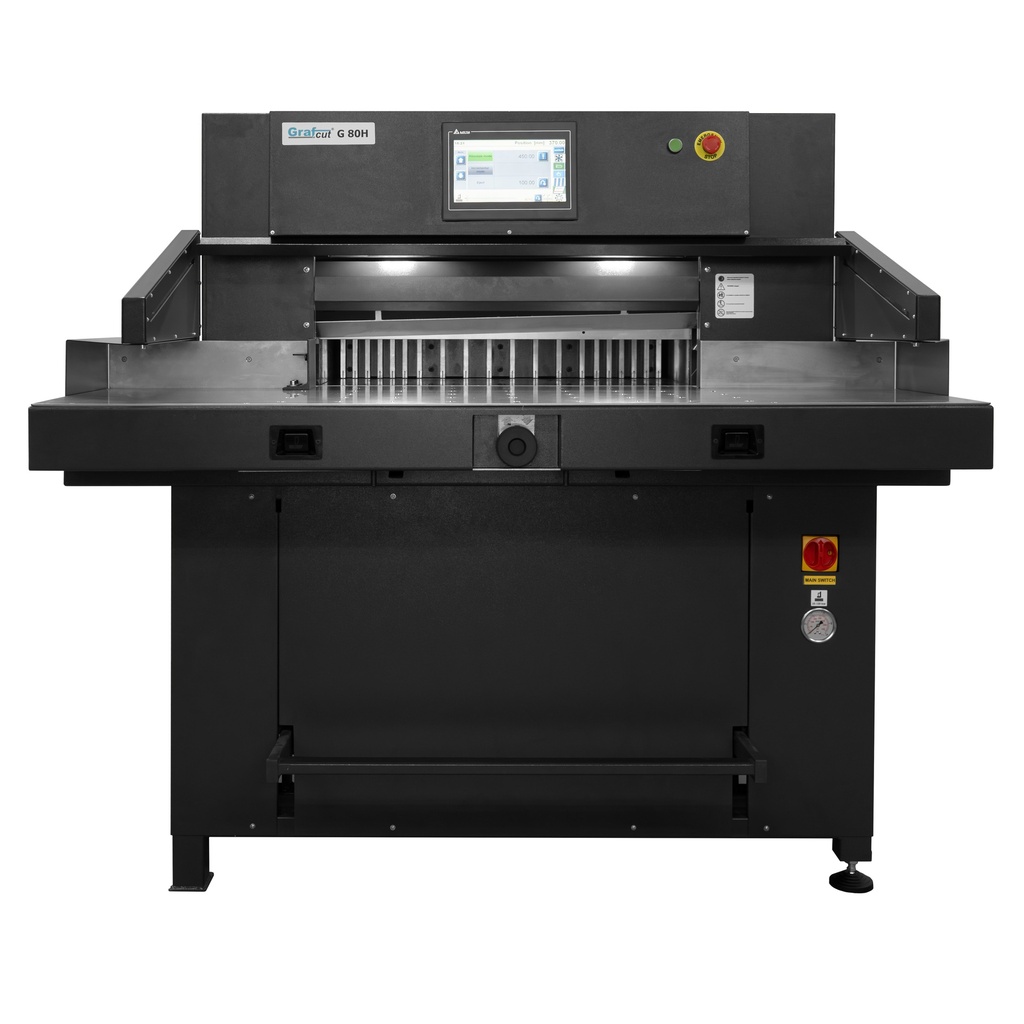

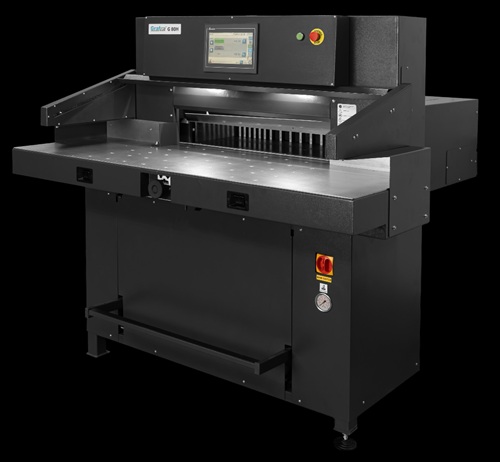

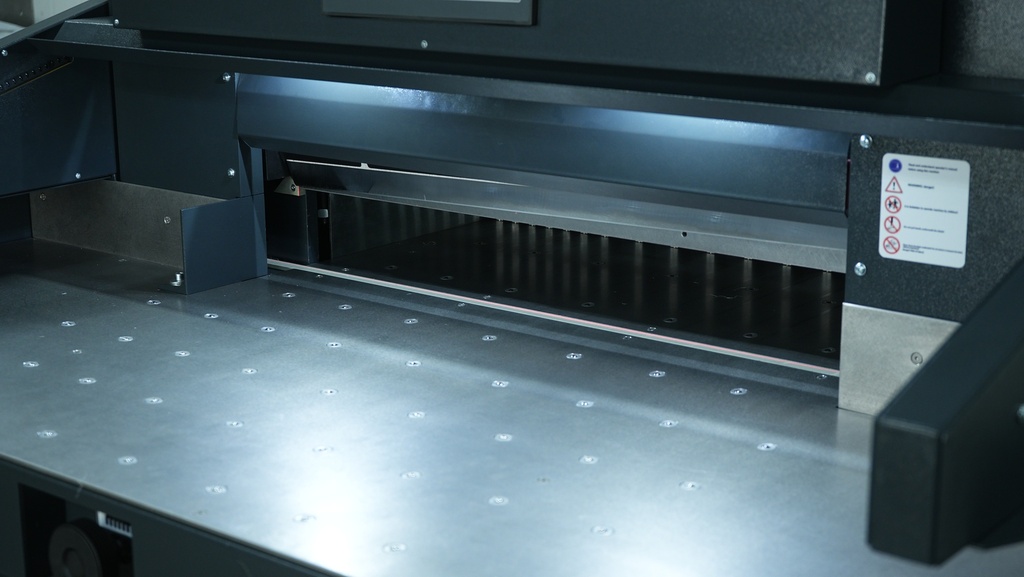

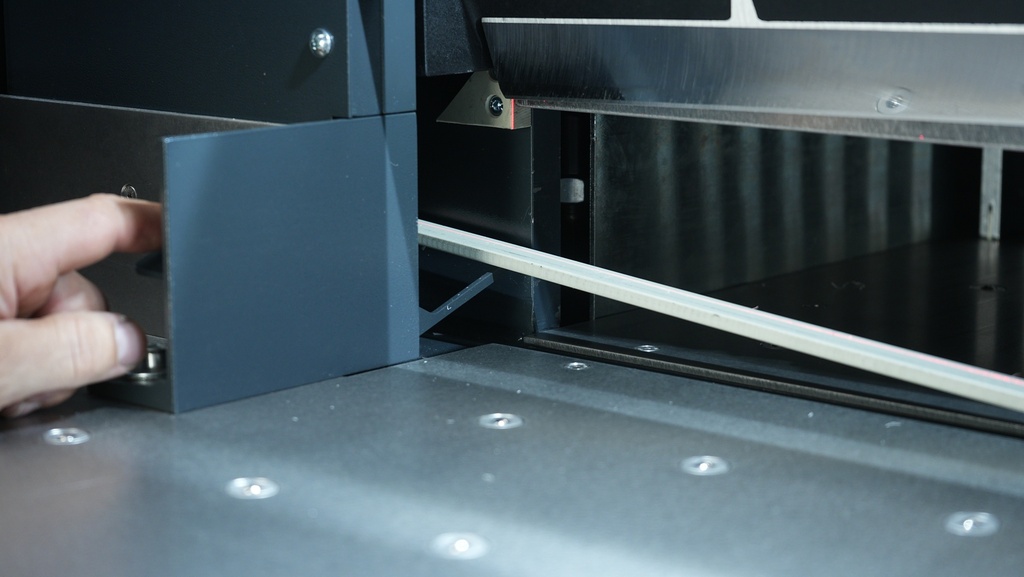

Grafcut G80H Hydraulic Guillotine

Programmable, fully hydraulic guillotine.

KEY FEATURES:

• PLC driven guillotine
• Fast hydraulic knife drive
• powerful hydraulic clamp mechanism with electronic, fluent pressure adjustment from the touch screen
• speedy 160 mm/s, servomotor driven electro-mechanical backguage
• precise ,electronic knob backguage micro adjustments
• durable stainless steel tables surface
• wide front table 1640 mm
• air bed on front and back table for easy material handling
• no slot on the back table
• laser cutting line indication with on/off function
• bright LED lighting of working zone
• safety features: emergency button on front panel, category 4 safety curtain system, knife upper position control, simultaneous two button cutting cycle activation, safe blade change toolkit covering sharp edge; protective covers of all potentially dangerous areas, back table fully covered, mechanically controlled soft foot pedal for pre-clamping
• electronically detected (microswitch) false clamp metal plate for soft materials
• low energy consumption and silent operation- motor runs during cut cycle only
• easy access to lubrication points

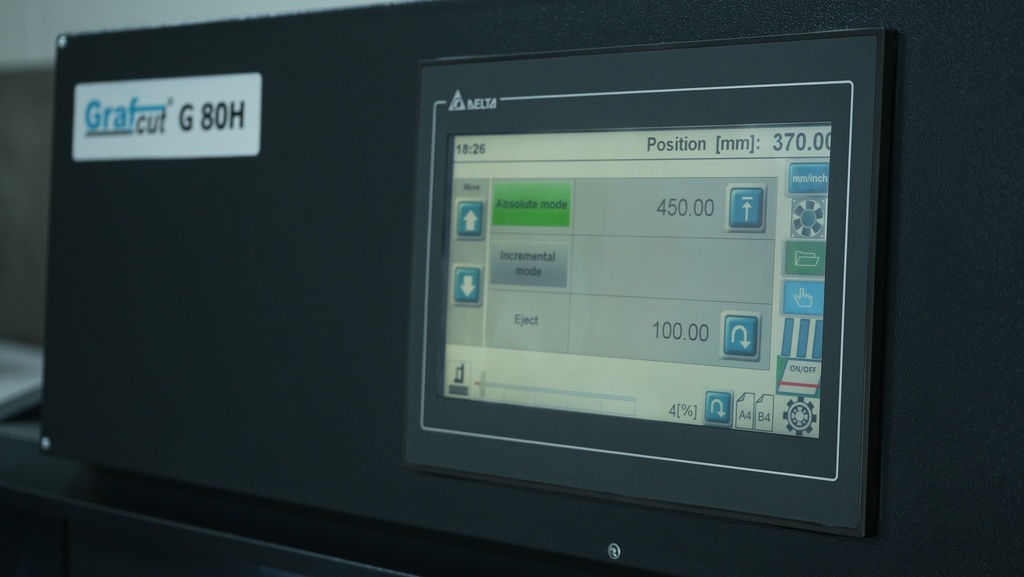

PROGRAM MODULE FEATURES:

• touch pad 10” LCD, color
• up to 100 programs with 100 cuts in each program, alphanumerical naming of programs
• programming during cutting (cut & save)
• quick program for cutting business cards
• calculator
• clock
• programmable clamp pressure per each cut
• activation of air bed on touch pad
• activation of knife change mode on touch pad
• programmable push out (eject) of stock pile from under the knife & clamp
• settable knife change interval alert on screen
• lubrication interval alert on screen
• multilingual: Polish, English, German, Italian, French, Spanish, Portuguese, Finnish, Bulgarian, Russian (other languages possible upon request)
• daily and total counter of cutting cycles
• diagnostics mode for switches testing

Technical info :
Cutting width : 800 mm (31,5”)
Cutting depth : 800 mm (31,5”)
Cutting height : 100 mm (3,93”) without false clamp installed
Narrow cut : 25mm without false clamp (50mm with false clamp)
Front table length : 650 mm
Front table width : 1640 mm
Cutting accuracy : 0,1 mm
Knife drive : Hydraulic
Knife depth adjustment : Depth adjustment at front of cutter by 3 bolts on top of knife beam. Fast knife changing (about 5 min.) with automatic shut off in lower dead end
Knife speed : 16 cycles/minute
Clamp : Hydraulic with fluent electronic adjustment from the screen
Clamp force range : 300 - 2000 daN
Backguage speed : Servomotor driven- electronically adjusted position by front panel electronic crank
Backgauge speed : 160 mm/sec
Net weight (kg) : Approx. 900 kg
Dimensions of machine (mm) Width x depth x height : 1645x1900x1500 mm
Dimensions of machine (mm) after dismantling front and back table : Can fit into 80 cm door after disabling of back and front table Width x depth x height: 1320 x 790 x 1500 mm
Transport dimensions of machine (mm) in one piece : 2050 x 1740 x 1730 mm
Power supply : EU power supply : 3 phase, 380-400V,50Hz 3,8kW
US power supply: 3 phase 220V,60Hz
25Apm (Service size 40 Amps)
