The Neptune is a fully automatic laminator for sheets up to
B3 size.
Compact and easy to use, the Neptune is designed
with todays short run print-on-demand market in mind.
Its features make it equally adept at running both digital and
lithographic output.
Equipped with the optional rewind system for use of transfer films for gilding (Sleeking films).
Speeds of up to 15m/minute.
Maximum laminating width of 370mm.
Maximum recommended stock : 400gsm.
Minimum recommended stock : 115gsm.
Maximum sheet size : 360mm x 540mm (option feeder 660mm-740mm-880mm-990mm).
Minimum sheet size : 205mm x 297mm.
PLC controlled.
Compact footprint.
Heated Chrome top roller.
Pneumatically controlled Rubber nip roller.
De-curl bar which can be adjusted on the run.
Burster type sheet separator.
Warranty 1 year.

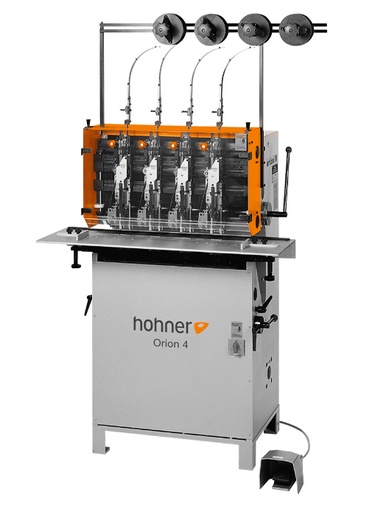

Multi-head van pique, robust and specially designed for you.
Er zijn slechts 4 heads Hohner Universal 70/20 voor een diameter van 0 tot 20 mm.
Neem het conische cutout (patent) op voor een mildere penetratie.
Ideally, you should consider the possibility of an integrated party being involved.
Tafel omkeerbaar (blok in notebooks).
Table depth 230 mm, ideal for kalender products.
De extra opdrachten kunnen tot uiting komen.
Regel dengte en het middelpunt van het gelijktijdige doorkruisen van een lever voor de tous les têtes.
Adjustable lateral cleats at the back.
It is very flexible and can be formatted.
Optional verwisselingsset for looped-stitching.
Stitching speed (per head): 192 staples/min.
Table width: 1000x330mm

Folding machine 2-18 pockets 360T Series + Crossfold module (1 fold) in line.
The crossfold module can be separated easoly accordingly to the type of job to do.

Dual control panels (Digital display + buttons panel), easy to operate.
High performance feeder head.
Manual buckle plate.
Three-hole suction wheel.
Double sheet detection.
Air pump Eurovac.
Schneider PLC.
Sensors.

The crossfold module (Independant knife) is designed to handle products that are too small or too thick.
It makes a signle final crossfold?
Max. infeed size : 360x260mm
Min. infeed size : 100x25mm
Speed : 500 times/min.
Power : 220V, 0,37KW.


Max. infeed size : 360x750mm
Min. infeed size : 50x105mm
Paper thickness : 30-250g
Max speed : 200m/min
Power : 380V, 3,05KW
CE Certification

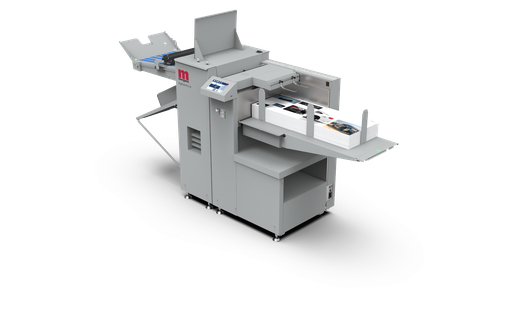

The DigiFold Pro XL is the latest addition to the Morgana DigiFold family.
Developed on the well proven Morgana DigiFold Pro, built with our unique, open design, suction feeder that handles stock sizes from 210 – 1300mm in length.
This heavy-duty automatic creasing and folding system is designed to complement mid to high volume digital and offset production presses.
The Morgana DigiFold Pro XL is designed to complement the long sheet capabilities enabled in the production printers of today.
It features a standard pull-out extension that enables sheet sizes up to 1300mm.
This opens the door to new applications, such as covers for landscape booklets, book covers for oversized perfect bound books, multi-panel brochures and many other applications made from these long sheets.
Folds up to 6.000 A4 per hour / crease only – 7,500 per hour.
Max loading capacity up to 200mm.
Top fed vacuum feeder, ensures stable production for long runs.
Fully automatic operator functions.
Key in sheet size, media type and thickness and the Pro XL will automatically set speed, roller gap and fan settings.
A unique air knife system for sheet separation.
Full cross perforation available, plus up to five inline perforation/scoring wheels.
Up to 30 creases per sheet (static crease.)
Equipped with both a belt-stacker for folded sheets and a delivery tray for crease only jobs.
Max loading capacity 200mm.
Max paper size W x L: 385mm x 700mm (1300mm with extension table).
Min paper size W x L: 93mm x 210mm.
Max paper thickness: 400gsm.
Min paper thickness: 80gsm.
Max sheets per hour: 6000 Sheets per hour, A4/half fold, one crease only 7,500.
DynaCrease standard, Static crease optional
Max number of creases per sheet: 30 (with optional static creasing tool)
Min crease to crease distance 0.1mm.
Stacker capacity 120mm.
Footprint with table extension 2765mm x 730mm.
Warranty 1 year.

480TS Series
First Station 4 Folding Plates :
Max. Format : 480*1000mm
Min. Format : 70*120mm
Paper gram : 40-300gsm
Mechanical speed : 220m/min

Advantages:

1.Equipped with an automatic dual control system for the height of the paper pile.
2.High performance sheet-separating feeder.
3.Feeding system adopts three-hole suction wheel.
4.Nonskid, wear proof, anti-rust steel, PU folding roller with screw stripe,so that the contact area is increased by 75% in contacting with the paper.
5.Electrical system controlled by PLC smoothly controlled by VVVE with overload protecting function.
6.Sensitive automatic control device of double sheet and jammed sheet man-machine interface facilitates parameter input.
7.Creasing, perforation, slitting.
8.Belt driving guarantees smoothly driving and low noise.
9.Designing the angle of the transitional that the paper wrinkled would be prevent efficiently.
10.Electrically controlled knife of photoelectric integragion realizes high speed superior reliability and minor paper wastage.

Position Digital Display
Make adjustment more efficent and higher precision; the debugging time is about 3-5 minutes
Feeder
High performace feeder make paper feeding more stable .
Touch Screen Control
Frequency conversion control automatic lifting;Tracking paper feeding system.
Electronic Control Switch
Adopt imported Schneider PLC and frequency conversion stepless regulation
Double Sheet Detection
If occurs double sheet during feeding paper , it will automatically alarm and stop feeding.
Automatic Supply Oil
Automaticlly maintain the core part– gear and prolong the usage life of the machine.

Other optional equipments as for your folding requirements :
Transfer Unit
Independent knife
Vertical stacker
Flattening unit
labeling machine
Gluing unit ( HHS brand )
Parallel Knife

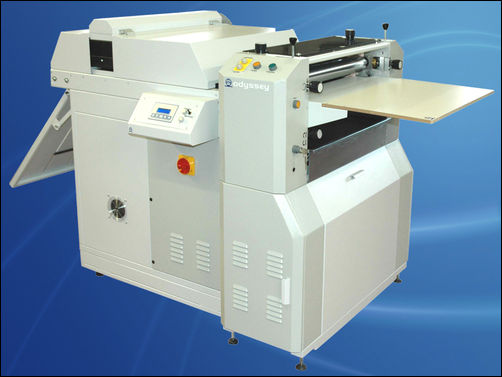

The machine UV Coating Machine Odyssey Compact is conceived to protect the printed matters after offset, digital and flexographic printing.
It mainly uses UV paints or water-based acrylic paints according to the demand.
It is an ‘All in one’ unit including the varnishing machine and the oven.
Its overall dimensions are really contained.
The machine has two tanks: the one contains the paint and the other one contains the detergent product, which allows to obtain a quick washing of the rollers once the work is finished.
It is also equipped with two levers for a rapid removal of the spreading rollers.
The rotation speed is adjusted by an electronic system.
For the automatic feeding, the ODYSSEY Compact can be connected to all modular feeders of our production.
For high production, our Stacker high pile can be connected on the exit.
The production ranges from 4000 to 6000 copies/hour according to the quantity of paint to be smeared on the printed matter.
Working width : 520mm
Working table format : 680 x 600mm
UV lamp power :7000W
Max working speed : 50m/min.
Energy (at 30m/min) : 120 W/cm².
Varnish tank capacity : 5l.
Washing tank capacity : 5l.
Warranty 1 year.

Sturdily built machine, cast iron thoughout. All parts are protected by special scratch and acid resistant paint.
Maximum working width 500 mm.

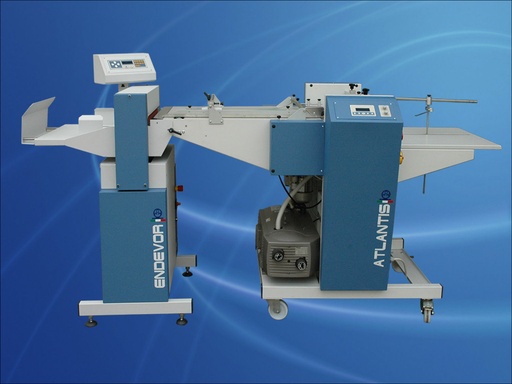

ENDEVOR is a newly conceived machine, easy and practical set-up ensures little or no waste is generated when handling printed matter. Designed to process even minimal numbers of copies, in especially fast times, it is especially suitable for creasing paper printed on digital machines.
ENDEVOR is extremely easy to use; sheets are inserted manually and fed through automatically.
Computerized control allows programming of up to 50 different channels, each of which can contain a maximum of 100 creasing positions (stations).
The machine is equipped with a creasing comb for paper up to 250 g., and special creasing tools or perforating combs are available on request.

MOTOR POWER : 2 Kw 0.40
WORK TABLE SIZE : 680 x 590 mm.
POWER SUPPLY : 220 V monofase
MAXIMUM PERFORATING THICKNESS : 0.5 - 0.8 mm
PACKING DIMENSIONS : 85 x 70 x 54 cm.
NET WEIGHT : 110 Kg.
GROSS WEIGHT : 130 Kg.
The worktable is equipped with two side and one back millimetric adjustable squares.
Two adjustable side blowing points.
Central front blowing point with adjustable height and air power.
Two sectors drum with internal suction adjusting on the power and on the line of suction to the point of tangency moved by a mechanic pomp.
Millimetric regulation of the double sheet through mechanic locking adjustable horizontally and vertically.
Manual sheet feeding up to 500 mm paper pile and automatic lifting through an engine.
Supplied with high and low stopping stroke and with automatic lifting and coming down device controlled by an optical photocell installed on the central arm to permit the regulation of the different paper sizes.
Maximum size of sheet up to 500x700 mm. Speed and tension of the dragging sheet carpet can be set.
Micrometric adjustable support square. Speed and tension of the sheet dragging carpet can be set.
The balls guide regulate the sheet; different types of balls (plastic or iron balls) are available depending on the paper thickness.
The sheet feeder is arranged with electrical connection to other units for simultaneous processing (creasing, punching and folding).
Adapt to be connected with: creasing machines, laminating machines, UV coaters, folding machines,
inkjet printers, and much more.

Options: 40m3 pump, electronic double sheet detector, infrared remote control.

TECHNICAL DATA:

Working width : 520 mm
Power supply : 230 V monofase
Power : 2,7 Kw
Working speed : Max 75 m/min
Max paper pile high : 500 mm
Max sheet size : 520 x 720 mm
Dimensions - weight = 1750 x 1700 x 800(h) – 180 Kg

Fully automated compact double-sided B3 laminator.
Designed for the growing photobook and print-on-demand market.
Twin laminating stations give an identical finish on both sides of the sheet.
Speeds of up to 15m/minute.
Maximum laminating width of 370mm.
PLC controlled.
Compact footprint.
Equally adept at running Litho or Digital output.
Heated Chrome top roller.
Pneumatically controlled Rubber nip roller.
De-curl bar which can be adjusted on the run.
Burster type sheet separator.
Optional rewind unit for foiling.

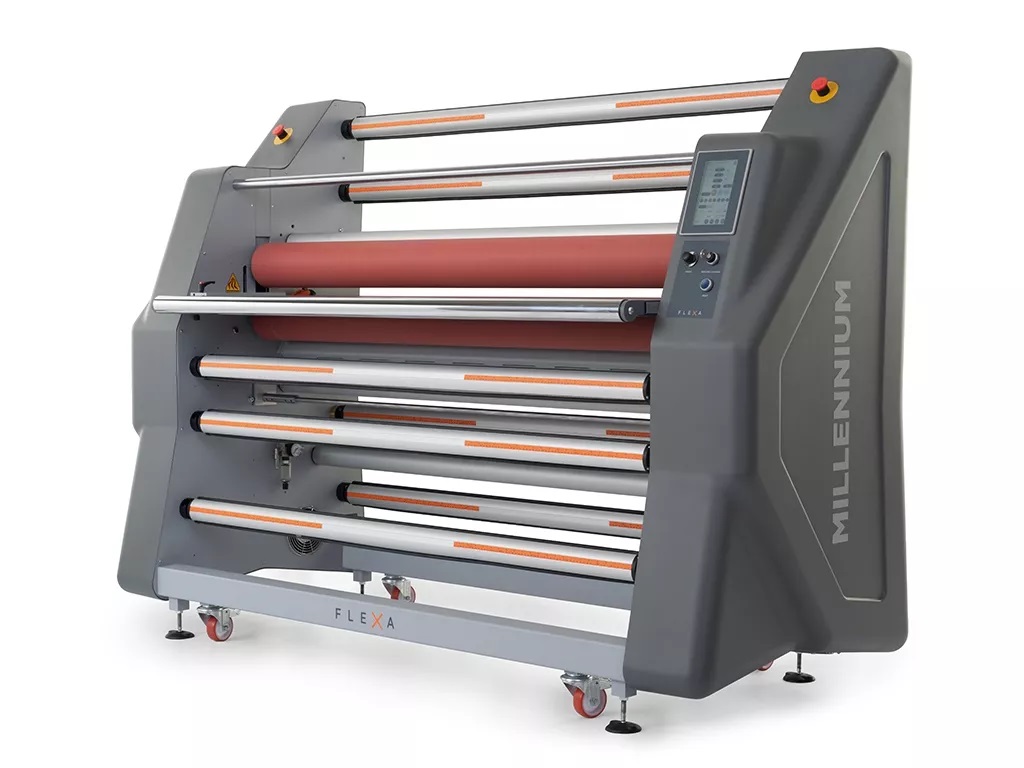

Professional laminator designed for mounting, laminating, encapsulation, laying of application tape and double-sided adhesive application tape. Suitable for high precision and large productions. Equipped with 7 roll shafts that are all electronically adjustable.
Available in size 160 or 210cm


Smart Remote Service: Millennium can be connected to the internet network for remote assistance, for fast and efficient diagnostics
PERFECT LAMINATION,
PROFESSIONAL RESULTS
Dual-hot laminator suitable for high precision and large productions. Equipped with 7 adjustable shafts
Wide range of working types, thanks to the independent temperature setting of both rubber rollers (up to 140°C)
Setting and visualisation of all functions through the big touch screen display: rollers temperatures adjustment, motorized lifting of the upper roller, pressure between the rollers and control of clutches and brakes
Ten working memories to set the most frequent adjustments
Automatic scheduled starting of the machine with preheating function
Automatic rollers cooling function at the end of the job

SUITABLE MATERIALS :
Printed flexible media
Rigid panels
Cardboard (packaging)
Car wrapping
Floor graphics
Backlit displays
Graphics for exhibitions
Roll-up banner & pop-up displays
Table displays
Many more..

NEW touch screen control panel
Touch screen control panel for the complete control of all functions
Rear traction rollers
Electronic working speed adjustment
Reference square with guide
Vacuum feed in table for thin papers (optional)
Millimeter scale on each shaft
Rear rewinding shaft

Europa now revised to take B2 sheet size.
Compact fully automated lamination system based on the successful Jupiter range.
High pile feeder to maximise efficiency for longer run work.
Equally adept at running Litho or Digital output.
Heated Steel Top Roller.
Rubber Nip Roller.
Scrolled in-feed roller to help feed lightweight and digitally produced sheets.
De-curl bar which can be adjusted on the run.
Burster type sheet separator.
Integral catch tray.
PLC controlled.
Compact footprint.
Hinged support mandrel to allow for easy roll changes.
Film can be moved laterally on the run.
Capable of running at speeds of up to 20m/minute.
Equipped with the optional rewind system for use of transfer films for gilding (Sleeking films).

Compact fully automated B2 lamination system.
Flying Knife sheet separation for OPP, Nylon and Polyester films.
High pile feeder to maximise efficiency for longer run work.
Equally adept at running Litho or Digital output.
Heated Steel Top Roller.
Rubber Nip Roller.
Scrolled in-feed roller to help feed lightweight and digitally produced sheets.
De-curl bar which can be adjusted on the run.
Integral catch tray.
PLC controlled.
Compact footprint.
Hinged support mandrel to allow for easy roll changes.
Film can be moved laterally on the run.
Capable of running at speeds of up to 20m/minute.
Available with longer feed table - 88cm, 95cm & 104cm.
Optional Stacker delivery system.
Optional rewind unit for foiling.

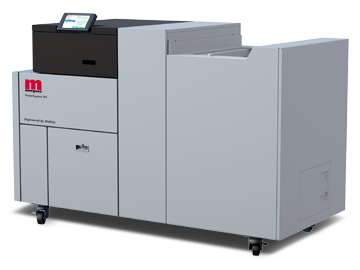

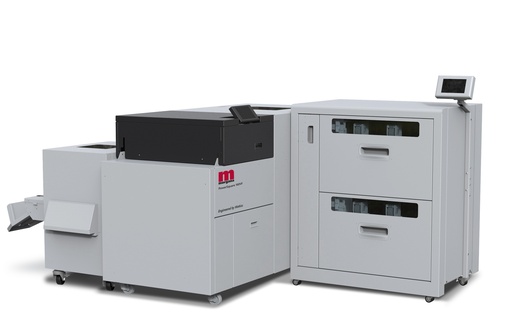

Morgana PowerSquare™ 160 Booklet Maker – An open-architecture, complete booklet making system that staples, folds, forms and trims in a single pass to produce added value SquareBack™ books.
The Morgana PowerSquare™ 160 booklet making system meets the needs of mid to high volume printers, capable of producing A4 / 8.5” x 11” landscape books. The machine is configured with one or two precise and reliable vacuum feeders, each with a 270mm / 10.6” capacity. OMR is standard, with optional barcode readers. Finishing your print jobs offline gives you flexibility in your workflow and handles the output from multiple digital engines.

The PowerSquare™ 160 is a modular open-architecture system that is flexible and versatile: it lets you produce booklets from a wide range of sheet sizes and materials, including A4 landscape format and heavy cover stocks. With optional accessories for full bleed trimming and book stacking, enabling you to increase productivity and efficiency.
Hand feeding with the Morgana PowerSquare™ 160 Booklet Maker
Hand feeding is often the most practical solution for low volume digital printed jobs, where ease of set-up along with flexible media sizes are important. Book quality is never a compromise with the fully featured Hand fed PowerSquare™ 160. This model is designed with an easy upgrade path to add feeders or operate inline to your printer.
Two-­Knife Trimmer
The PowerSquare Two-­Knife Trimmer (P2T) is a compact module that completes the booklet making process by trimming the top and bottom edges of the book. It provides a professional solution for full-­bleed printed work, especially important for colour printed applications.

Fully automated from the PowerSquare’s user interface, up to 40mm can be trimmed from each end of the book, and the trim position can be offset to match the image position. All trimmings are transported outside the machine to a high capacity external waste box, allowing continuous operation.
Up to 6 staples per set
The PowerSquare 160 now has the capability to apply up to six staples per book. Making it possible to run smaller applications 2 or 3up on a set, saving valuable time and money.
Specifications
PowerSquare™ 160
Sheet size (min) : 200 x 140 mm / 7.87" x 5.5"
Sheet size (max) : 370 x 620 mm / 14.5" x 24.4"
Paper weight (min) : 60 gsm / 16 lb Bond
Paper weight (max) : 400 gsm / 150 lb Cover
Book thickness (min) : 1 sheet folded / 2 sheets stitched and folded
Book thickness (max) : 8mm (approx. 160 pages @80 gsm)
Dimensions L x W x H: 825mm / 32.5" x 1760mm / 69" x 1250mm / 49.2"
Power requirements : 220-240V 50/60Hz, single phase
Weight : 435kg / 959lb
Stapling
Staples per booklet : 2 - 6
Staples per cartridge : 5000
Trimming
Face trim (Max) : 28 mm / 1.1"
Trimmed booklet size (Min) : 78 mm / 3.07"
Stacking
Output conveyor capacity : 20 booklets
Book Stacker capacity (Optional) : 930 mm / 36.6"
Power requirements : 100-230V 50-60Hz

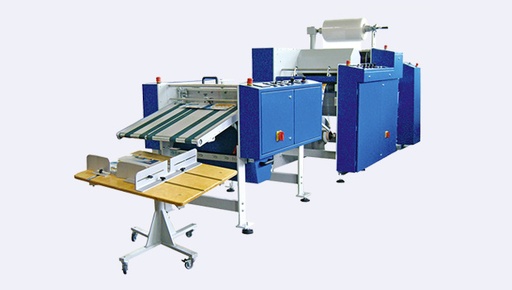

The Comet will strengthen the D&K range of encapsulation machines and has been developed with the Trade Encapsulator and Card Market in mind.
The Comet benefits from being modular in construction and its adjustable height makes it fully compatible with a range of feeders and cutters
The 260mm diameter Teflon coated pre-heat rollers make for scratch free results and the large 75mm diameter heated nip rollers, with advanced rubber compound, give maximum heat transfer for higher running speeds
Amongst its many features the Comet has PLC control with modem link to enable remote diagnostics, swing out mandrels for easy film loading, pneumatic operation of all rollers to allow differing pressures on nip and pull rollers and ample cooling with variable speed fans, which only operates in start mode to save energy

Unique double-sided configuration comprising two separately controlled laminating stations, each with a heated chrome roller and rubber nip roller to give an identical finish to each side of the sheet.
High pile feeder to maximise efficiency for longer run work.
Equally adept at running Litho or Digital output.
Heated Chrome Top Rollers.
Rubber Nip Rollers.
Scrolled in-feed roller to help feed lightweight and digitally produced sheets.
De-curl bar which can be adjusted on the run.
Burster type sheet separator.
Integral catch tray.
PLC controlled.
Compact footprint.
Hinged support mandrels to allow for easy roll changes.
Film can be moved laterally on the run.
Capable of running at speeds of up to 20m/minute
Other versions of the Europa include standard single-sided and EL - single-sided with embossing station.

Europa EL has a standard laminating head and a further station for embossing or, potentially, higher pressure laminating, to allow either conventional single-sided lamination or laminating and embossing in a single pass.
Compact fully automated lamination system based on the successful Jupiter range
High pile feeder to maximise efficiency for longer run work
Equally adept at running Litho or Digital output
Scrolled in-feed roller to help feed lightweight and digitally produced sheets
De-curl bar which can be adjusted on the run
Burster type sheet separator
Integral catch tray
PLC controlled
Compact footprint
Hinged support mandrel to allow for easy roll changes
Film can be moved laterally on the run
Capable of running at speeds of up to 20m/minute
Optional rewind unit for foiling
Second station for embossing

Dimensions including collection tray – PB/EL : L – 3180mm W – 1440mm H – 1440mm
Extended Feed Table add:-L88- 280mm / L95 – 420mm / L105 – 620mm
Weight – Europa FK, EL & PB : 900 kg
Electrical requirements – Europa EL/PB : 3 phase, 400v, 12.0kw
Air requirements : 10cfm dry air at 100 psi / 16m³/h
Maximum recommended stock : 400gs
Minimum recommended stock : 115gs
Maximum sheet size : 540mm x 740mm (Option for sheet lengths 880mm, 950mm and 1050mm)
Minimum sheet size : 205mm x 220mm
Maximum laminating width : 530mm
Speed : Up to 20m/minute
Temperature range : 70ºC - 140 ºC
Core size : 75mm (3”)
Film range - 25 microns – 42 microns
Pile weight : 250kg
Nip pressure : 1.2 metric tonnes

The Jupiter 5474 automated laminator comes equipped with touch screen for easy operator interface.
All controls for the machine are plc driven giving excellent reliability.
The Jupiter can produce up to 5000 B3 sheets per hour and comes complete with a unique infeed decurling roller allowing constant reliable feeding of troublesome stocks especially for feeding of digitally printed stock.
Dimensions (H x W x L) 1400mm x 1200mm x 1950mm.
Weight 650 Kg
Electrical requirements 3 Phase, 415V, 5Kw
Air requirements 15 cfm @ 100 psi Dry Air
Maximum recommended stock 450 gsm
Minimum recommended stock 90 gsm
Maximum sheet size 540cm x 740cm
Minimum sheet size 205cm x 220cm
Production speed : 35 meter/min.
Core size 75mm (3")
Heating Sealed oil filled roller
Feeder : yes.
Separator : yes.
In line slitting : yes.
Jogger : yes.
Warranty 1 year.

D&K PROTEUS 76105 Fully automated B1 Thermal Lamination System.
Working speeds of up to 35 metres per minute.
Very economical footprint.
Fully automated.
PLC controls.
Compact sheet burster.
Oil-filled chrome laminating roller.
Compressed air powered nip.
In-feed roller to assist the feeding of digital stock.
Warranty 1 year.

The Morgana PowerSquare™ 160VF Booklet maker – An open-architecture, complete booklet making system that staples, folds, forms and trims in a single pass to produce added value – SquareBack™ books.
The Morgana PowerSquare™ 160VF Booklet maker system with its high capacity dual bin feeder offers a flexible solution for a wide range of booklet types and sizes. The system is fed by the VFX vacuum assisted feeder which has a loading capacity of up to 540mm / 21″, giving long uninterrupted production runs. Pre-collated sets can be placed into both bins for longer runs, or covers can be placed into one of the bins when they need to be merged with collated sets. The feeder can also be loaded on the run with automatic bin switching.
Key Features of the Morgana PowerSquare™ 160VF Booklet maker
Paper Size 160VF – Min: 200 x 200mm / 7.8″ x 7.8″ to Max: 350 x 620mm / 13.7″ x 24.4″
Paper Size 160 – Min: 140 x 200mm / 5.5″ x 7.8″ to Max: 370 x 620mm / 14.5 / 24.5″
Stock Range 160VF – 60 – 300gsm / 16lb bond – 82lb cover dependent on paper
Stock Range 160 – 60 – 400gsm / 16lb bond – 105lb cover dependent on paper
Book thickness:
Minimum set thickness – 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum finished book thickness – 8mm / 0.3″ (approx 160 pages 80gsm / 20lb bond)
Maximum set thickness – 4mm / 0.15″ (approx 40 sheets 80gsm / 20lb bond)
Stapling – Auto-adjusting staple pitch according to sheet size, range 105-150mm
Staples per cartridge – 5000
added value – SquareBack™ books.
The Morgana PowerSquare™ 160VF Booklet maker system with its high capacity dual bin feeder offers a flexible solution for a wide range of booklet types and sizes. The system is fed by the VFX vacuum assisted feeder which has a loading capacity of up to 540mm / 21″, giving long uninterrupted production runs. Pre-collated sets can be placed into both bins for longer runs, or covers can be placed into one of the bins when they need to be merged with collated sets. The feeder can also be loaded on the run with automatic bin switching.

Key Features of the Morgana PowerSquare™ 160VF Booklet maker
Paper Size 160VF – Min: 200 x 200mm / 7.8″ x 7.8″ to Max: 350 x 620mm / 13.7″ x 24.4″
Paper Size 160 – Min: 140 x 200mm / 5.5″ x 7.8″ to Max: 370 x 620mm / 14.5 / 24.5″
Stock Range 160VF – 60 – 300gsm / 16lb bond – 82lb cover dependent on paper
Stock Range 160 – 60 – 400gsm / 16lb bond – 105lb cover dependent on paper
Book thickness:
Minimum set thickness – 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum finished book thickness – 8mm / 0.3″ (approx 160 pages 80gsm / 20lb bond)
Maximum set thickness – 4mm / 0.15″ (approx 40 sheets 80gsm / 20lb bond)
Stapling – Auto-adjusting staple pitch according to sheet size, range 105-150mm
Staples per cartridge – 5000
Two-­Knife Trimmer
The PowerSquare Two-­Knife Trimmer (P2T) is a compact module that completes the booklet making process by trimming the top and bottom edges of the book. It provides a professional solution for full-­bleed printed work, especially important for colour printed applications.

Fully automated from the PowerSquare’s user interface, up to 40mm / 1.6″ can be trimmed from each end of the book, and the trim position can be offset to match the image position. All trimmings are transported outside the machine to a high capacity external waste box, allowing continuous operation.
Up to 6 staples per set
The Morgana PowerSquare™ 160VF Booklet maker now has the capability to apply up to six staples per book. Making it possible to run smaller applications 2 or 3up on a set, saving valuable time and money.
Specifications
PowerSquare™ 160VF Specs
Minimum : 200mm x 200mm / 7.8” x 7.8"
Maximum : 350mm x 620mm / 13.7" x 24.4”
Stock range : 60-300gsm / 16lb bond – 110lb cover
Book thickness
Minimum set thickness : 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum finished book thickness : 8mm / 0.15” (approx 160 pages 80gsm / 20lb bond)
2 low impact staple heads with moving clinchers.
Auto-adjusting staple pitch according to sheet size, range : 105-150mm / 4”- 6”
Staples per cartridge : 5000
No. of bins : 2
Power : 100-230V 50-60Hz
VFX Dual Bin Feeder
No. of bins : 2
Bin capacity : 2 x 270mm / 10.6”
Sheet size, max : 350 x 660mm / 13.8” x 26”
Sheet size, min : 120 x 210mm / 4.72” x 8.26”
Paper weight, max: 300gsm / 110 lb Cover
Paper weight, min : 60gsm / 18lb Bond
Centre registration : Yes
Air separation : Yes
Error detection : Double feed, misfeed, empty bin, paper jam
Dimensions : H1260 x W1017 x D700mm / H49.6” x W40” x D27.6”
Weight : 250kg / 617lbs

Fully automated B1 single-sided Thermal Lamination System
Available in portrait or landscape feed versions
Working speeds of up to 40 metres per minute
High pile feeder with pallet loading to maximise efficiency for longer run work
Pre-loader available as an option
Scrolled in-feed roller to help feed lightweight and digitally produced sheets
Cantilevered mandrel with air shaft to speed film roll changes
Film can be moved laterally on the run to minimise waste and down time
Film slitter for non-standard sheet sizes
PLC controlled
Chrome laminating roller with electrical band heating
Compressed air powered nip roller
Decurl bar which can be adjusted on the run
Compact burster type sheet separator
Jogger at delivery
Delivery stacker available as an option
Dimensions Portrait : L – 2480mm (excl delivery unit) W – 1710mm H – 1480mm
Dimensions Landscape : L – 2480mm (excl delivery unit) W – 2010mm H – 1480mm
Weight Portrait : 1600kg
Landscape : 1800kg
Electrical requirements Portrait : 3 phase, 14.4kw, 400v
Landscape : 3 phase, 19.2kw, 400v
Air requirements : 15 cfm @ 100 psi dry air
Maximum recommended stock : 600gsm
Minimum recommended stock : 115gsm
Maximum sheet size - Portrait : 760mm x 1050mm
Maximum sheet size - Landscape : 1050mm x 1050mm
Minimum sheet size : 210mm x 220mm
Speed : Up to 40m per minute
Core size : 75mm (3”)
Variation of overlap : +/- 2.0mm
Heating Electrical bands
Optional stacker : Yes
Optional pre-loader : Yes
Nip Pressure : 26,0 kN

Triton PB fully automated double-sided B1 Thermal Lamination System.
Available in portrait or landscape feed versions.
Unique double-sided configuration comprising two separately controlled laminating stations, each with a heated chrome roller and rubber nip roller to give an identical finish to each side of the sheet.
Working speeds of up to 40 metres per minute.
High pile feeder with pallet loading to maximise efficiency for longer run work.
Pre-loader available as an option.
Scrolled in-feed roller to help feed lightweight and digitally produced sheets.
Cantilevered mandrel with air shaft to speed film roll changes.
Film can be moved laterally on the run to minimise waste and down time
Film slitter for non-standard sheet sizes.
PLC controlled.
Chrome laminating roller with electrical band heating.
Compressed air powered nip roller.
Decurl bar which can be adjusted on the run.
Compact burster type sheet separator.
Jogger at delivery.
Delivery stacker available as an option.
