Raineuse semi-automatique

La raineuse semi-automatique STAGO NRM-330 a été développée spécifiquement pour l'impression numérique et les courts tirages offset.
Le procédé de rainage est une de barre professionnelle qui évite d'endommager la surface lors du pliage des impressions de haute qualité.
Le NRM 330 est livré avec deux largeurs de rainage standard. Le changement de l'outil ne prend que quelques secondes.
Le NRM 330 produit de haute qualité pour les flyers , brochures, cartes de vœux ou des cartes de visite pliée , même sur papier couché ou imprimés avec de grandes zones sombres (aplats de couleur).
Le panneau de contrôle multilingue intégré vous permet de stocker jusqu'à 9 programmes chacun avec jusqu'à 9 positions de pliage.
En utilisant la dernière technologie d'entraînement des postes de pliage avec une grande précision de 0,1 mm.
Les butées sont à réglage fin pour permettre à l' angle d' être corrigée pour compenser les erreurs sur l'impression.
Le papier est alimenté manuellement, puis rainé et éjecté avec réception automatique de papier.
Capacité de production jusqu'à 3000 feuilles par heure ( Din A4/un pli ).

A top-selling universal machine.
Easy to use and fully designed with memory function up to 36 folding positions.
Technical spécifications :
Folding capacity: 1,800 to 14,400sheets/hr.
Folding position settings : Automatic.
Max. paper size: 300 x 432mm.
Min. paper size: 91 x 128mm (single fold only).
Paper quality: 46.5 to 160g/m2 (230g/m2 for single fold).
Dimensions (WxDxH) : 1030x545×500mm.
Weight: 30.6kg.

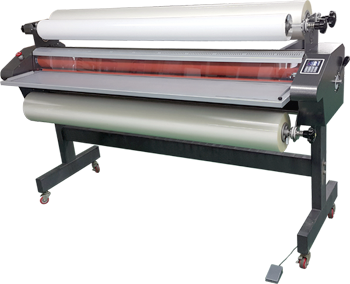

SKYLAM 1650 Hot & Cold Digital Roll Laminator.
Safety Guard - Rollers shall be stopped automatically if will be opened.
Special Core - 3 sizes(25, 58 and 76mm) in one unit.
Auto Power Off.
2 LCD Displays.
Emergency Stop.
Side Cutters.
Air Cooling Fans.
Foot Switch.
Maximum Laminating Width : 1630mm.
Maximum Film Thickness : 250 micron.
Heat-Up Time : 8 - 10 Minutes.
Laminating Temperature Range : 0 - 140ºC.
Max Speed : 3 Minutes Per Minute.
Warranty : 1 Year.

Secabo TP10 pneumatic heat press 80cm x 100cm
The newly developed heat press Secabo TP10 is for professional textile printers of large objects: With an extra large work area of 80 x 100 cm, the transfer press is particularly suitable for heat transfers on expansive media such as flags, sheets or room dividers made of textile. The base plate acts as a drawer, which allows comfortable arranging of transfer objects and can be handled despite its size with little effort. The pressure of the TP10 transfer press is produced by compressed air, which means working with consistent and reproducible results. The pneumatic head of the heat plate allows due to vertical contact pressure a flawless transferring of various materials without displacement effects, etc. The Secabo TP10 heat press with a heat output of 5.1 kW is suitable for all standard transfer processes and thus can be used in almost all areas of technology transfer.

Technical Data
dimensions 105cm x 90cm x 145cm
working area 80cm x 100cm
scope of delivery heat press, power cord, compressor valve, manual
pressure setting setting of pneumatic pressure
max. downforce 150 g/cm²
max temperature 225 °C
maximum time preset 999 s
power supply 3P+N+PE, 5.1kW. The connection by an electrician is recommended.
environment +5°C - +35°C / 30% - 70% relative humidity
weight without packaging 320,00 kg
weight with package 320,00 kg
Brand Secabo

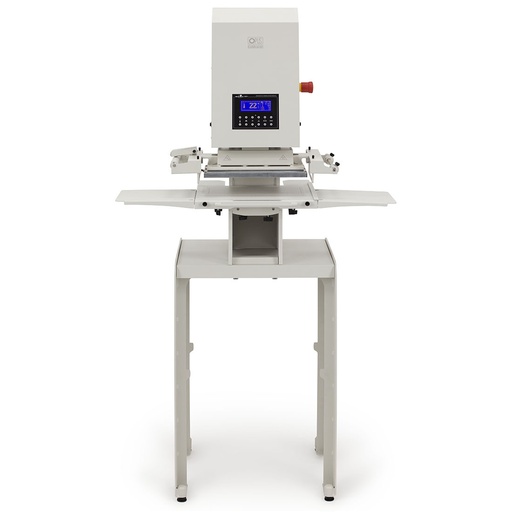

La Masterpress EMD+ électrique est une machine de dorure à chaud avec une zone chauffante d'embossing jusqu'au format A4.
LA Masterpress EMD+ peut être utilisée avec des matrices de magnésium, de laiton ou de cuivre, fixées avec de la colle ou des vis.
La Masterpress EMD+ peut également être utilisée avec des logos ou écriture en laiton pour faciliter la composition : parfaite pour les noms, titres, cahiers de thèse, annuaires, livres photo, etc.
L'affichage électronique indique la température réglable (30 à 190 ° C), le temps de pression, la force de pression, la longueur de la feuille, le contrôle de hauteur et le compteur.
Avec une pression pouvant atteindre jusqu'à 7 tonnes, la presse à estamper à chaud est une option polyvalente pour les imprimeries ou une option d'impression verticale à court tirage pour les entreprises expérimentées de dorure sur de plus grandes machines.
Caractéristiques techniques :
Taille maximale de la matrice: 200 x 300mm.
Hauteur max. du support : 64mm.
Température ajustable : 30 - 190°C.
Temps de chauffe à 190° = 15 minutes.
Largeur maximale de la couverture (sans limiteur latéral): aucune.
Pression maximale: 7000kg.
Écran LCD: oui.
Largeur maximale du rouleau de dorure : 230mm.
Rembobinage automatique du film: oui.
Alimentation électrique : 220 - 240 V, 50/60 Hz.
Puissance nominale: 1500W.
Poids: 168kg.
Dimensions: H=1619mm x L=650mm x P=600mm.
Dimensions avec tables latérales et frontale : H=1619mm x L=885mm x P=834mm.
Garantie 2 ans.
Conforme aux normes de sécurité CE.

Industrial laminator, MF1700-F2 is perfect for most applications of sign and graphic. The Dual-heated rollers with max temperature of 120C offers the possibility not only for laminating but also for mounting and encapsulating up to 1630mm.

Additionally, its fully adjustable tungsten blades can cut most materials with a lifetime that over 15000m.
Smart Entry System
Easy to check speed, temperature, and Lamination statistics.
Pneumatic active cutting
Active cutter by pneumatic.
Fully adjustable trimmer holder.
Plug & play - Strong and integrated frame. Plug & play.
Double heated lamination
Smart Entry System —— Front Panel :
Speed, temp, and lamination statistics, easy to check figures of set temp, real temp, and button speed, as well as find your lamination records in 30 days
Date and time display
Roller up and down

Smart Entry System —— Rear Panel :
Run or stop lamination
Speed statistics, show button speed, which is convenient to adjust machine speed
Active cutter device, easy to use

Pneumatic active cutting roller :
Active cutters by button on rear panel
Fully position adjustable cutters
High flexibility silicon cutting roller

Safety vertical cutter :
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade
Upgraded with two paddles on 2 single trimmer holders
Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m

Premium silicon rollers :
Premium 130mm diameter silicon rollers provide heavy duty work and good finishes
Options for Double heated hot lamination offers the possibility not one for laminating but also for mounting and encapsulating
Max temperature could customize to 150℃

Plug & play :
Plug & play, more friendly for assemble
Strong and integrated frame, easy to use

Pro Series : MF1700-F2
Smart System : ENTRY (Option for PRO)
Front Panel : Speed and temperature
Rear Panel : Speed
Lamination Statistics : Yes
Foot Pedal : Single foot pedal
Max Lam Width : 1630mm/64''
Max Lam Thickness : 28mm/1.1''
Max Speed : 20m/min
Heating : Dual
Max Temp : 120°C
Up and Down : Pneumatic
Roller : Silicon(130mm)
Trimmer Holder : 2 Single and 1 Double Central blades
Power Input : 5200W
N.W. : 260KGS

Designed to meet with the refinishing needs of service centers and offices with any type of production volume.
The extraordinary noiselessness and compactness, combined with the made in Italy structural solidity, pleasant design and availability in the most popular paper sizes, make the NeoFold PL the perfect complement to any toner or inkjet printer for CAD and cartography.
The touch screen display for easy, versatile and intuitive use.
It has a power consumption of 50W only and is so silent it can be installed also in offices and technical studios.
Copies collecting stand.
Paper entry table extension (optional).
Equipped with a 7’’ touch screen display.
Rear opening systems: easy access to the machine for internal cleaning and maintenance
Double folding start: automatic paper detection sensor and foot pedal.
Folding width : 1100mm.
Max. Crossfold : Max. A0.
Max Sheet Length : Endless with modules of 2,5mt.
Grams : from 60 to 110gsm.
Max. speed : 20mt/min.
Power Supply : 230v - 50/60Hz.
Consumption : 50W.
Dimensions : W=134cm x D=100cm x H=31cm.
Machine Weight : 58kg.
Stand weight (option) : 14kg.
Decibel : 65db.
Warranty 1 year.

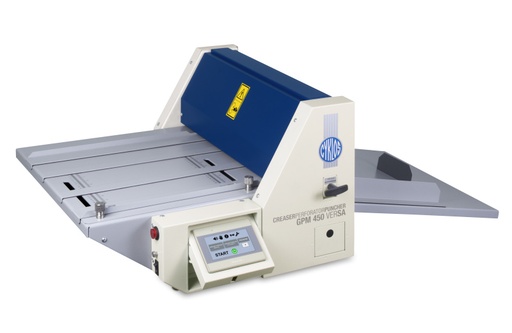

The appearance and manual feed system of GPM 450 verSA are derived from GPM 450 SA, yet it copies its larger brother, the GPM 450 Speed, with its easy interchangeability and tool variability or graphical interface. The GPM 450 verSA is a unique product thanks to a combination of the following factors: machine history (directly linked to the highly successful GPM 450 SA), working width (SRA3 in both directions), tool selection (same offer as for GPM 450 Speed and AirSpeed 450) accessibility for everyone, including novice printers. The machine will be appreciated by anyone who "misses something" on the GPM 450 SA, but does not want to invest money or space in large equipment.

large work table for SRA3 in both directions
touch screen display for easy setting of distance and number of creases
15 programs to save and load
two widths of creasing channels
high-quality anvil perforation
fast exchange of tools
optional wire punching tool
optional calendar punching tool
optional Euro Punch tool

MAX. WORKING WIDTH : 450 mm (SRA3 in both directions)
GRAMMAGE : 80 - 400 gsm (creasing, punching), 80 - 250 gsm (perforating)
WIDTH OF CREASE : CITO 1,0 mm - paper grammage 80 - 200 gsm
iron channel 1,9 mm - paper grammage 200 - 400 gsm
MIN./MAX. DISTANCE BETWEEN CREASES : 1/ 999 mm
NUMBER OF PROGRAMS : 15
SPEED : 1500 sheets A4/ h (1 crease per A4)
DIMENSIONS : 1075 x 635 x 390 mm
PACKING SIZE : 740 x 530 x 675 mm
WEIGHT : Netto 77 kg, 81 kg
VOLTAGE / FREQUENCY : 230 V/ 50Hz, 110 V/ 60 Hz
CONTENT OF PACKING :2 x creasing tool, 1 x perforating tool
OPTIONAL TOOLS :
Punching tool – square 5x5 mm, 2:1
Punching tool - square 6x6 mm, 2:1
Punching tool – square 4x4 mm, 3:1
Punching tool – square 4x4 mm, 3:1, calendar punch
Punching tool – round, dia 4 mm, 3:1
Punching tool – round, dia 4 mm, 3:1, calendar punch
Punching tool - oval 5x4 mm (plastic coil)
Euro Punch tool
Microperforating tool
Partial perforating tool

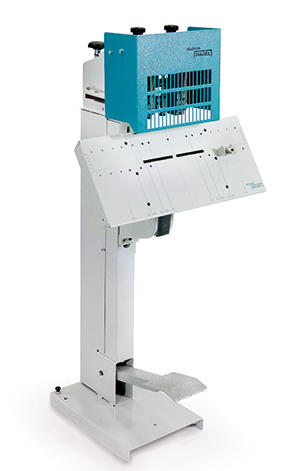

Nagel MULTINAK FS Manual stapler with 2 heads

The Multinak twin-headed staplers allow the efficient production of jobs requiring frequent change-over between flat and saddle stapling. Versatile and durable, the machines are the industry standard for all types of commercial and inplant applications.
The Mutlinak FS is a treadle version and operation is done smoothly by pressing the pedal.
Warranty 1 year.

Specifications :
*Video shows 8308 with 8312P Cross Folder operation. They are sold separately

8312P Cross Folder :
-2 folding plates
-Can be inline with A3 folders
Folding Speed/hr : Adjustable
Folding Plate : 2
Optional : Vertical tray (VRA3)

8314P Cross Folder :
-4 folding plates
-Can be inline with A3 folders
Folding Speed/hr : Adjustable
Folding Plate : 4
Optional : Vertical tray (VRA3)

Suggested combination:
A3 Folders + 8312P Cross Folder
A3 Folders + 8312P Cross Folder + VRA3 Vertical Receiving Tray (for small paper)

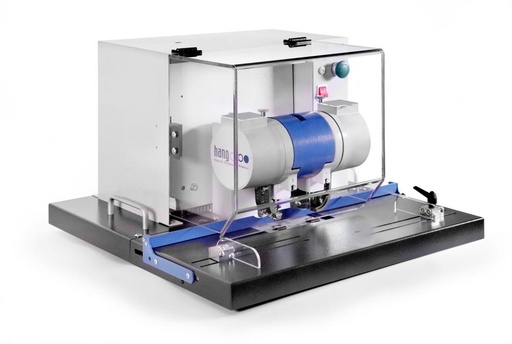

PiccoStar 102-60
Double eyeletting machine with electric drive.
Fixed offset 80mm.
Automatic eyelet feed.
Suitable for paper, cardboard, plastic etc.
Ideal for contracts and certificates.
Punches and eyelets in one work process (the eyelet punches the hole).
Material support with steplessly adjustable rear and self-centring side stops guarantee exact positioning.
Pushbutton to release the eyeletting process.
Available for eyelet diameters with inner diameters of 3 - 7.5mm.
With self-punching eyelets : up to 30 sheets with 80gr./m² paper or material thickness up to 3mm.
With pre-punched material : up to 50 sheets with 80gr./m² paper or material thickness up to 8mm.
Easy to change over for another eyelet size in the range of 3 - 7.5mm.
Options : Foot switch.
Technical Data :
Working depth 60mm.
Machine dimensions : W=610mm x D=580mm x H=370mm.
Weight 58kg.
Warranty 1 year.

Automatic Electric Eyelet Machine for fabric, Flag, Banner, Tarpaulin.
Operating modes : Ground pushing and desktop fixed.
Suitable fabrics : Chemical fabric, felex banner, tarpaulin, canvas, etc...
Speed : 3000pcs/hour.
Inner diameter : 12mm or 16mm.
Size : 650mm x 600mm x 900mm.
Power Supply : 220v-50/60Hz.
Rated power : 200w.
Weight : 55kg.
Warranty 1 year.

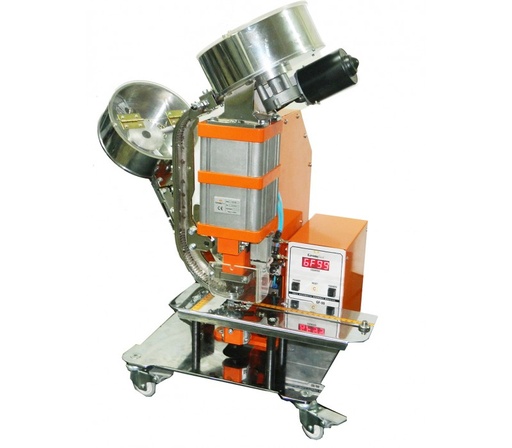

The GF-99 full automatic grommet machine with double dispensers, punches and places the eyelet in a single operation.
Pneumatic press requiring a compressor of at least 8 bar (as an option we recommend our PT50 compressor oil free, characteristics on our site).
Eyelet fastening capacity from 2500 to 2600 pieces per hour (depending on the operator).
The GF-99 press can place eyelets with an internal diameter of 8mm or 10mm or 12mm or 16mm (to be chosen when ordering).
Dual-feed telescopic system, durable assembly.
Control by pedal or push button.
Equipped as standard with an electronic digital counter and a laser pointer.
Table model (stand/support) optional.
Emergency stop button.

Technical characteristics :

Electrical connection : 220v (50/60Hz).
Pressure requirement : 8 bar air compressor.
Table model dimensions : H=95cm x W=85cm x D=50cm.
Weight : 58Kg.
Impact force capacity : 1.8 ton/cm².
Gooseneck depth : 150mm.
Complies with CE safety standards.

The VarioFold Compact is the first folding system worldwide that can be extended from offline to online with minimum outlay, even after it has already been put into operation.
This guarantees you maximum security for your investment.
ROWE goes a step further: whether it is the height adjustment that’s easy on your back, the patented endless folding or the user-specific folding programs – the VarioFold Compact can be extended at any time.
Worldwide first completely modular folding system, can be upgraded on-site to an online solution at any time.
Basic module of the VarioFold Compact with aluminum spaceframe construction.
This makes the base unit extremely light and torsion resistant.
The Floorstand is height adjustable in 40 mm steps which makes it easy on the back of the user.
The Front Delivery Tray has enough space for approx. 5 folded A0 documents.
High quality non-stick coated feed table made of anodized aluminum with excellent sliding properties.
App for easy counter readings: folded documents, foldings and linear meters. The App offers 12 pre-installed folding programs.
This includes the ROWE FOLD APP LT.
With this App an unlimited number of user specific folding programs with packet widths for fan folding of 180 to 305 mm and for cross folding of 210 to 305 mm can be defined.
In addition, with the ROWE FOLD APP SE a fan fold of up to 4 m and a cross fold of up to 2.5 m is possible.
With the App Hot Keys can also be allocated.
Includes the ROWE FOLD APP SE. With this App special folding programs can be generated e.g. for maps or letter heads.
Packet widths for fan folding of 90 to 420 mm and for cross folding of 180 to 420 mm are possible.
Makes unsupervised folding possible and has space for approx. 25 A0 sheets or documents with a total length of up to 30 m.
The output tray can be pulled out to accommodate packet widths up to 320 mm.
Motorised delivery tray which sinks automatically. Makes unsupervised folding possible and has space for approx. 75 A0 sheets or documents with a total length of up to 100 m.
Endless Folding Kit 30 und Endless Folding Kit UNLIMITED
Includes the ROWE FOLD APP SE and additionally the patented endless folding without unfolded pages – either up to 30 m folding length or endless.
The folded documents are completely finished ready for further processing.
Space saving stand for operation of the VarioFold Compact on a suitable table.
The VarioFold Compact requires minimum space.
Warranty 1 year.

Main features :
Pneumatic laminator (compressor not included)
Silicone roll for 120c model and rubber for 50c model
Adjustable Pneumatic pressure regulation
Easy pneumatic roll movement (up and down)
Hands Safety sensor
Self-adaptive, the air pressure system with independent pistons adapts automatically to different thicknesses
Adjustable stainless steel rolls friction
Pedal for safety precedure start
Adjustable speed and temperature regulation

Optionals :
Roll holder with clutch
Rewinder roll
Available in the following versions :
Laylam 50°C
Laylam 120°C
The manufacturers reserves the right to change technical and aesthetical specifications without notice.

Datasheet : 1650
Dimensions : 215x45xh140 cm
Max working width : 1650 mm
Max speed : 6 m/min
Max laminating thickness : 30 mm
Depth table included : 450 mm
Height working table : 920 mm
Net weight : 200 kg
Electrical requirements : 230v - 50Hz / 110v - 60Hz
Power consumption : 7,5A - 1800W

The Stago PB-2015 machine are true workhorses at medium to high runs.
Designed for continuous daily use in offices, law firms, schools, government agencies, copy shops, and small print shops.
The machine enable consistently accurate double-punched holes in paper stacks of up to 60mm.
The ergonomic machine design allows an almost effortless operation by hand lever or foot pedal.
For maximum productivity and performance, we recommend the automatic spindle stroke.
Freely adjustable drill spacing and the sliding table with programme shaft (6 hole patterns) enable economical use even for small volumes. Besides paper, other materials such as cardboard, textiles, leather, and plastics can be machined with hole diameters of 2-15mm.

Electric folding machine A0 and manual cutting machine.
Just over 1m² on the ground !
Powercosinus® Evo is the most compact planetary / planer bending machine on the market.
Powercosinus® Evo has a simple and user-friendly control panel for folding.
8 programs for the folding of the longitudinal plane (1st ply), of which 2 are customizable.
4 programs for the folding of the transverse plane (2nd ply), of which 2 are customizable.
Automatic folding: once the plane is in place, the folder manages everything itself.
A manual cutter 130cm gooseneck laid on top rail.
Working width: 1300mm.
Thickness of cut: 0.8mm.
Useful folding width: 960mm.
Useful folding length: 2.5m (1st fold) / 1.5m (2nd fold).
Folding speed: 12m / min. (> 9 A0 / min.)
Paper weight: 60 to 110 gr.m².
Folding mode First ply : 8 programs with or without margins including 2 customizable.
Fashion folding 2nd fold : 4 programs including 2 customizable.
Sound level: <60dB
Rear paper output.
Warranty 1 year.

A perfect folded product is guaranteed by comprehensive and dignified adjustment possibilities.
Rebuilding for different materials, grammage and folding types is simple and easy and enables an efficient production even for small and medium jobs.
By the gentle friction feeding from below, material can be filled up continuously while the machine is operating.
Thereby the FZM 340 convinces with a maximum production output up to 20.000 Din A4- foldings per hour ? even with large jobs.
Robust and maintenance free, outstanding stability, made for continuous operation.
2 folding pockets, for all common kinds of folding.
Paper size up to DinA3+ (up to width of 340mm).
Paper weight from 40 up to 300 gr./m².
Folding of stapled stacks possible.
Stageless adjustable production output up to 20.000DinA4-foldings/h.
Non-Stop-Function ! Refilling during folding process due to friction feeder.

Continuous output up to 20.000 sheets/h DIN A4.
Paper size up to DinA3+ (up to 340mm width).
Paper weight : 40g up to 300g/m2,also cardboard, plastic sheets...
Paper feeding friction feeder from below.
Paper capacity : 400 sheets refilled from top while running.
Machine dimensions : 3500 / 530 / 1100mm.
Machine weight : 36kg.
Power supply : 230V / 50Hz.
Options :
•Noise insulation.
•stand with / without rollers.
•Tools for creasing at the outlet.
•special dimensions and materials on request.
•Integration in FlexFold folding system.

Folding unit TriFold 360 is designed primarily for folding of pre-creased material up to 350 gsm. It is ideal to combine the unit with Cyklos creasers GPM 450 Speed or AirSpeed 450, however it might be used also with competing creasers by other brands. TriFold 360 enables the creation of 5 fold types including the most common 1/2, C, or Z. The fold is being achieved by a combination of manually adjustable fold plates and high-diameter rubber rollers. This simple and inexpensive but revolutionary solution allowed us to create one of the most demanded product in the world of low-production digital press.
professional fold on all kinds of stock up to 350 gsm
5 fold types including 3 most common (1/2, C, Z)
simple connection with Cyklos creaser GPM 450 Speed and AirSpeed 450
possible connection with creasers by other brands
robust but simple construction for a great price
precise, nicely ironed fold
Parameters
PAPER GRAMMAGE
80 - 350 gsm
PAPER FORMAT
SRA3, A3, A4, A5, atypical formats
SPEED
up to 6.000 sheets/h
depends on speed of creaser
LENGTH OF FOLD PLATES
X = 460 mm
Y = 320 mm
TRANSPORT TABLE DIMENSIONS
l = 620 mm
w = 360 mm
DIMENSIONS
l = 1635 mm
w = 565 mm
h = 1310 mm
WEIGHT 113 kg (nett)
148 kg (brutt)
VOLTAGE / FREQUENCY
230 V / 50 Hz
CONTENT OF PACKING
deflector plate for 1/2 fold
fold plate Y for higher grammage
mobile table

The Morgana BM60 booklet maker from Morgana is a compact and simple to use machine for booklets up to 88 pages of 80gsm paper.
The BM 60 is for hand feeding only.
These versatile machines are able to saddle staple and fold up to 22 sheets of paper and can also be used to side staple or corner staple documents. Booklets with loop staples can also be produced by simply changing the stapling head.
Up to 1800 booklets per hour can be produced from this well proven and sturdy machine.
The Morgana BM60 is a market leader with this entry level product.
Key Features :
1800 booklets per hour.
Saddle staple and fold.
Up to 88 page booklets on 80gsm stock.
Side and corner staple.
Media weight : 60gsm - 250gsm.
Booklet sizes from A4 to A6.
Technical spécifications :
Paper Size : min. 206(W)x275(L)mm
Paper Size : max. 320(W)x457(L)mm
