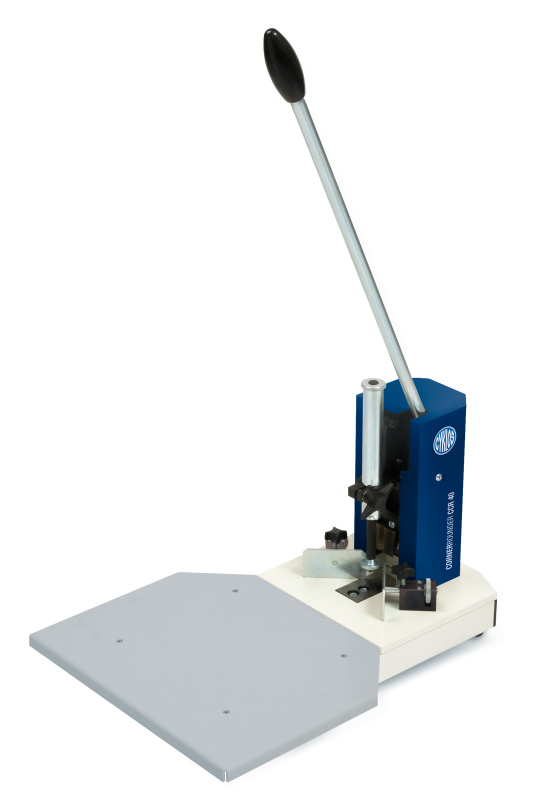

The Cyklos CCR-40 corner rounder is a professional model specifically designed to simplify the operator's work.
The guides are easily adjustable thanks to continuously variable adjustment knobs with a locking mechanism.
The large worktable allows for precise positioning of paper sheets.
The scissor-like cutting system with a steel counter-blade ensures clean and precise cuts.
A large drawer collects the cutting scraps, keeping the work surface clean.
The CCR-40 corner rounder is also suitable for cutting Forex-type panels or thin aluminum sheets.
TECHNICAL SPECIFICATIONS:
Maximum cutting thickness: 40 mm.
Optional tools available: R4, R6, R9, R12, R18, R25 mm and 28 mm - 45° bevel tool.
Worktable dimensions (W x D): 375 x 410 mm.
Cuts: paper, cardboard, plastic (including Forex), and Dibond aluminum foil up to 3 mm thick.
Scissor cutting system with steel blade and counter-blade.
Distance between blade and table edge: 37 cm
Machine dimensions (W x D x H): 40 x 70 x 80 cm
Weight: 17 kg
Warranty: 1 year (cutting tools are not covered by warranty).
Complies with CE safety standards.
