Main features :
Processing time (welding cooling)
Time Programmable for welding up to a max. 5 min.
Programmable time for cooling up to a max. 5 min
Welded steel frame epoxy powder coated.
Fixed welding bar integrated in the working table

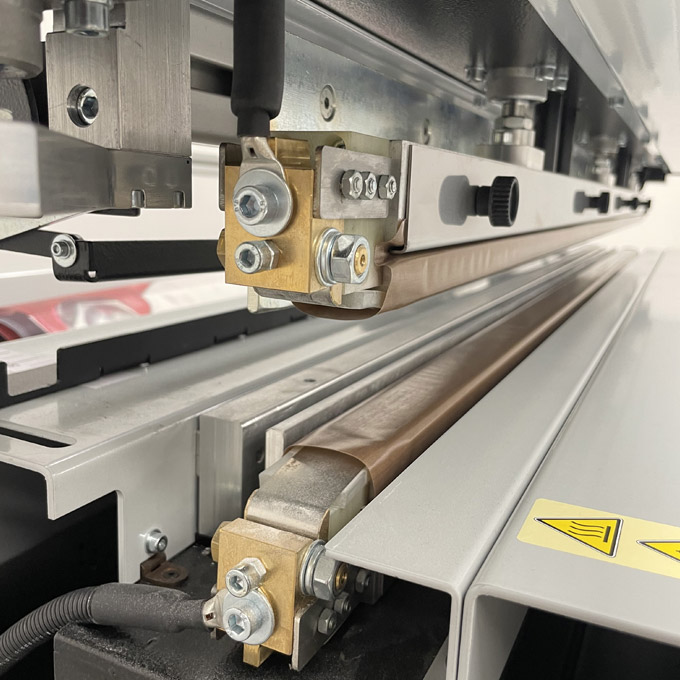

Equipped with a flat teflon heating band
Control unit impulse for uniform distribution of temperature on the seal bar
Easy-to-use control panel to define up to 20 different welding programs
Welding bar powered by pneumatic pistons
Optionals :
Extensions, add 1 meters both sides
Double laser ray
Kit FAP (fast automatic pocket)
Compressor (24lt. - 8bar)
Datasheet : 2600
Heating lenght about : 2600 mm
Heating width about : 25 mm
Working pressure : 220 kg/cm
Electrode temperature : from 70° to 250° C
Air pressure : 7/8 Bar
Dimensions : L3400xP1300xH1400 mm
Machine weight : 870 kg
Height of work table : 1000 mm
Power supply	 : 220/240V 50/60Hz
Consumption: about 14,4kW. 60A 2P+T
