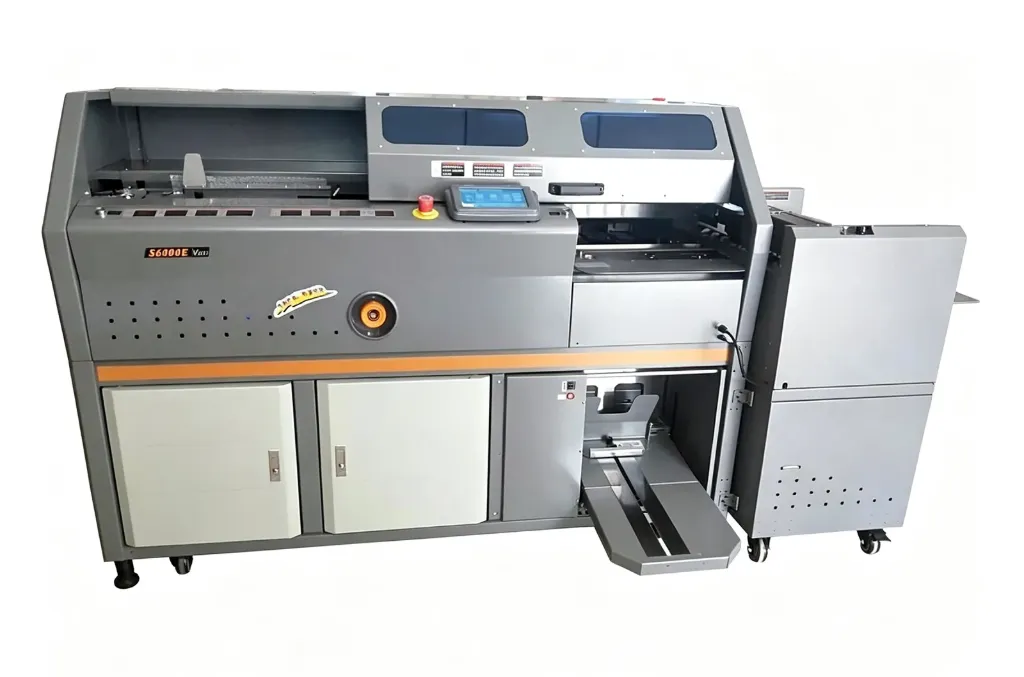

Smart SE6000 Automatic Hotmelt Perfectbinder

Automatic perfect binder using hot-melt (EVA) glue.

Enables continuous operation from the loading unit for your book’s inner sheets.

Automatic carriage movement, milling, side gluing, edge gluing, cover placement, cover creasing, and book collection via the stacker after binding – everything is done automatically.

All you need to do is place your sheets in the clamps and the machine takes care of the rest.

The machine is fitted with a fume extractor for added comfort.

Technical specifications:

Model: Smart SE6000

Display: 10-inch touchscreen

Binding length: Automatic: 110–320 mm // Manual insertion: 460 mm

Binding thickness: 1–55 mm

Binding speed: 300–500 books per hour

Heating time: +/- 45 minutes

Milling: High-speed milling

Max cover size: 660 x 460 mm (660 x 320 in automatic mode)

Min cover size: 270 x 135 mm

Cover creasing: Yes (automatic adjustment)

Glue rollers: 4

Side glue: Yes

Glue height adjustment: Yes

Glue pre-melting tank: Yes

Glue quantity control: Yes

Glue temperature control: Yes

Side glue height adjustment: Yes

Automatic clamp adjustment: Yes

Output: Automatic collection

Sheet jogger: Yes

Fume extractor: Yes

Power supply: AC 220V ±10% 50Hz

Gluing unit dimensions: 1720 x 780 x 1200 mm

Overall dimensions: 1980 x 800 x 1200 mm

Weight : 450kg (automatic collection : 60kg)
