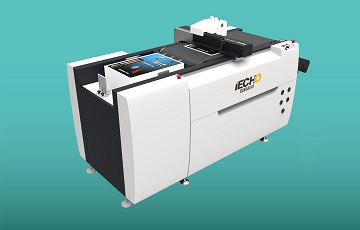

IECHO PK 7050 Automatic Intelligent Cutting system

Automatic cutting table.
The PK 7050 intelligent automatic cutting system features a fully automatic vacuum chuck and an automatic feed feeder.
Equipped with a range of tools, it can quickly and accurately perform full-cut, half-cut, creasing, marking and micro-perforation.
It is suitable for sample marking and short-run custom production for the sign, printing and packaging industries.
It is a cost-effective, intelligent machine that meets all your creative processing needs.
Combine intelligent cutting, creasing and marking functions to meet all your creative processing requirements.
Fully automatic feeding system for more efficient production. Cutting of shaped labels.
Cutting and creasing of all types of cardboard. With its high-definition CCD camera, it automatically and with high precision positions various materials, automatically detects cutting contours, and resolves issues such as manual positioning. Barcode scanning enables rapid processing of cutting jobs.
Technical specifications:
Cutting area: 750 mm x 530 mm.
Machine floor dimensions: W=2600mm x D=1000mm x H=1150mm.
Standard cutting tools: universal cutting tool, creasing wheel, kiss-cut tool.
Cutting materials: car decals, stickers, vinyl, lightweight cardboard, laminated business cards, polypropylene sheet, reflective material. Cutting thickness: up to 2 mm.
Maximum cutting speed: 1000 mm/s.
File formats: PLT, DXF, HPGL, PDF, EPS.
Complies with CE safety standards.

SPECIFICATIONS:
Cutting head type: PK
Machine type: PK0705
Cutting area (L x W): 750 mm x 530 mm
Footprint (L x W x H): 2,600 mm x 100 mm x 1,150 mm
Cutting tools: universal cutting tool, scoring wheel, kiss-cut tool
Cutting materials: car decals, stickers, card stock, PP paper, reflective material Cutting thickness: <2 mm
Feed system: Vacuum feed
Maximum cutting speed: 1000 mm/s
Cutting accuracy: ±0.1 mm
File formats: PLT, DXF, HPGL, PDF, EPS
Voltage: 220 V ± 10 per cent, 50 Hz
Power: 4 kW
