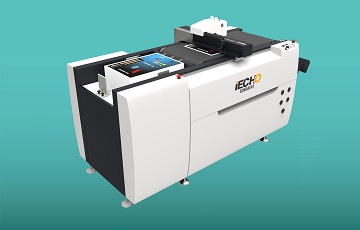

IECHO PK 6040 Plus Automatic Intelligent Cutting system with oscillating tool

The PK automatic smart cutting system features a fully automatic vacuum chuck and an automatic lifting and feeding platform.
Equipped with a range of tools, it can quickly and accurately perform cutting, half-cutting, creasing and marking operations.
It is suitable for sample production and short-run customised production in the signage, printing and packaging industries.
It is a cost-effective, intelligent machine that meets all your creative needs.

High-precision vision registration system (CCD)
With a high-definition CCD camera, it can perform automatic and precise contour cutting of various printed materials, avoiding manual positioning and printing errors for simple and accurate cutting.
The multi-positioning method can accommodate different material processing requirements, fully ensuring cutting accuracy.

Automatic sheet feeding system suitable for the automated processing of printed documents in short-run production.
QR Code Scanning System
The IECHO software supports the scanning of QR codes to retrieve the relevant cutting files stored on the computer for cutting tasks, thereby meeting customers’ requirements for the automatic and continuous cutting of various types of materials and patterns, thus saving time and reducing the need for manual labour.

Computer, stand, monitor, mouse, keyboard and compressor* included
*Entry-level compressor included for low to medium usage.
A high-capacity compressor is available as an optional extra for high-volume applications.

SPECIFICATIONS:
Cutting head type: PK Plus
Machine type: PK0705 Plus
Cutting area (L × W): 750 mm × 530 mm
Footprint (L × W × H): 2350 mm × 1000 mm × 1150 mm
Cutting tools: oscillating blade, universal cutting tool, bread wheel, kiss-cut tool
Cutting materials: KT board, PP paper, foam board, self-adhesive film, reflective material, card board, plastic sheeting, corrugated board, grey board, corrugated plastic, ABS board, magnetic self-adhesive film
Cutting thickness: <6 mm
Vacuum system
Maximum cutting speed: 1000 mm/s
Cutting accuracy: ±0.1 mm
File formats: PLT, DXF, HPGL, PDF, EPS
Voltage: 220 V ± 10 % 50 Hz.
Power: 4 kW
