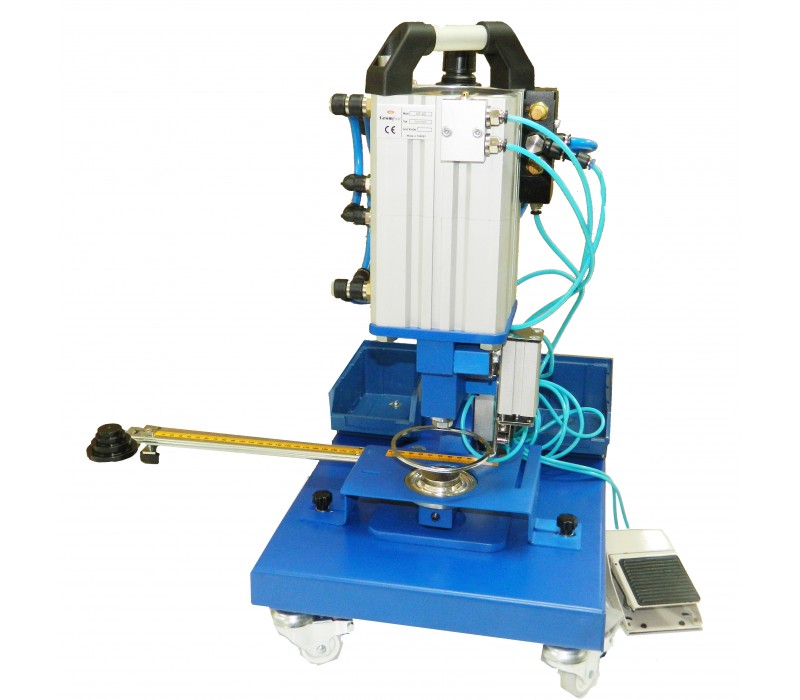

GF-10B Semi Automatic Pneumatic Eyelet & Grommet Machine

https://www.printemat.be/web/image/product.template/8938/image_1920?unique=337e068

Interchangeable dies setting.
Heavy duty durability.
Easy to carry.
Suitable numerous materials.
Machine body made of high quality best quality iron casting laser cutting.
Impact Press Force : 2000kg/cm² (2 tone).
Working Pressure : 4 Bar up to 8 Bar.
Air consumption : 0,3 Litre
Hand security ring Ce certificated.
GF-10-B can fasten on bench or table or mobile base with wheel.
GF-10-B can work with any small compressor (option).
Compatiable with all self piercing grommet & eyelet dies number #1.7 up to #5.5 , and big size #7.5(25mm), #8.5(30mm), #GM34(28mm), #12LN (40mm), #12SN(40mm) curtain grommets and oval 40x20 , oval 42x22 DIN oval grommet and washer all size oval grommets and 40mm DIN Truck cover 40mm eyelet and washer.
Using areas: Curtain industry, textile industry, sign banner industry, pvc industry and other related industries.
Aligment tool incluted.
Technical Specifications :
Net Weight : 21kg.
Throat Depth Dimension : 90mm.
Height Dimension : 380mm.
Width Dimension : 200mm.
Depth Dimension : 130mm.
Bottom Die adaptor hole : 9,5mm.
Top Of Die Screw : 6,35mm.
Warranty 3 years.

0.00 € 0.0 EUR 0.00 €

1,250.00 €
