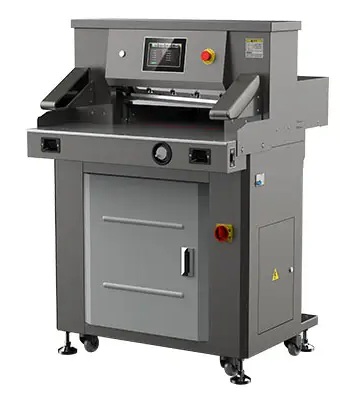

Printemat DIGICUT 5208 is an integrated variable frequency programmable electric paper cutter, featuring a 7-inch color touchscreen that offers manual, equal division, and programmable operation modes, catering to diverse requirements.
This equipment comes with a blade depth adjustment function, allowing easy external adjustment without disassembly.
Its unique integrated appearance, coupled with adjustable daylight lamps, provides a clearer and more convenient operational experience.
7-inch touchscreen :
Offering three different operating modes: manual, equal division, and programmable, meeting daily work requirements with easy switching and simple operation.
The user-friendly perspective makes the usage more comfortable and convenient.
MULTIPLE SAFETY PROTECTIONS :
To provide comprehensive safety protection, the machine is equipped with an infrared safety protection design and standby alarm indicator function.
The rear cover's safety protection complies with CE standards, adding more safety assurance to the operation.
SLANTED BLADE PAPER CUTTING PATENT :
Having obtained the utility model patent for slanted blade paper cutting (Utility Model Patent No.: ZL202021215296.6)
This innovative design enables easier cutting, particularly suitable for thick paper cutting. The cutting process is more efficient, ensuring precision and convenience, thereby providing users with a superior cutting experience.
TOP-SUSPENDED BALL SCREW PAPER PUSHING STRUCTURE :
The paper pushing platform is designed without grooves, combined with the top-suspended screw paper pushing technology, achieving a more stable and smooth paper pushing operation.
This innovative design not only enhances the stability of the machine but also significantly improves the precision of the cutting process, ensuring accurate cutting results.
PRECISION GEAR-DRIVEN PAPER CUTTING MOTOR :
By utilizing a precision gear-driven paper cutting motor, the transmission efficiency of the cutting machine has been significantly enhanced.
Additionally, the machine is equipped with independent variable frequency technology. With the added variable frequency technology, not only does it enable faster, more precise, and quieter blade operations, but it also effectively safeguards the machine's motor, reducing potential damage caused by unstable voltage and extending the machine's lifespan.
THICKENED CAST MACHINE FRAME STRUCTURE :
Thickened frame design and precision machining ensure cutting accuracy meets professional standards and provides outstanding durability.
The machine features a novel and stylish appearance, equipped with four casters for easy mobility.
Specifications :
Max. Cutting Size	520mm/20. 47 inch
Min. Cutting Size	30mm/1. 18 inch
Cutting Thickness	80mm/3. 14 inch
Cutting Accuracy	±0. 3mm
Display	7 inch Touch Screen
Clamp Mode	Electric
Pushing Paper Mode	Electric
Cutting Paper Mode	Electric
Power	220V(110V)50Hz(60Hz); 1600W
Net Weight	200kg/440. 92 lb
Dimensions	920*1170*1250mm
