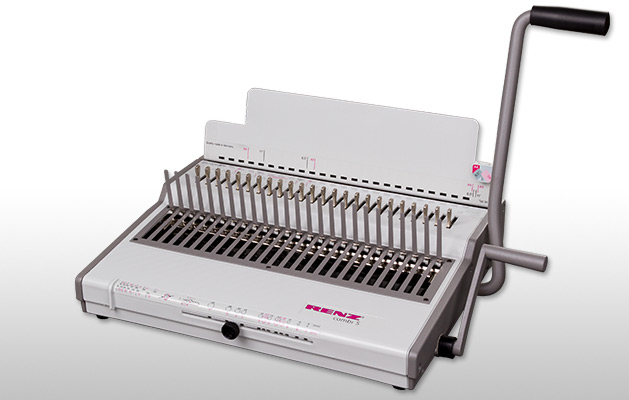

Combined manually operated punch and binding machine, up to max. size 34cm.
For more advanced requirements.
For all documents up to 24 cm (13.5") binding width.
A combined two-lever system for manual punching and binding. Adjustable margin control and disengageable punch pings for easy format adjustment.
US-pitch - 21 rings in A4.
Pages can be exchanged or added as often as required.
Opens flat and stays flat.
Ergonomic design: workflow from top to bottom.
Quality "Made in Germany".
Working width: max. 340mm.
Punching thickness: 25sheets 70gr./m² paper.
Book thickness: max. : 500sheets 80 gr./m² paper.
Binding capacity: max. 250 books/h (depending on product, logistics and operator).
Disengageable punching pins: yes.
Number of punching pins in US pitch: 34 (punches up to ~ 1,5 mm to the edge).
Adjustable margin: yes.
Warranty 1 year.
CE-Conformity.
