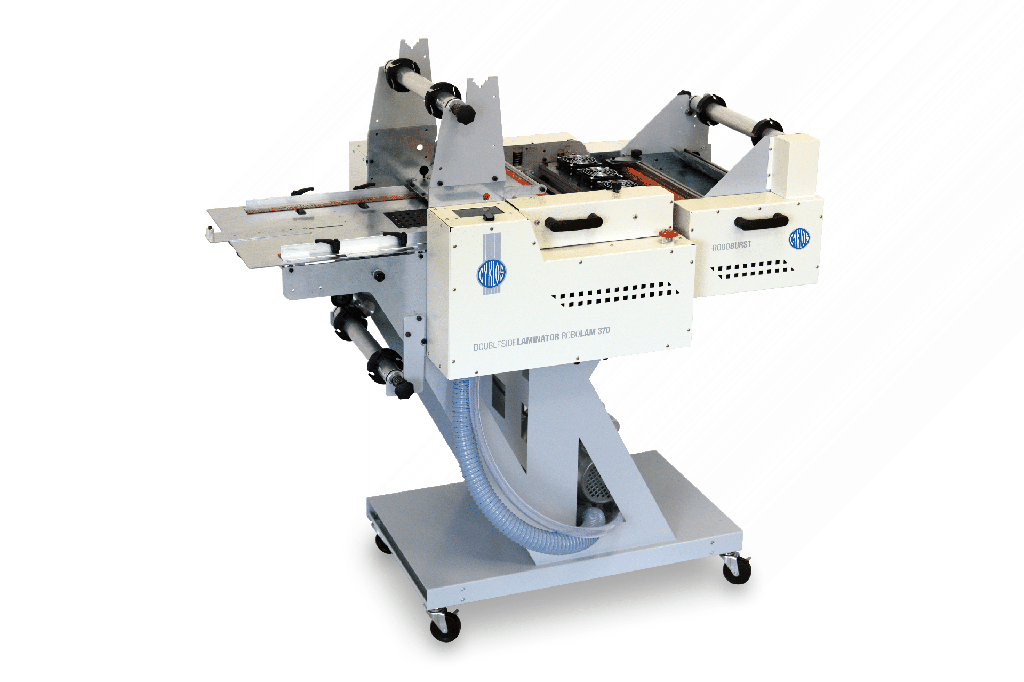

Automatic double side laminator CYKLOS ROBOLAM 370

Our new Laminator has been designed as a multi-functional device combining interchangeable modular finishing device. For the time being, it is possible to connect a tearing separation unit, which also separates doble-sided lamination. We can also equip this unit with an unwinding device for the foiling function. In addition, we will soon launch a cutting unit that is completely unique to cut a sheet or divide it into business cards as part of the lamination process. This unit adjusts fully automatically in both cutting axes or by reading cutting marks.

Single and double side laminating. Two pairs of silicon heated rollers. Total 4 pcs heating rollers.Each one independently temperature regulated. 2 pcs transport rollers. Touchless temperature sensors position in the middle of each roller measuring roller surface. Laminator suitable for all kind of thermal laminating films. Roll holders for big commercial rolls up to 3000 m.

small footprint
single and double side laminating
use all kind of films up to 250 mic
two pairs of silicon heated rollers
any film thickness and type
mobil delivery table is standart equipment
double sheet detection and sheet length control
automatic regulation of the processing speed depending on the temperature of the laminating rollers
easy setup
modular Burst and Cut separator
automatic feeding with overlap or spacing control
quick set roll holders
roller open type
optional feed tray extension set from the standart 62 cm to 100 cm
optional finishing unit RoboBurst or RoboCut
optional bottom advanced film perforator
optional RoboBURST Foiling unit
1" / 25.4 mm roll core holder
2.25" / 57 mm roll core adapter
3" / 77 mm roll core adapter (classic style)

Parameters :
-WORKING WIDTH : 250 - 365 mm, min. paper format 250 x 150 mm
-GRAMMAGE : 135 - 400 g/m2 (laminating), 200 - 400 g/m2 (foiling)
-MAX.LAMINATING FOIL THICKNESS : 250 mic (for RoboBurst single side 40 mic, double side 30 mic)
-ROLL SIZE : Max 0.38 x 3000 m (25 mic)
-ROLL CORE : 77 mm (standart)
-INPUT CAPACITY : 8 mm
-SPEED : 8 m/min
-DIMENSIONS : 1130 x 690 x 1250 mm
-PACKING SIZE : 1 pallet - 1200 x 800 x 1210 mm (wooden box)
-WEIGHT : netto 110 kg (including delivery table)
-VOLTAGE / FREQUENCY / POWER : 230 V/ 50 Hz/ 15A
-CONTENT OF PACKING : 2 x roll holders, mobile delivery table

OPTIONAL ACCESSORIES :
-Feed tray extension
-Finishing unit RoboBurst
-Finishing unit RoboCut (we will introduce soon)
-RoboBurst foiling unit, 1"/25.4mm roll core holder, 2.25"/57mm roll core adapter, 3"/77mm roll core adapter (classic style)
-Base core holder shaft
-Bottom advanced film perforator
